Connector Locations

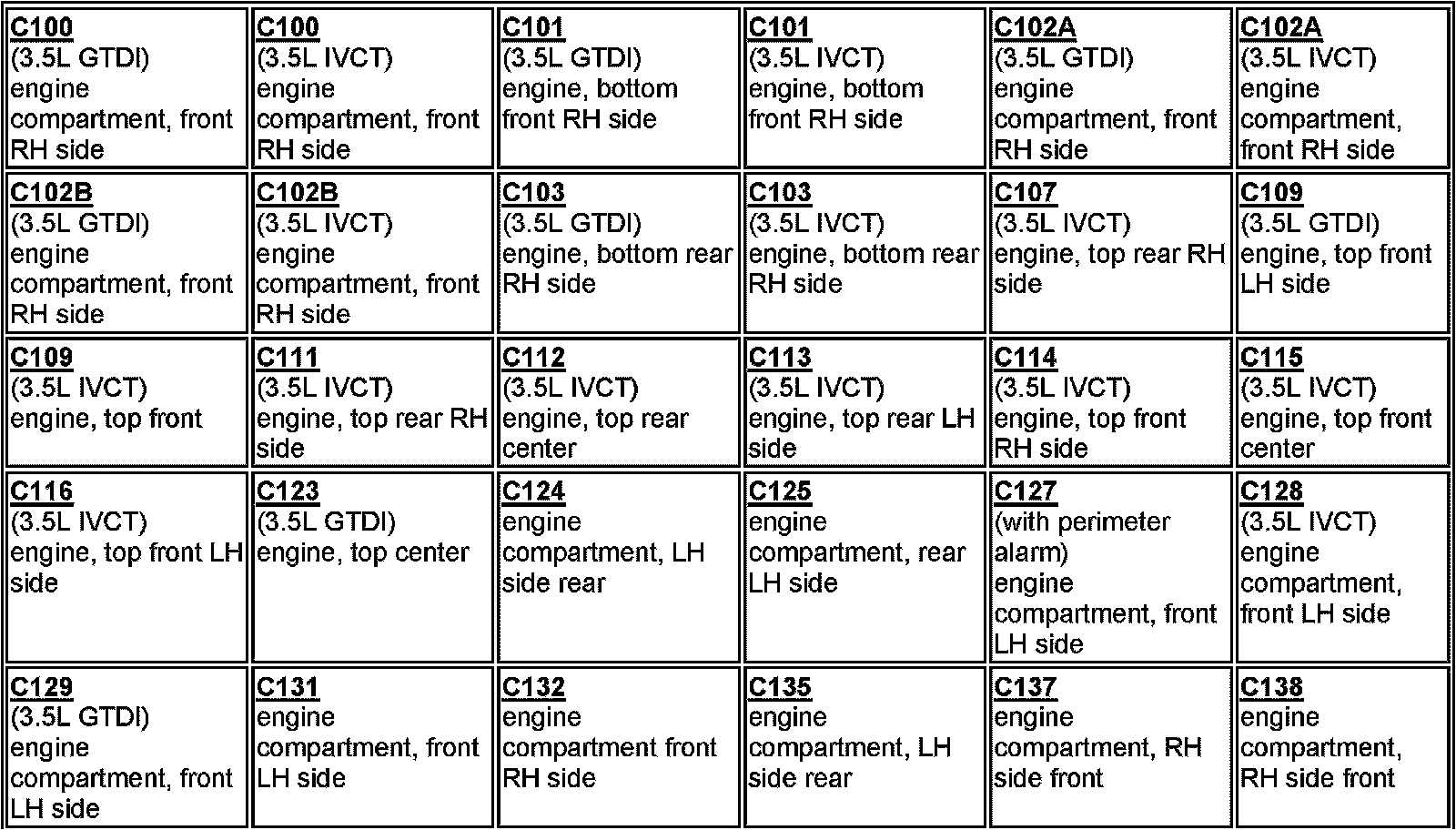

C100-C138:

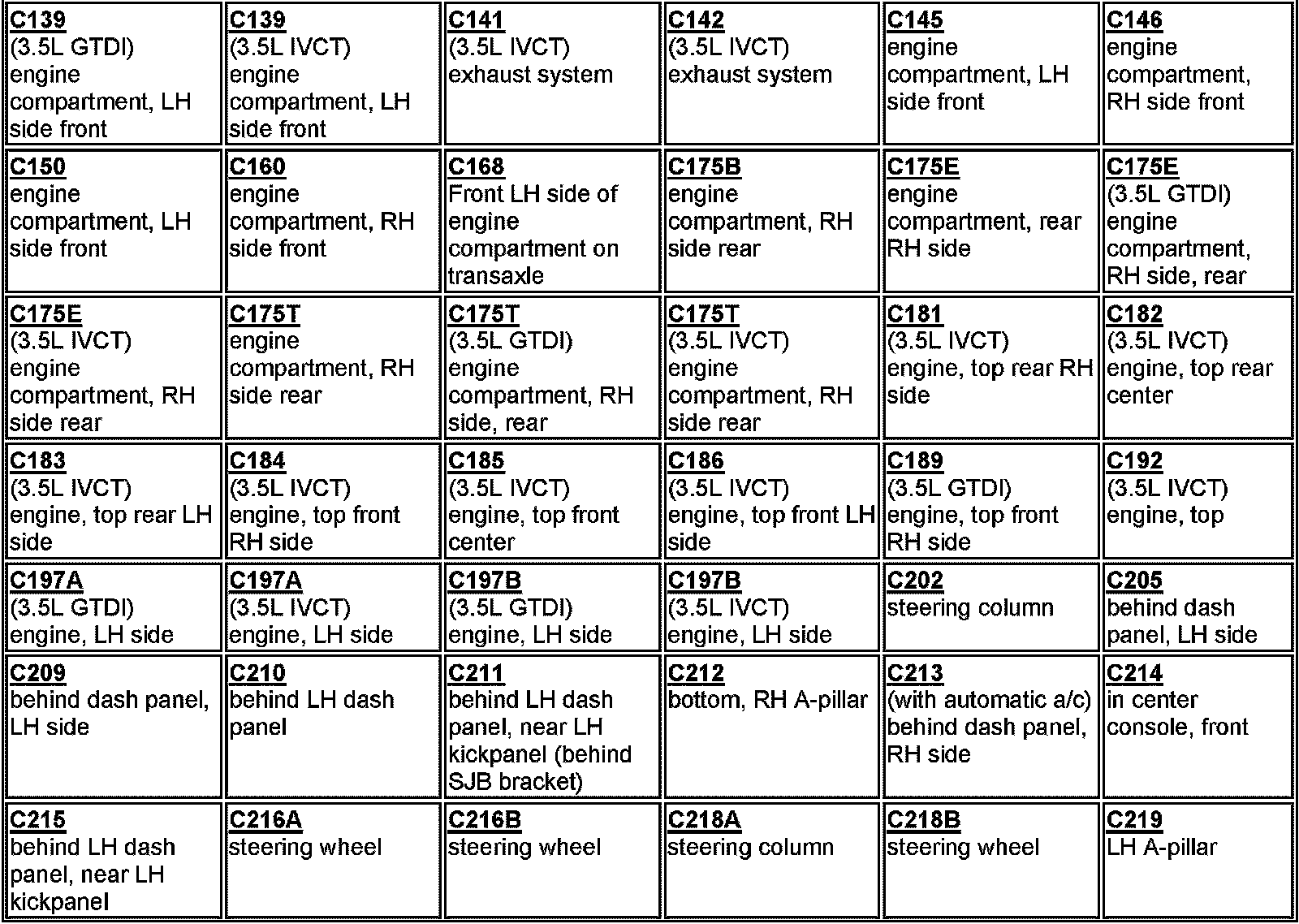

C139-C219:

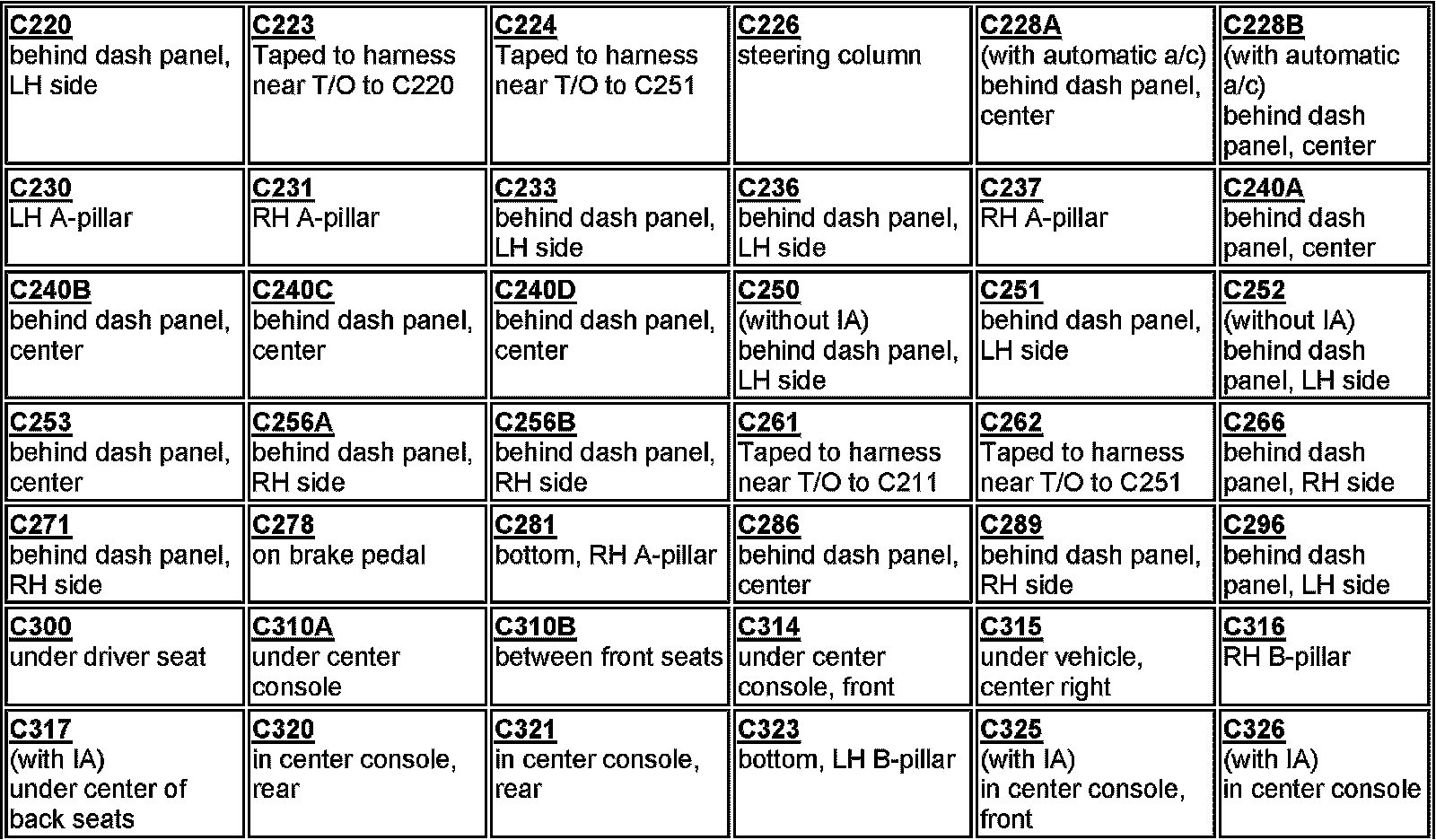

C220-C326:

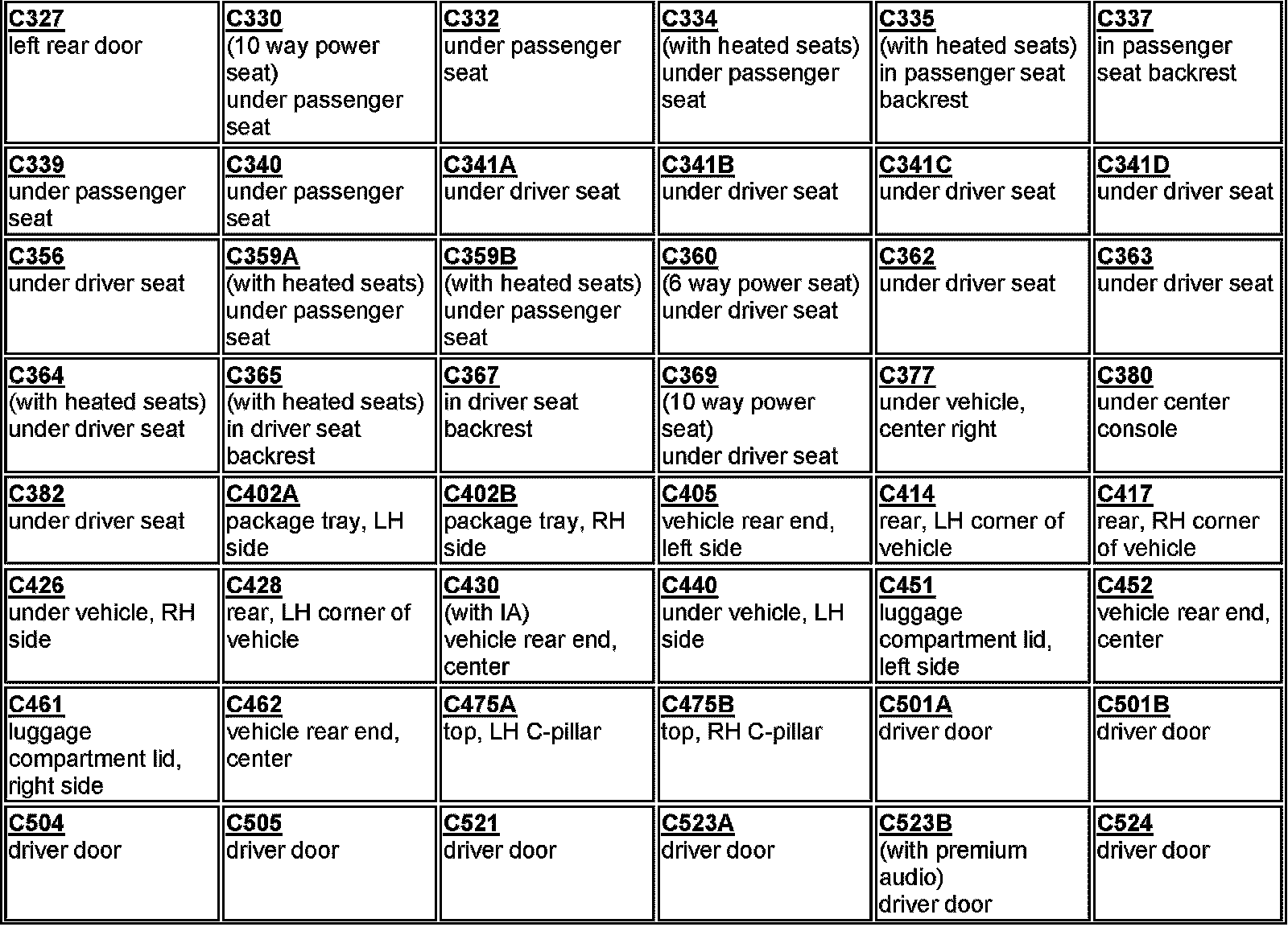

C327-C524:

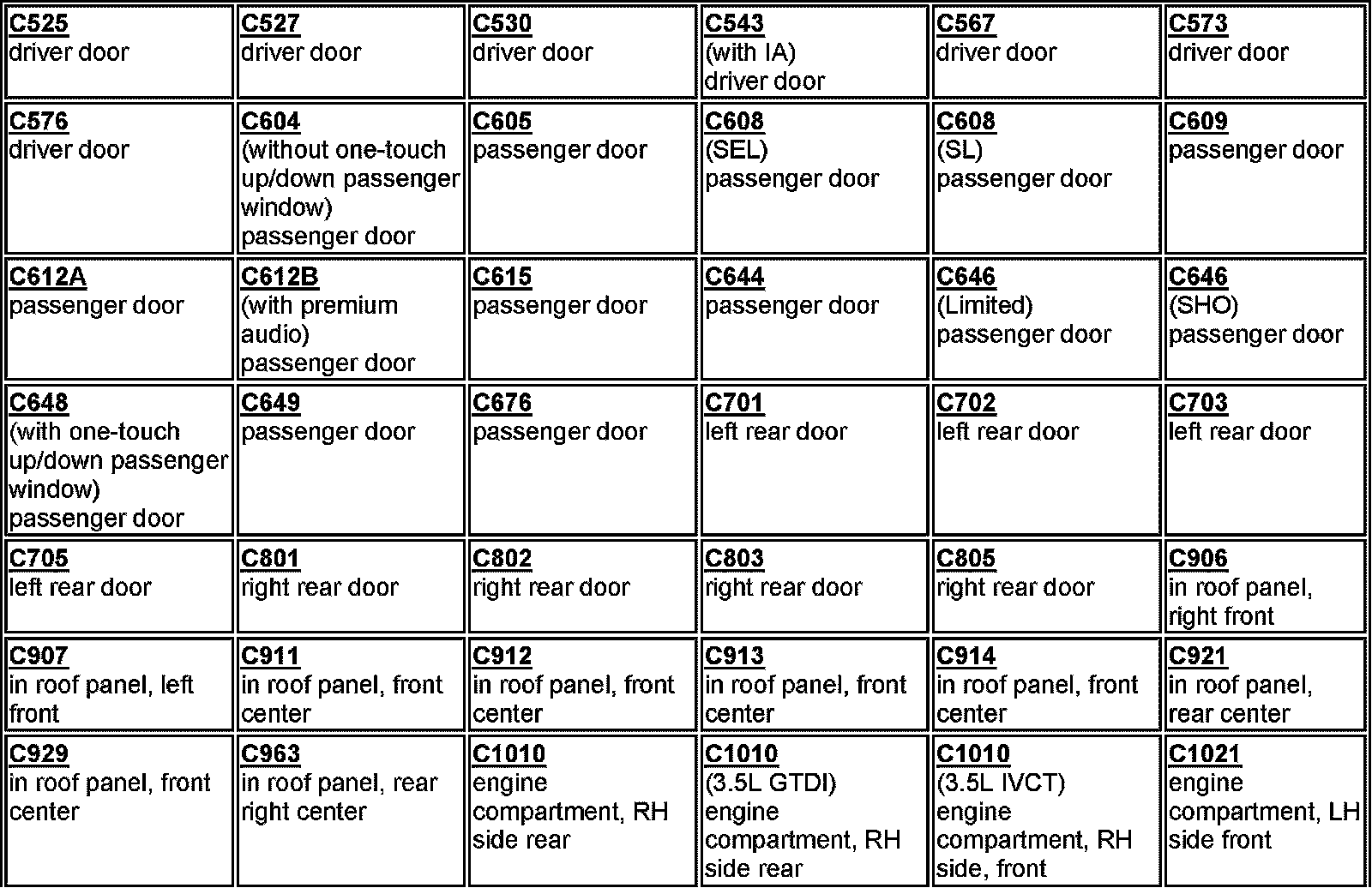

C525-C1021:
C1023-C1381T:

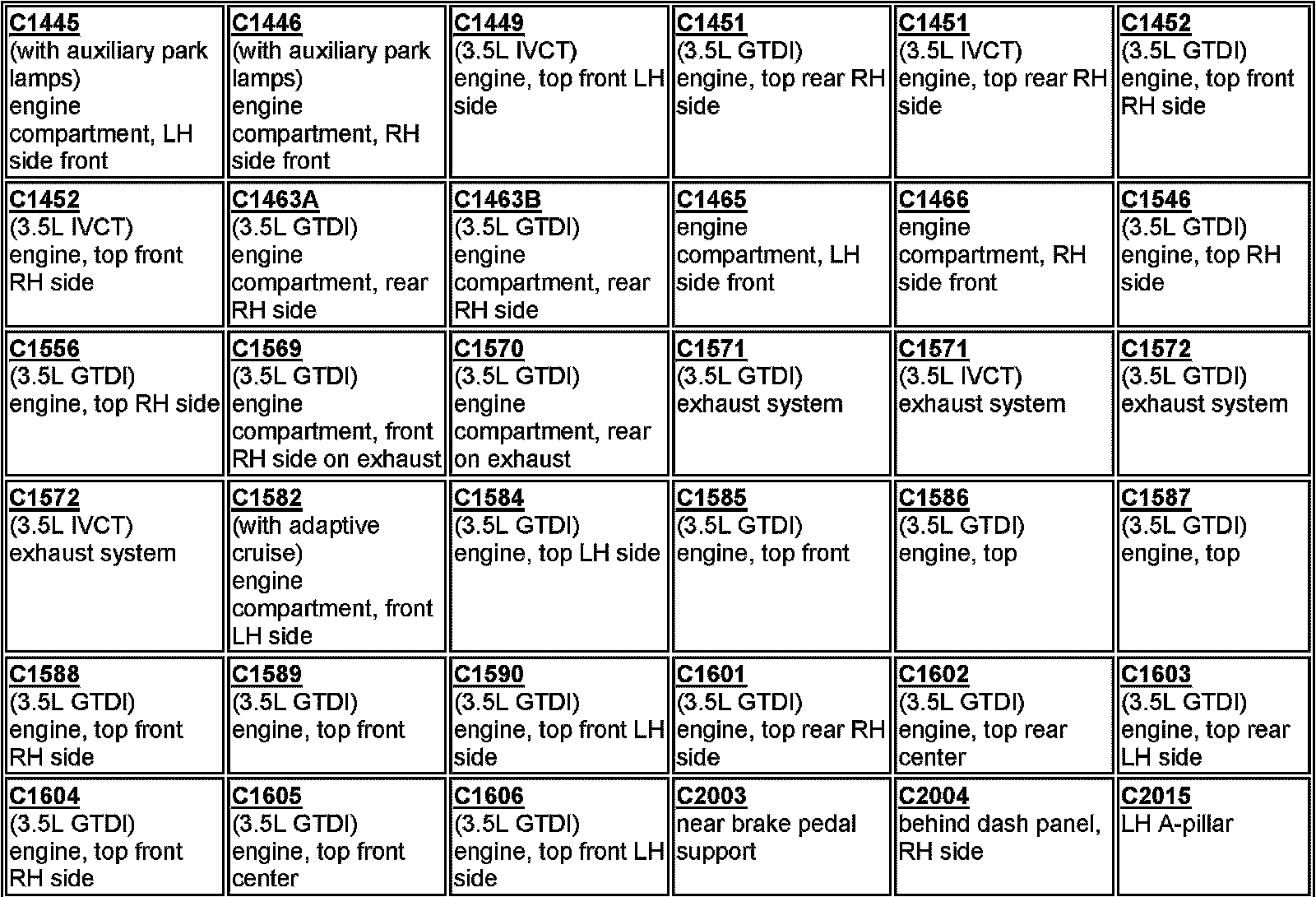

C1445-C2015:

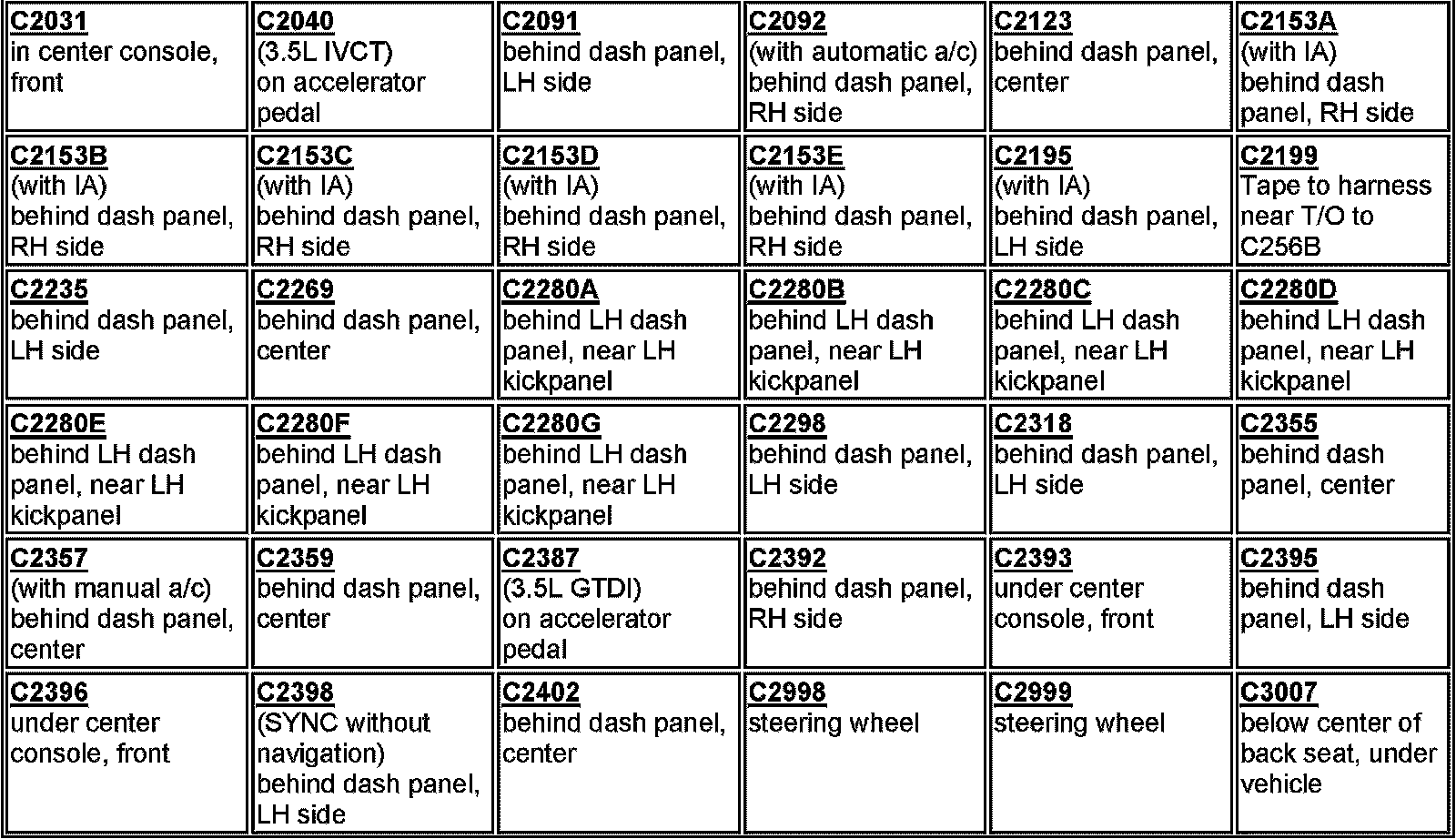

C2031-C3007:

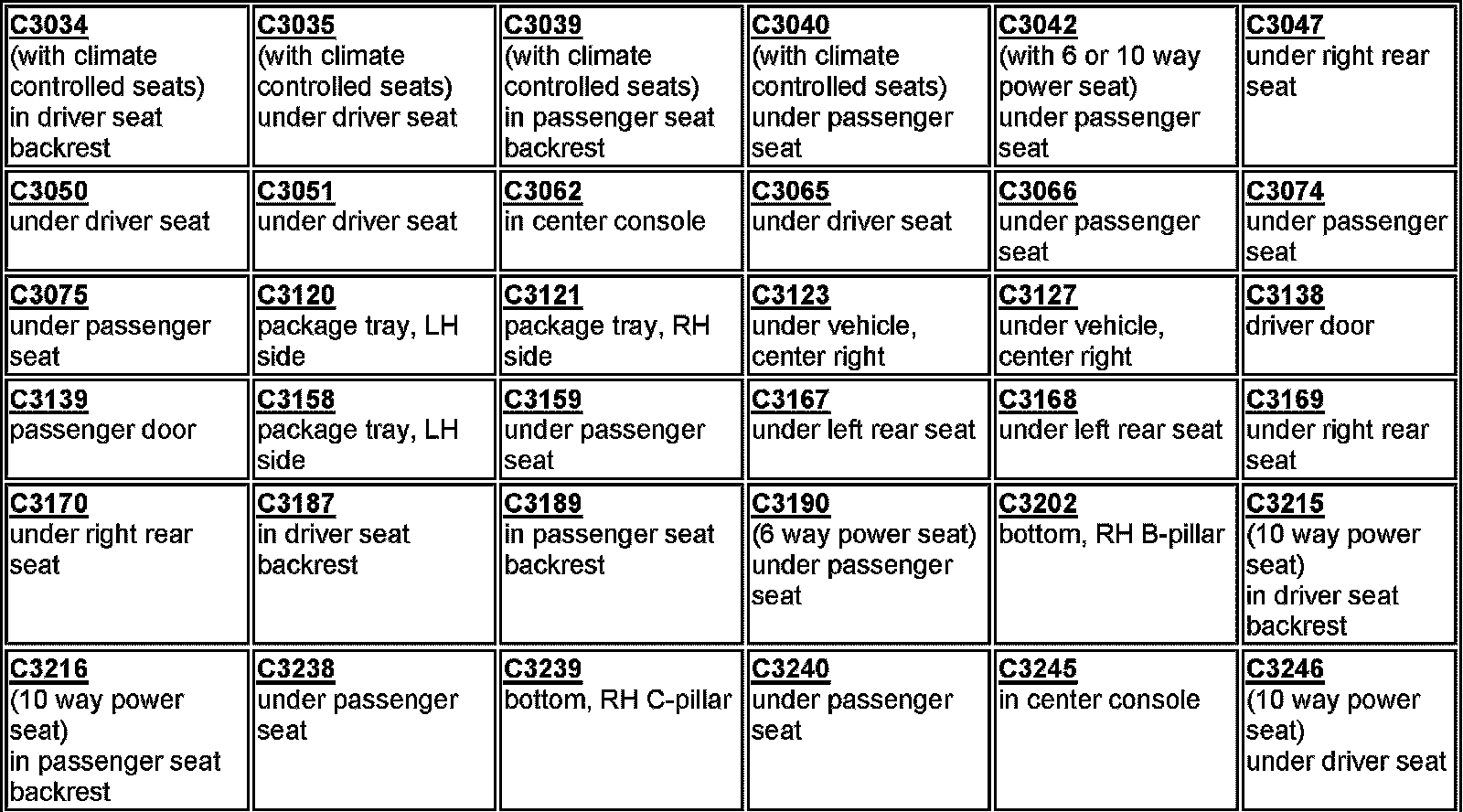

C3034-C3246:

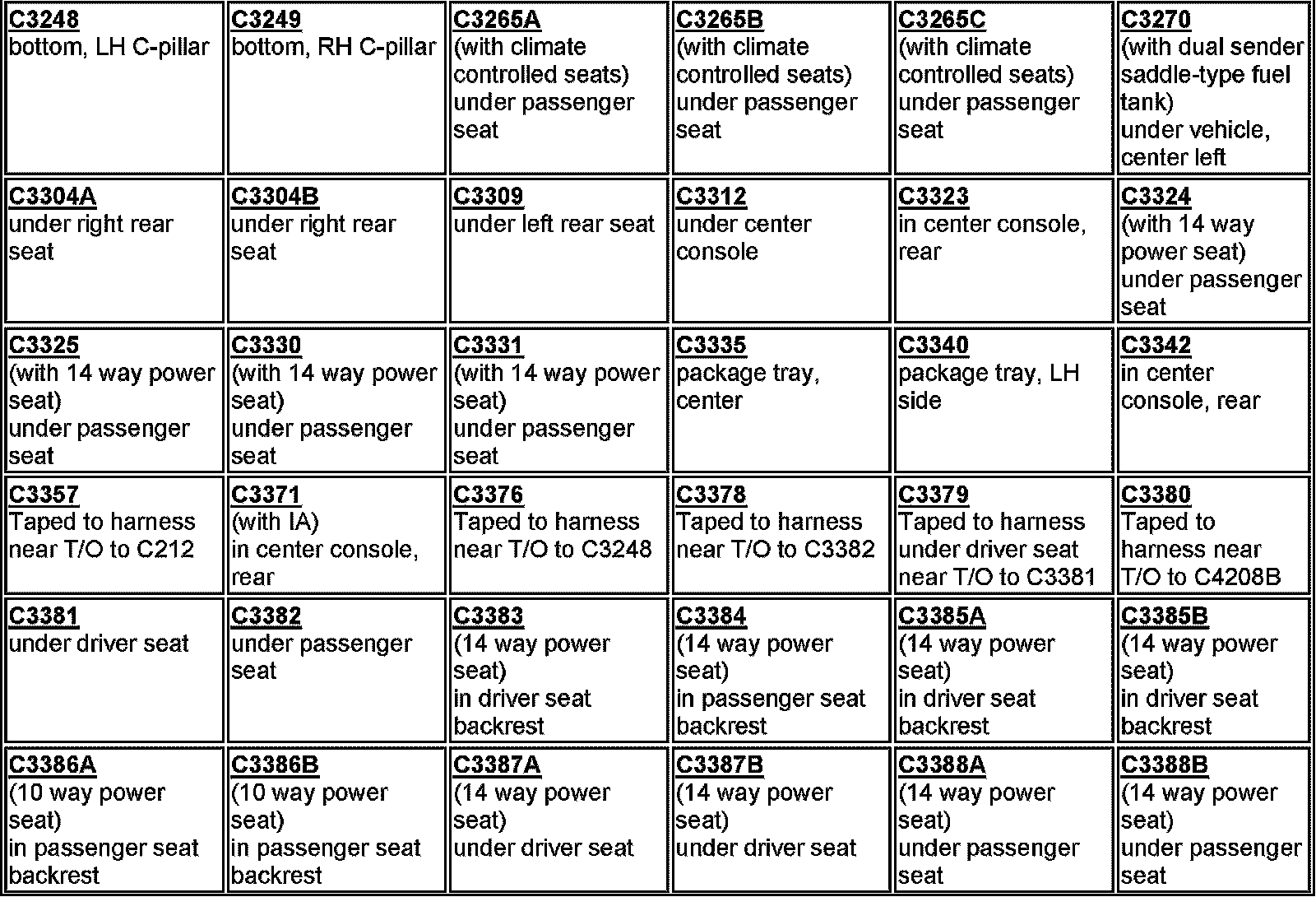

C3248-C3388B:

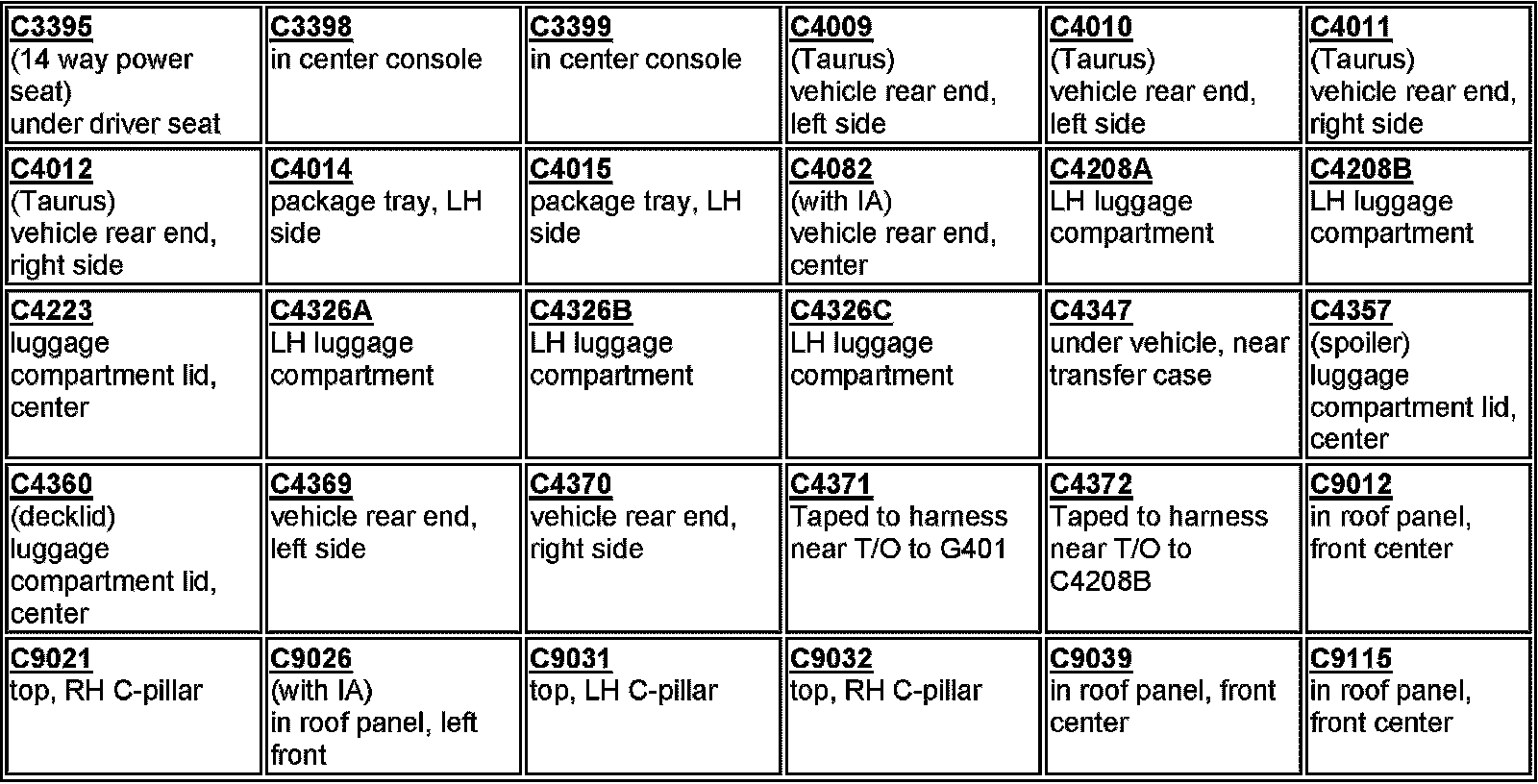

C3395-C9115:
