PCM DTC Chart

Starting System

DTC Charts

NOTE: Refer to Description and Operation, Intelligent Access with Push Button Start in Anti-Theft - Passive Anti-Theft System (PATS) Anti-Theft - Passive Anti-Theft System (PATS), to review the procedures for achieving the various ignition states (ignition OFF, ignition in ACCESSORY, ignition ON, ignition START) on vehicles with this feature.

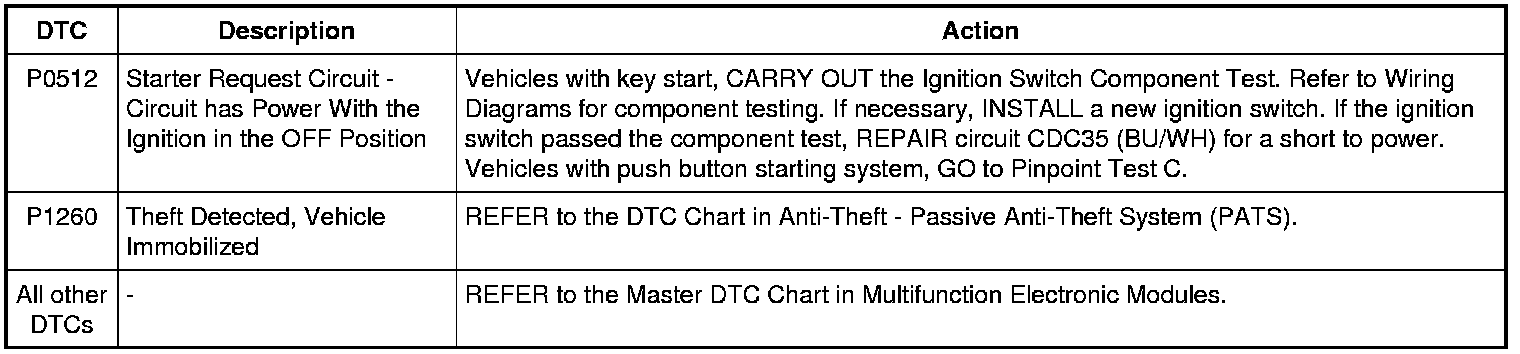

PCM DTC Chart
