Sunshade Module

Sunshade Module









Removal and Installation

1. Remove the rear seat. For additional information, refer to Seating Rear Seat.

2. Remove the parcel shelf. For additional information, refer to Parcel Shelf Service and Repair.

3. Disconnect the sunshade module electrical connector.

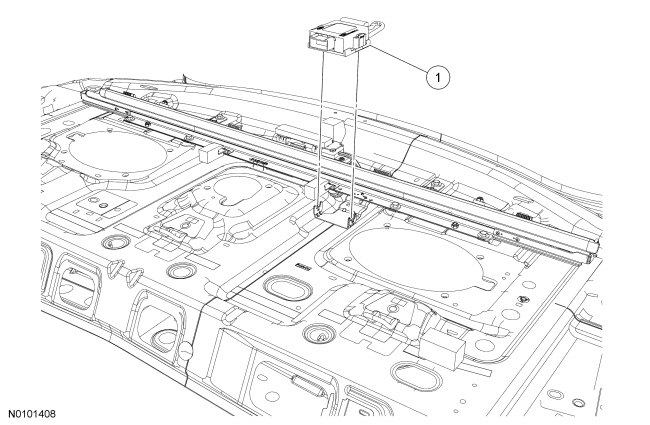

4. Press the tabs on the sunshade module to release the sunshade module from the sunshade module bracket.

5. To install, reverse the removal procedure.
