Front Controls Interface Module (FCIM)

Front Controls Interface Module (FCIM)

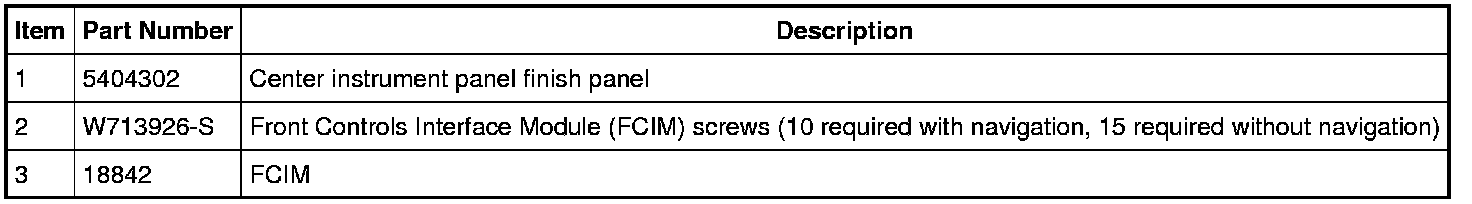

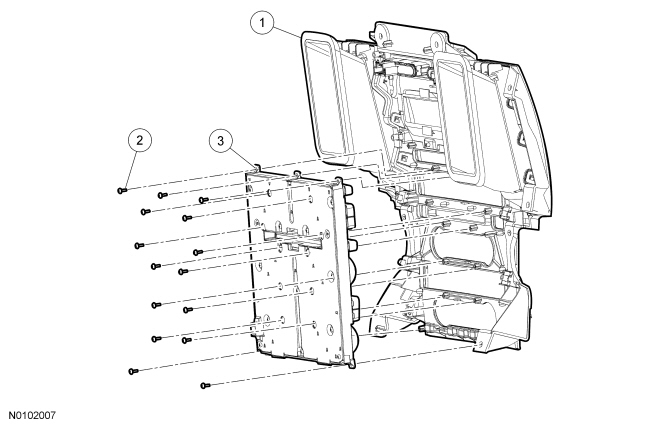

NOTE: Without navigation shown, with navigation similar.









Removal and Installation

1. Remove the center instrument panel finish panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel - Center.

2. Remove the 10 screws (with navigation) or 15 screws (without navigation) and the Front Controls Interface Module (FCIM).

3. To install, reverse the removal procedure.
