Variable Valve Timing Solenoid: Service and Repair

Variable Camshaft Timing (VCT) Oil Control Solenoid









Removal and Installation

1. Remove the LH or RH valve cover. Refer to Engine Service and Repair.

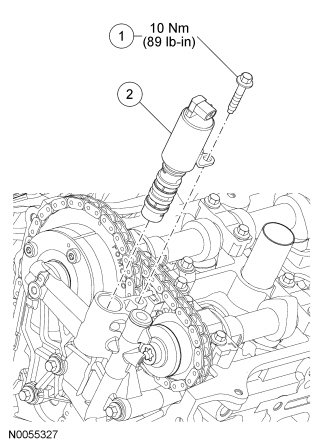

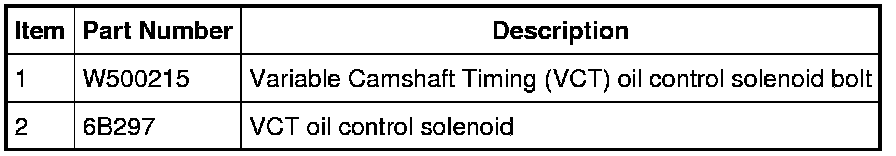

2. Remove the bolt and the Variable Camshaft Timing (VCT) oil control solenoid.
- To install, tighten to 10 Nm (89 lb-in).

3. To install, reverse the removal procedure.
