Power Window Switch: Service and Repair

Window Control Switch

Removal and Installation

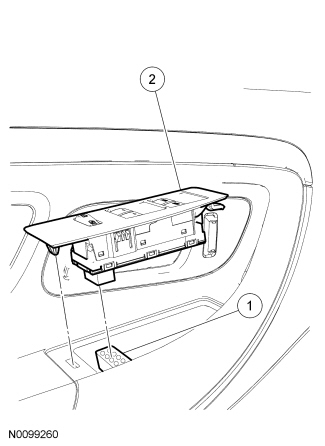

NOTE: Driver front shown, all others similar.

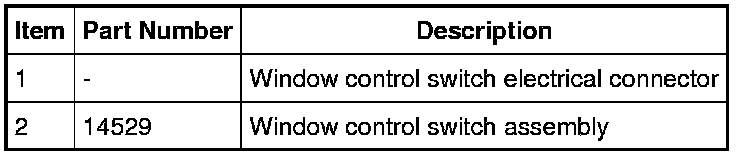

1. Remove the window control switch.
- Using a suitable tool, gently pry the regulator control switch bezel up at the rear to release the retaining clip.

- Position the switch assembly rearward to unlock the front locking tab.

- Disconnect the electrical connector.

2. To install, reverse the removal procedure.
