Window adjust switch, passenger side (SL, SEL): Schematic

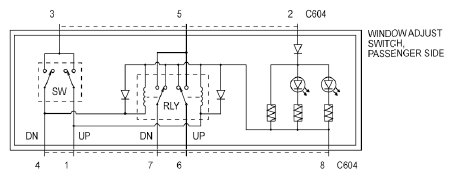

Fig 1: Window Adjust Switch, Passenger Side (SL, SEL) - Schematic
G07337050Courtesy of FORD MOTOR CO.
