Anti-Lock Brake System (ABS) Module: Notes

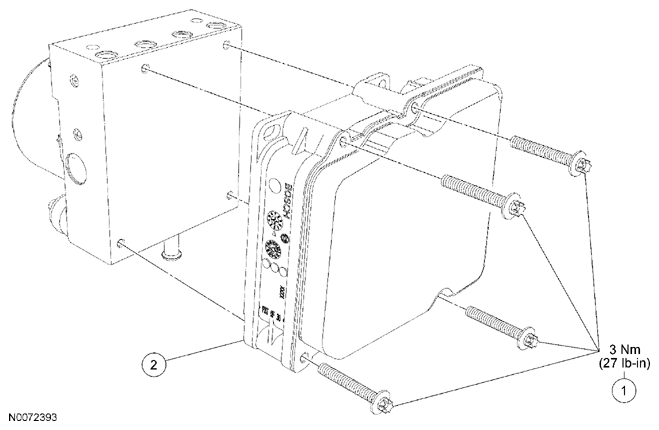

Fig 1: Anti-Lock Brake System (ABS) Module Replacement Components With Torque Specifications
G07806230Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 13254806 ABS module screws (4 required)
2 2C219 ABS module
