Connecting Rod Bend




Connecting Rod Bend





NOTE: Refer to the appropriate engine data for the specification.

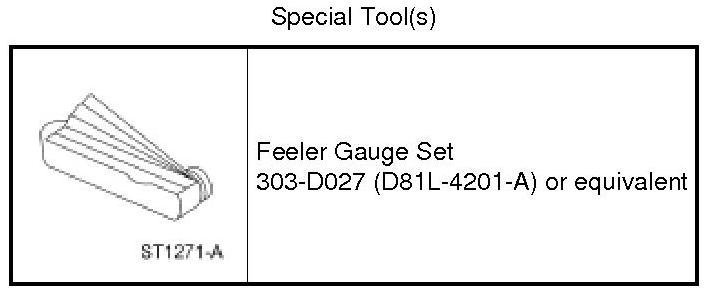

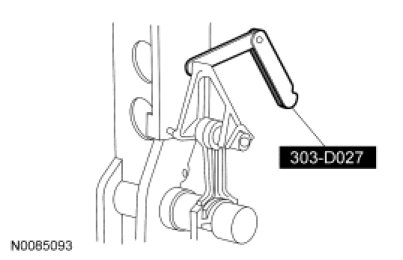

1. Using the Feeler Gauge Set, measure the connecting rod bend on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the bend measurement is within specification.
