Piston Pin Diameter




Piston Pin Diameter

NOTE: Refer to the appropriate engine data for the specification.

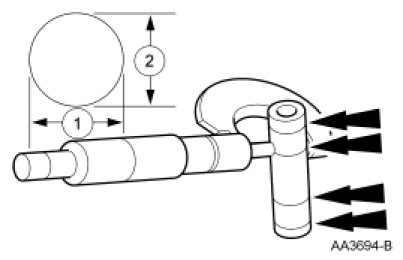

1. Measure the piston pin diameter in 2 directions at the points shown. Verify the diameter is within specification.
