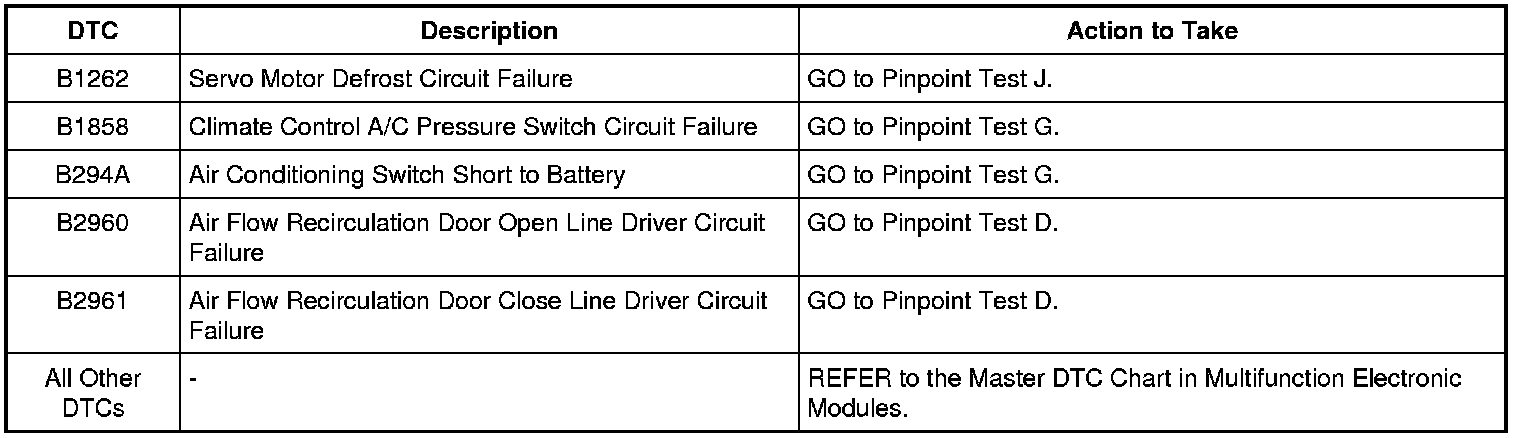

Generic Electronic Module (GEM) DTC Chart
Climate Control System
DTC Charts
Generic Electronic Module (GEM) DTC Chart
