Fog/Driving Lamp: Service and Repair

Fog Lamp

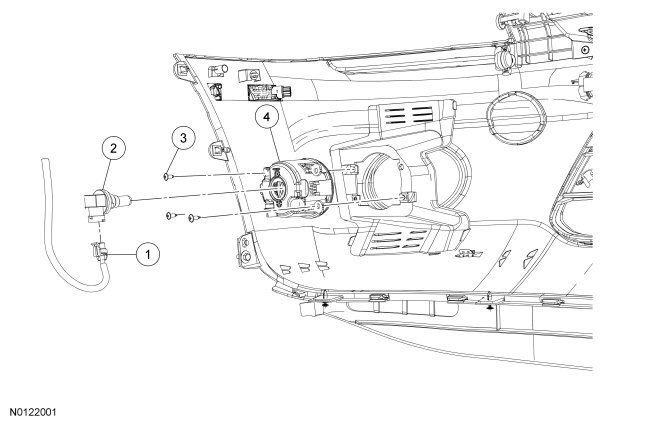

Removal and Installation

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

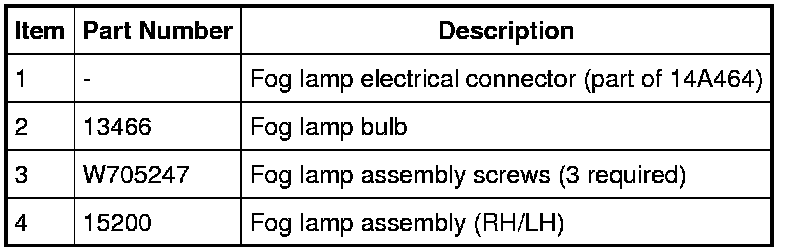

2. Disconnect the fog lamp electrical connector.

3. Remove the fog lamp assembly screws and remove the fog lamp assembly.

4. To install, reverse the removal procedure.
