Horn: Service and Repair

Horn

















Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

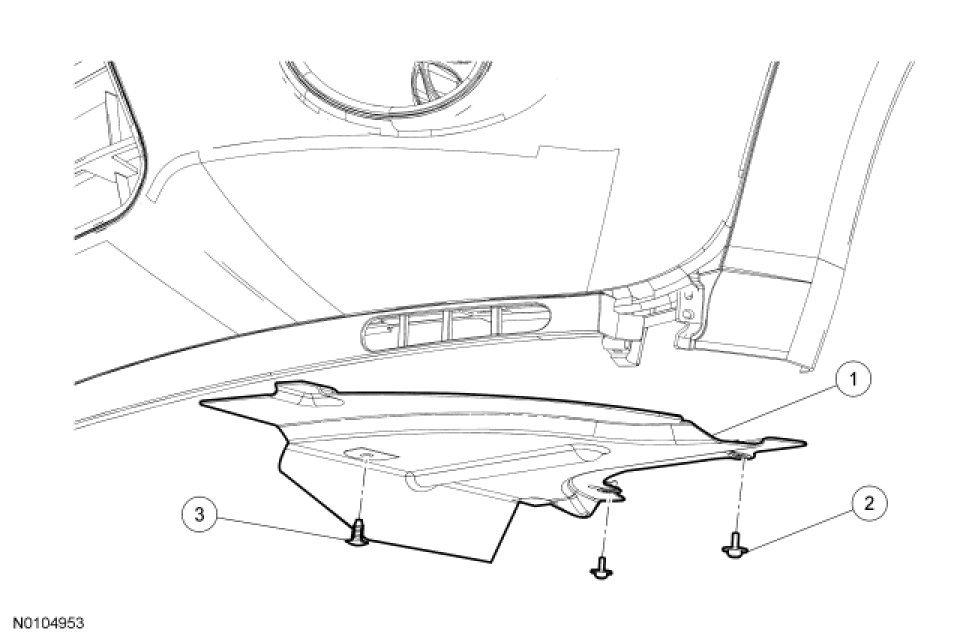

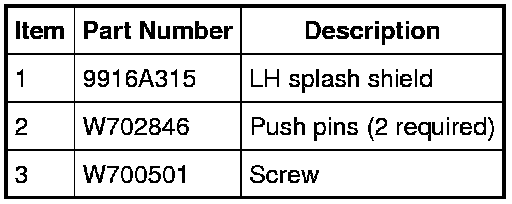

2. Remove the 2 push pins, the screw and the LH splash shield.

3. Disconnect the electrical connector.

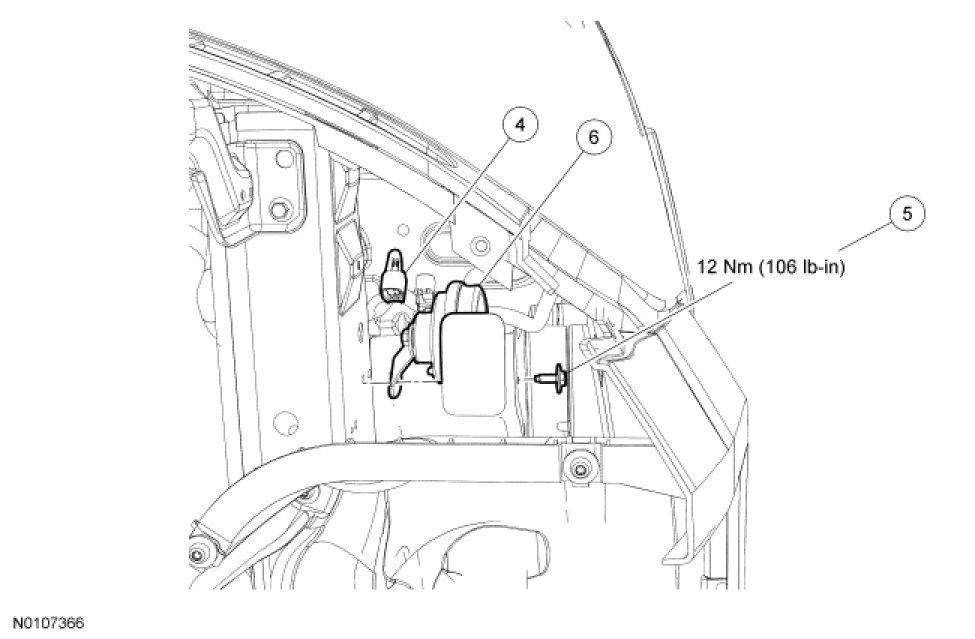

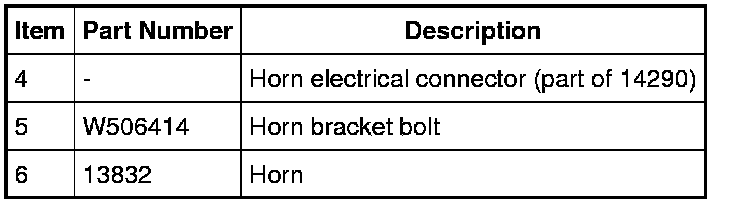

4. Remove the horn bracket bolt and the horn.
- To install, tighten to 12 Nm (106 lb-in).

5. To install, reverse the removal procedure.
