Fuel Tank and Filler Pipe - Exploded View

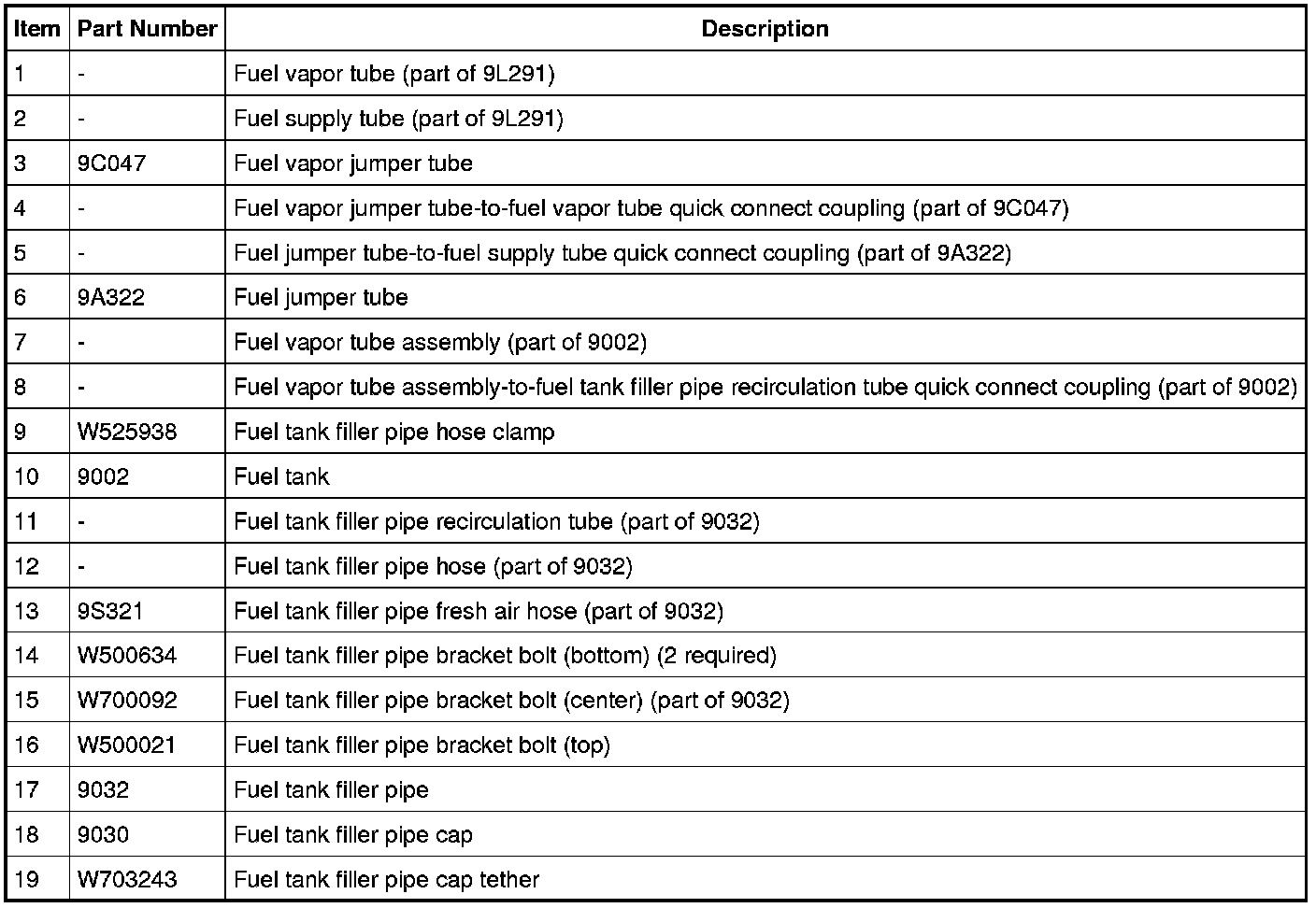

Fuel Tank and Filler Pipe - Exploded View

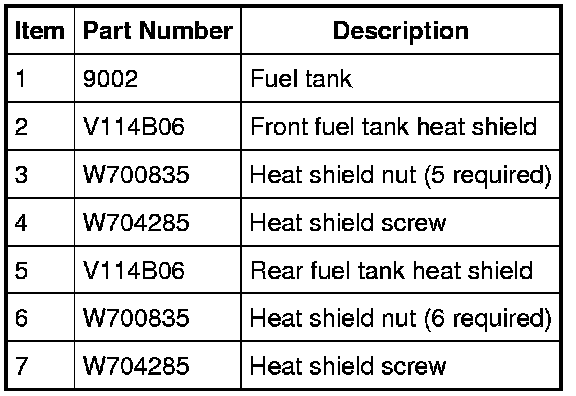

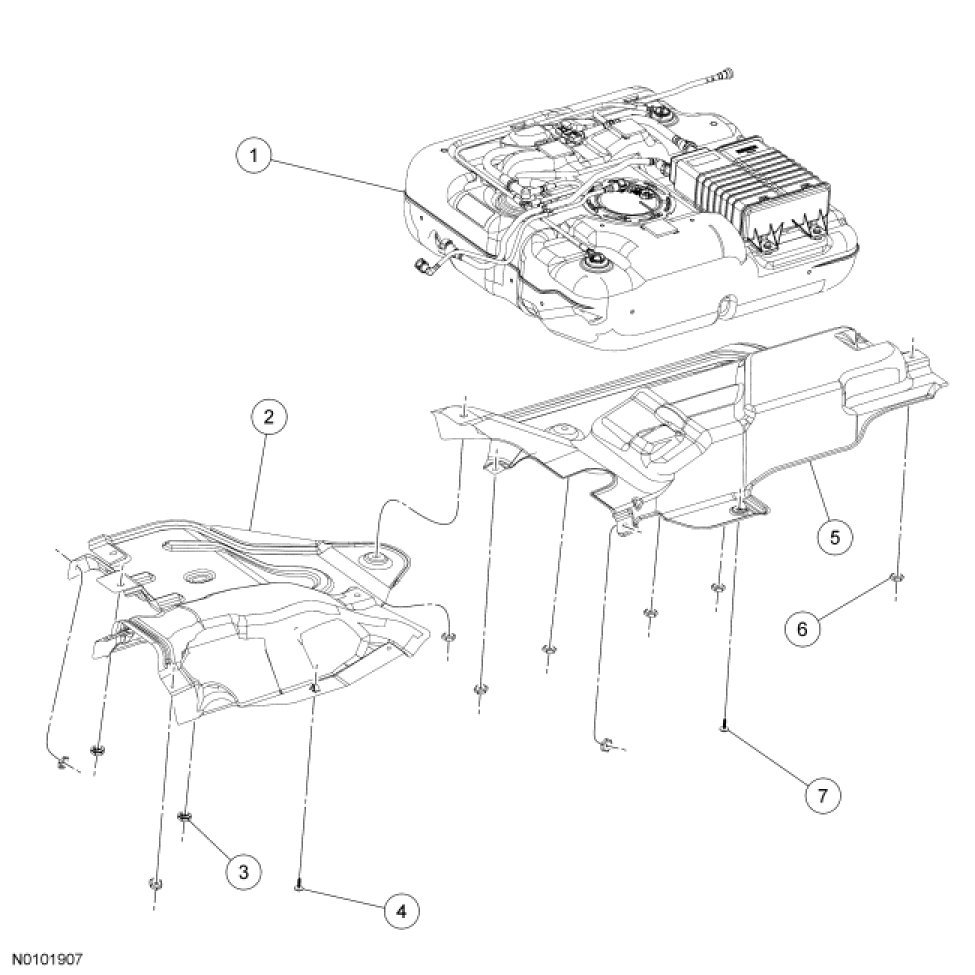

Fuel Tank Heat Shields and Retainers

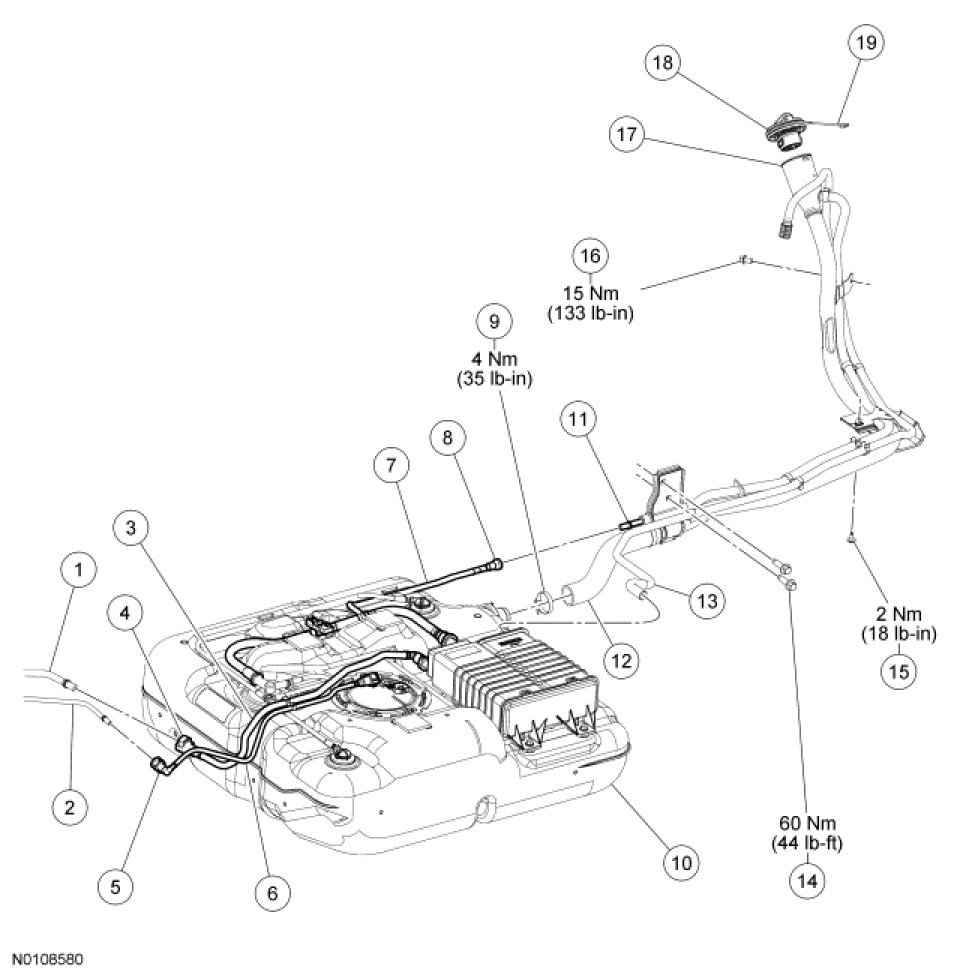

Fuel Tank and Filler Pipe

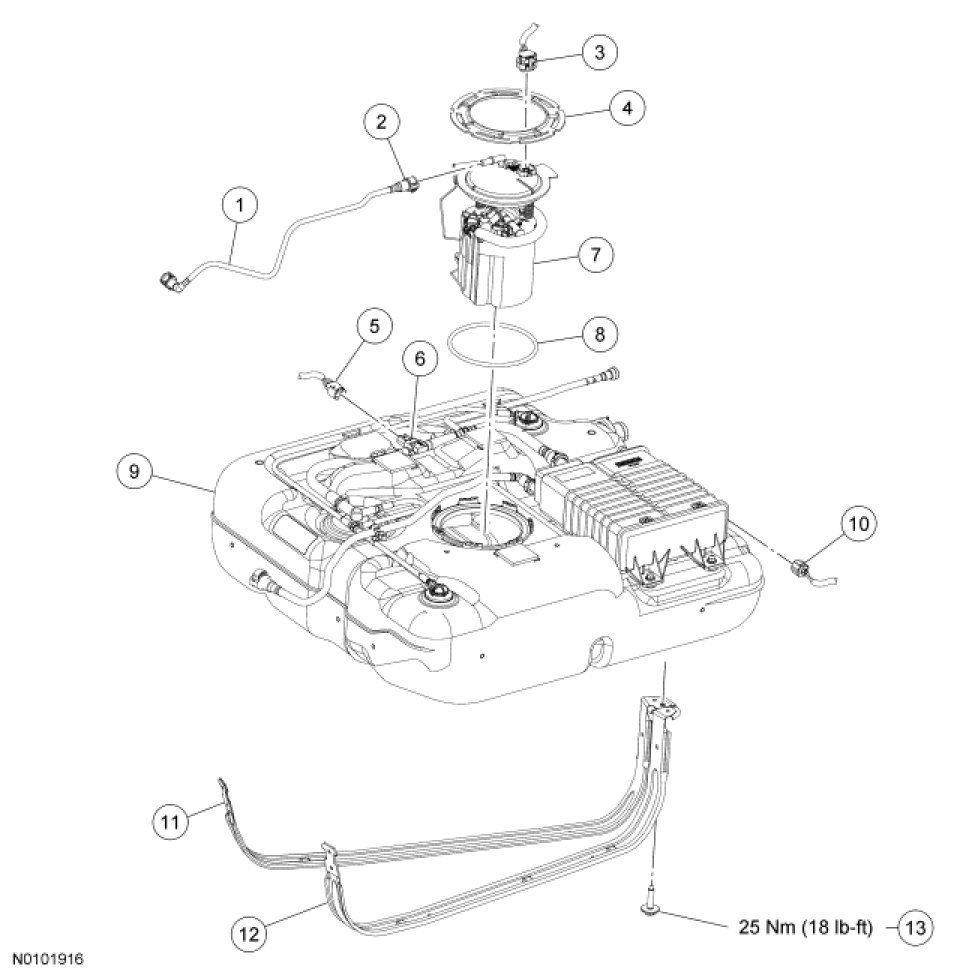

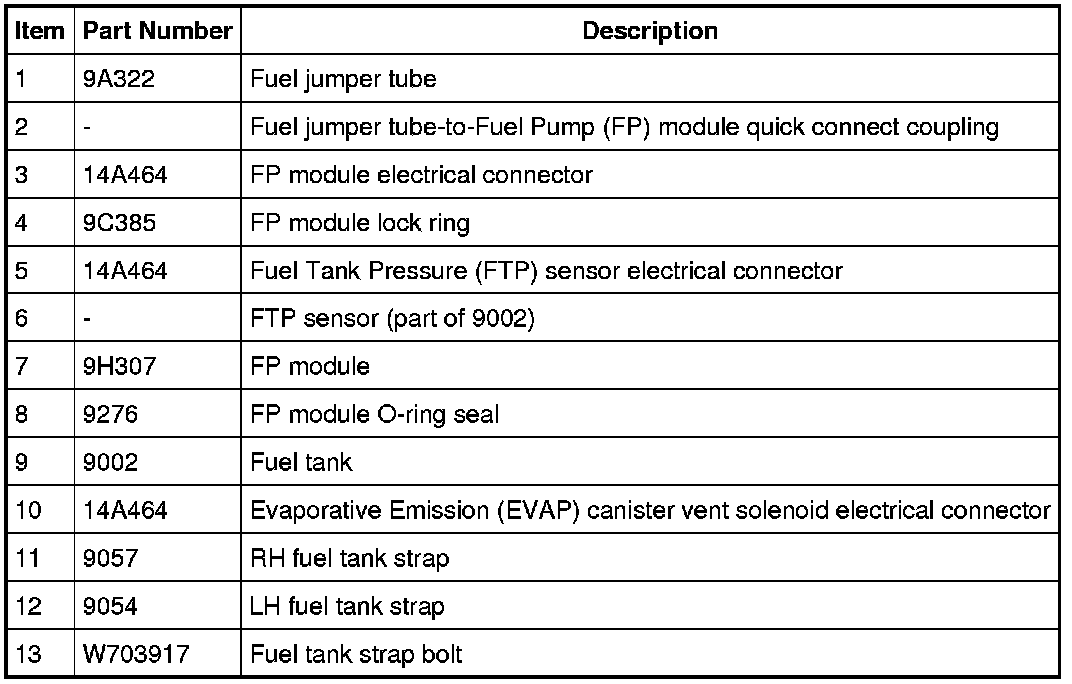

Fuel Pump (FP) Module, Fuel Tank and Straps
