Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

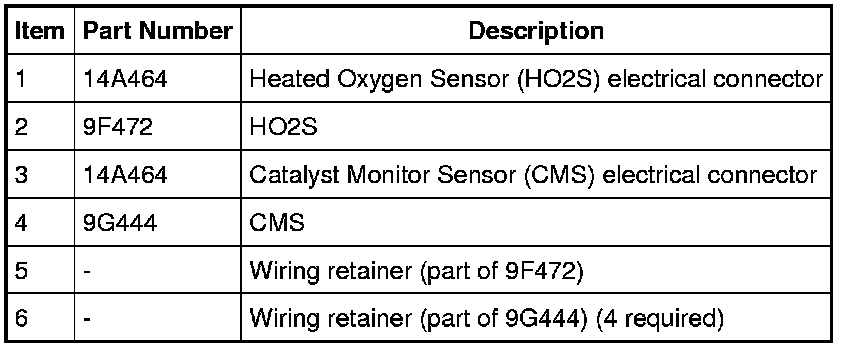

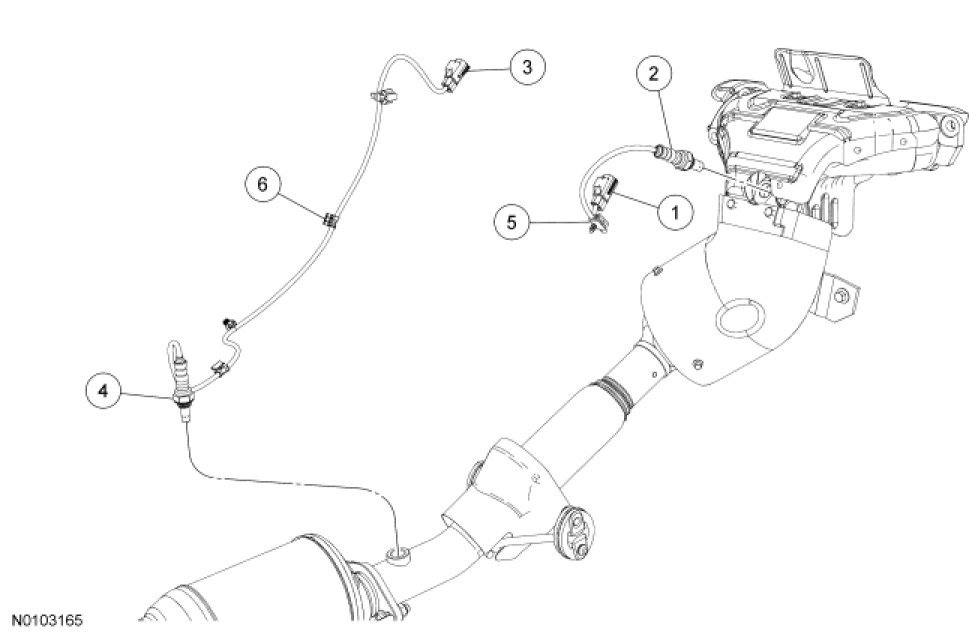

Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View
Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View
