Test DF: Vehicle Speed Circuit (VSC) Check
PINPOINT TEST DF: VEHICLE SPEED CIRCUIT (VSC) CHECK

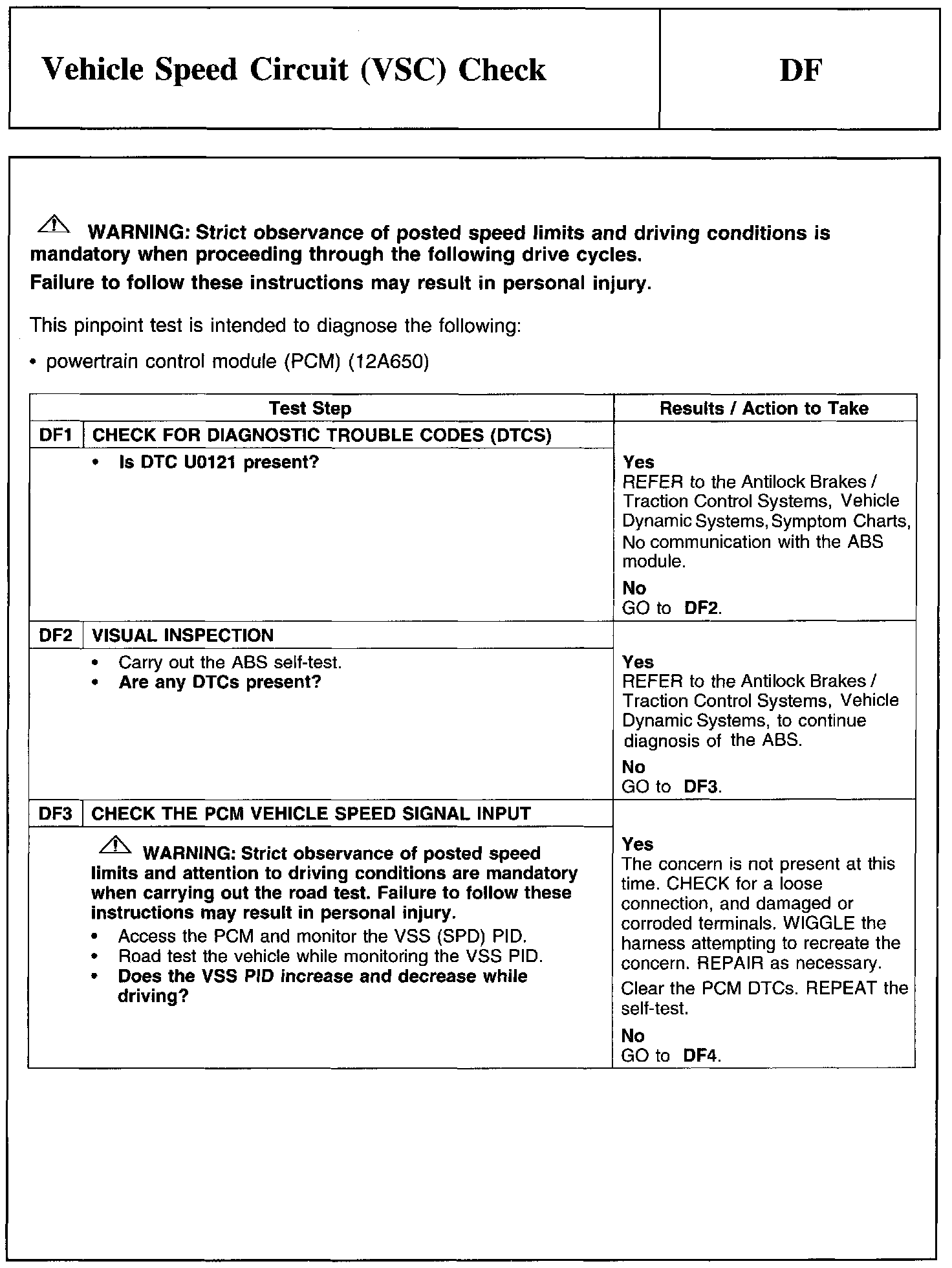

DF1-DF3:

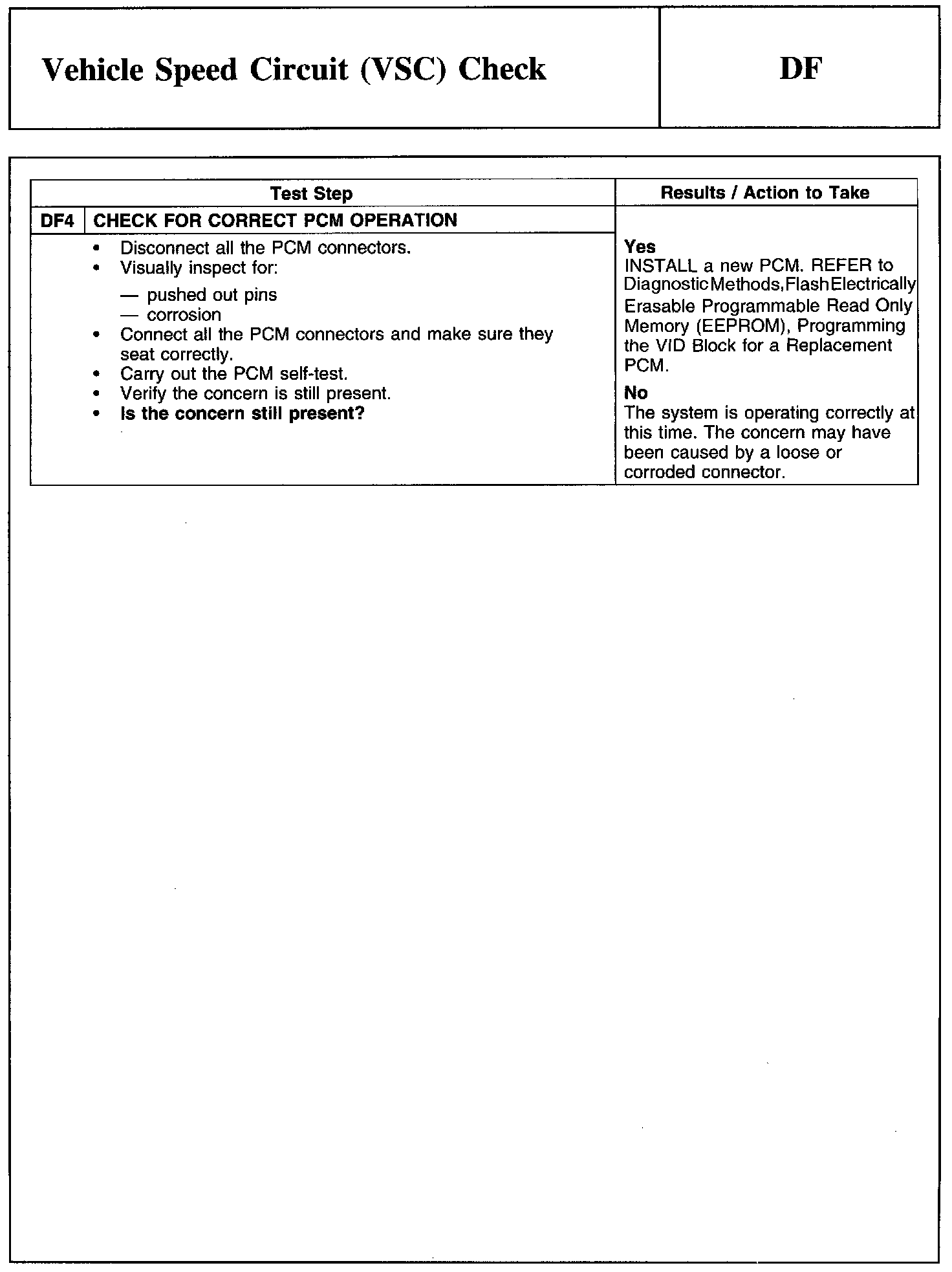

DF4:
