Test DH: Throttle Position (TP) Sensor

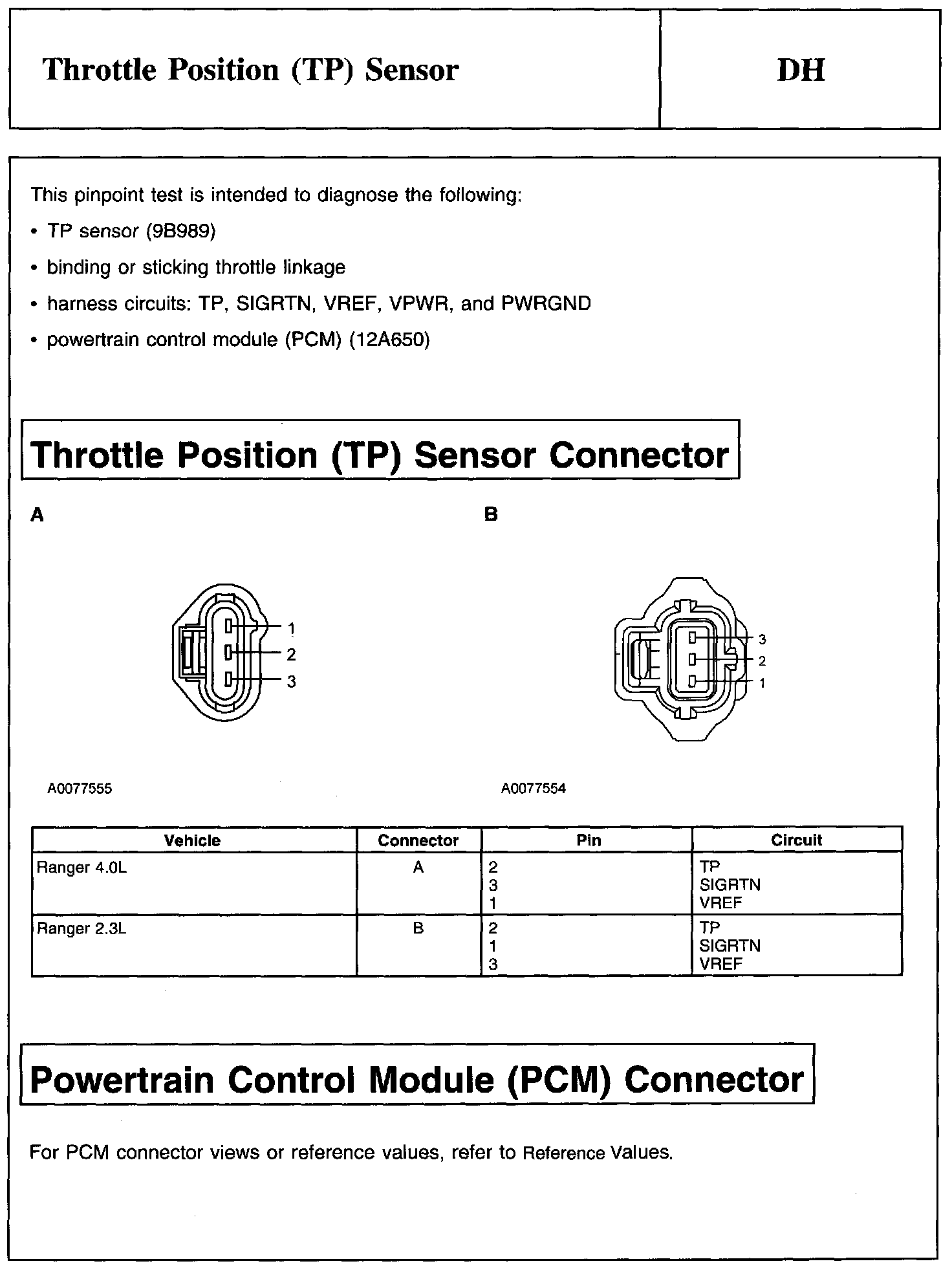

PINPOINT TEST DH: THROTTLE POSITION (TP) SENSORThrottle Position (TP) Sensor Connector And Powertrain Control Module (PCM) Connector:

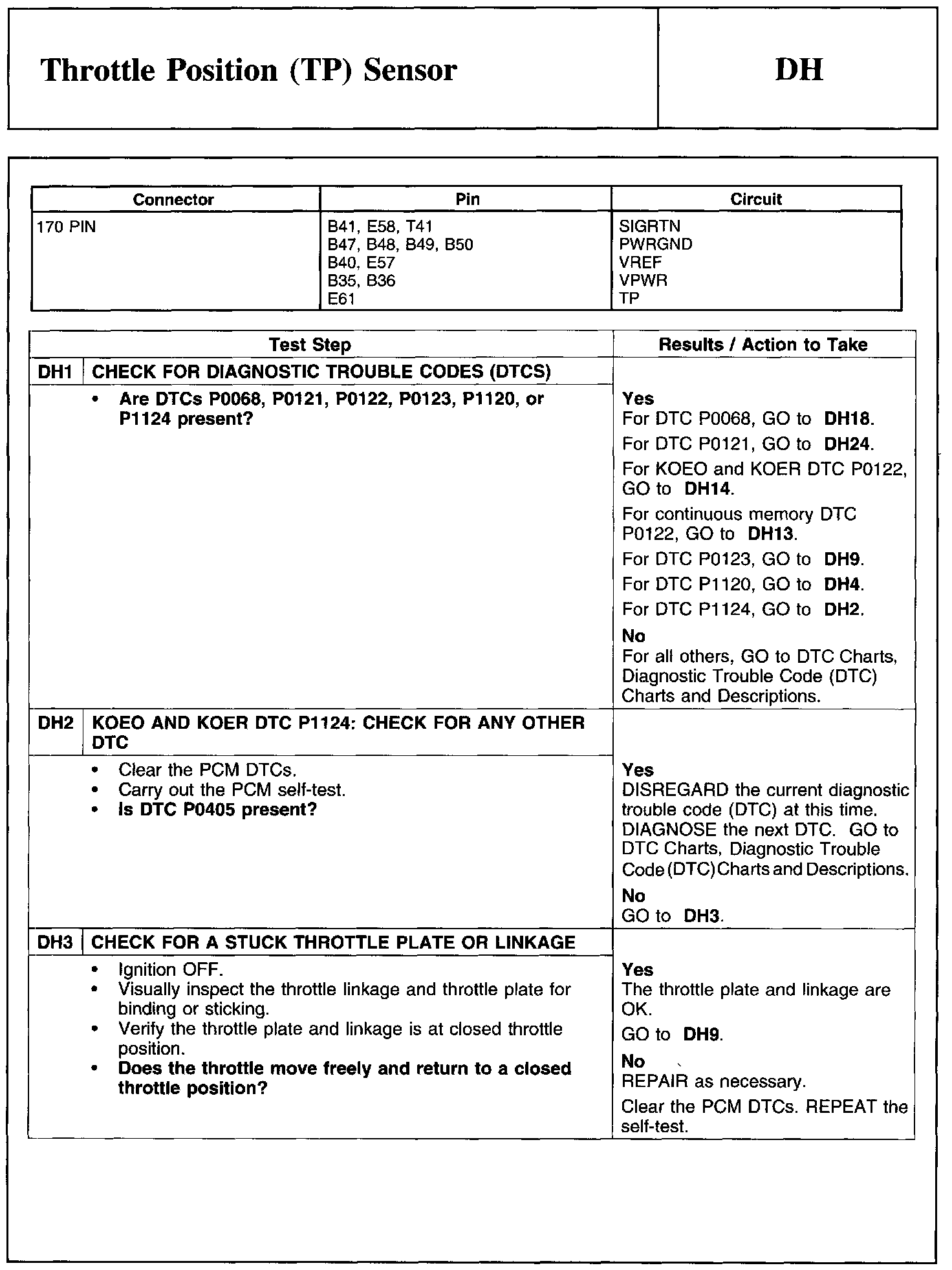

DH1-DH3:

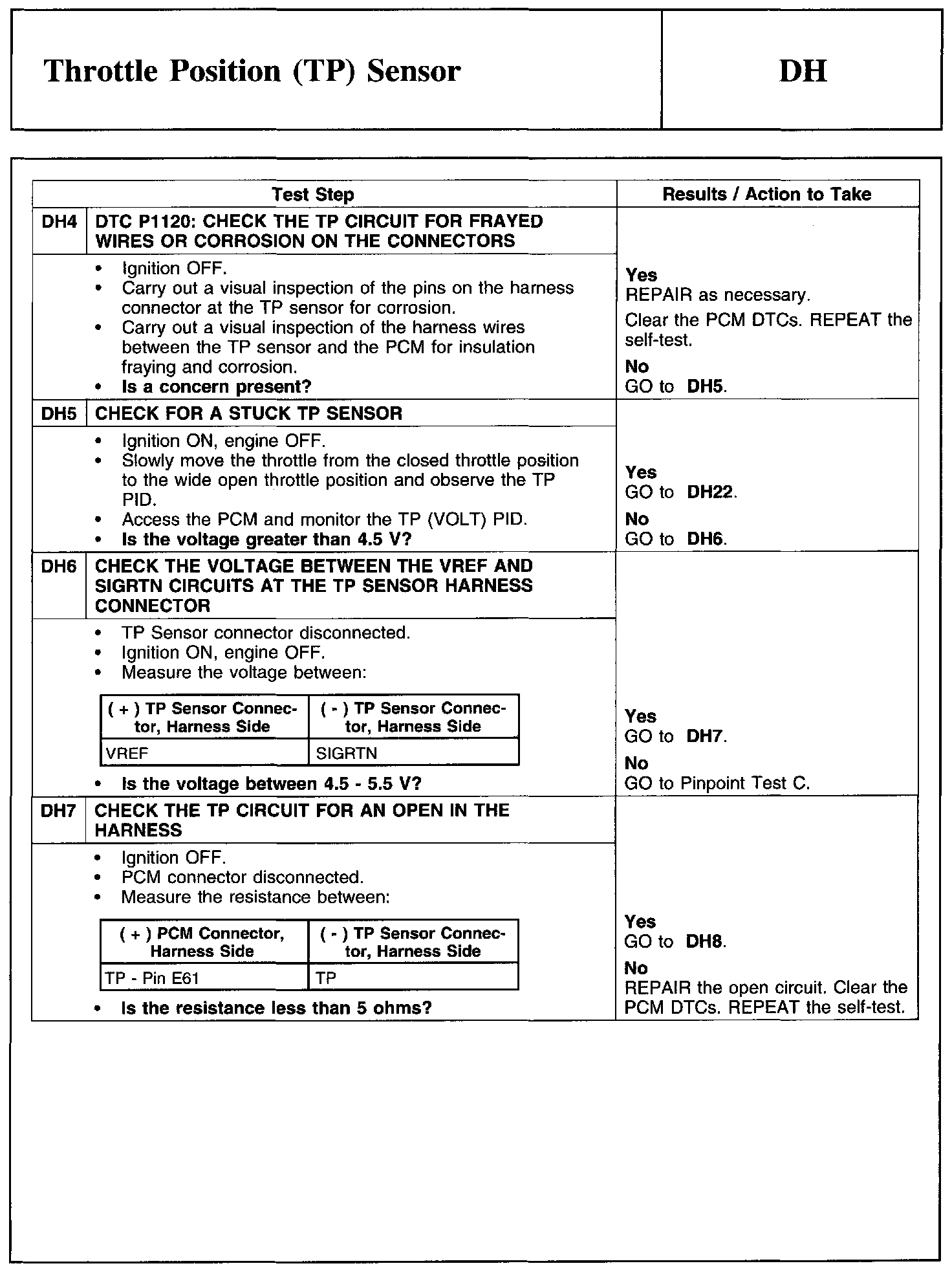

DH4-DH7:

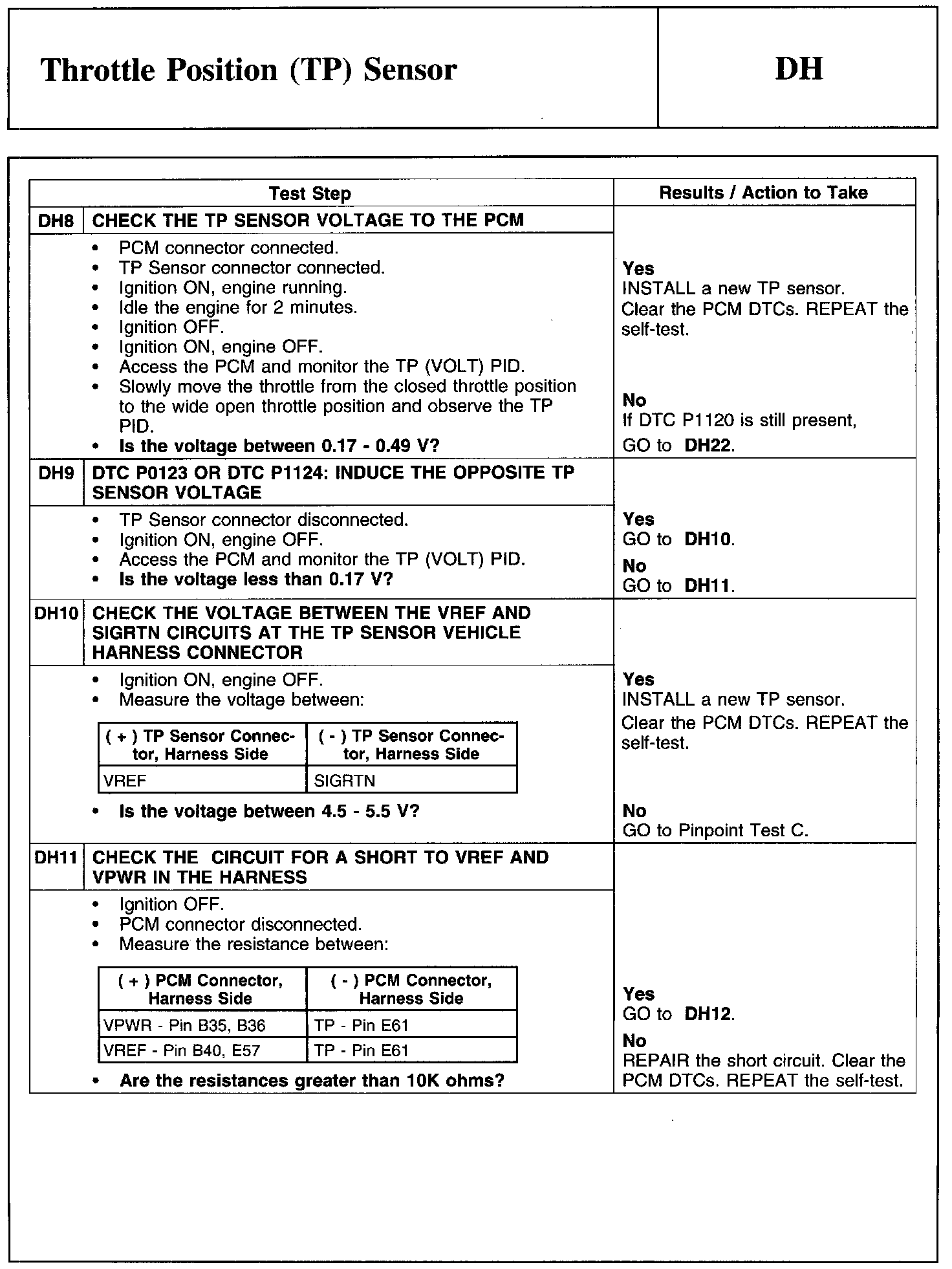

DH8-DH11:

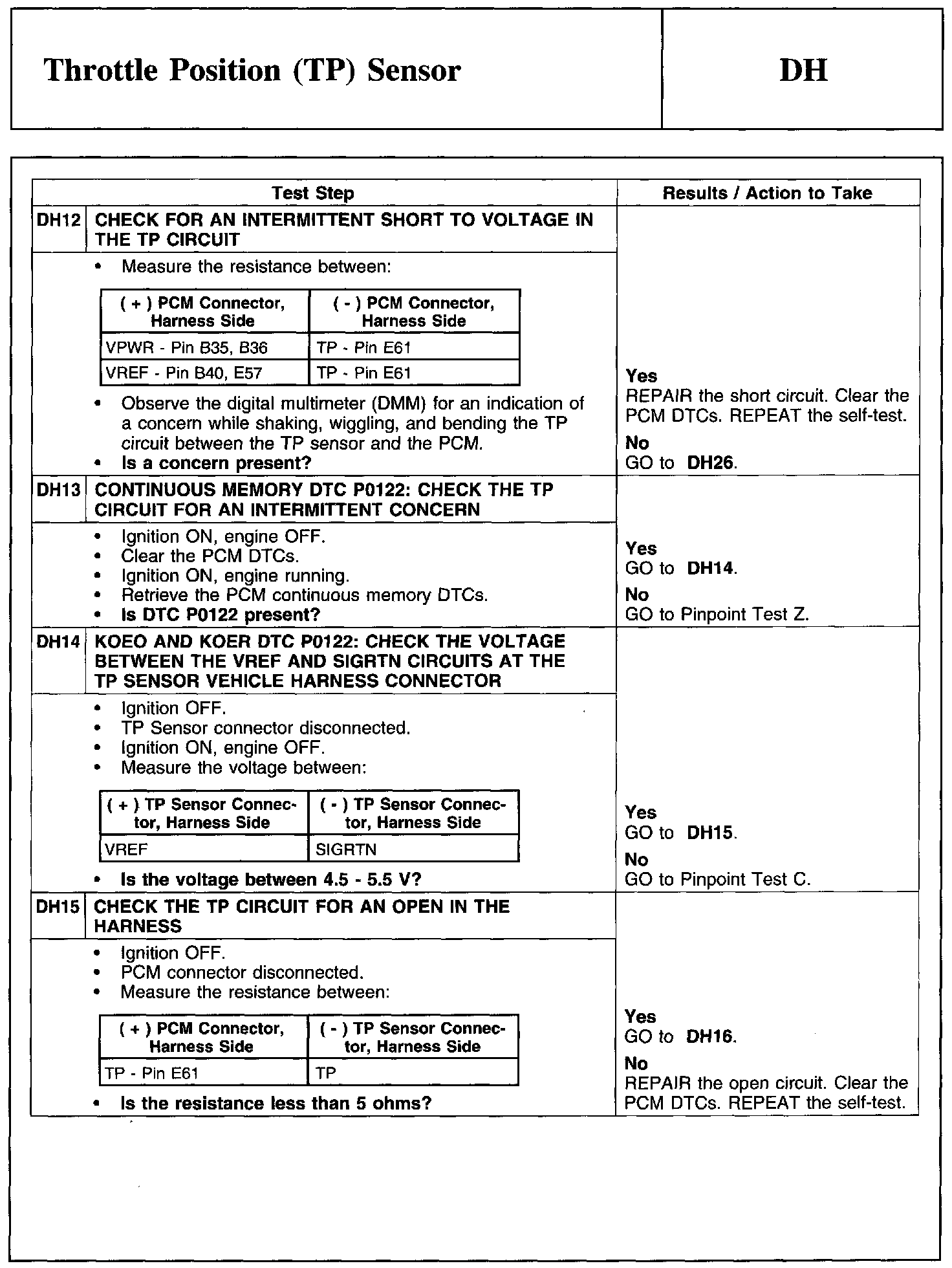

DH12-DH15:

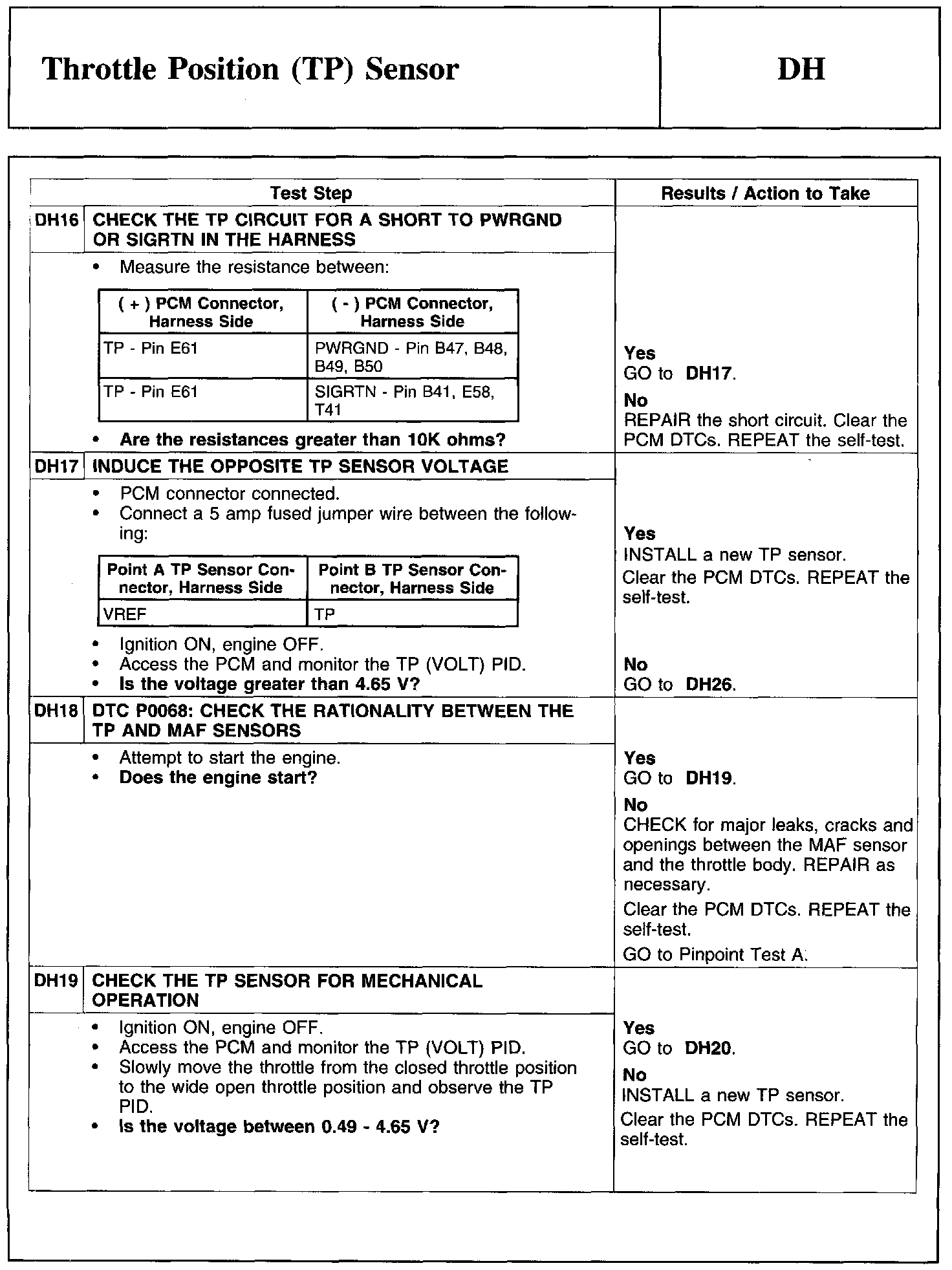

DH16-DH19:

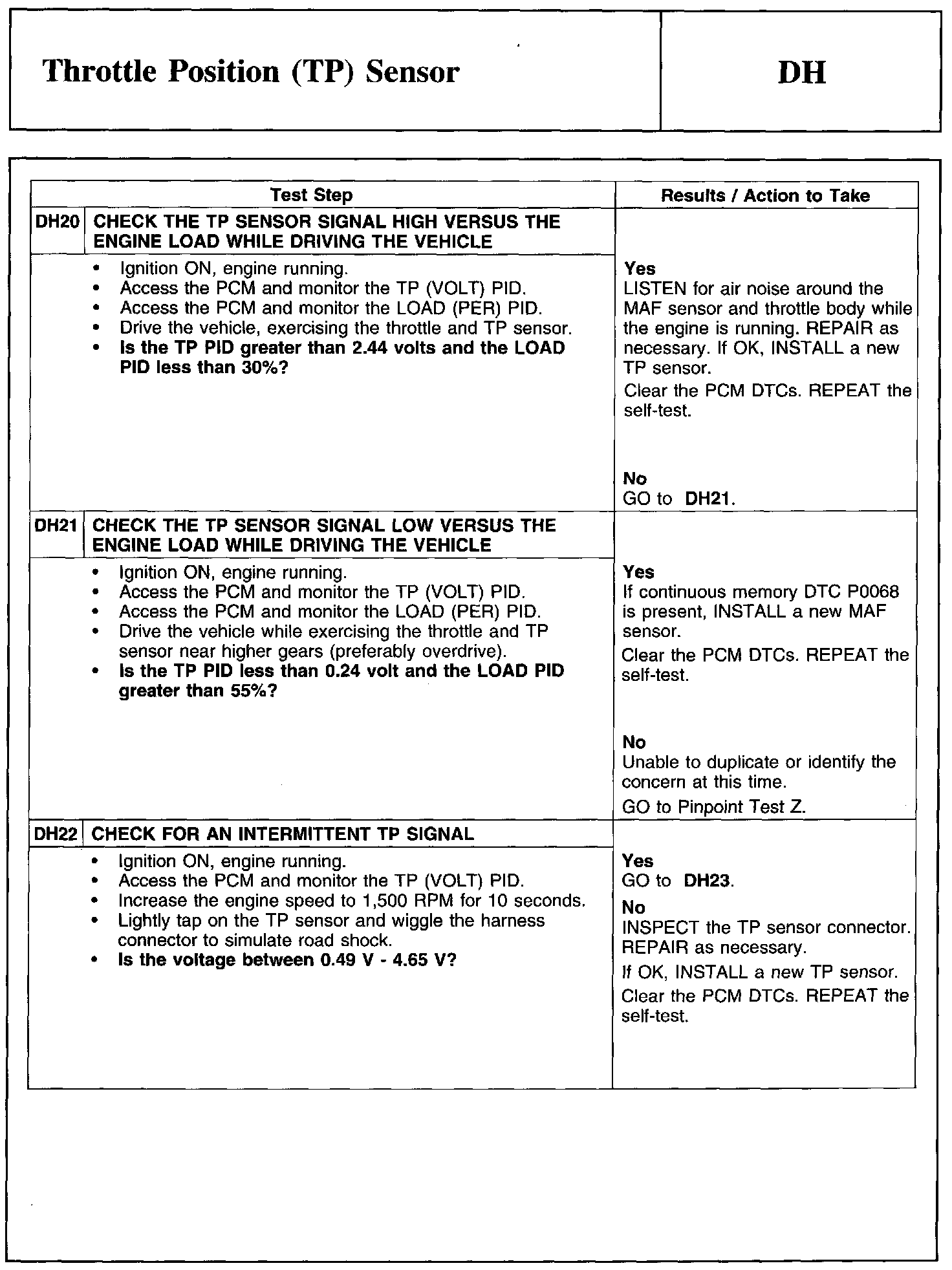

DH20-DH22:

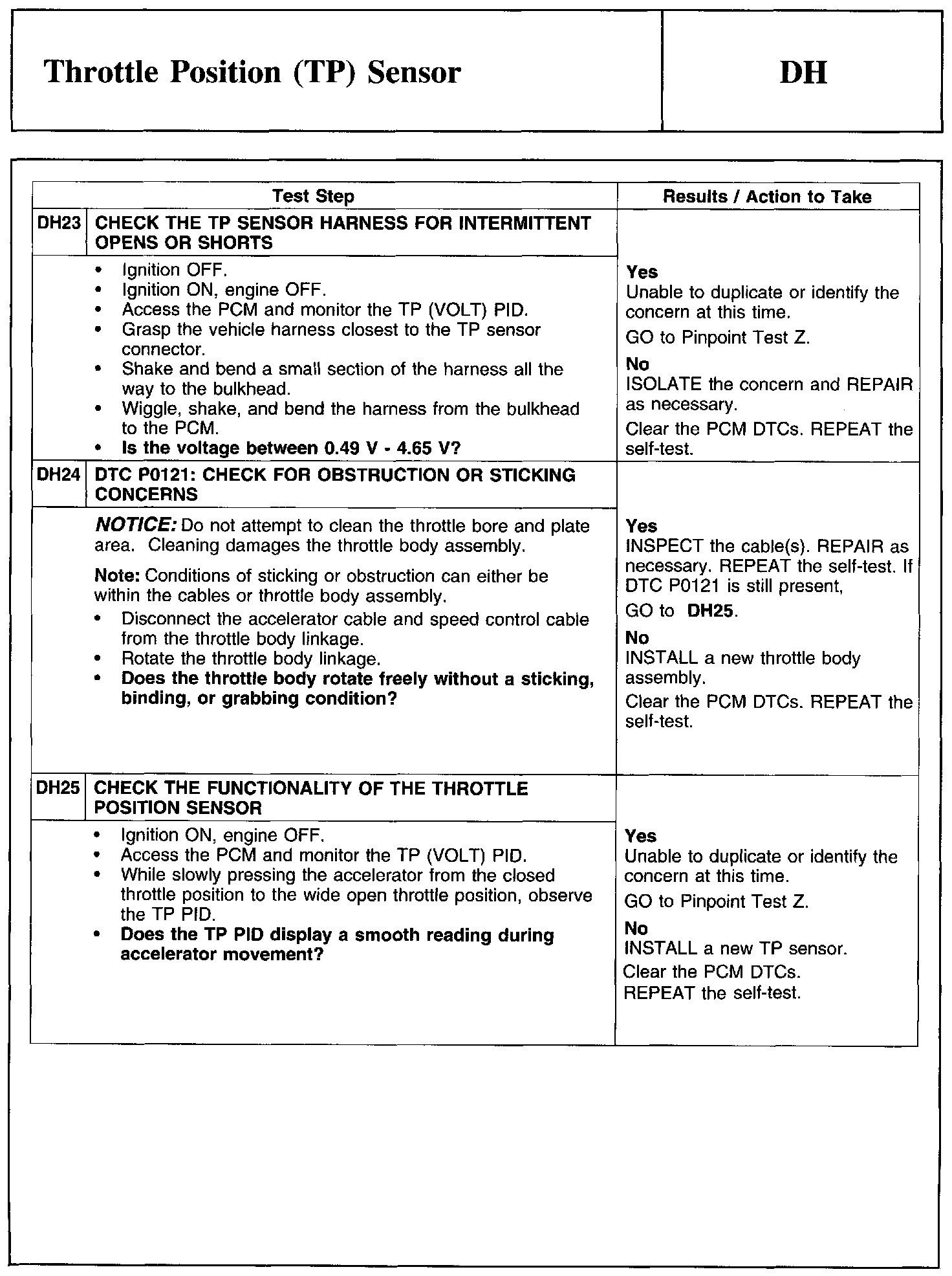

DH23-DH25:

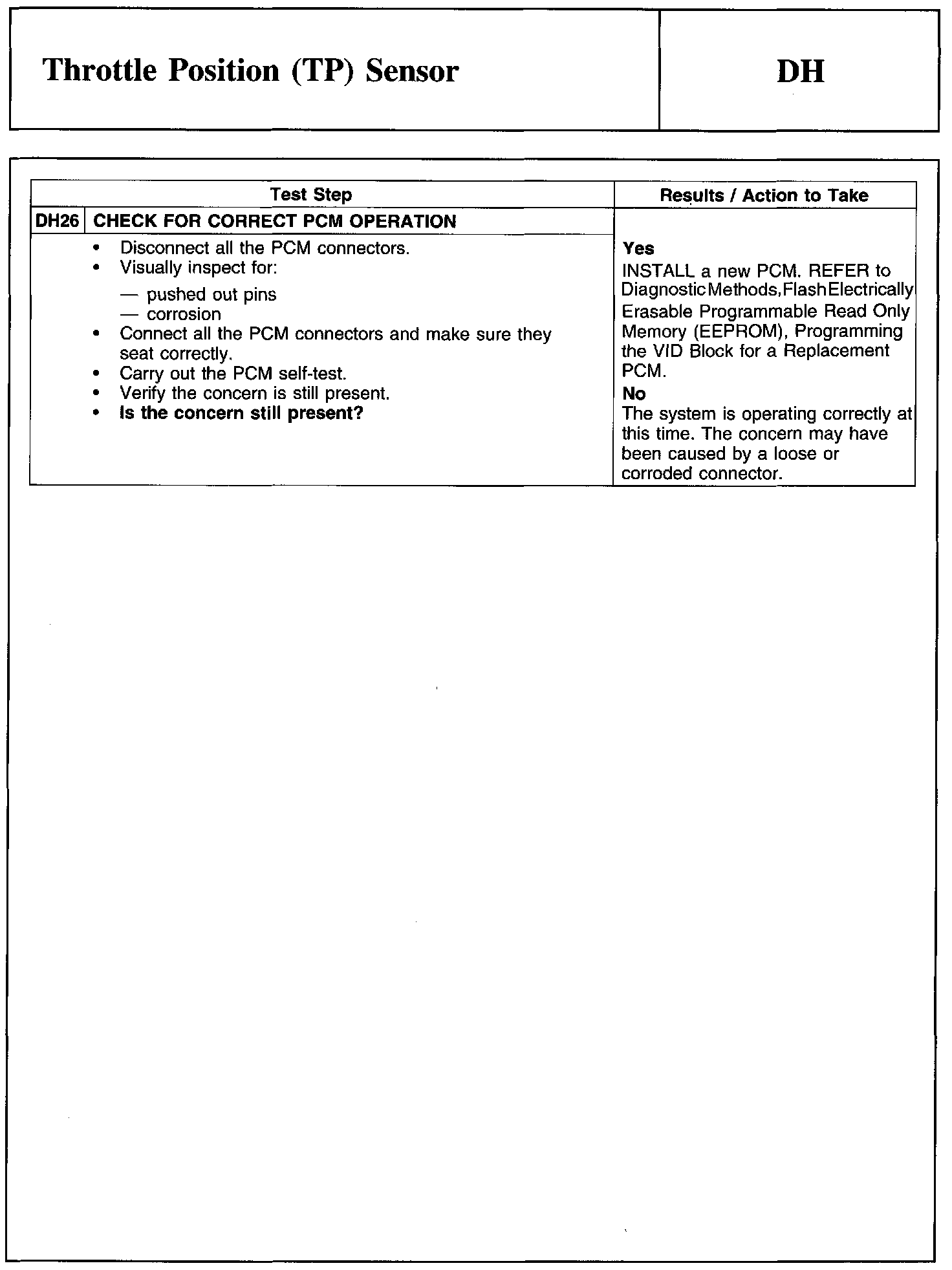

DH26:
