Test DP: Output Shaft Speed (OSS) Sensor/Vehicle Speed Sensor (VSS)/Transfer Case Speed Sensor (TCSS)

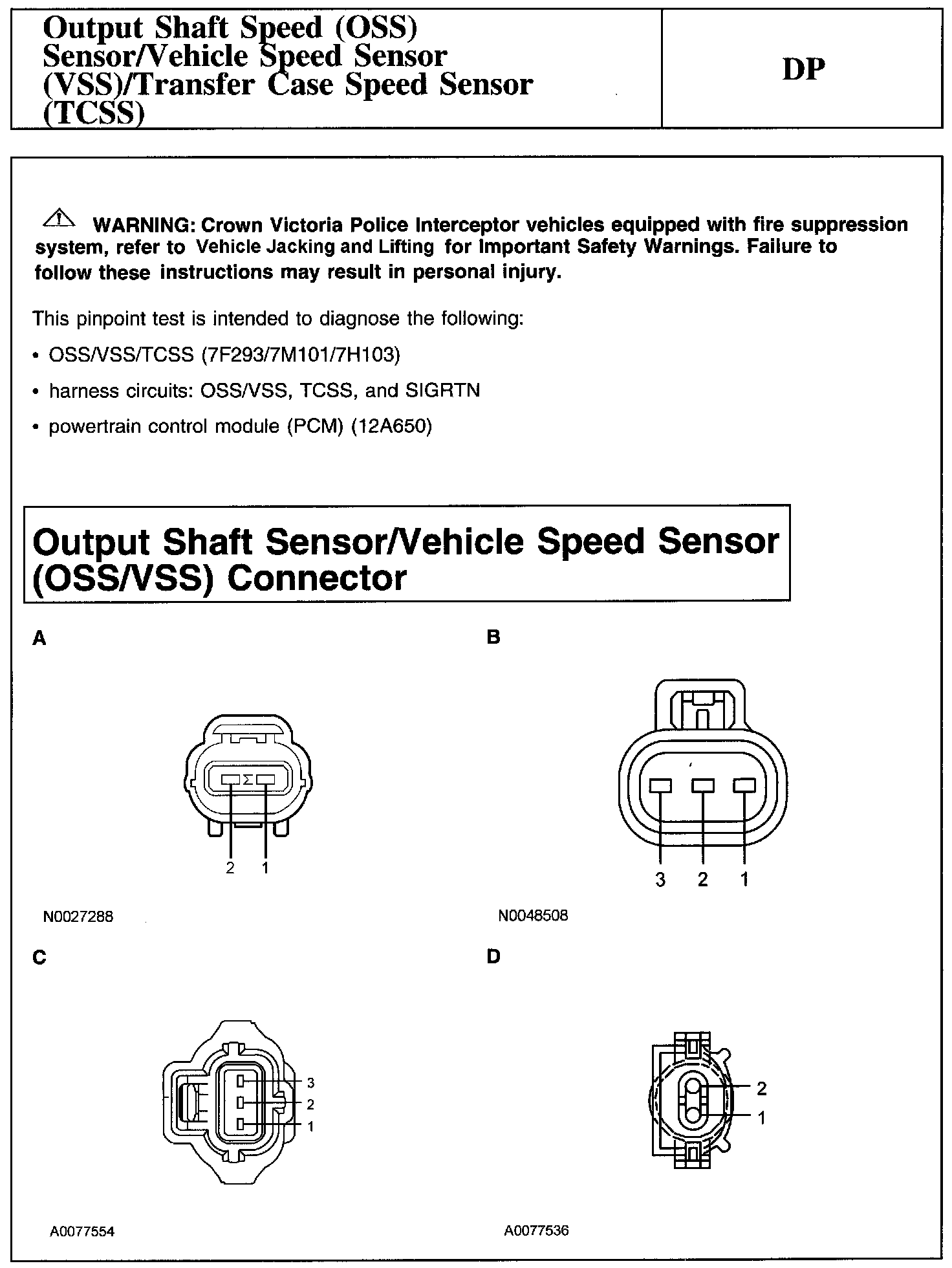

Warning And Output Shaft Sensor/Vehicle Speed Sensor (OSS/VSS) Connector:

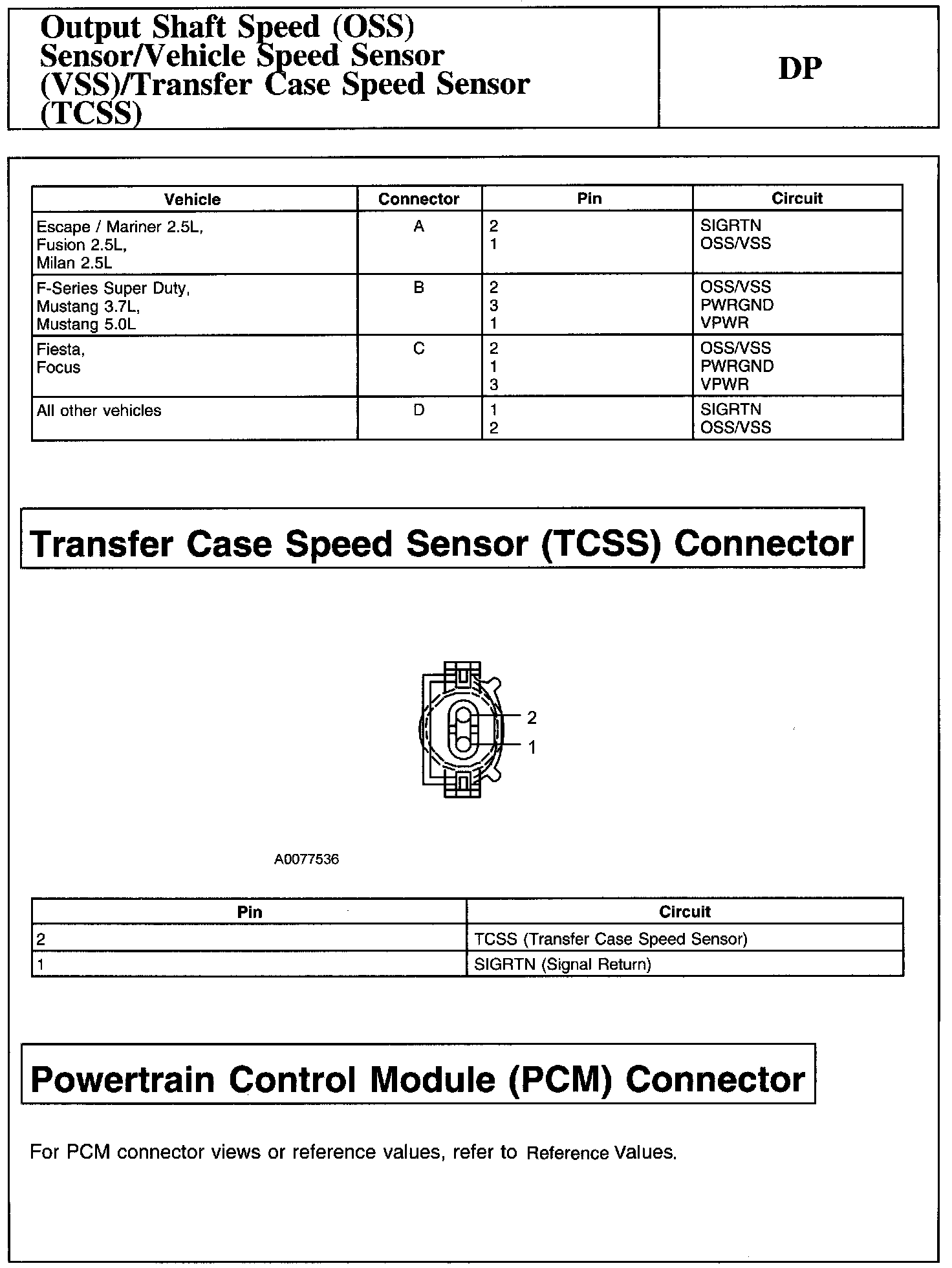

Output Shaft Sensor/Vehicle Speed Sensor (OSS/VSS) Connector, Transfer Case Speed Sensor (TCSS) Connector And Powertrain Control Module (PCM) Connector:

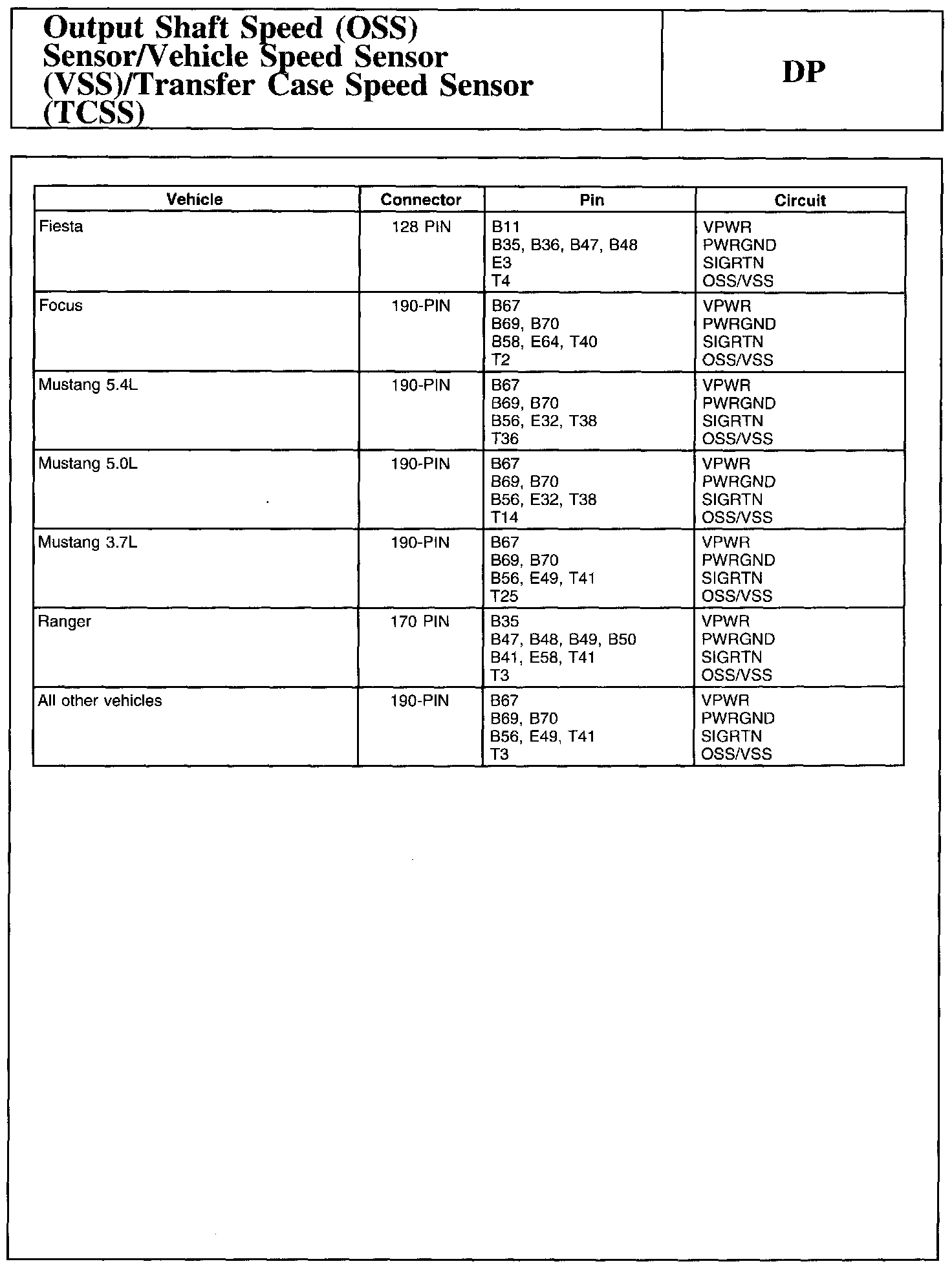

Powertrain Control Module (PCM) Connector:

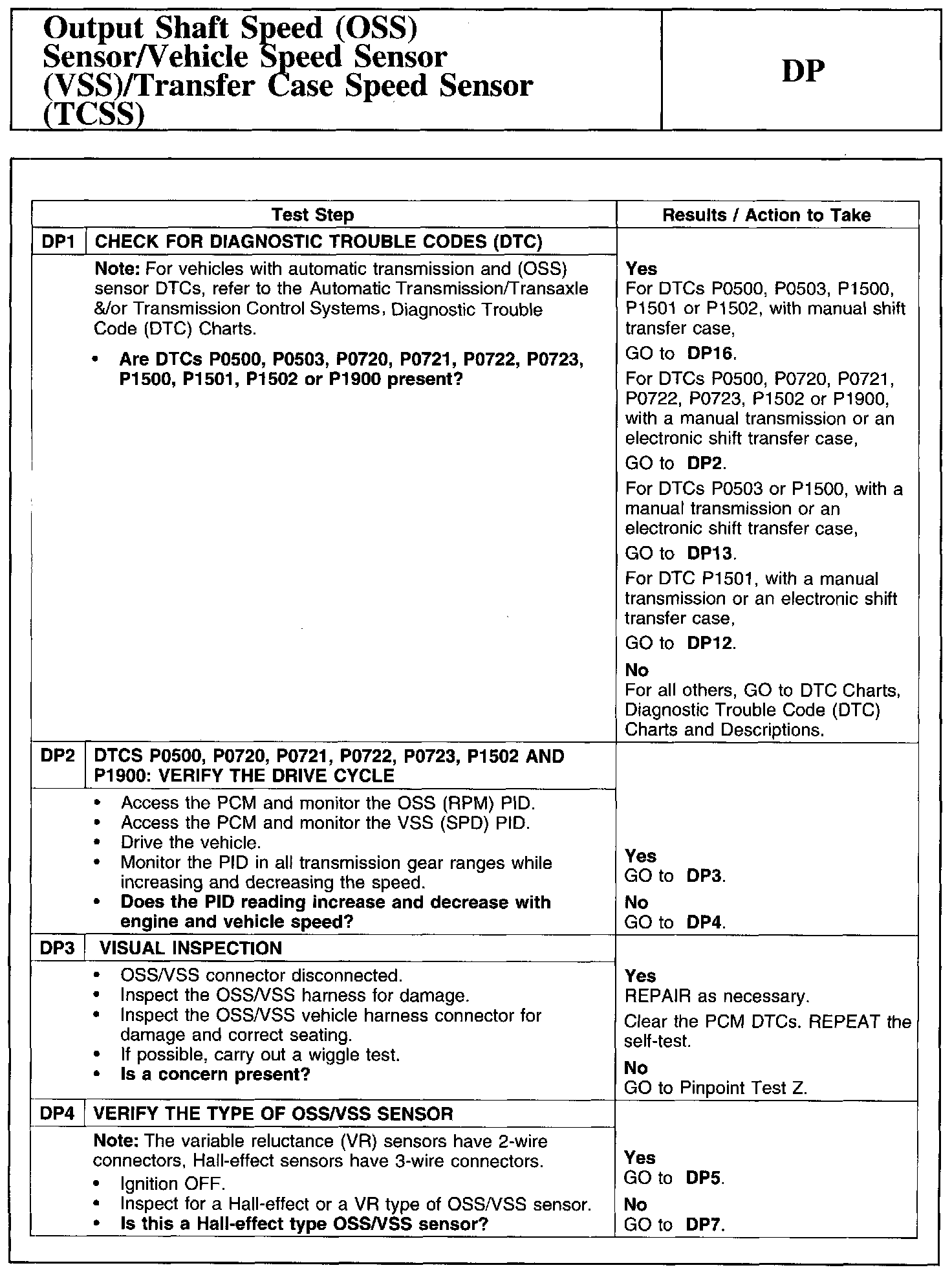

DP1-DP4:

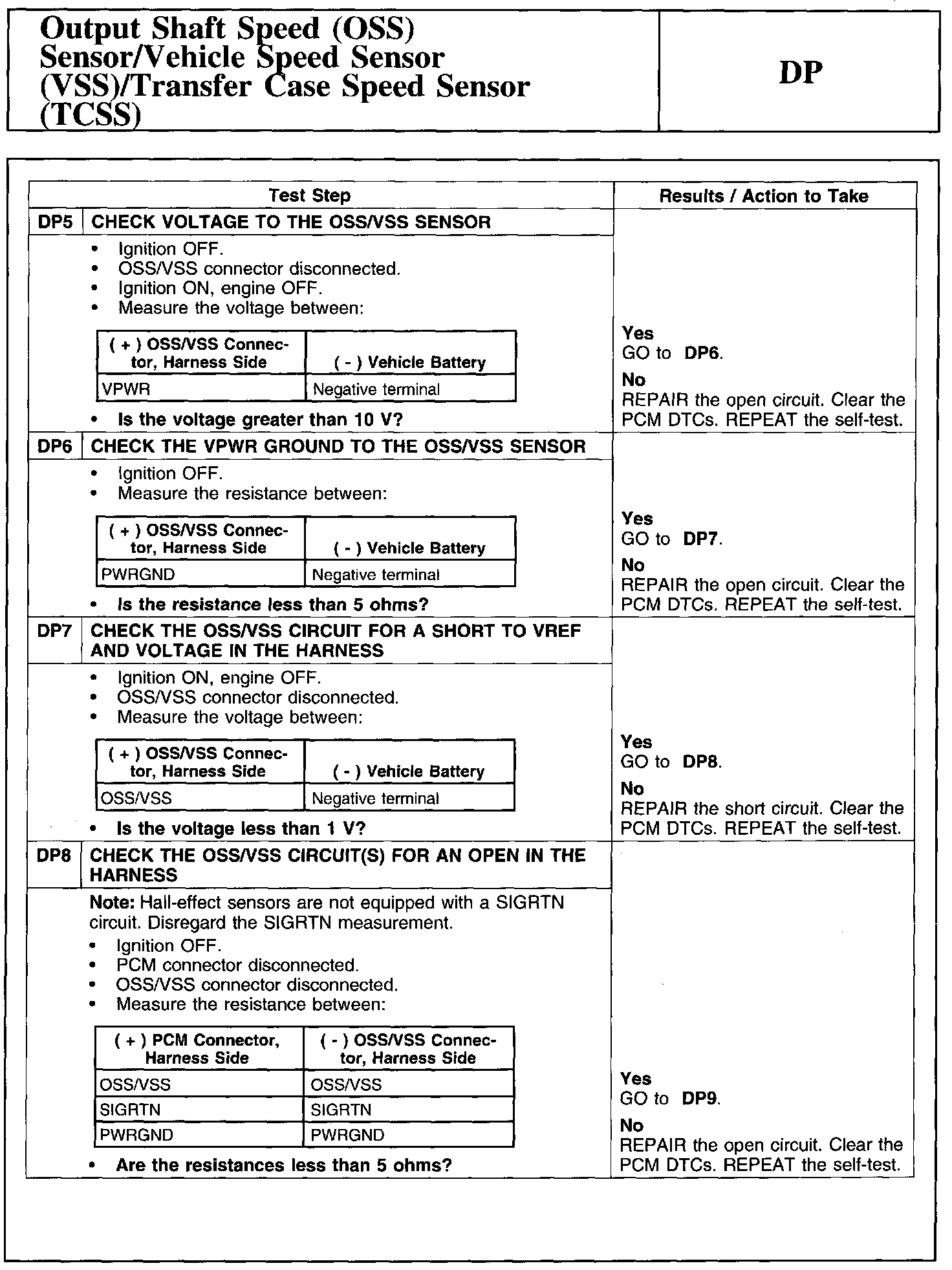

DP5-DP8:

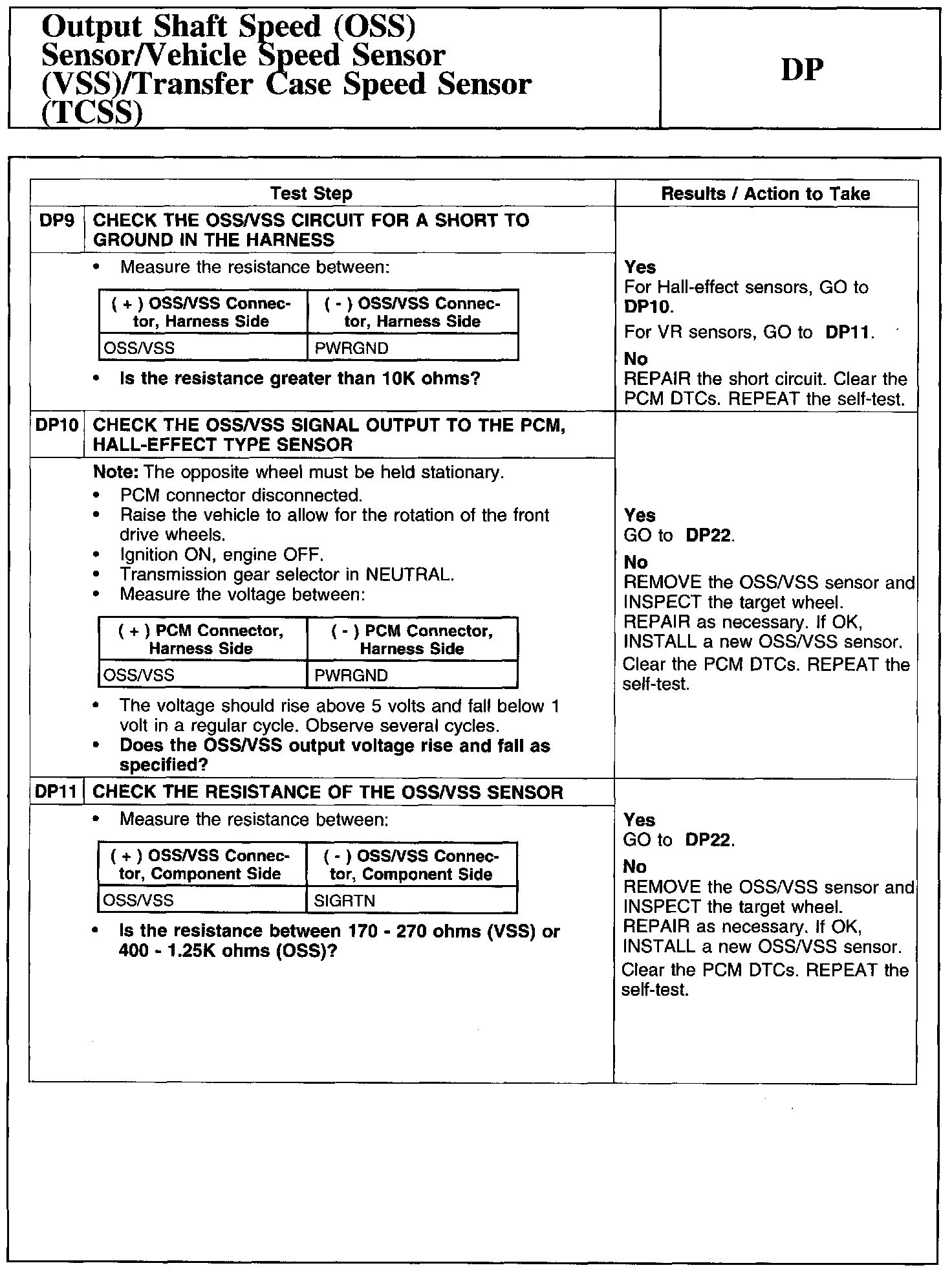

DP9-DP11:

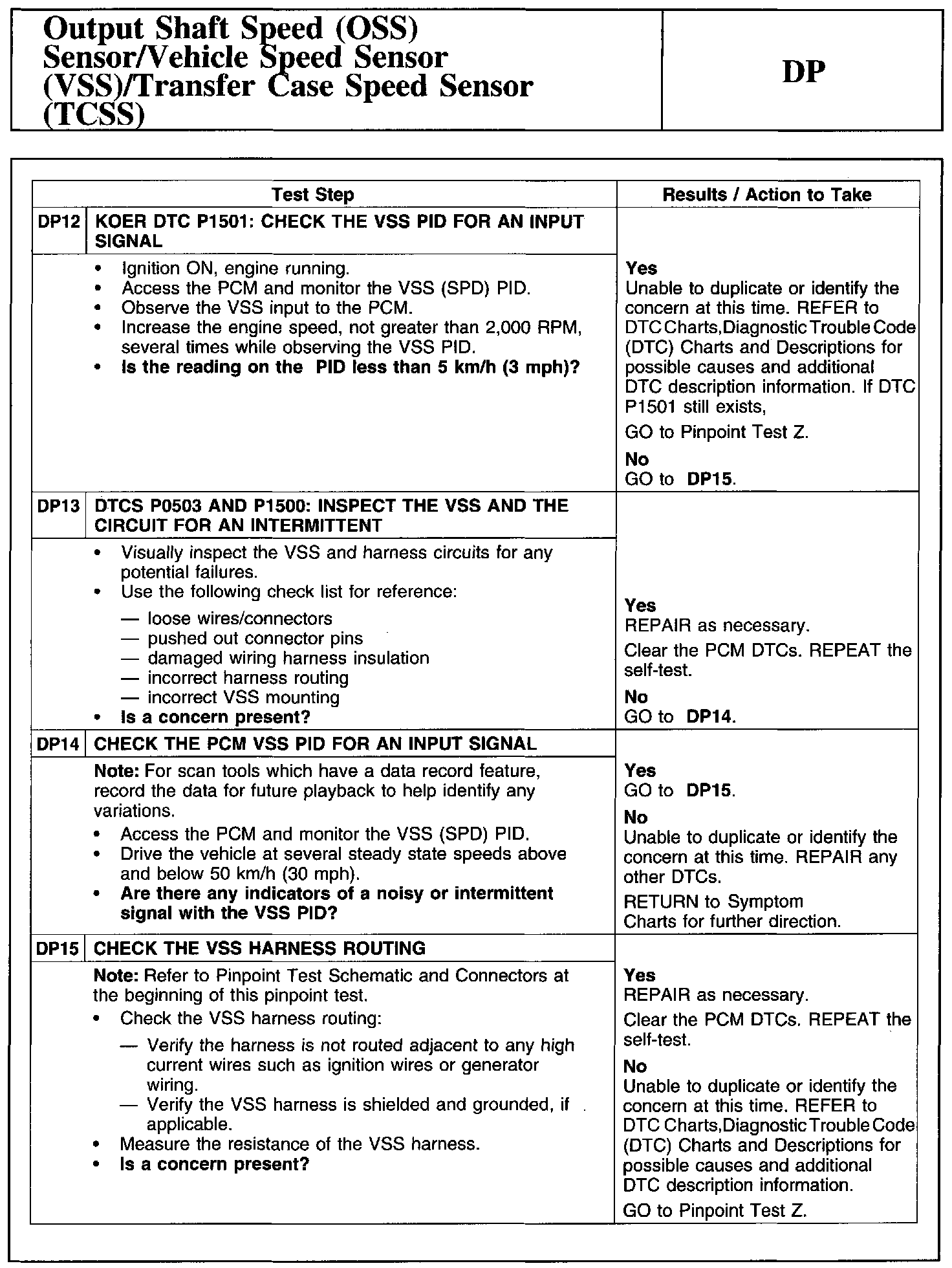

DP12-DP15:

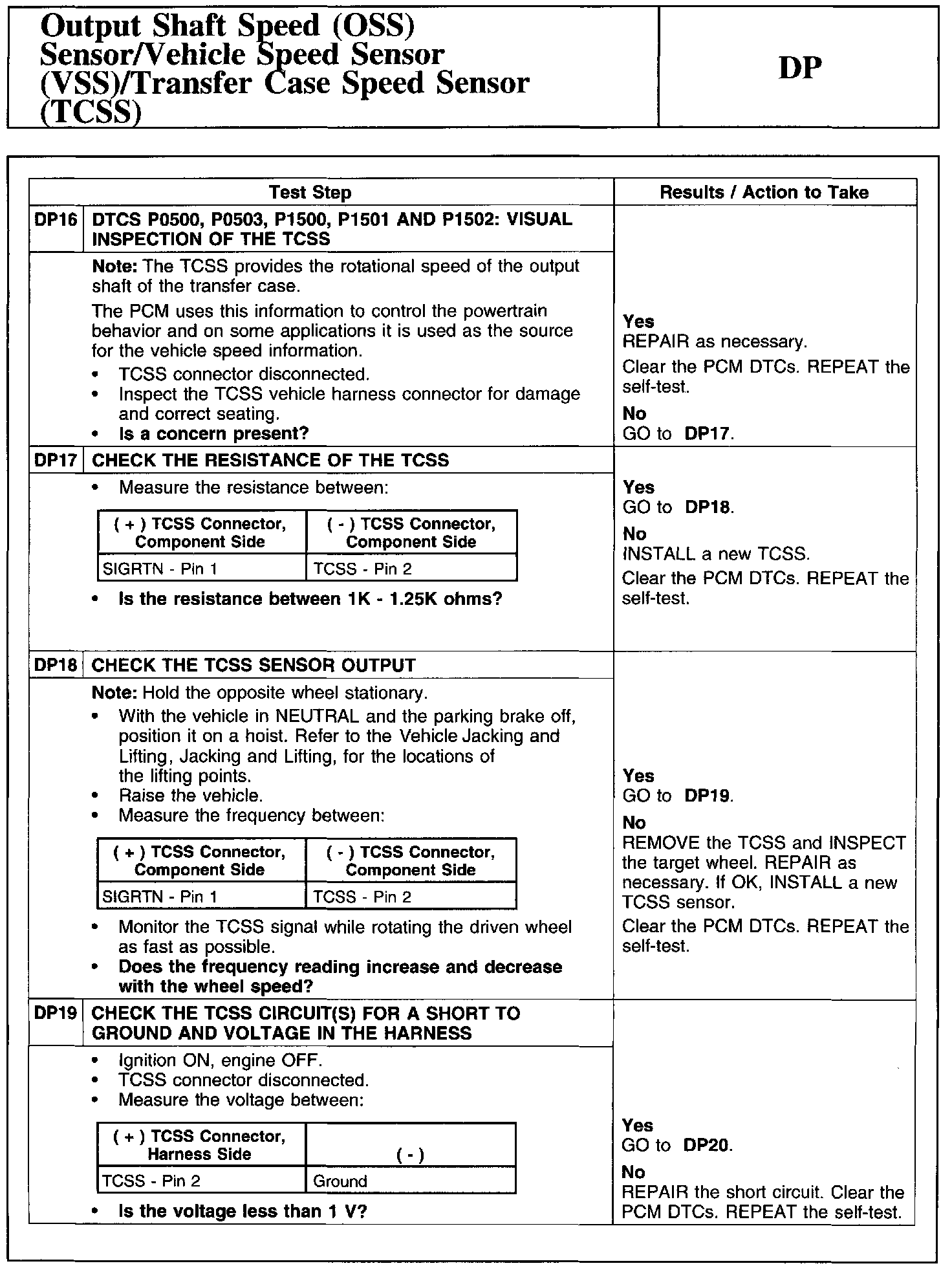

DP16-DP19:

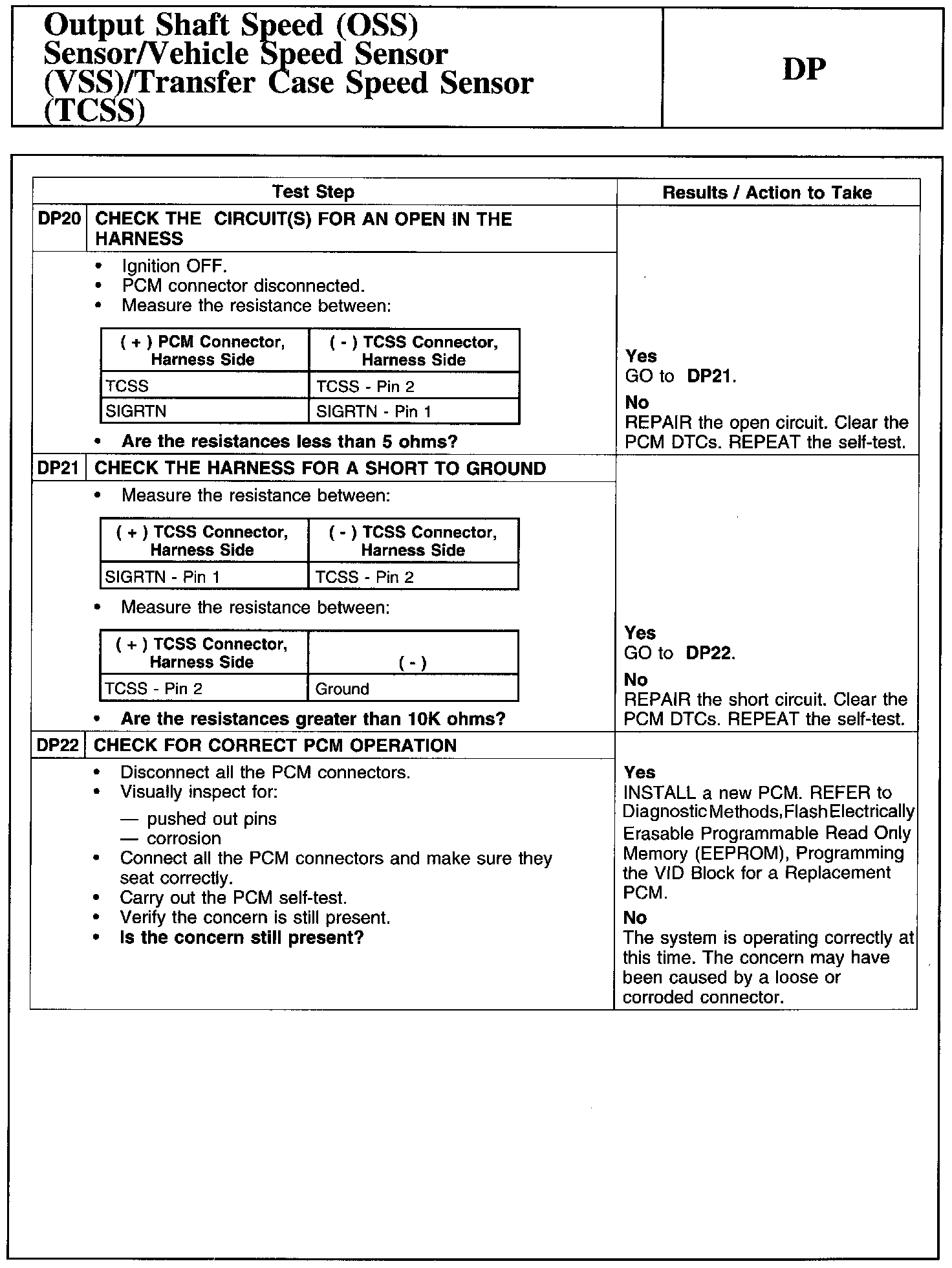

DP20-DP22:
