Test DX: Engine Coolant Temperature (ECT) Sensor

PINPOINT TEST DX: ENGINE COOLANT TEMPERATURE (ECT) SENSOR

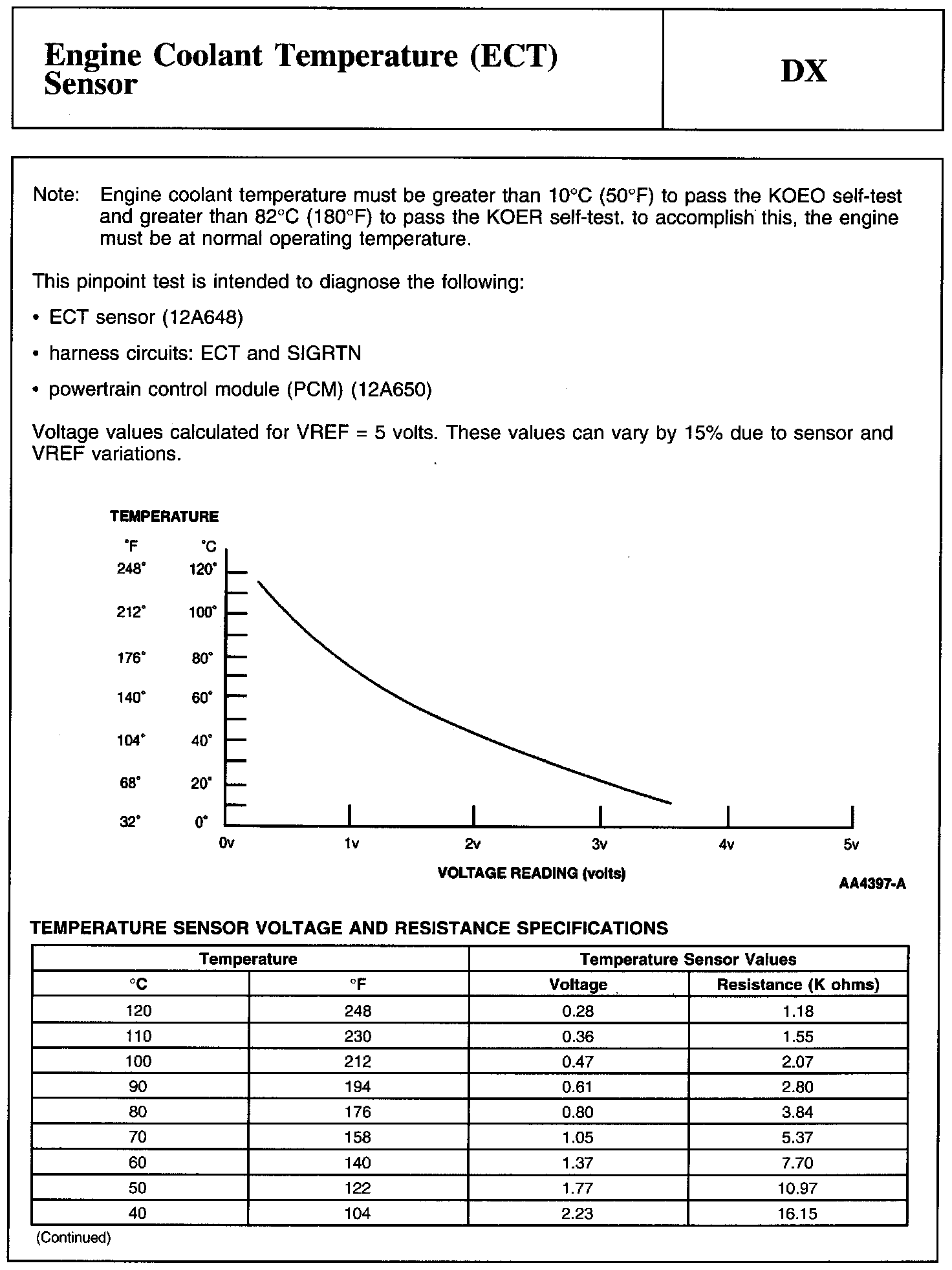

Note And Temperature Sensor Voltage And Resistance Specifications:

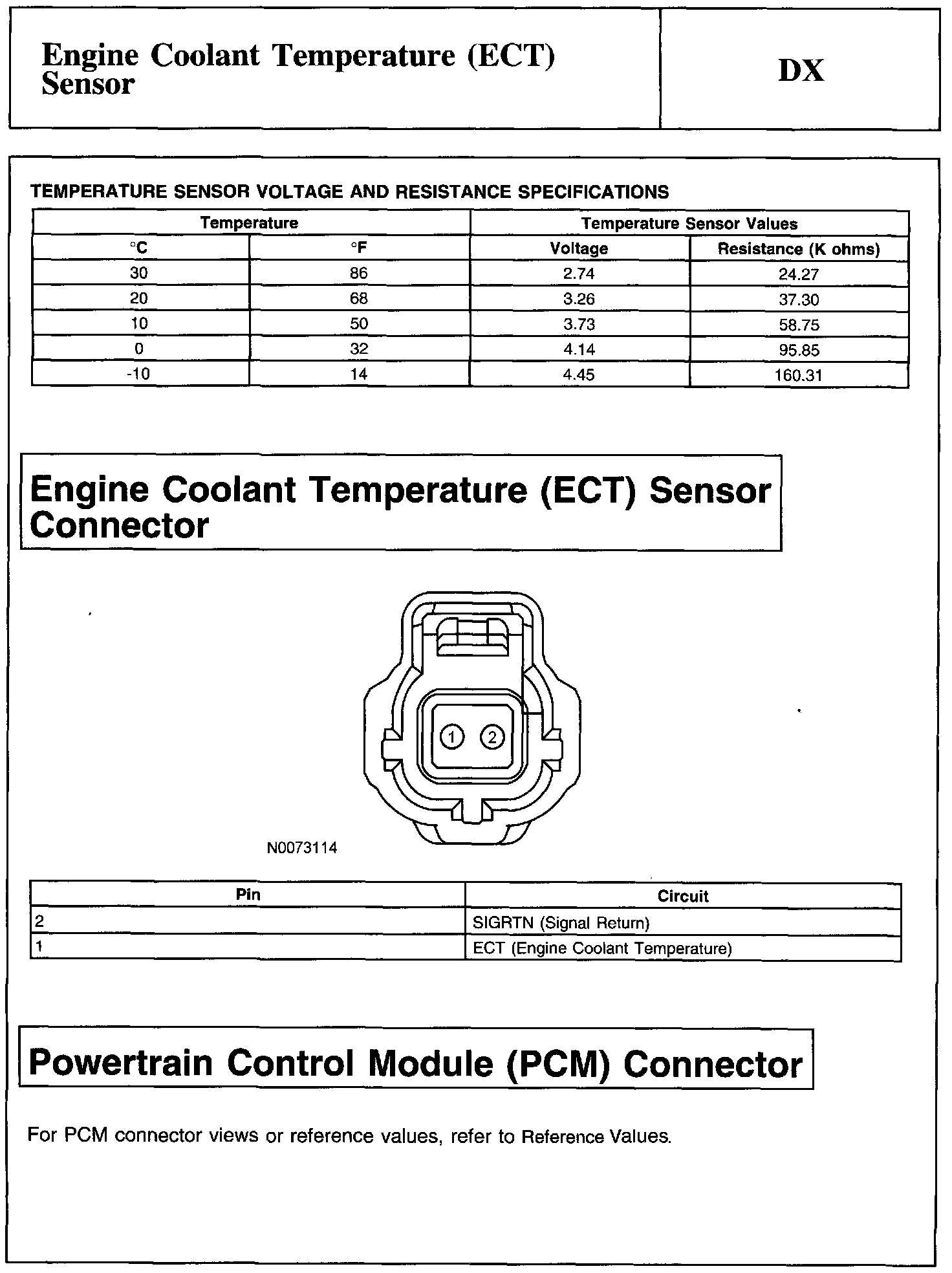

Temperature Sensor Voltage And Resistance Specifications, Engine Coolant Temperature (ECT) Sensor Connector And Powertrain Control Module (PCM) Connector:

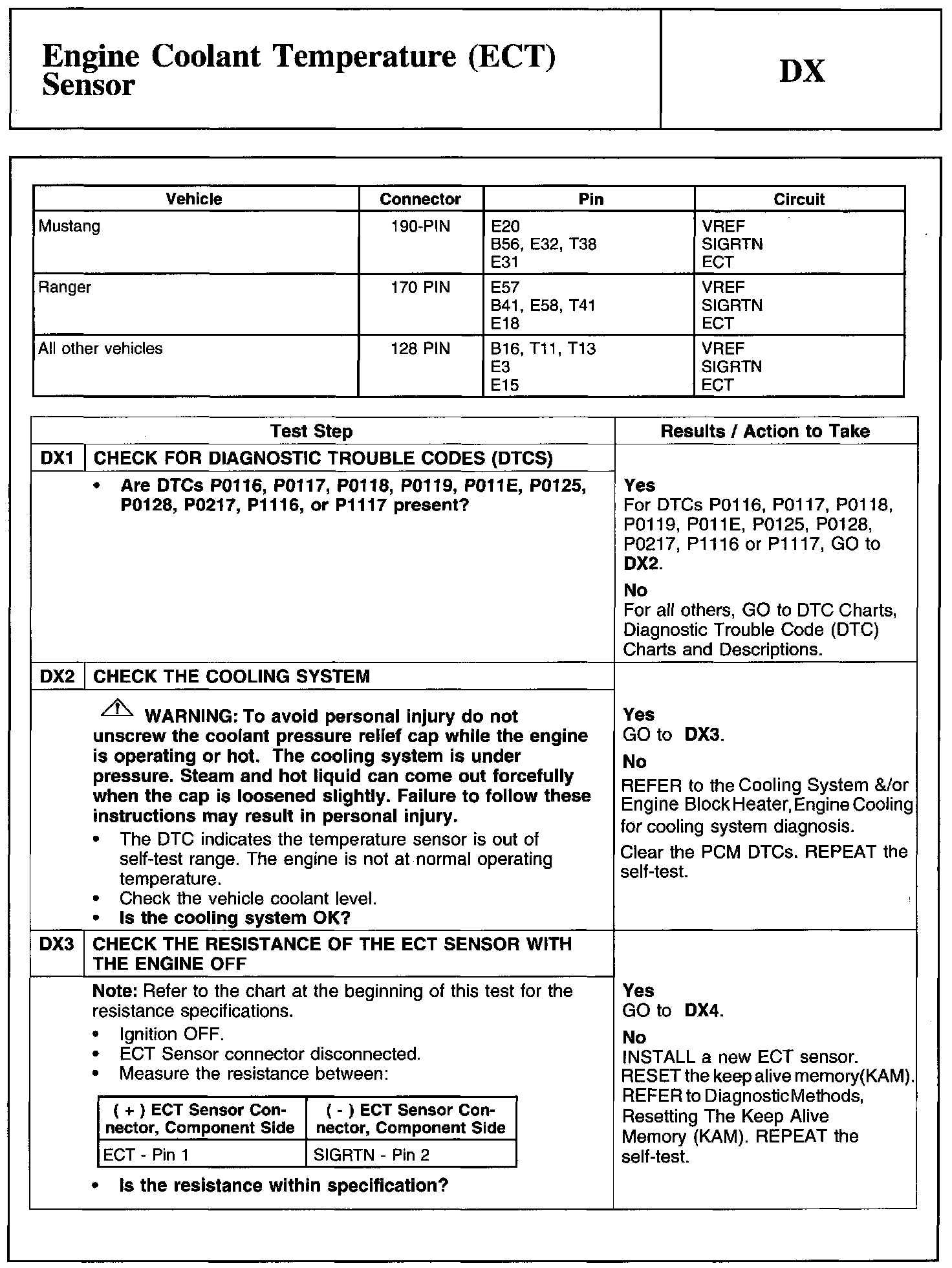

DX1-DX3:

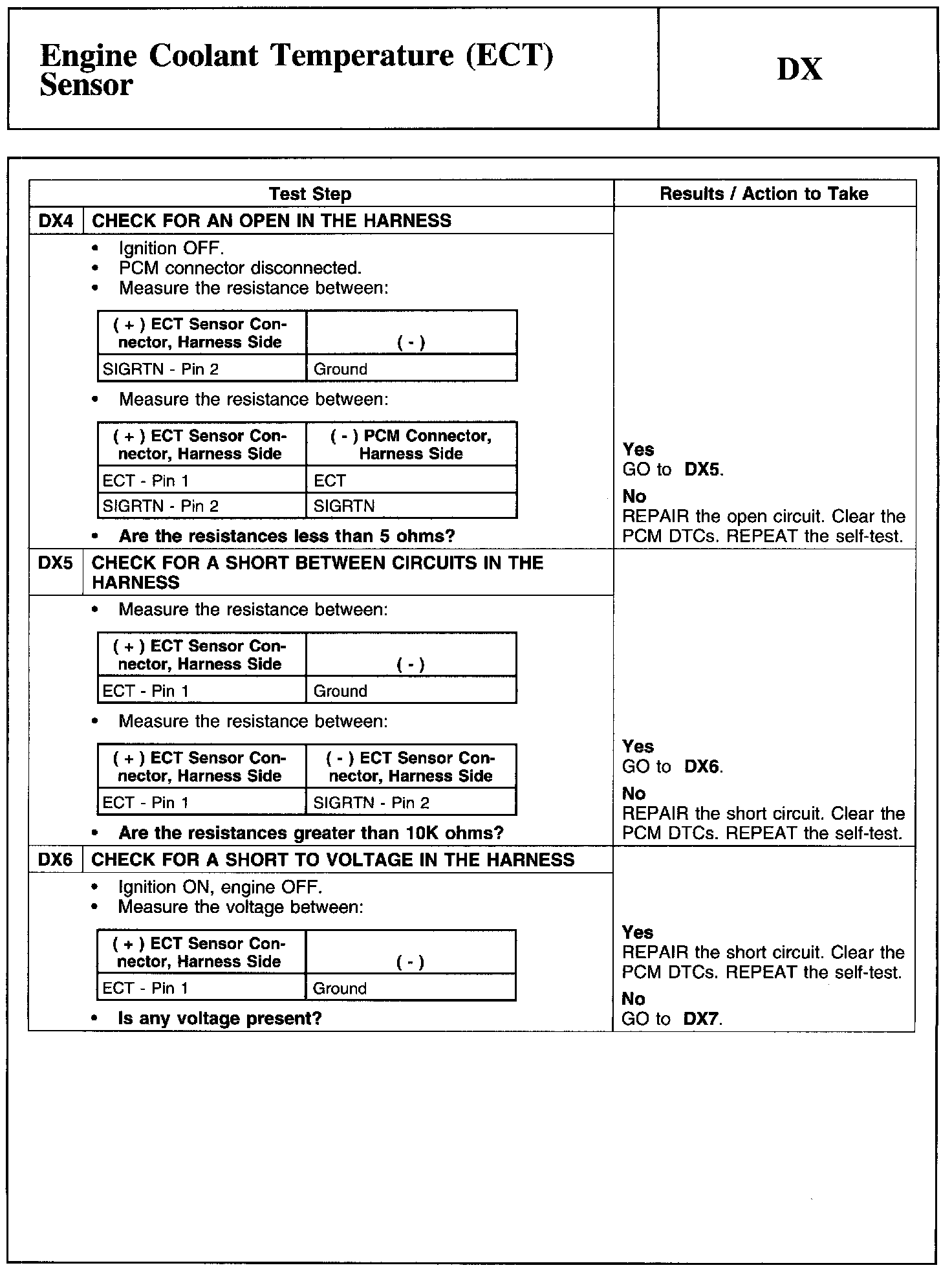

DX4-DX6:

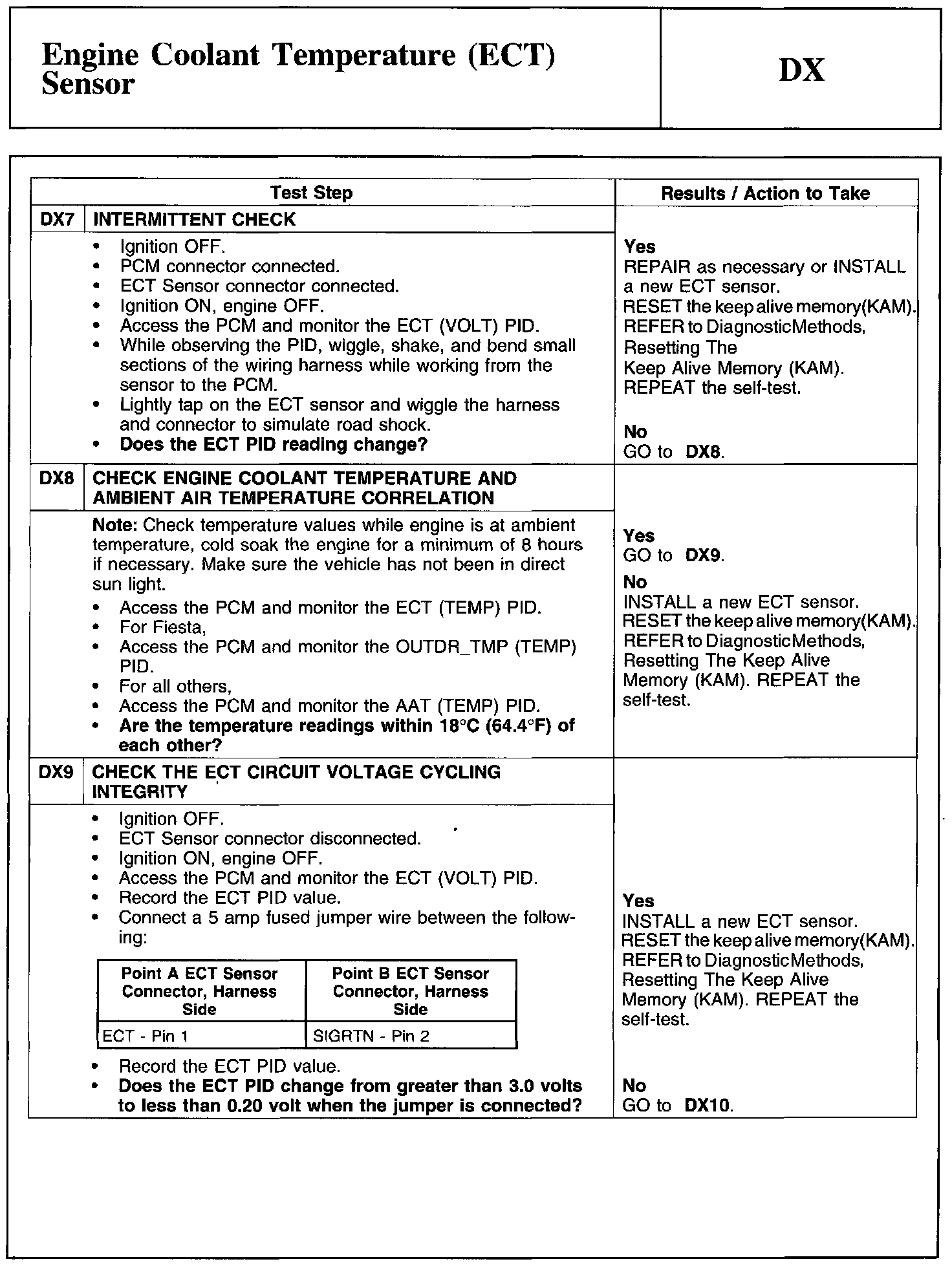

DX7-DX9:

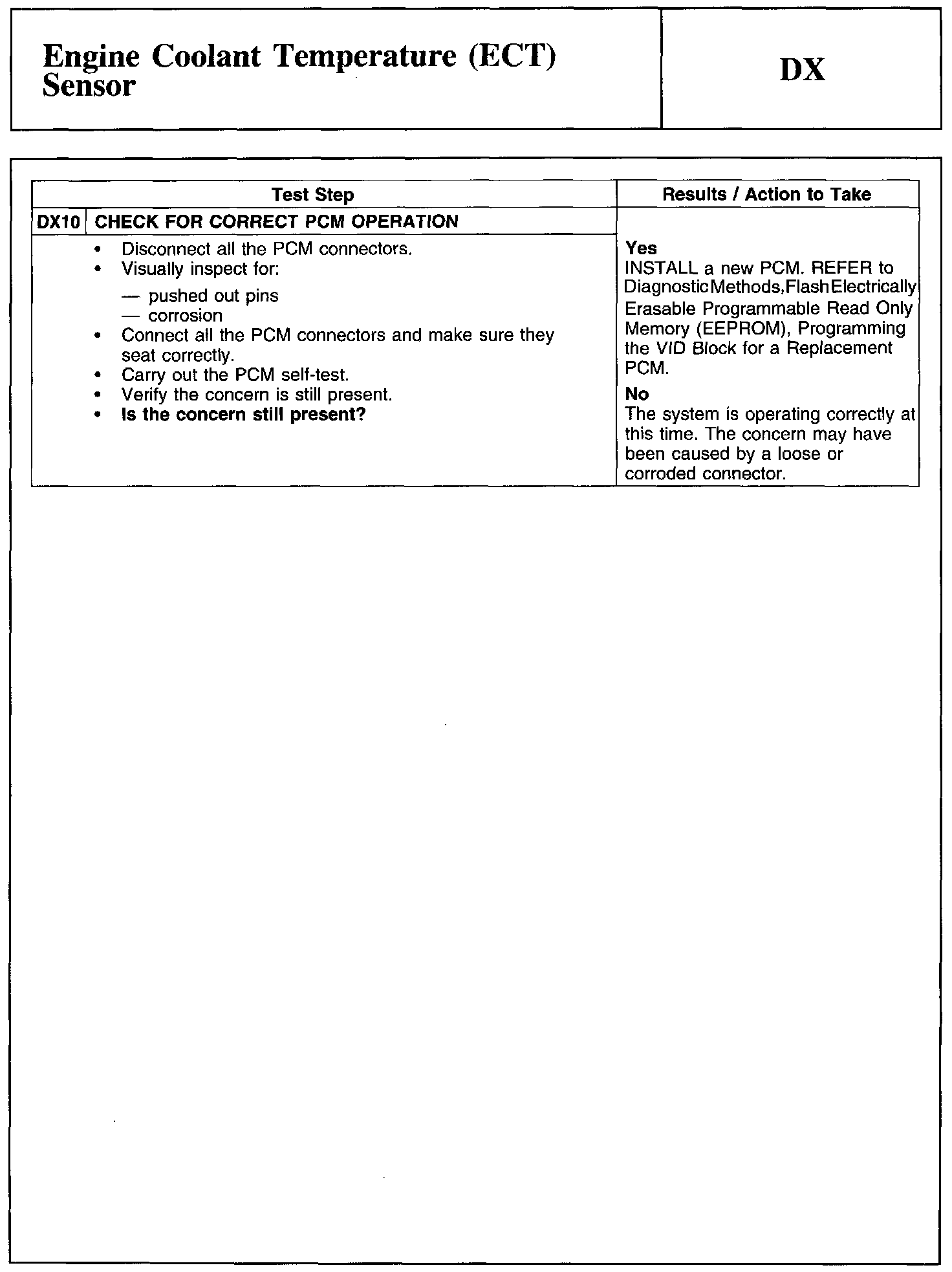

DX10:
