Test FA: Ambient Air Temperature (AAT) Sensor

PINPOINT TEST FA: AMBIENT AIR TEMPERATURE (AAT) SENSOR

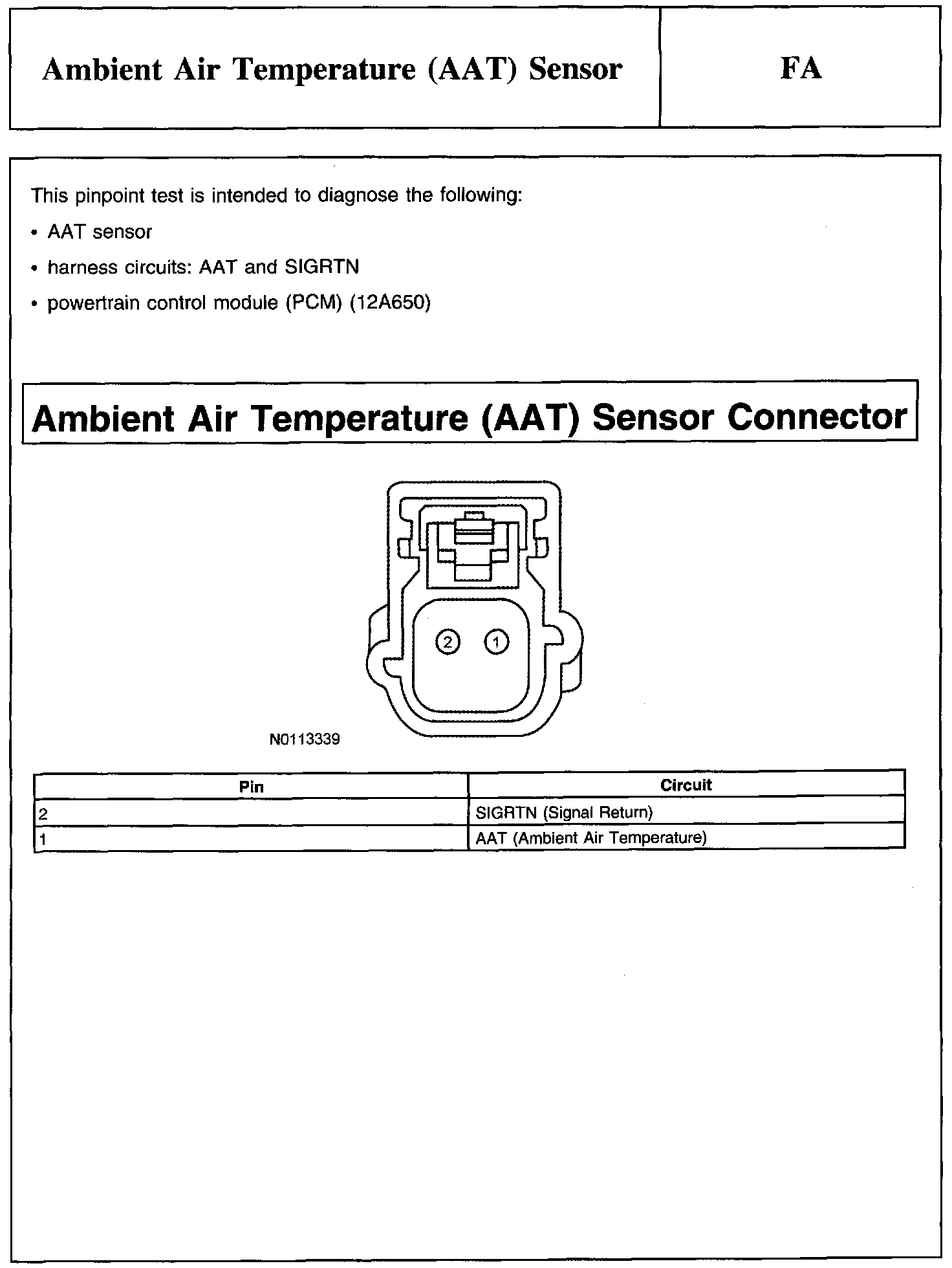

Ambient Air Temperature (AAT) Sensor Connector:

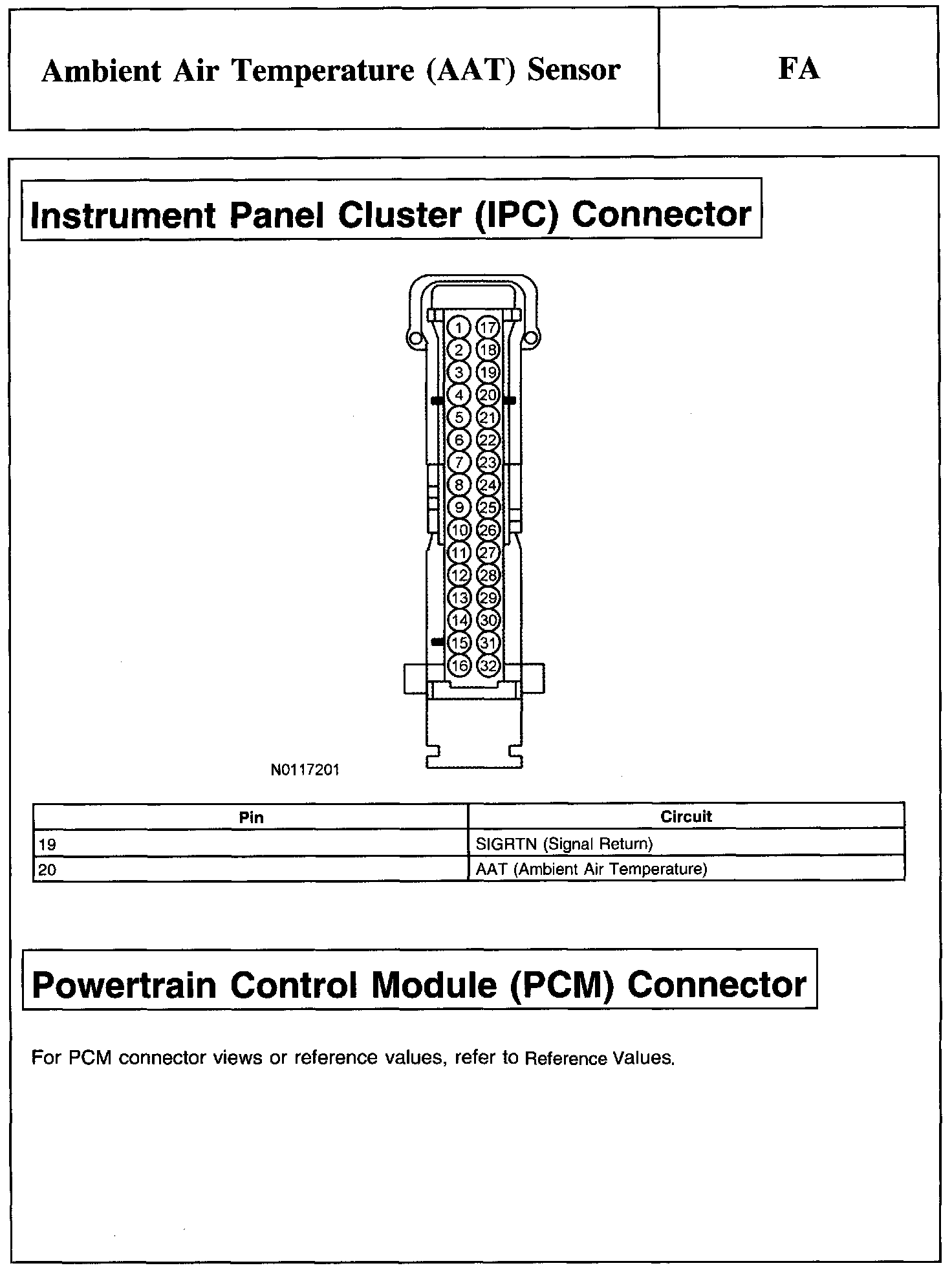

Instrument Panel Cluster (IPC) Connector And Powertrain Control Module (PCM) Connector:

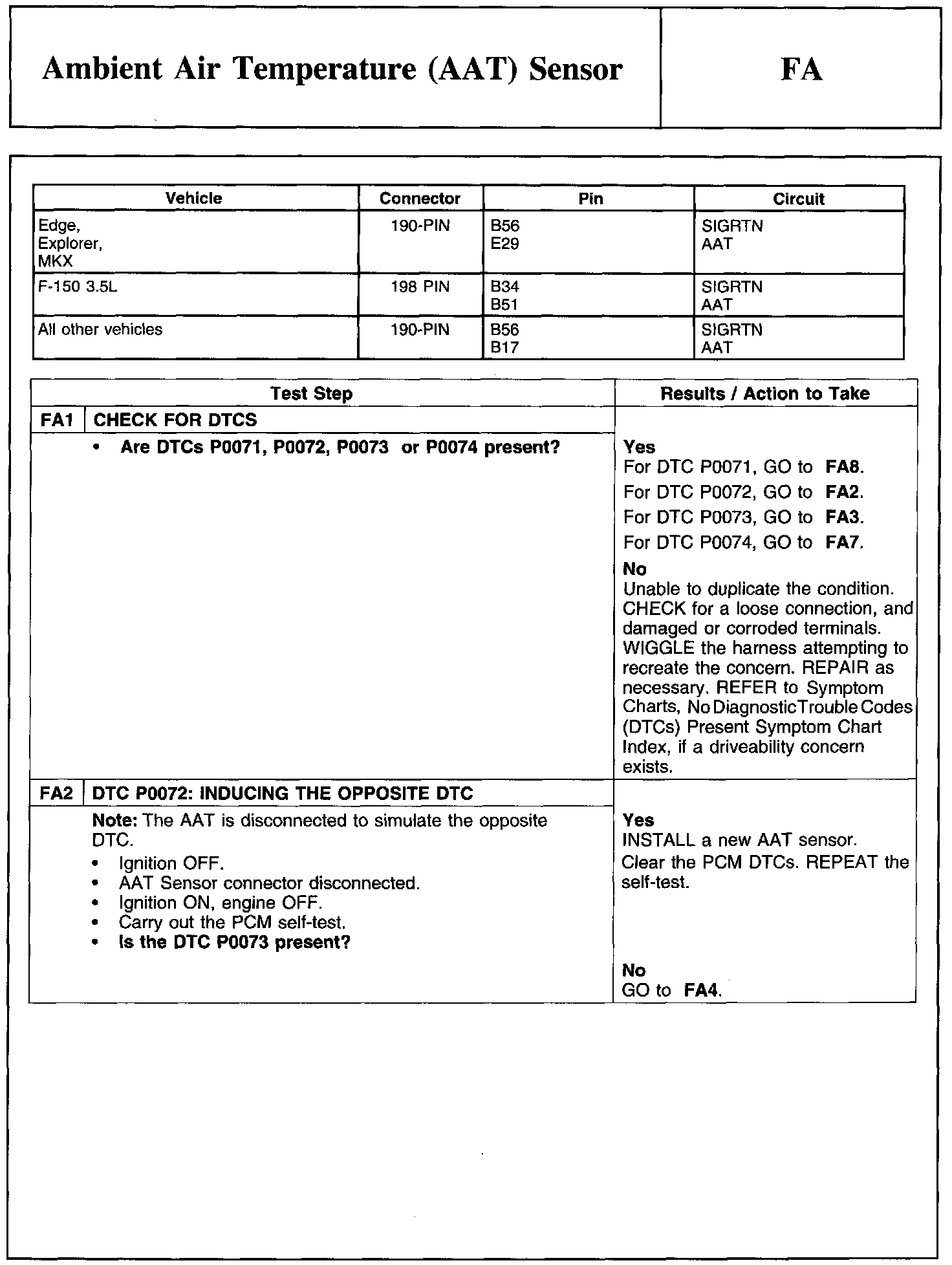

FA1-FA2:

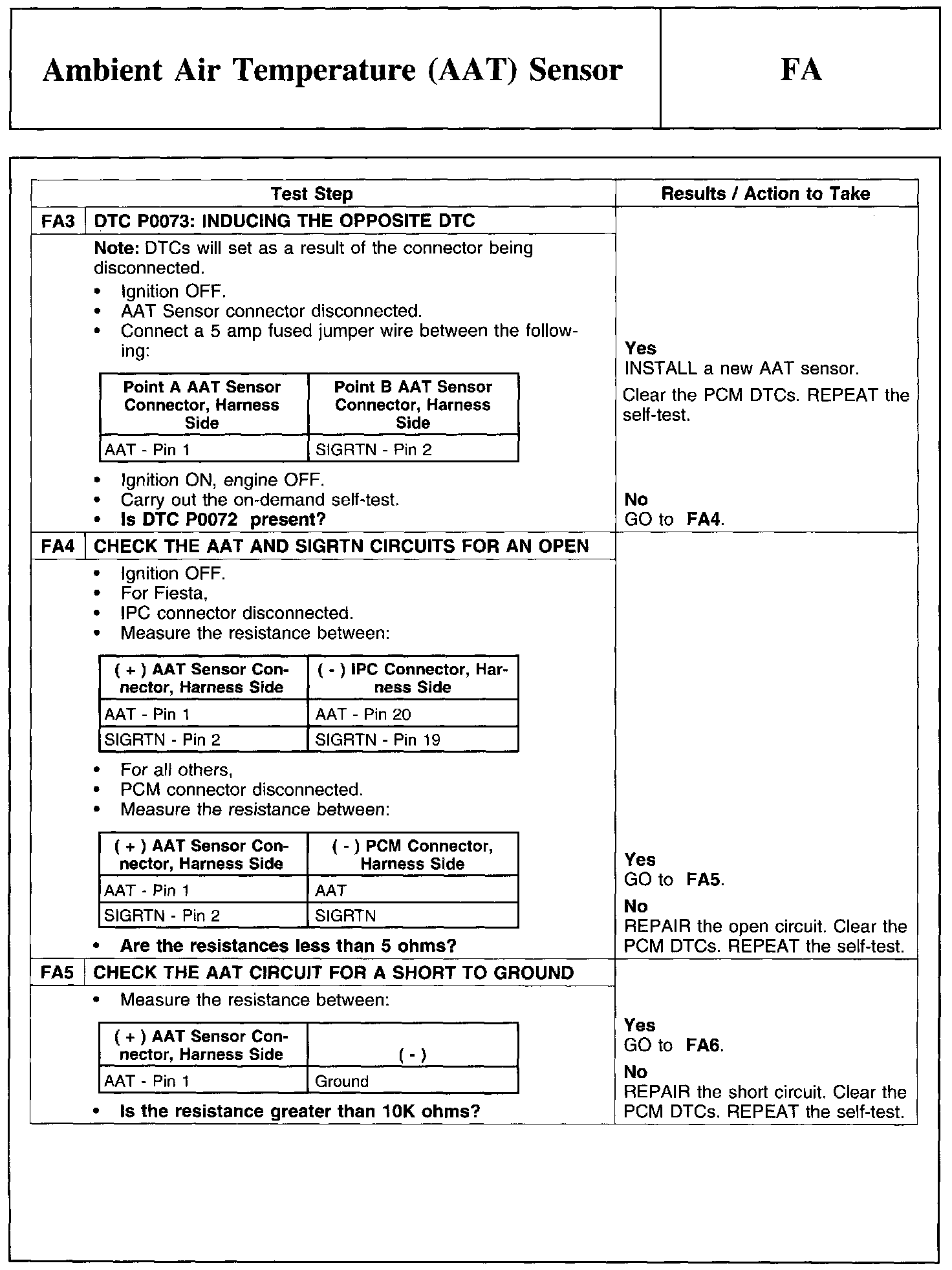

FA3-FA5:

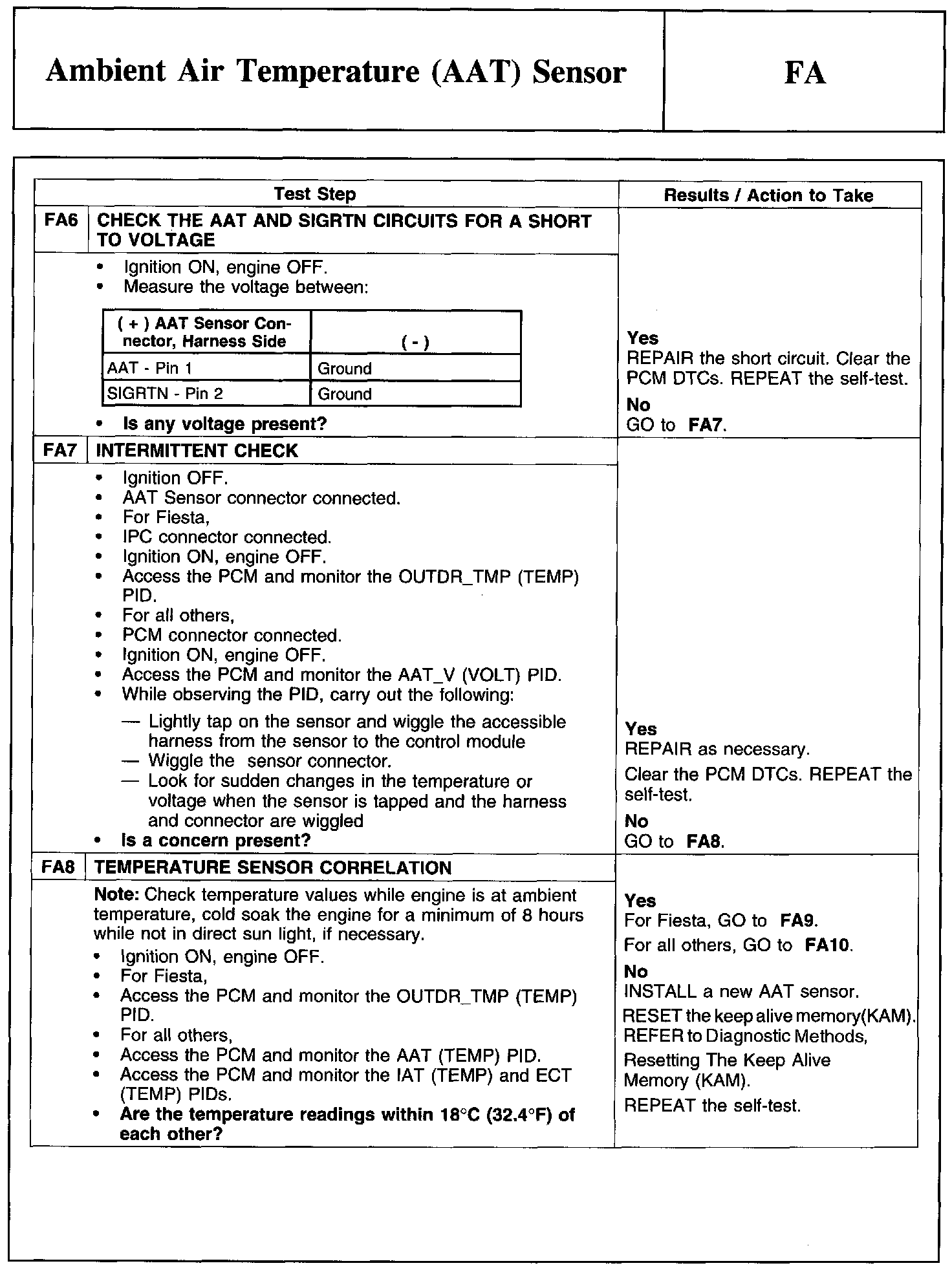

FA6-FA8:

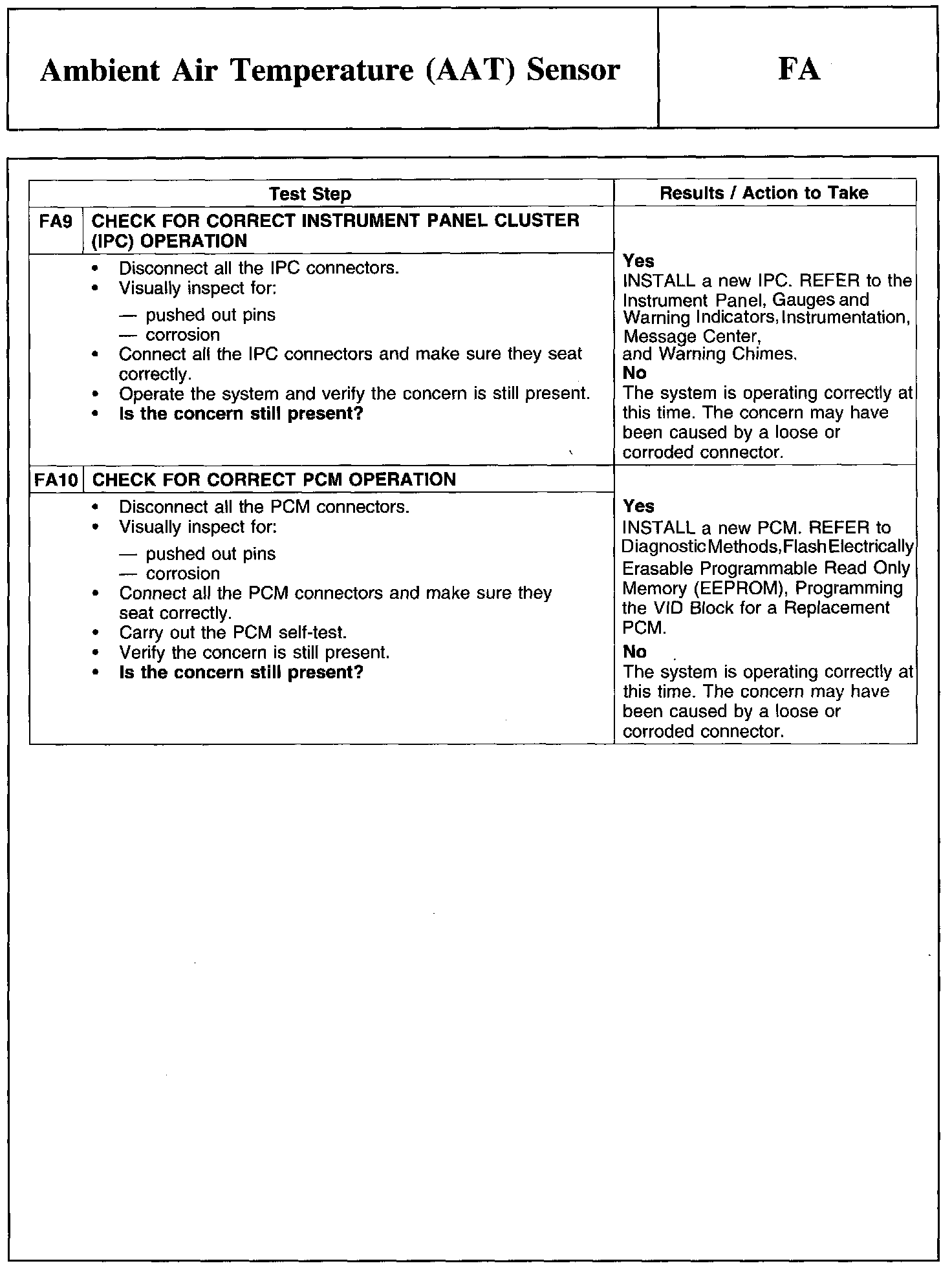

FA9-FA10:
