Test FD: Brake Pedal Inputs

PINPOINT TEST FD: BRAKE PEDAL INPUTS

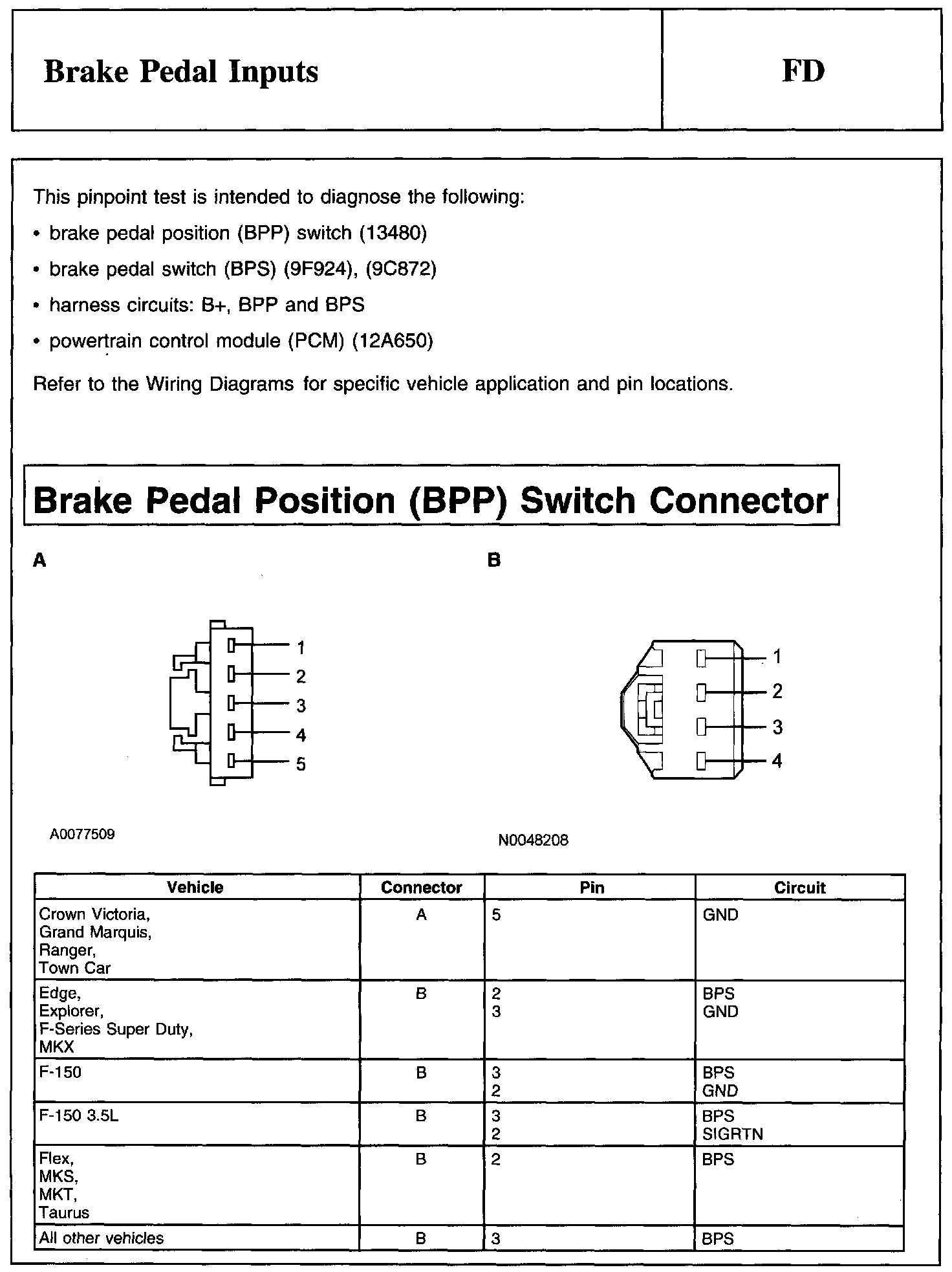

Brake Pedal Position (BPP) Switch Connector:

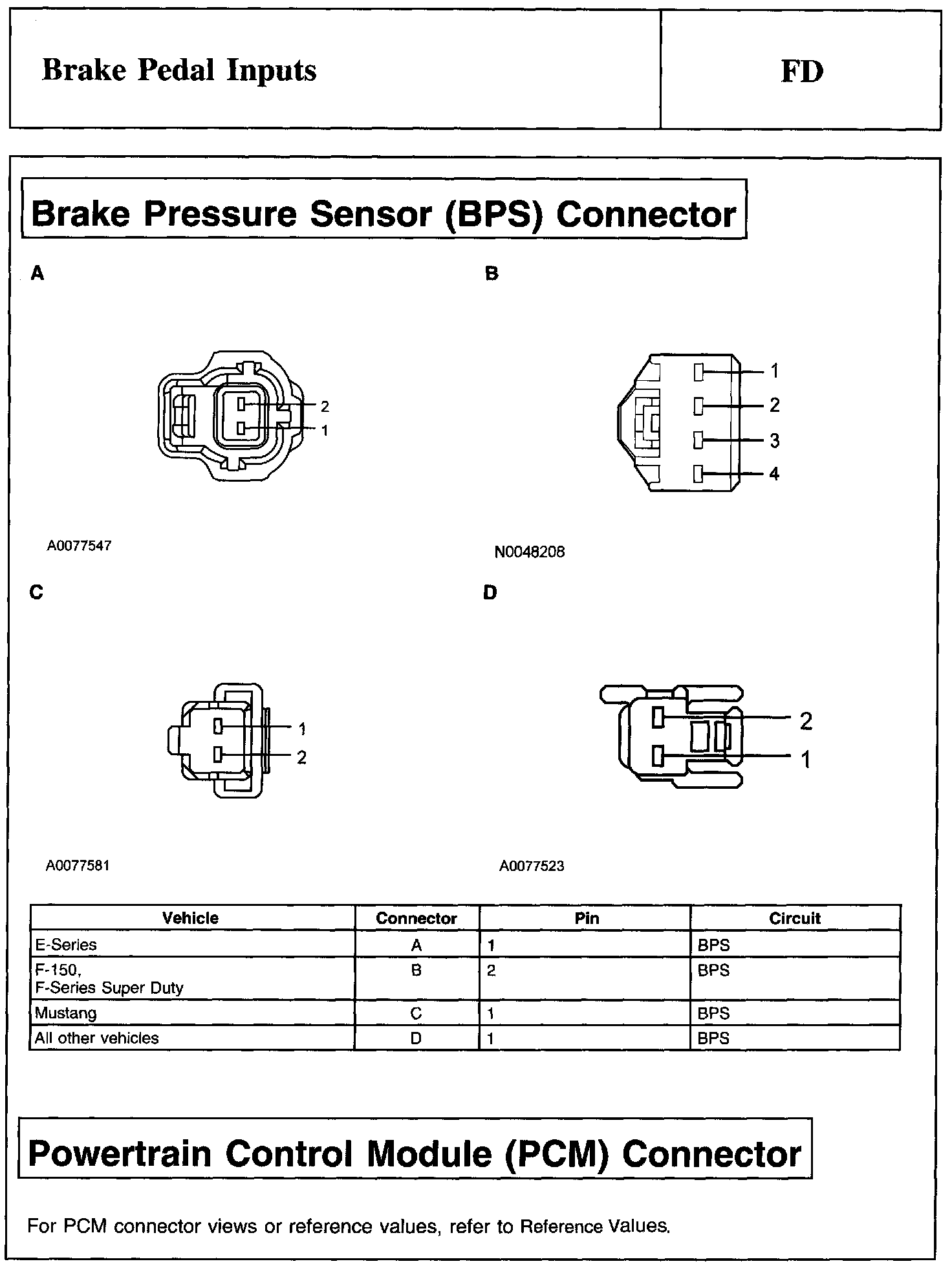

Brake Pressure Sensor (BPS) Connector And Powertrain Control Module (PCM) Connector:

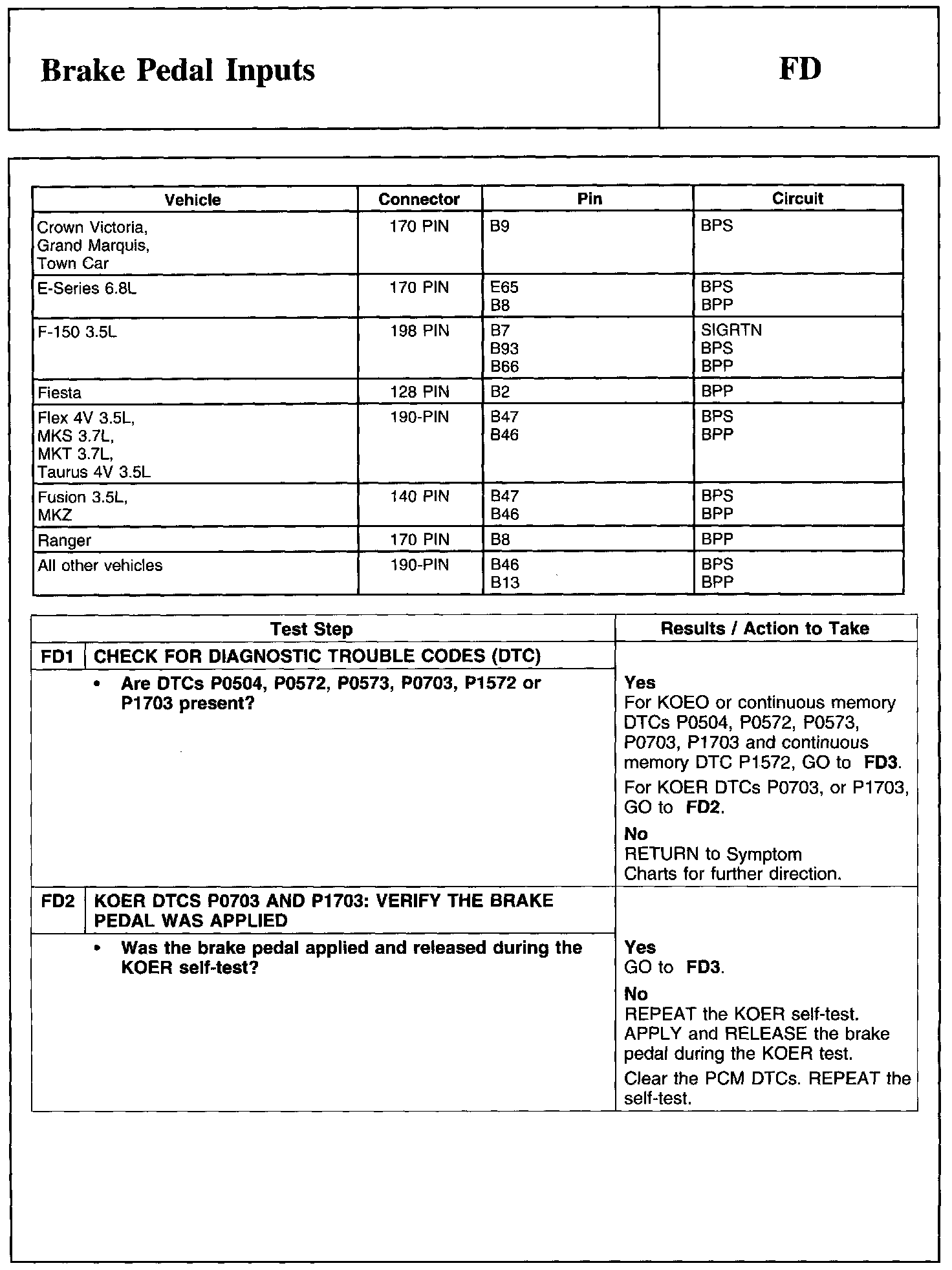

FD1-FD2:

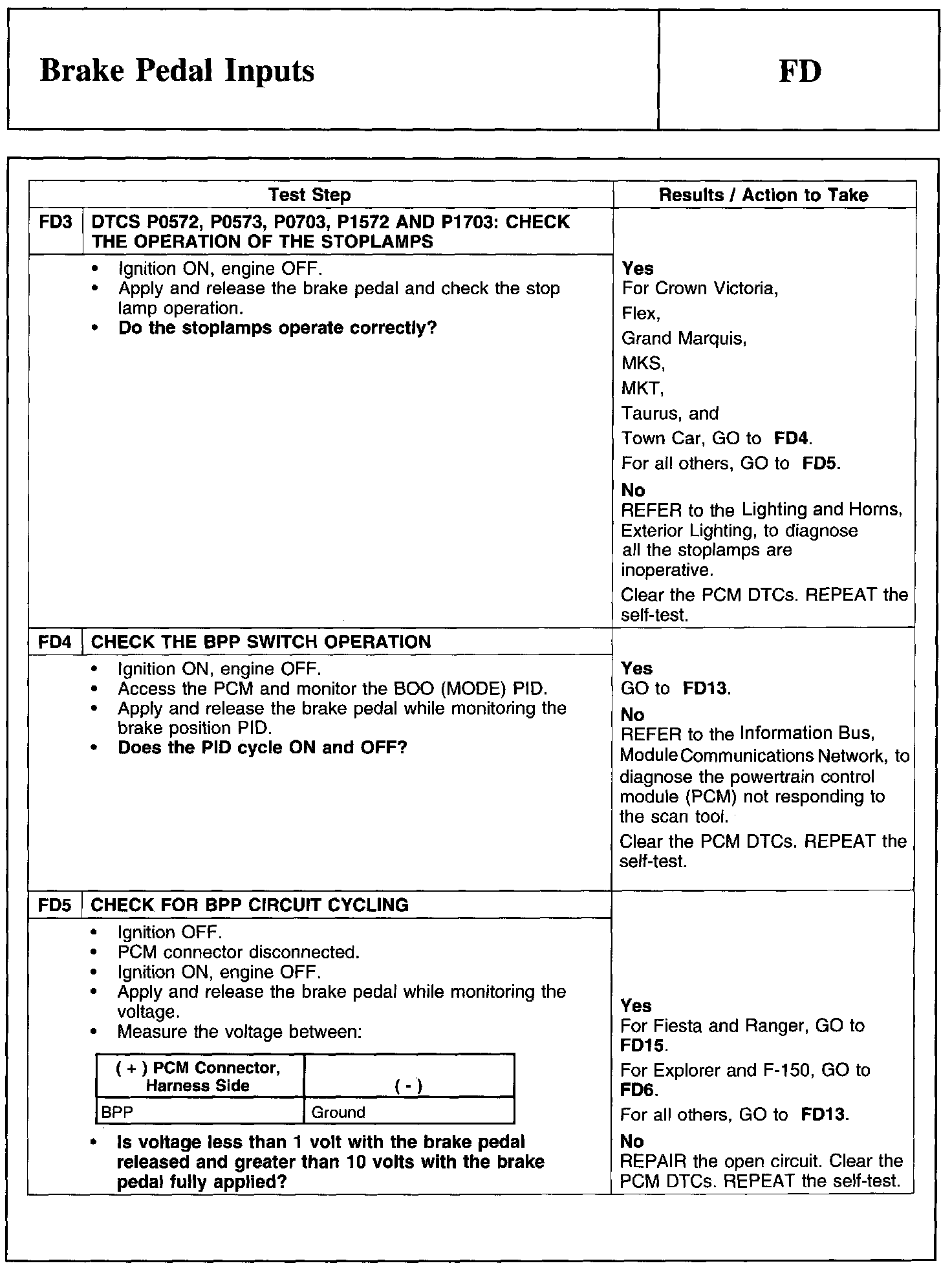

FD3-FD5:

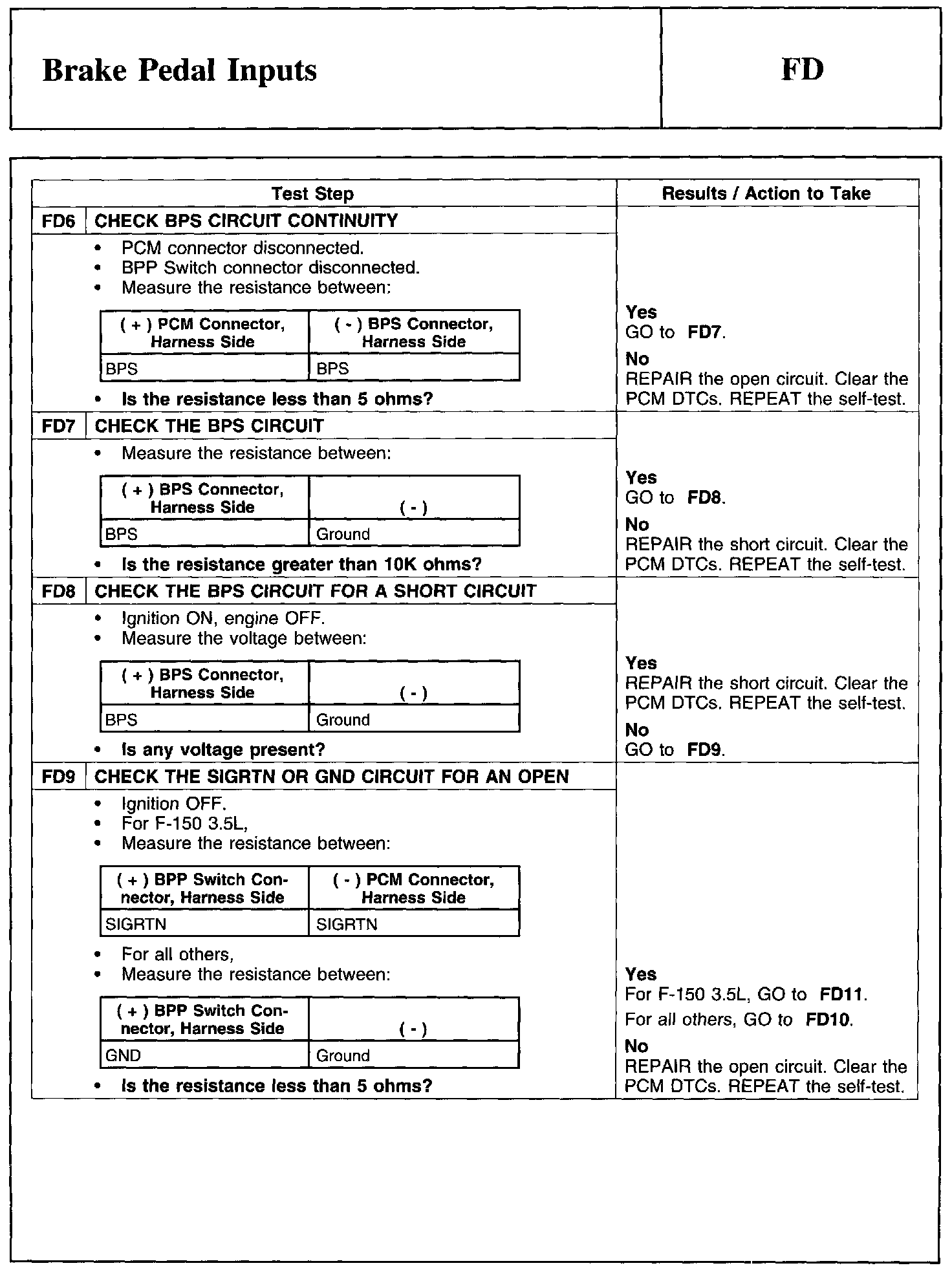

FD6-FD9:

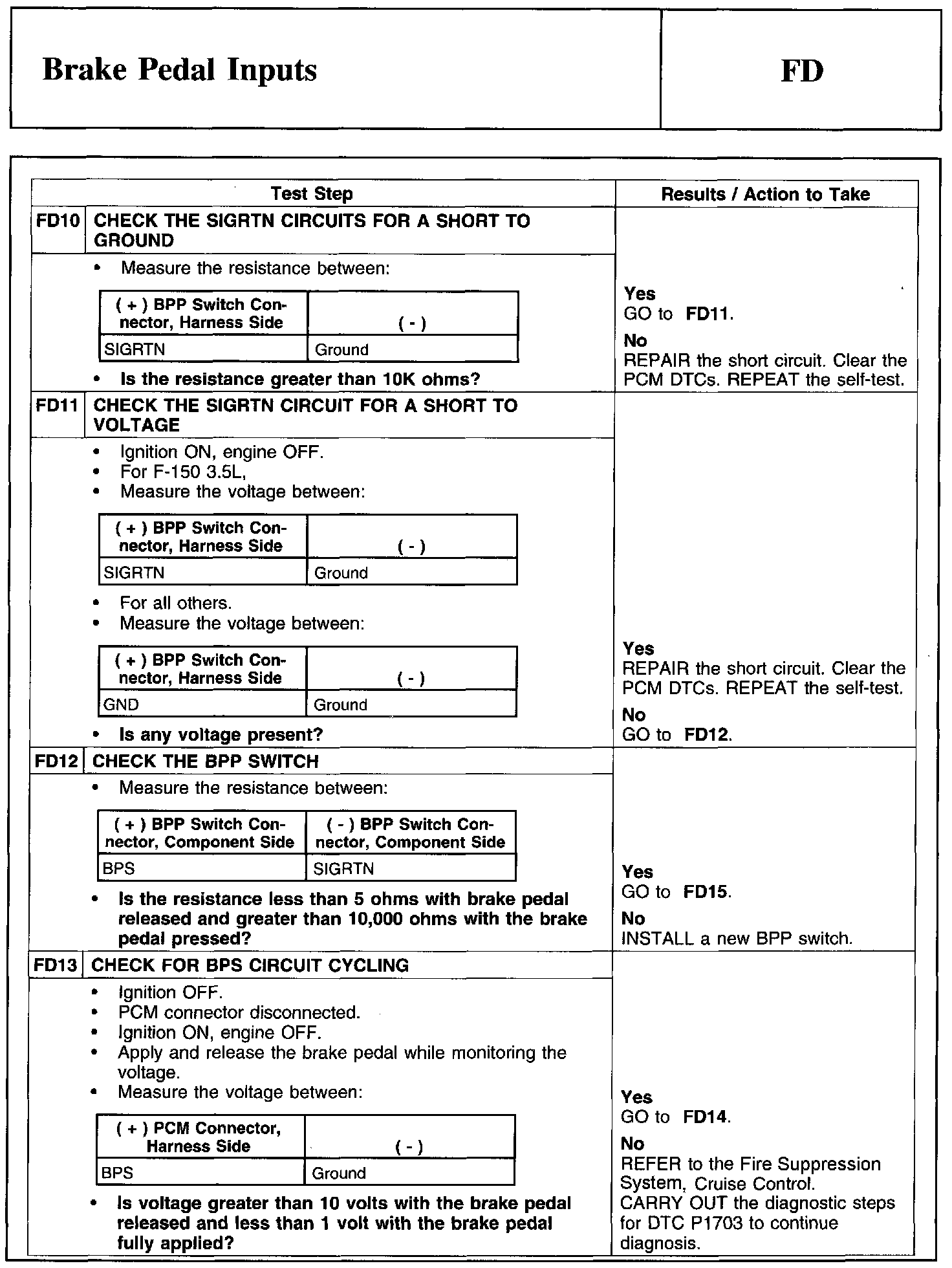

FD10-FD13:

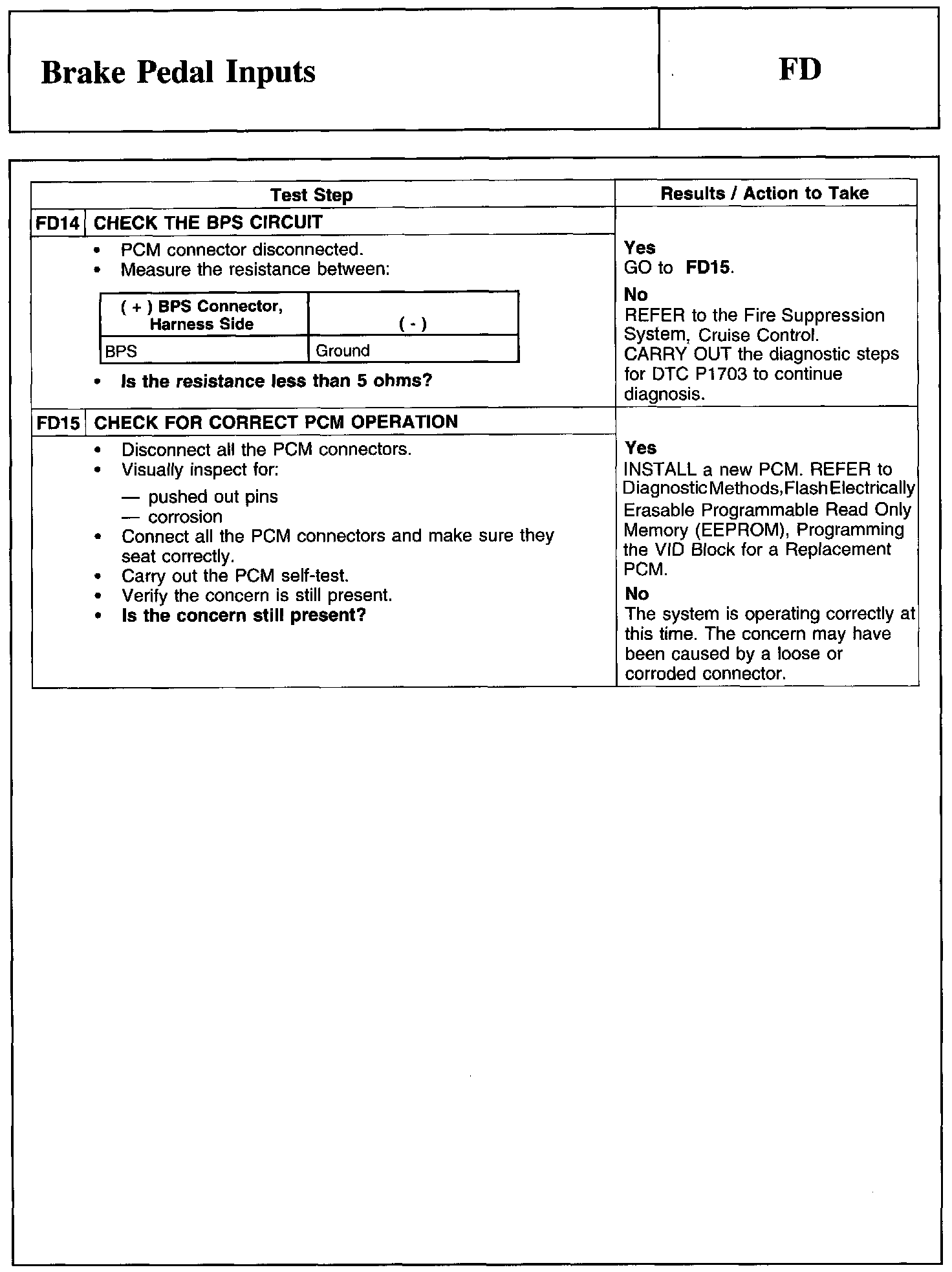

FD14-FD15:
