Test HF: Catalyst Efficiency Monitor and Exhaust Systems

PINPOINT TEST HF: CATALYST EFFICIENCY MONITOR AND EXHAUST SYSTEMS

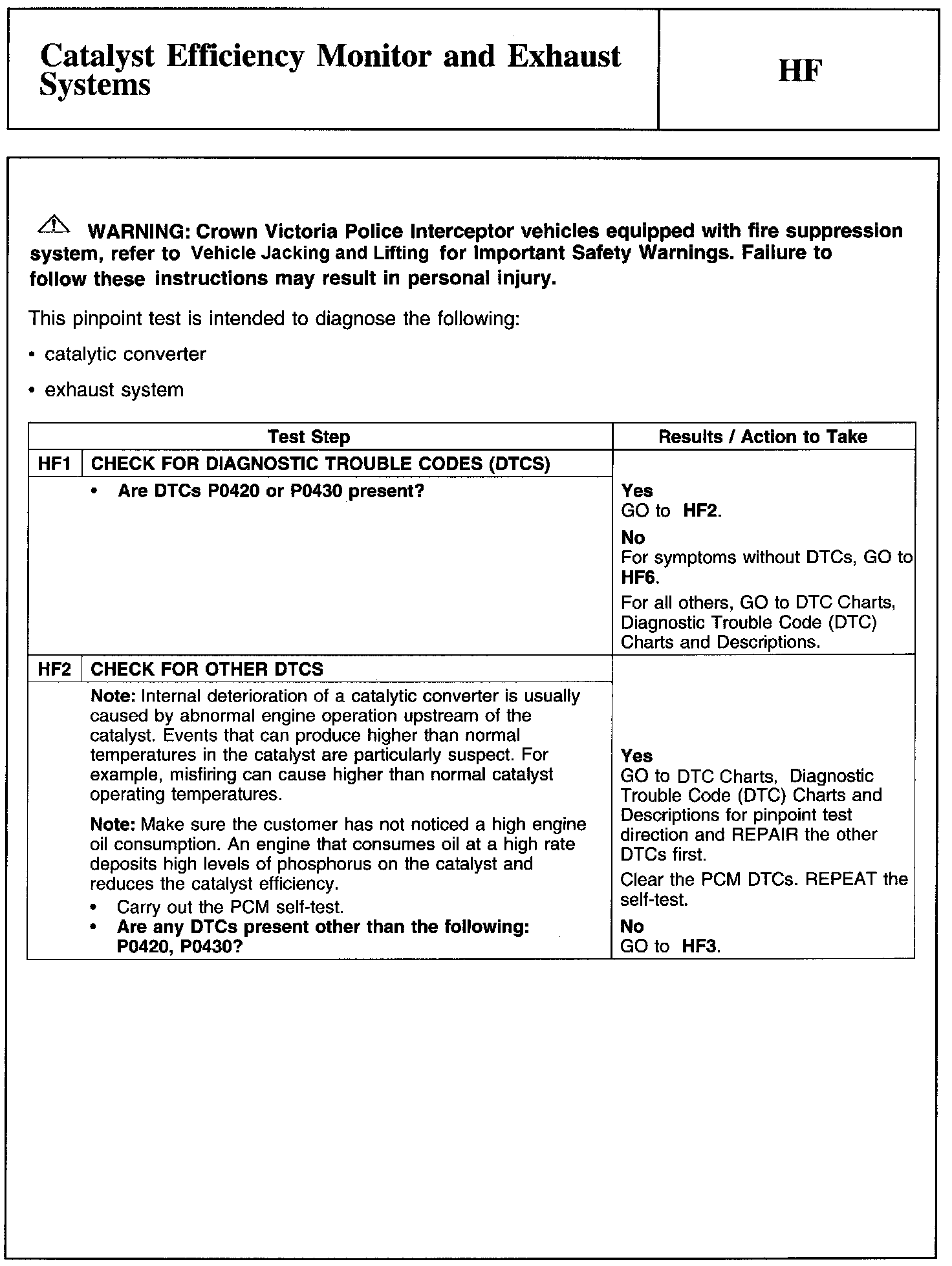

HF1-HF2:

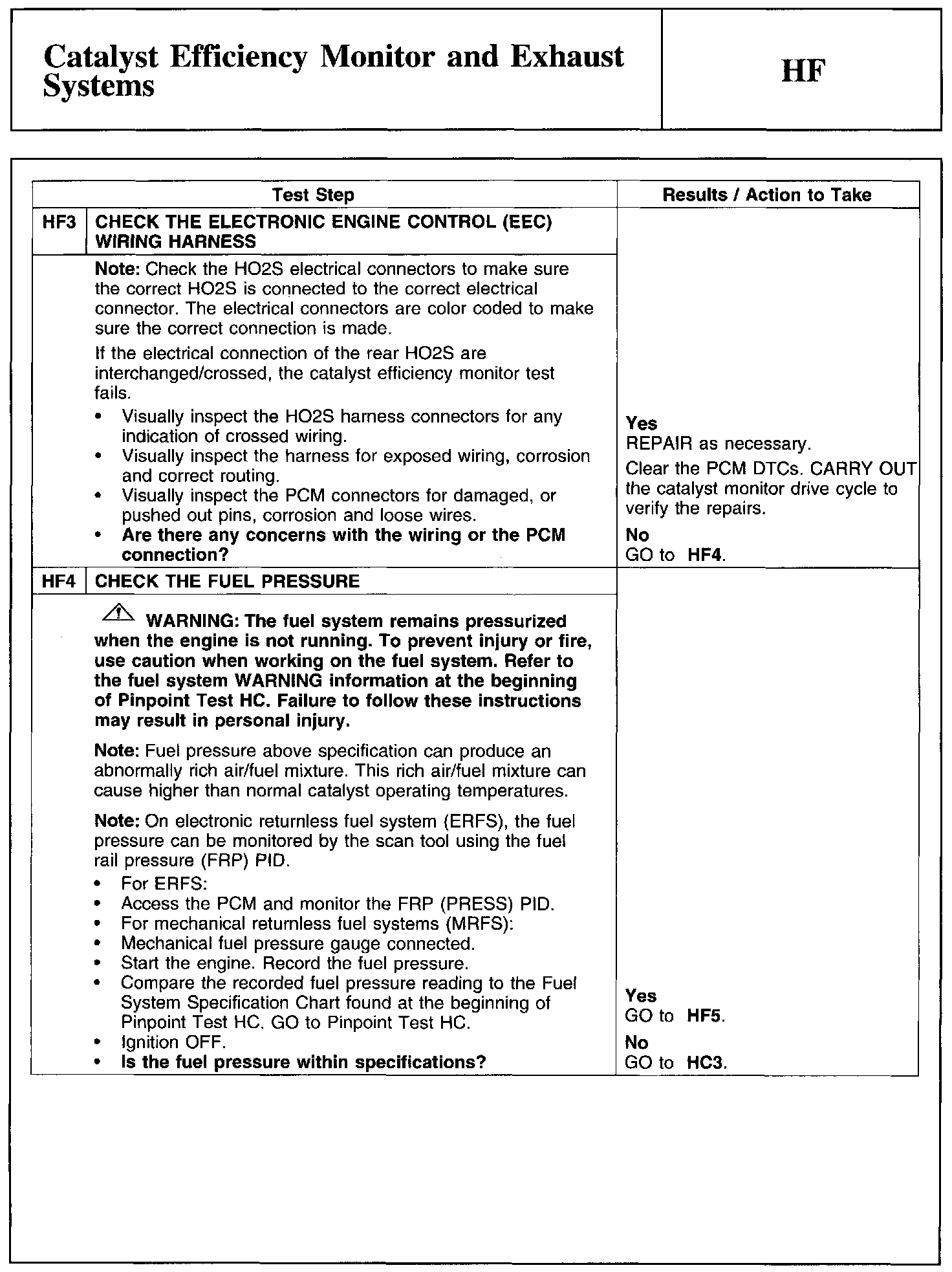

HF3-HF4:

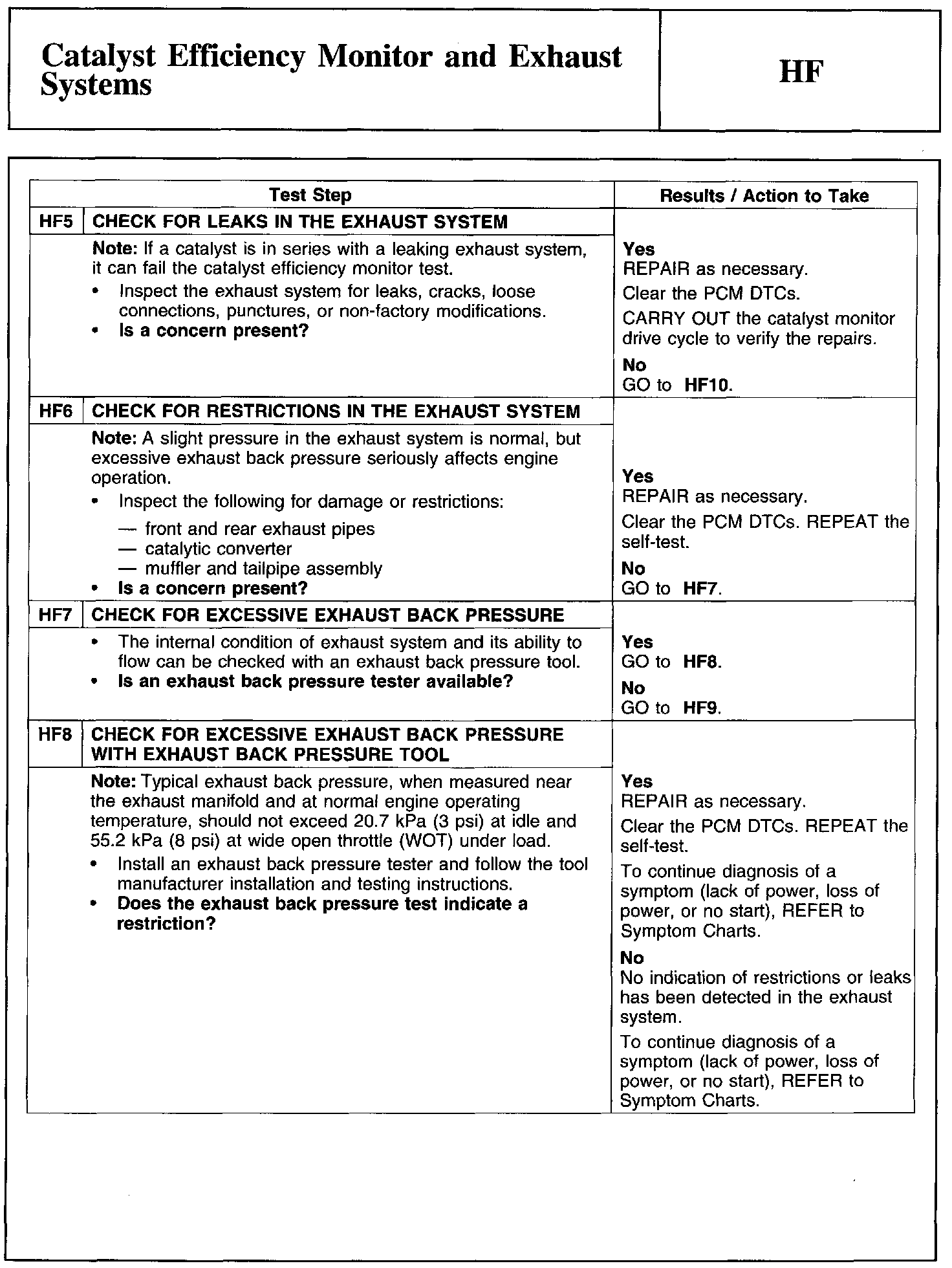

HF5-HF8:

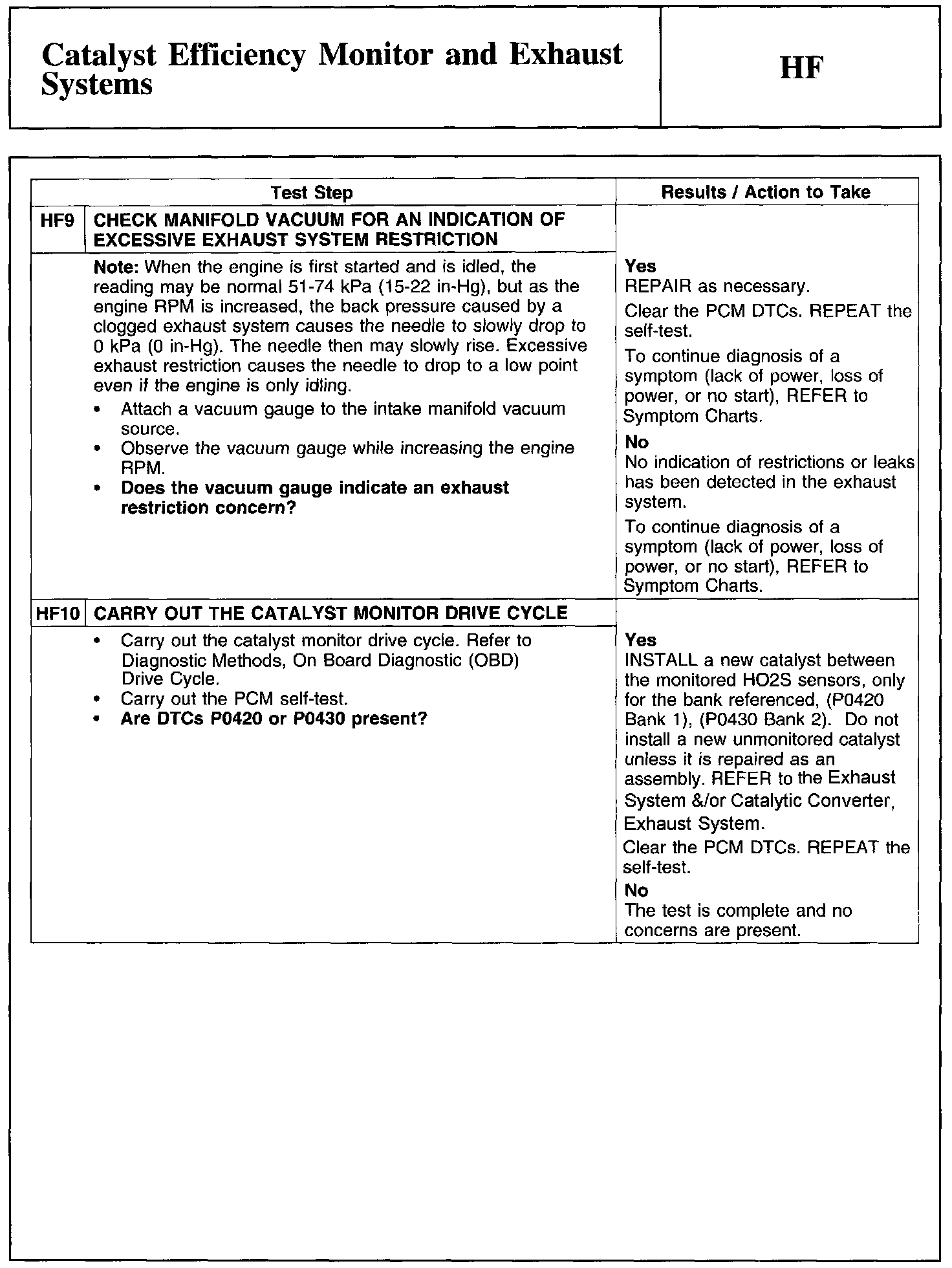

HF9-HF10:
