Test HZ: Natural Vacuum Leak Detection

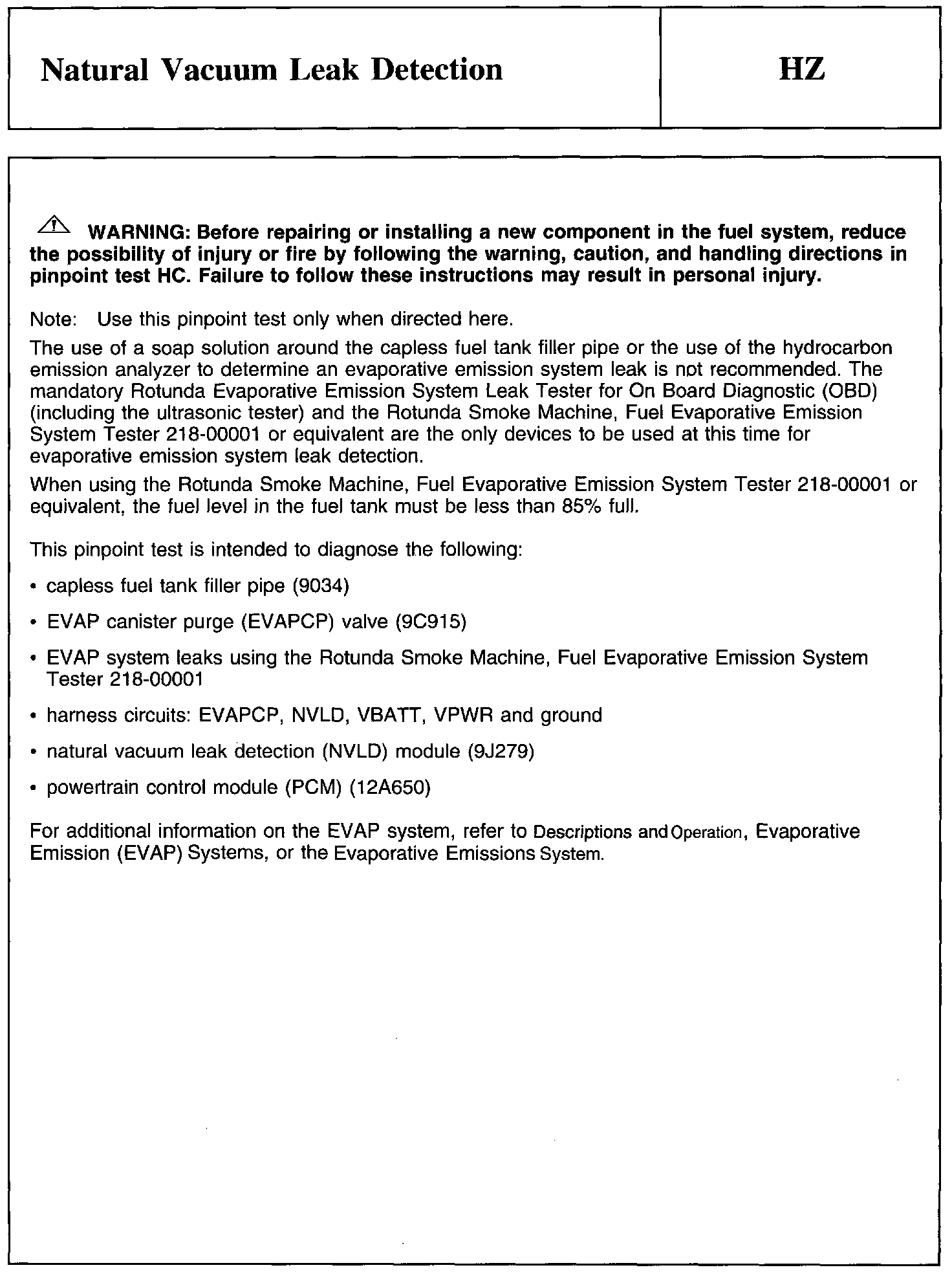

Warning And Note:

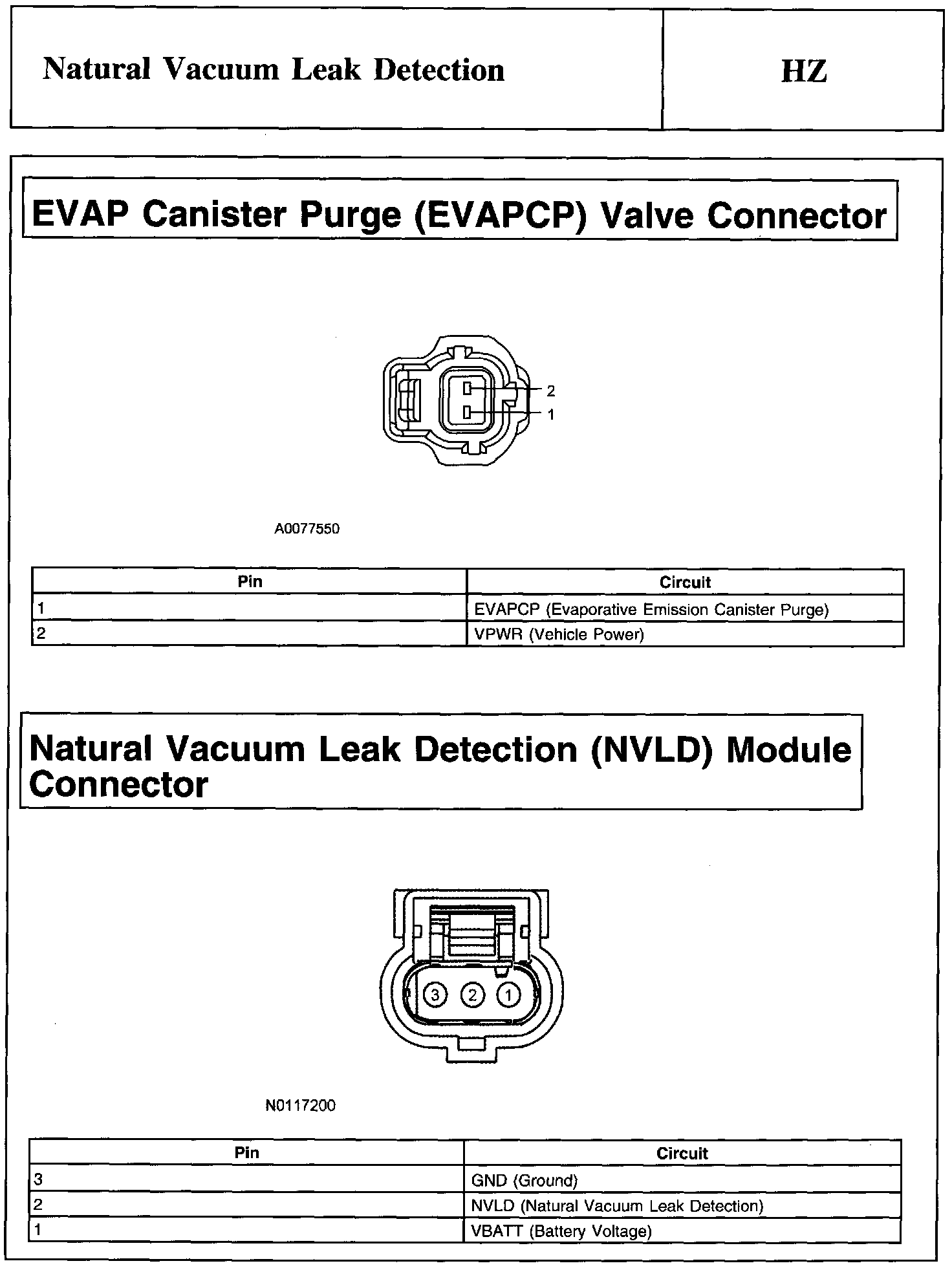

EVAP Canister Purge (EVAPCP) Valve Connector And Natural Vacuum Leak Detection (NVLD) Module Connector:

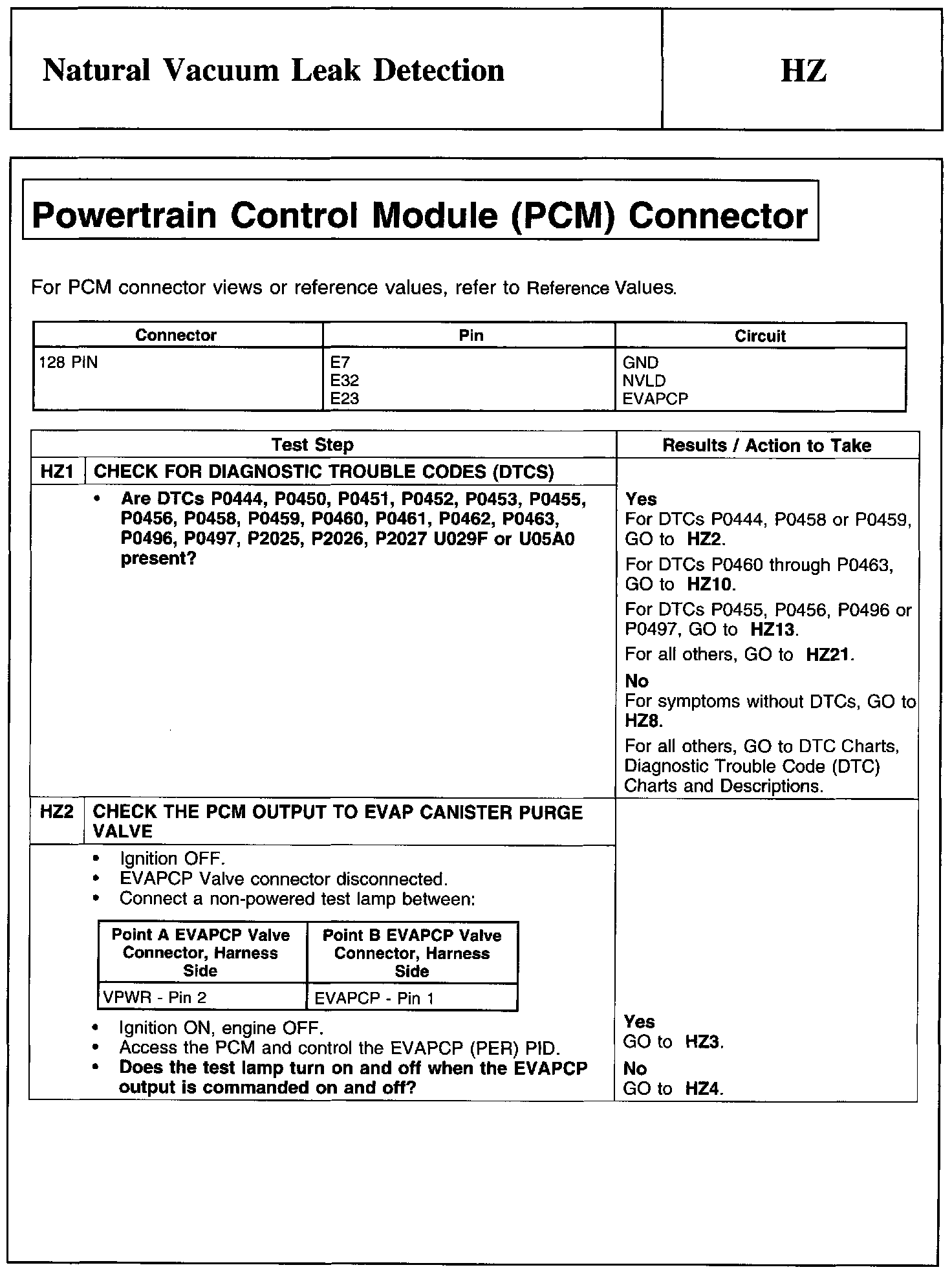

HZ1-HZ2:

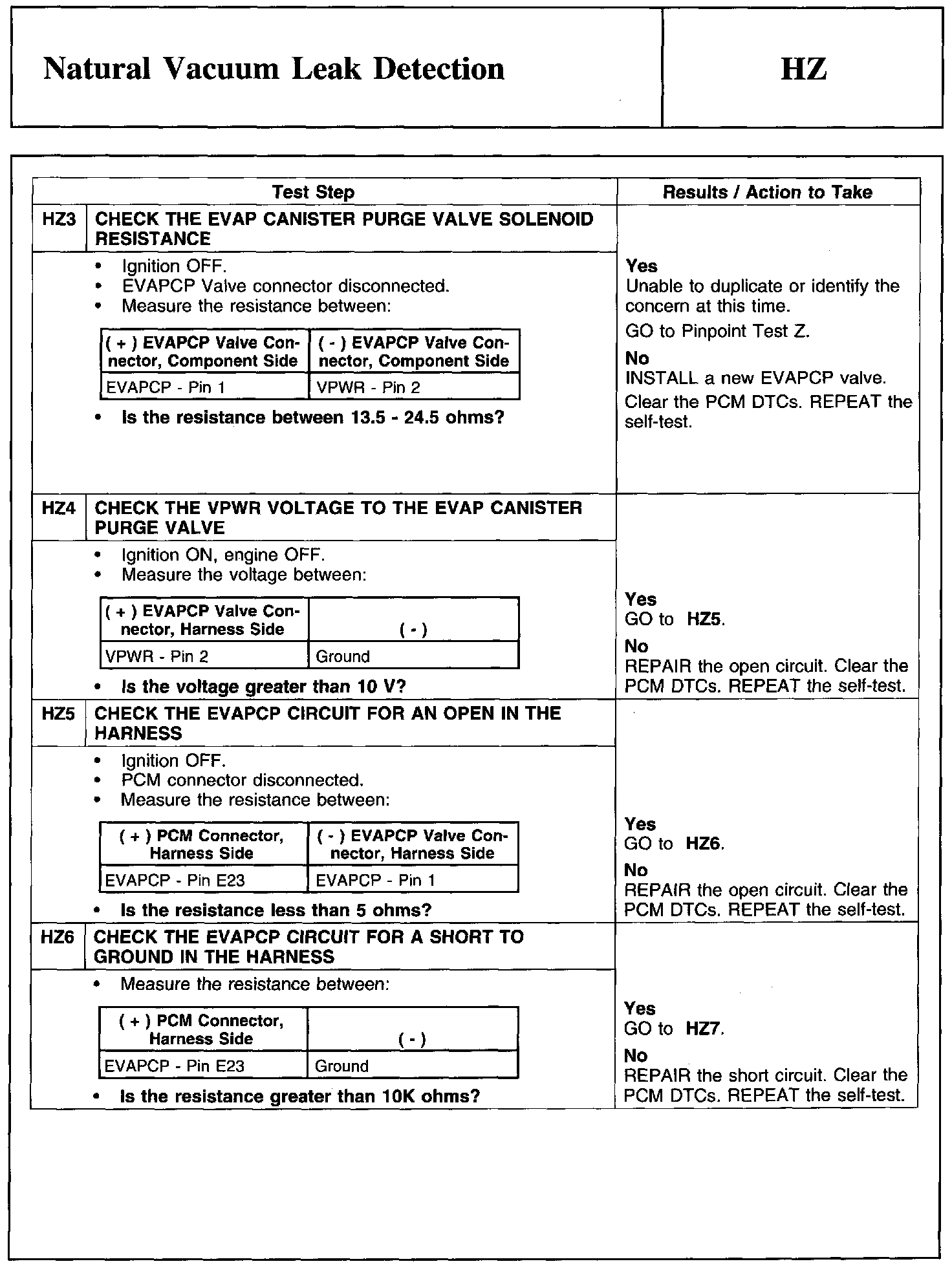

HZ3-HZ6:

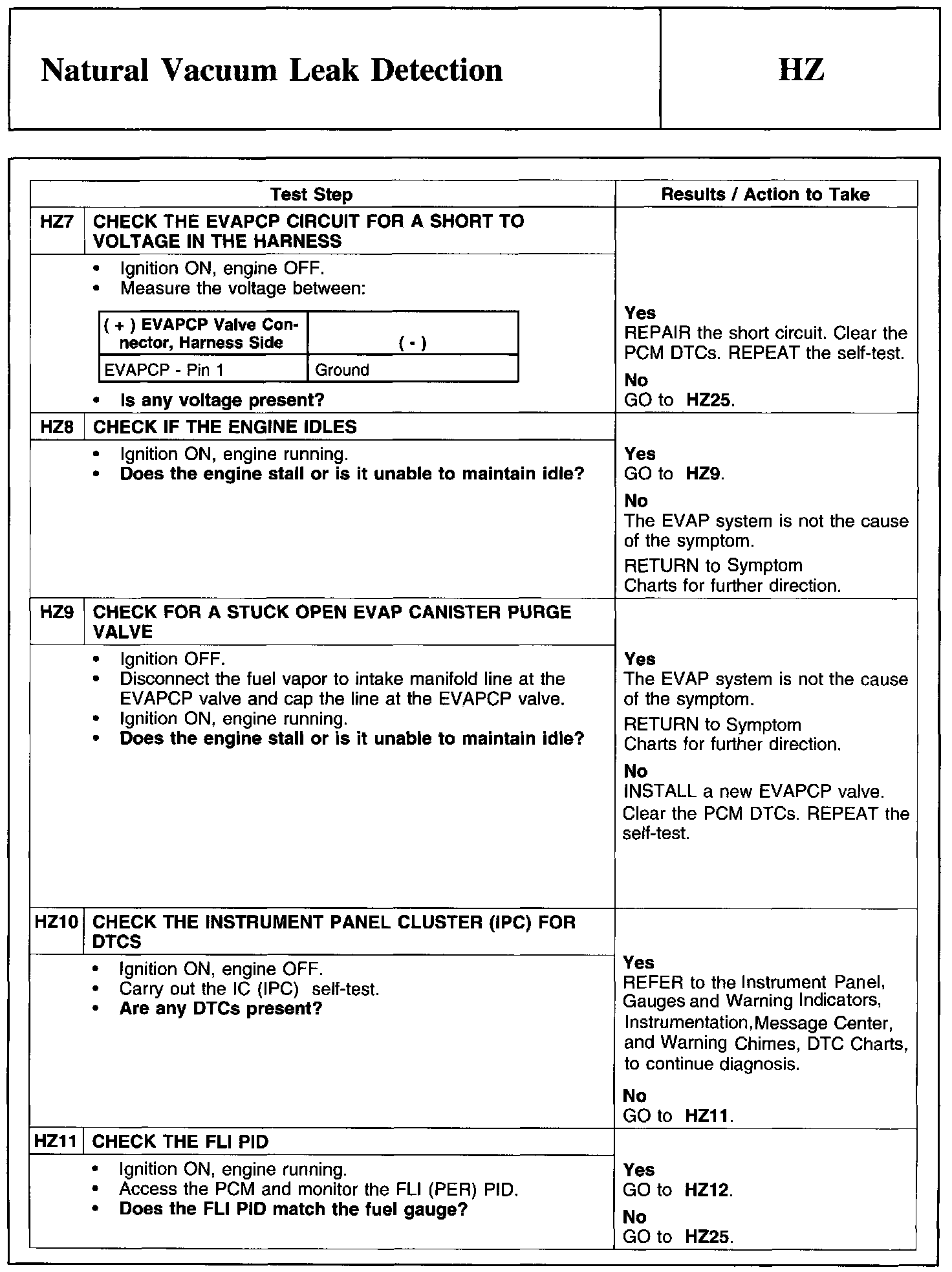

HZ7-HZ11:

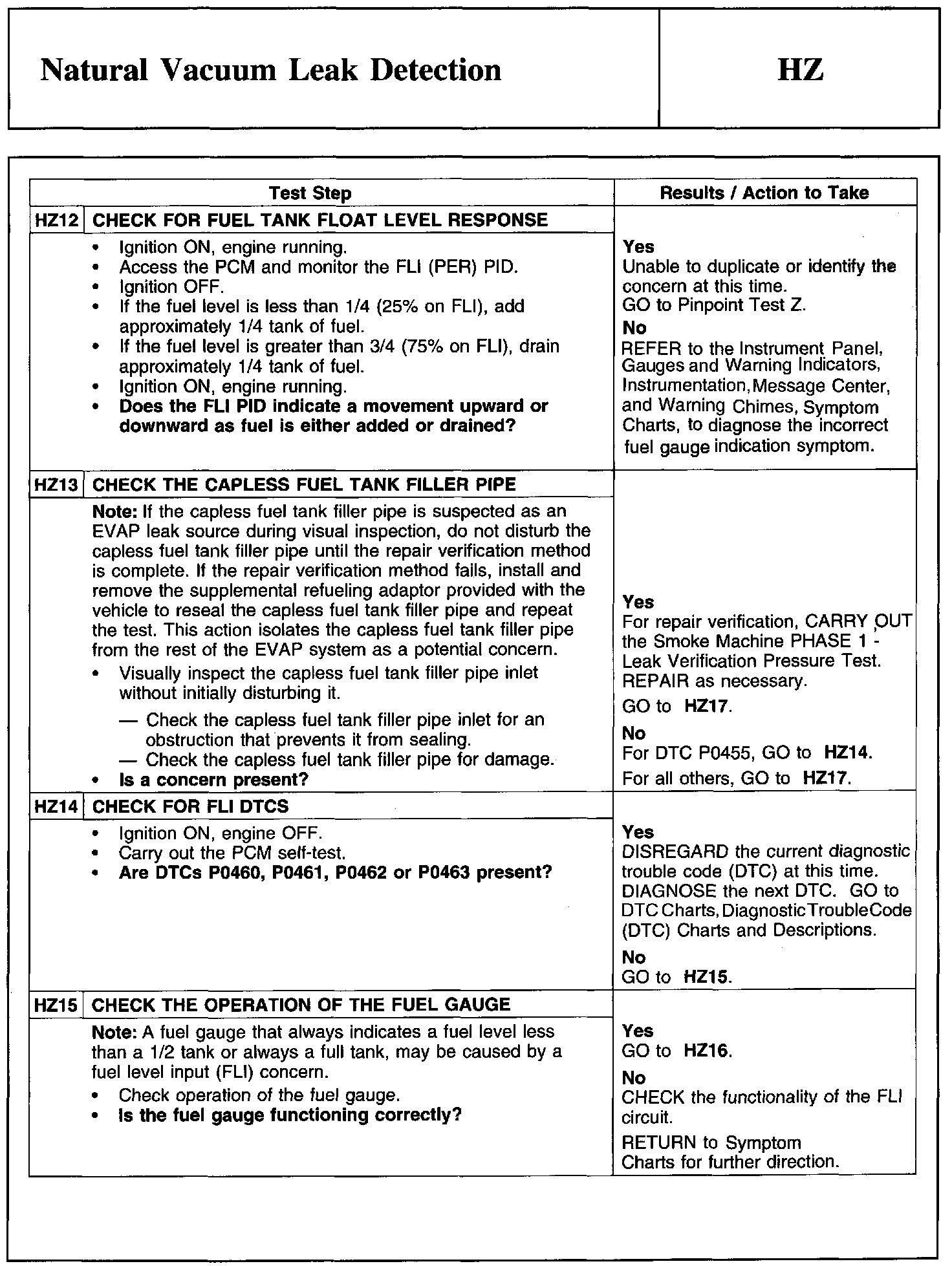

HZ12-HZ15:

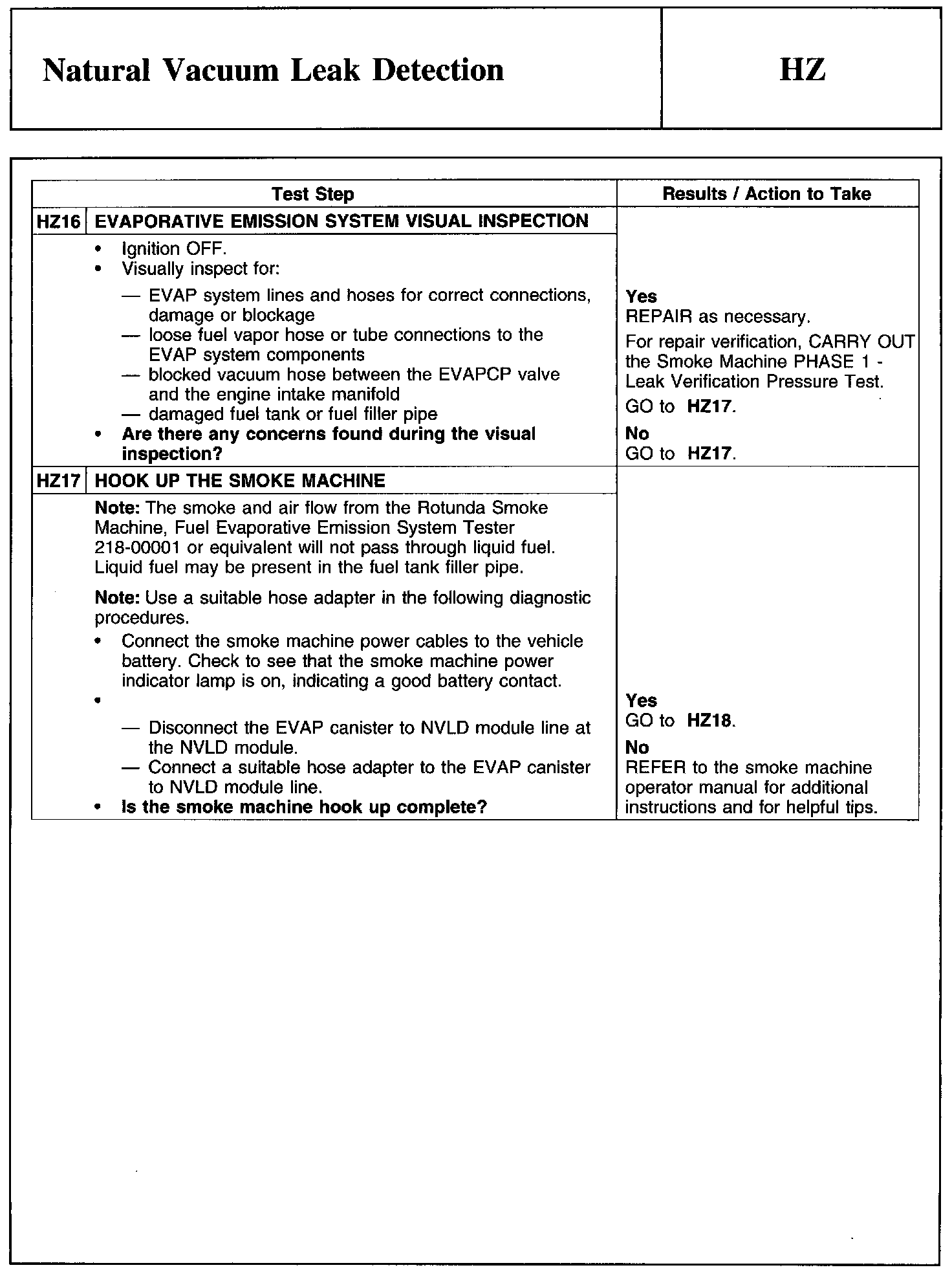

HZ16-HZ17:

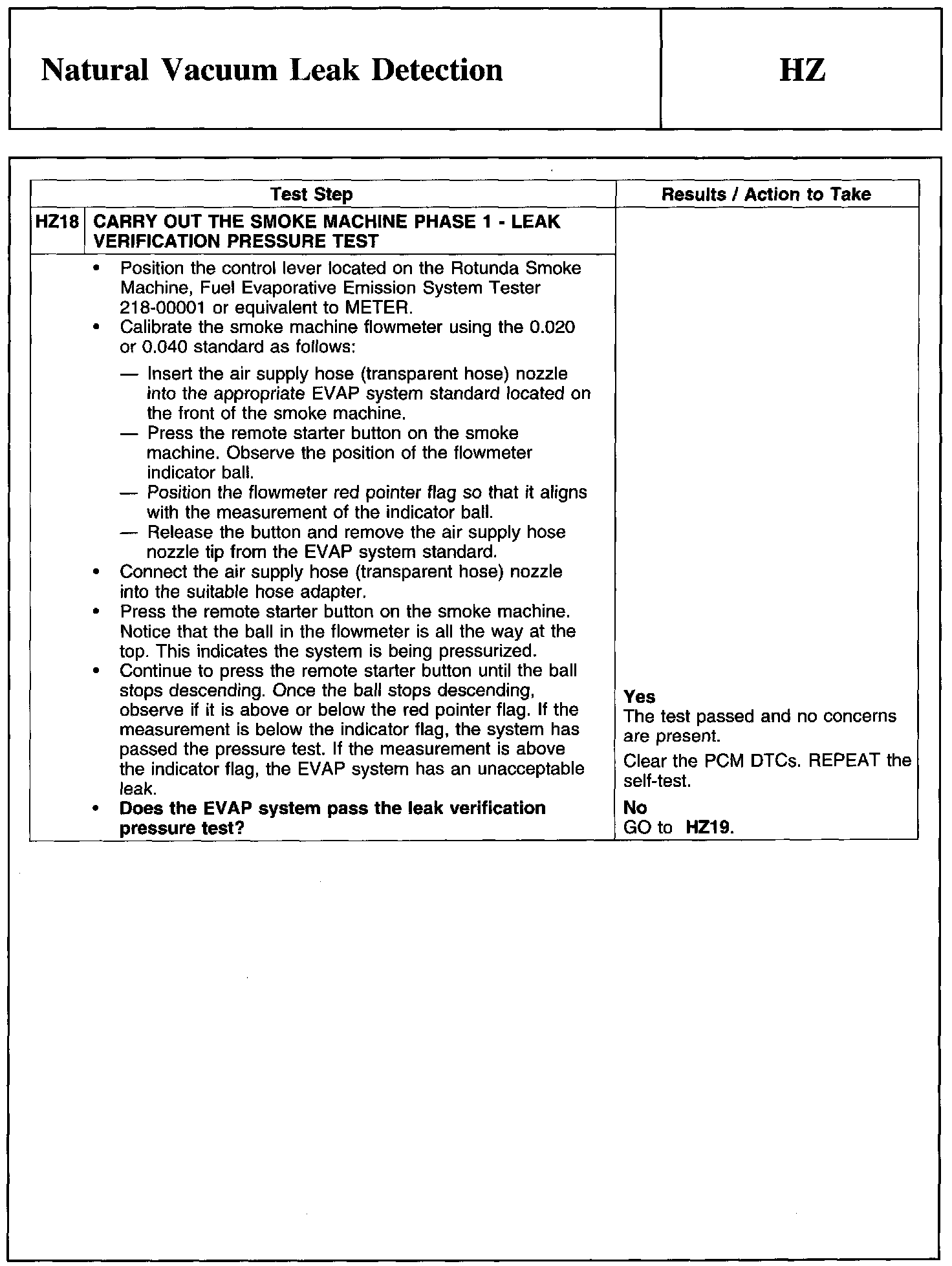

HZ18:

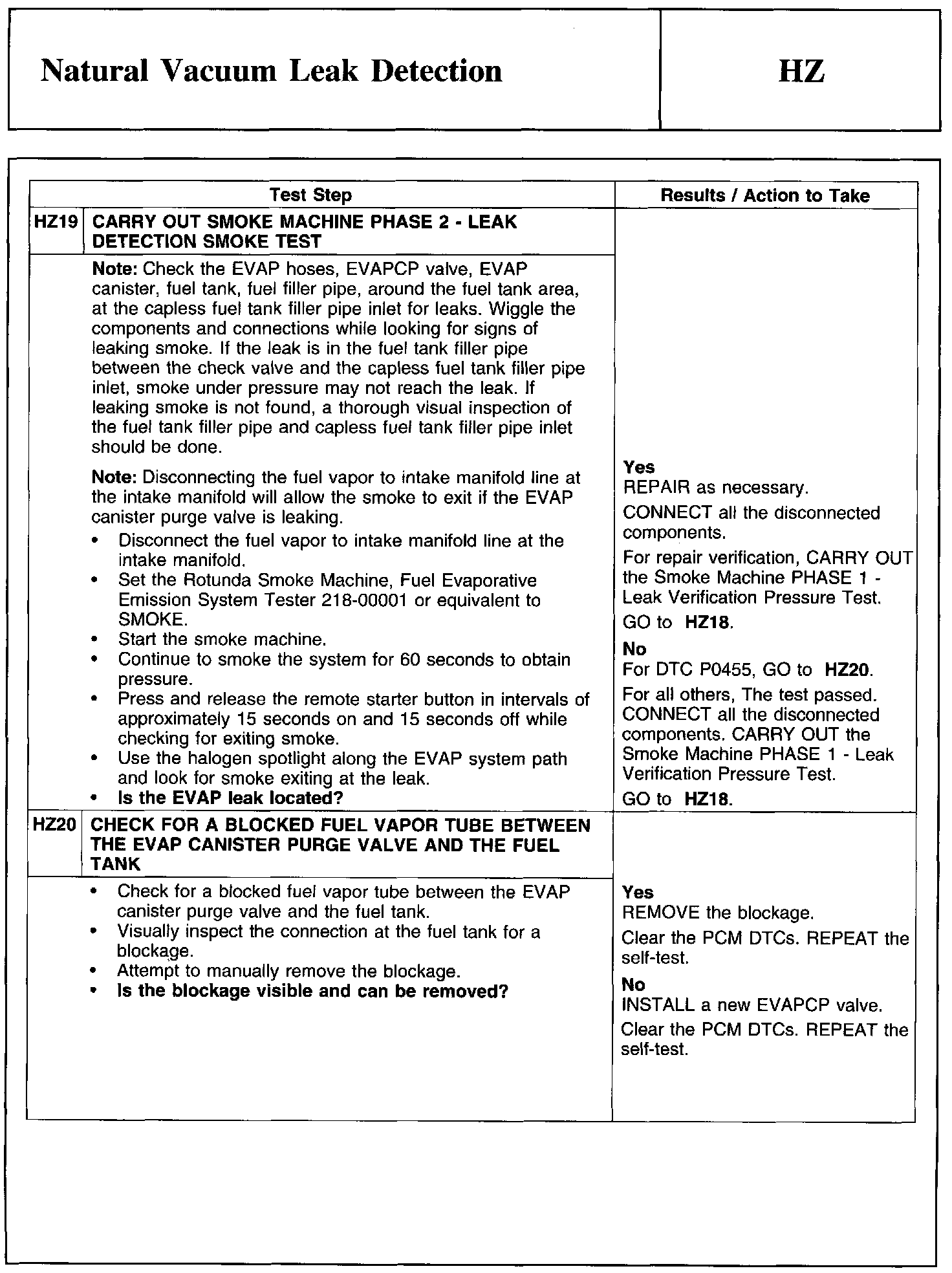

HZ19-HZ20:

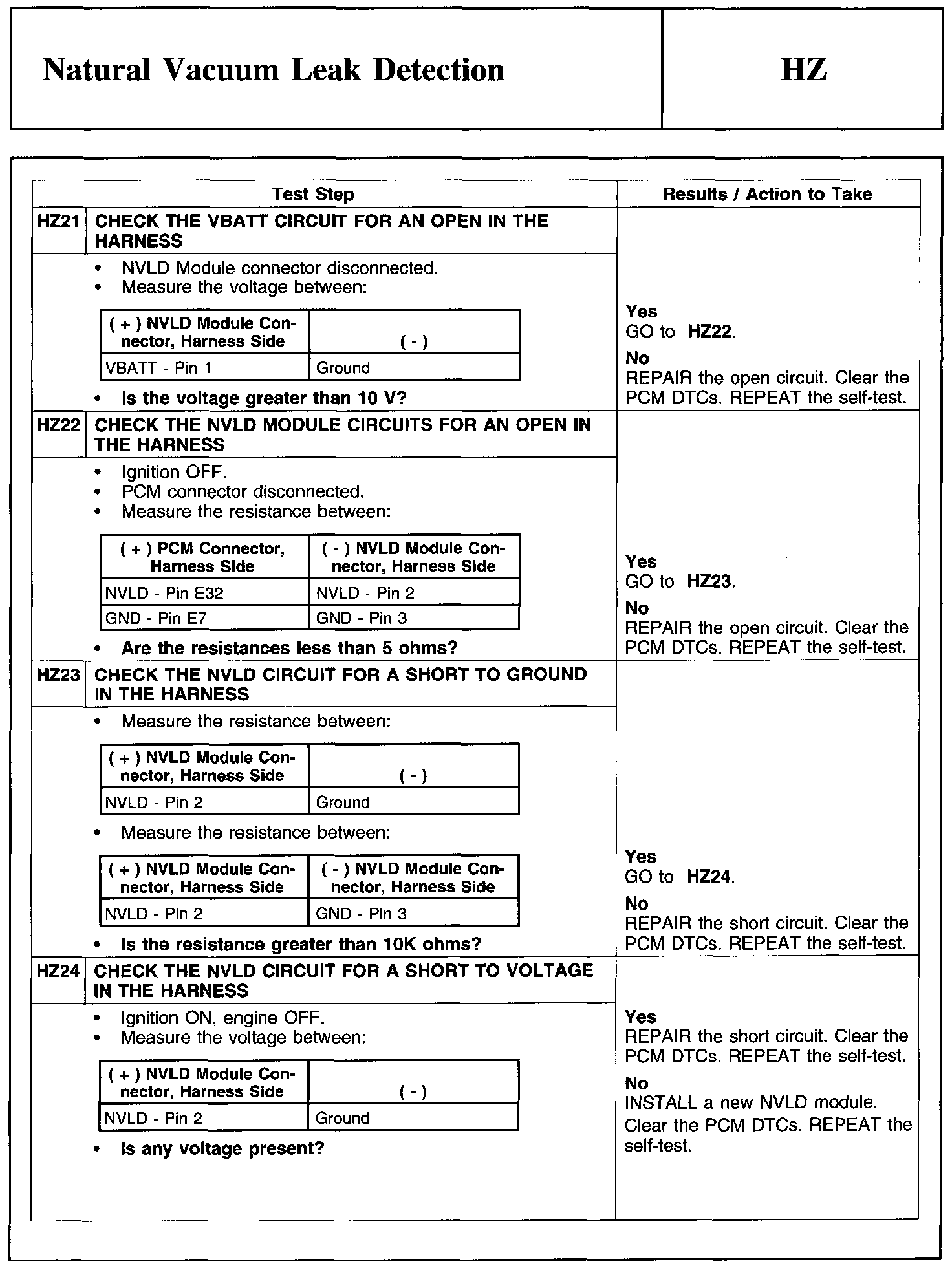

HZ21-HZ24:

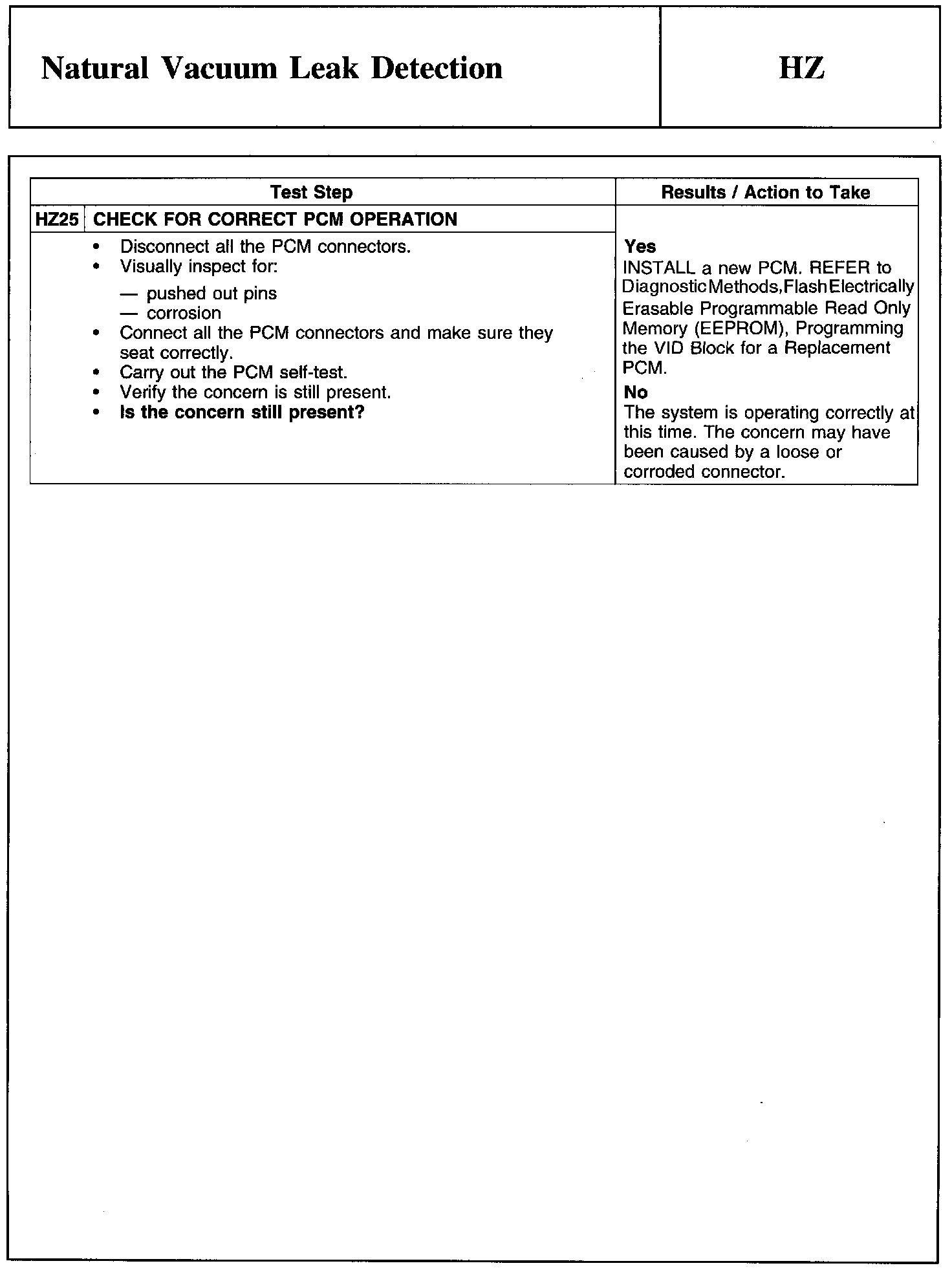

HZ25:
