Test KA: Fuel Pump (FP) Relay

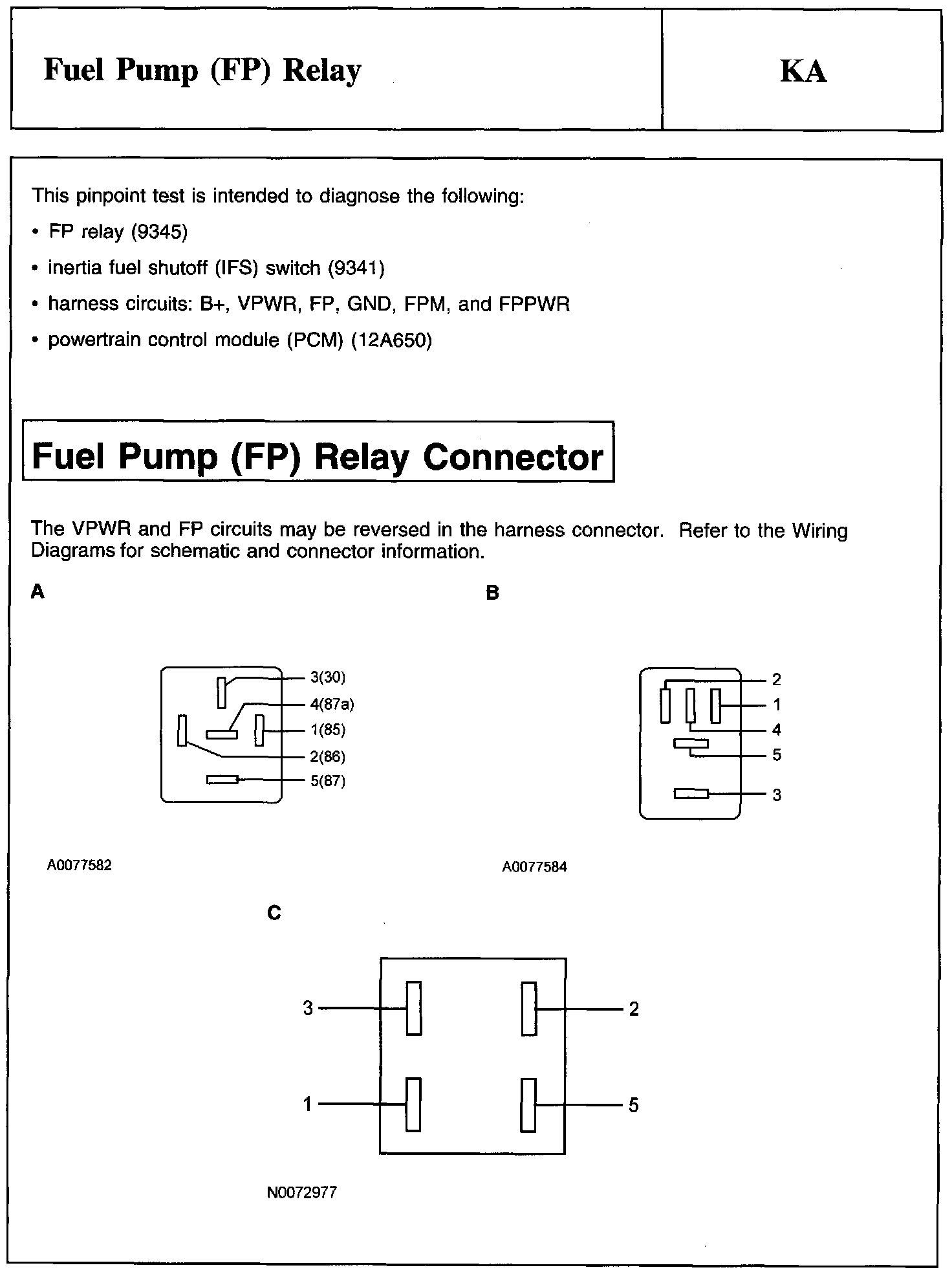

Fuel Pump (FP) Relay Connector:

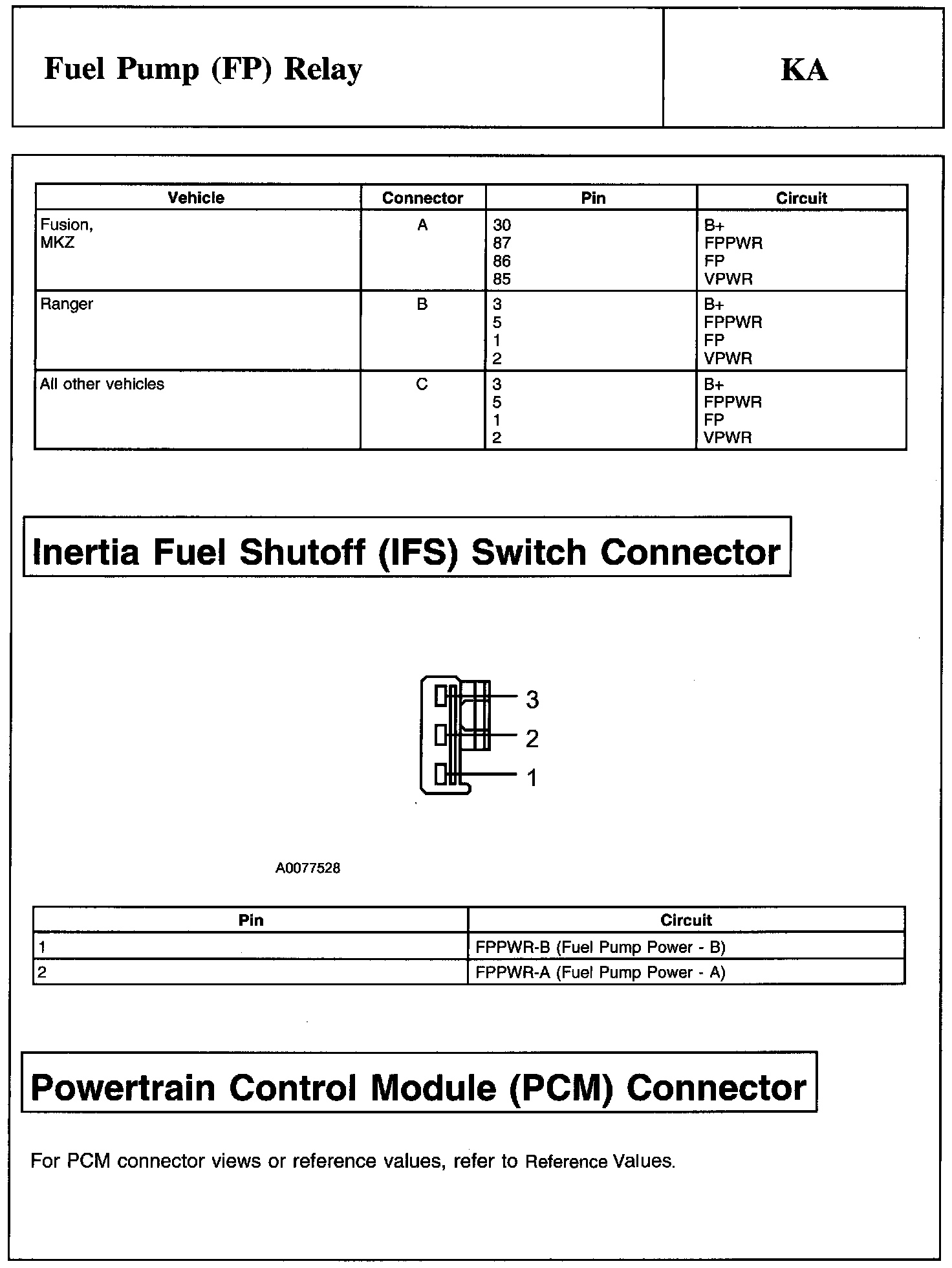

Fuel Pump (FP) Relay Connector, Inertia Fuel Shutoff (IFS) Switch Connector And Powertrain Control Module (PCM) Connector:

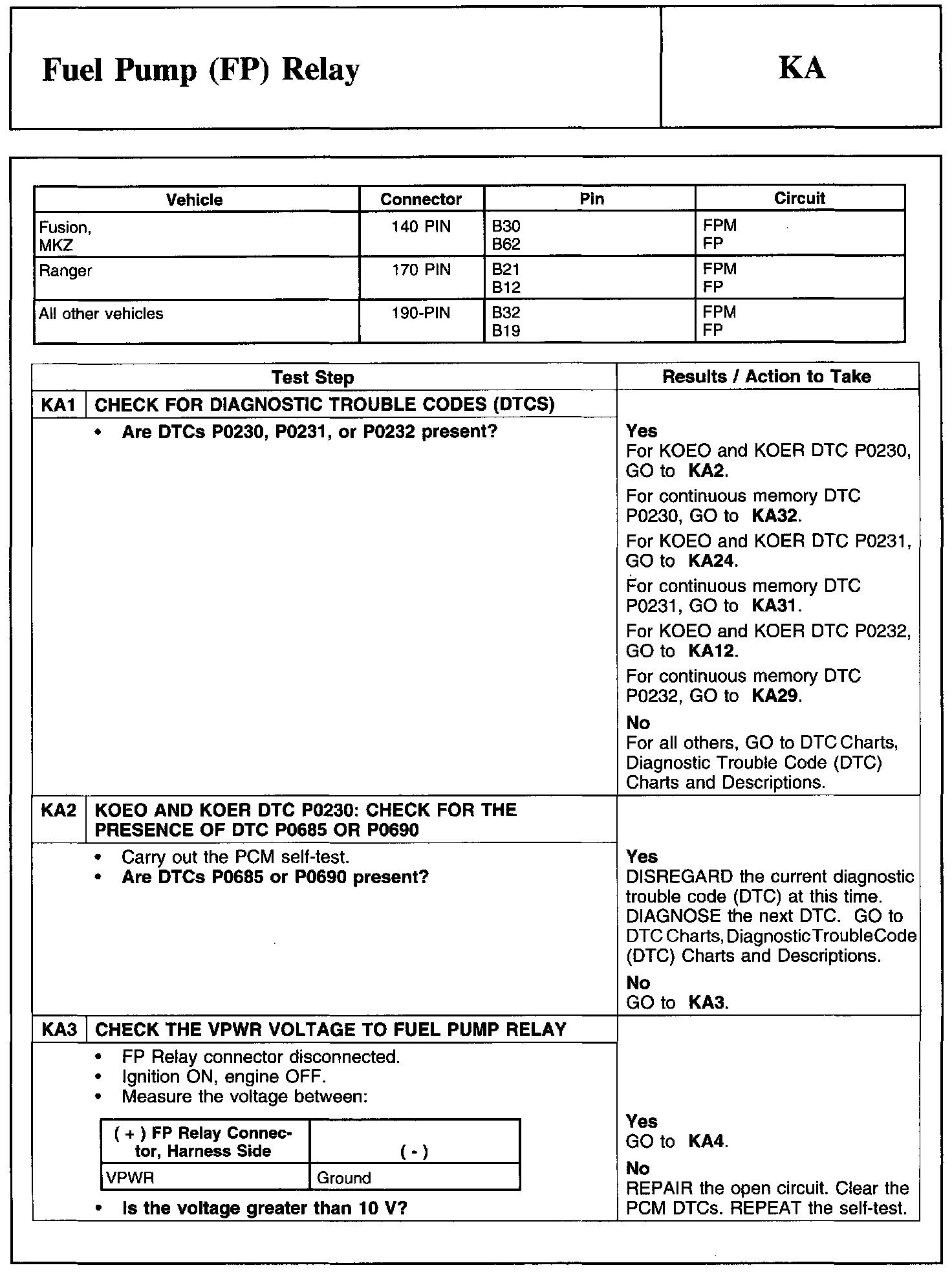

KA1-KA3:

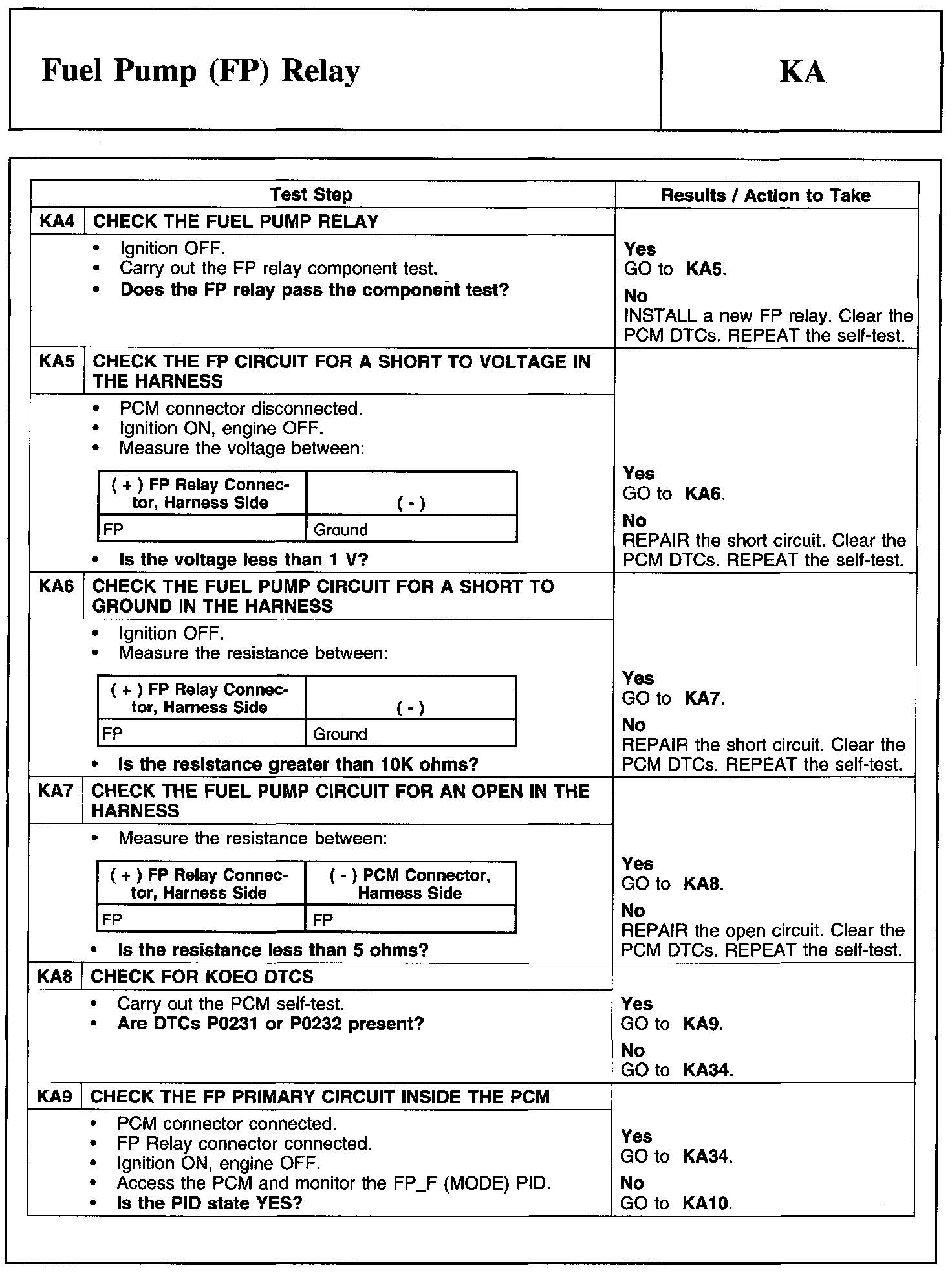

KA4-KA9:

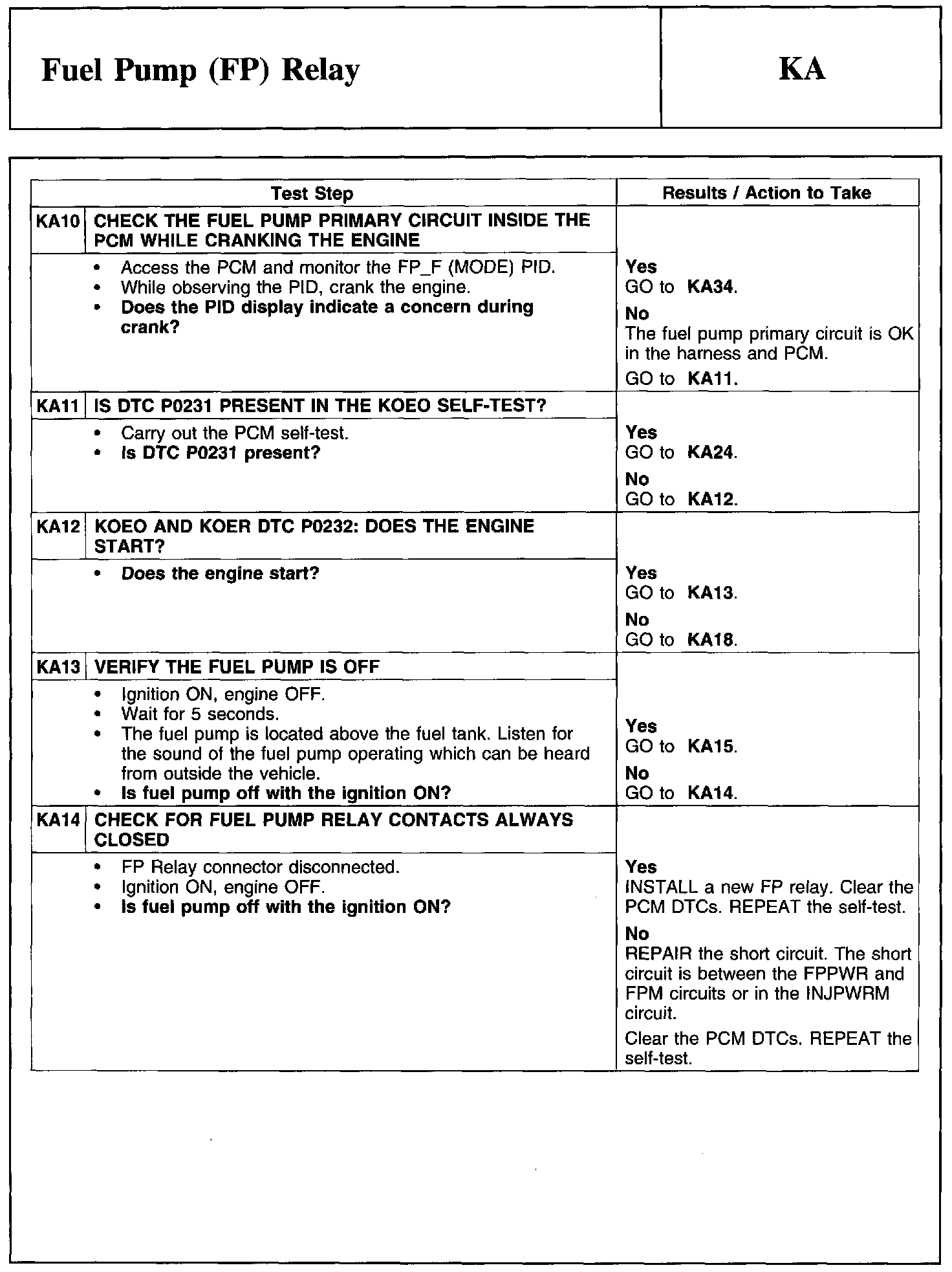

KA10-KA14:

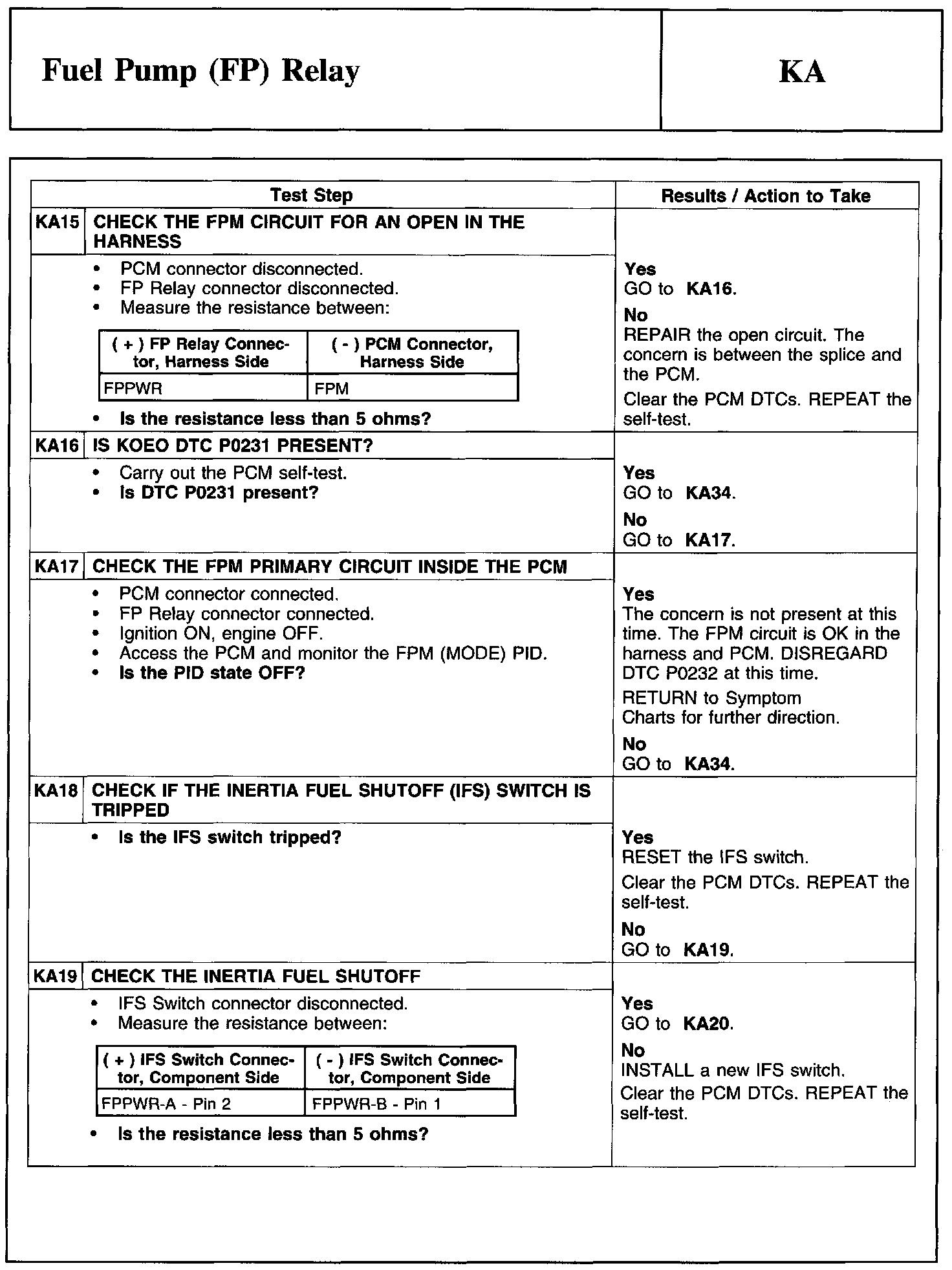

KA15-KA19:

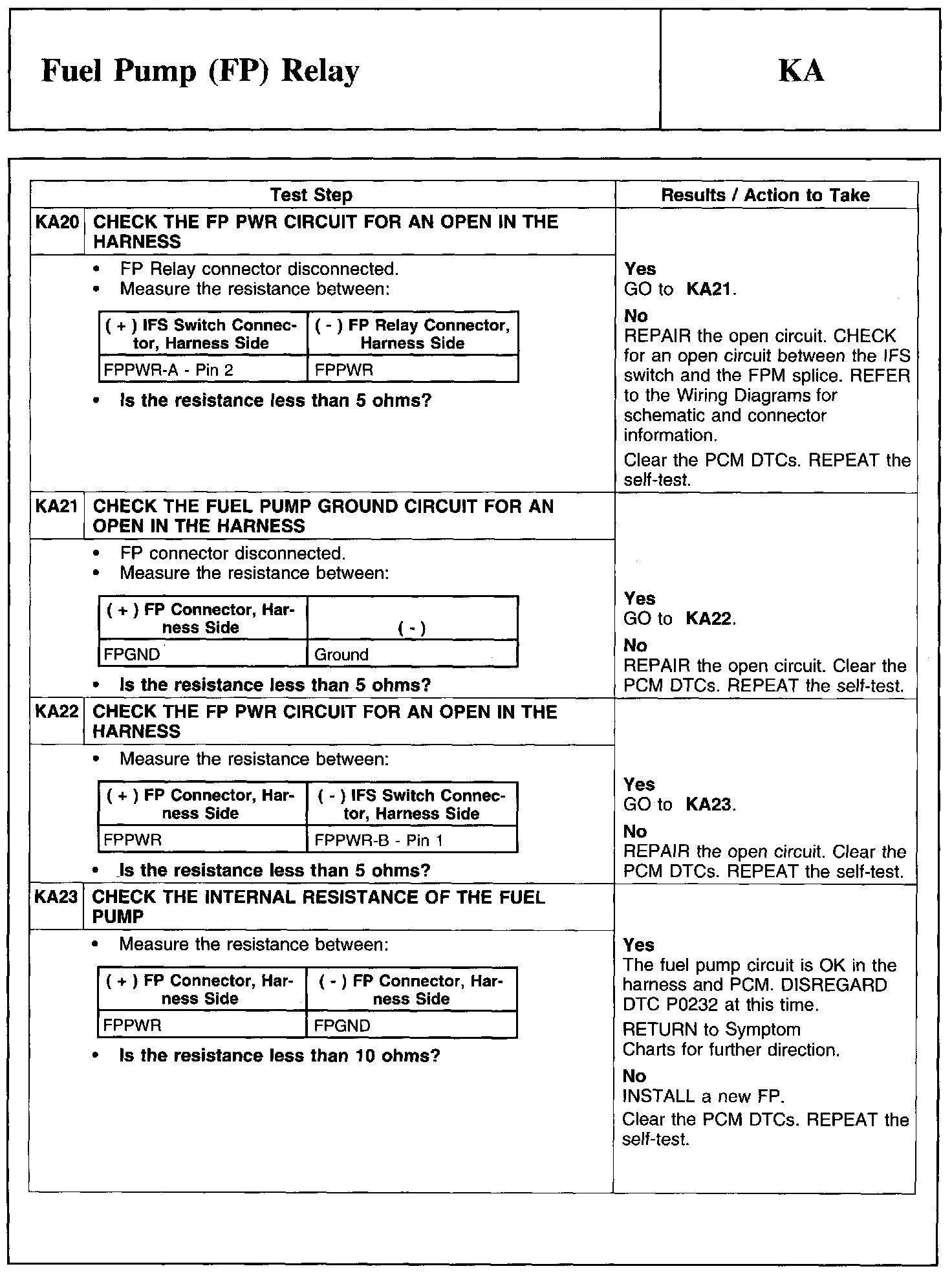

KA20-KA23:

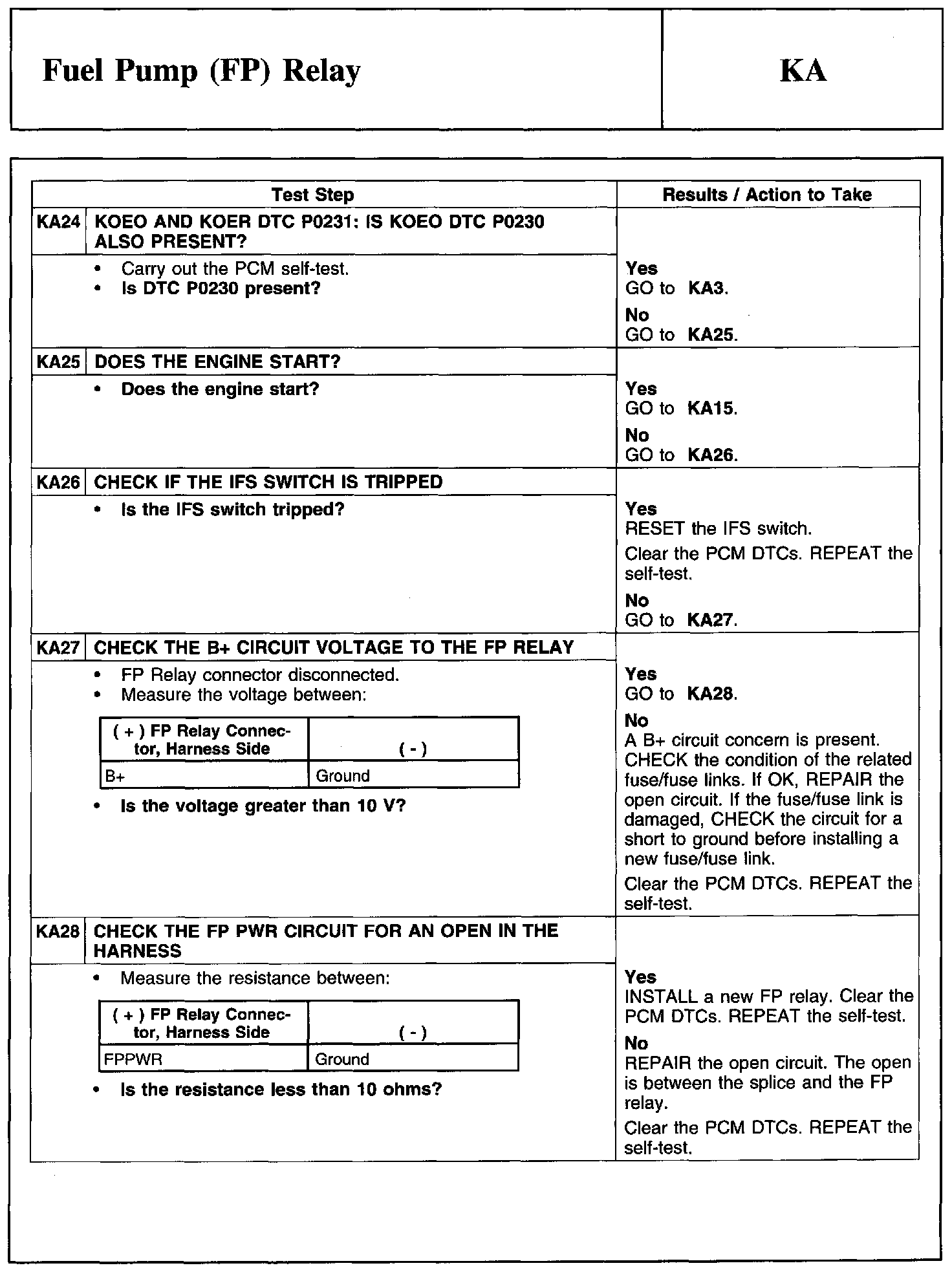

KA24-KA28:

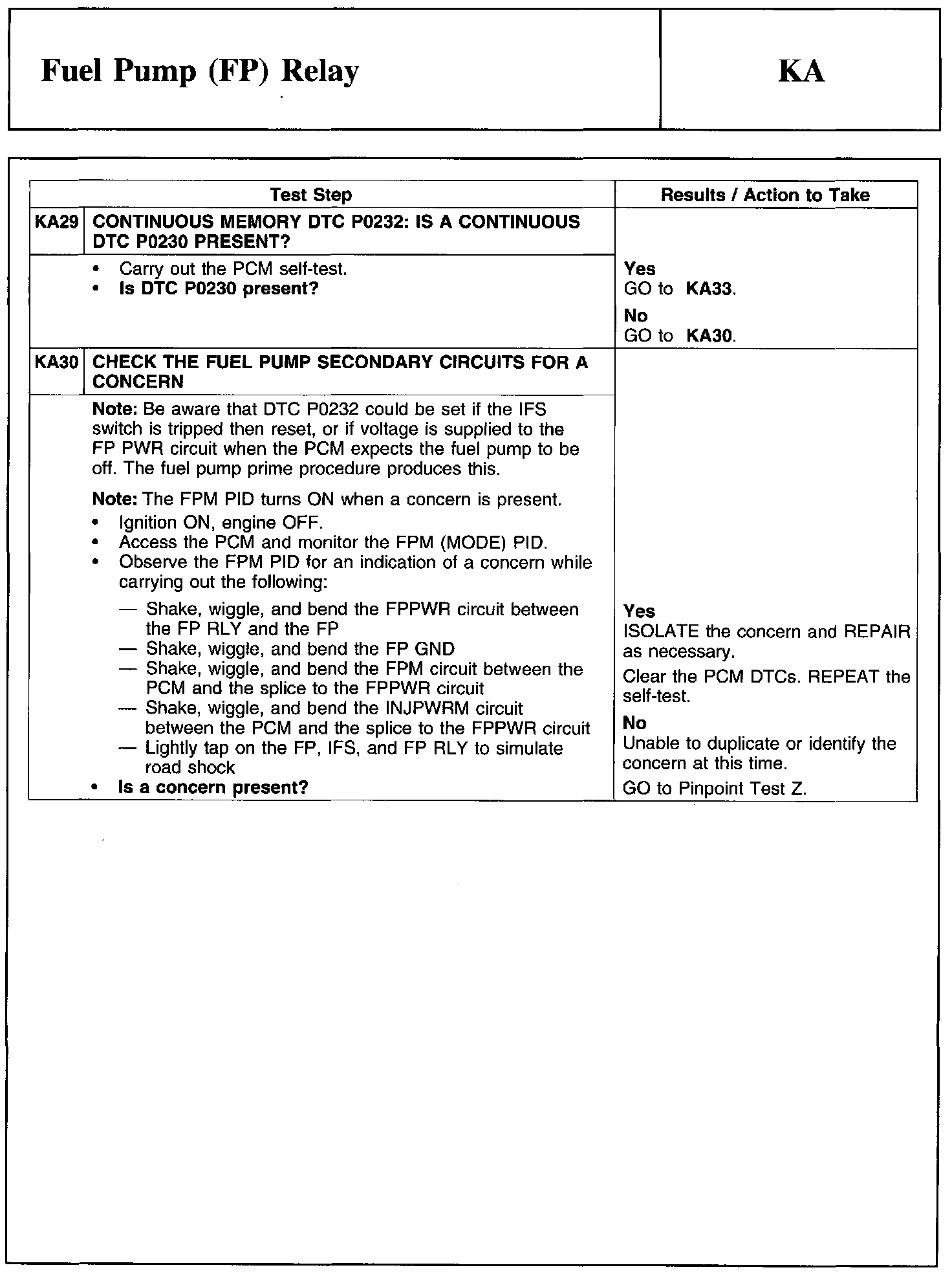

KA29-KA30:

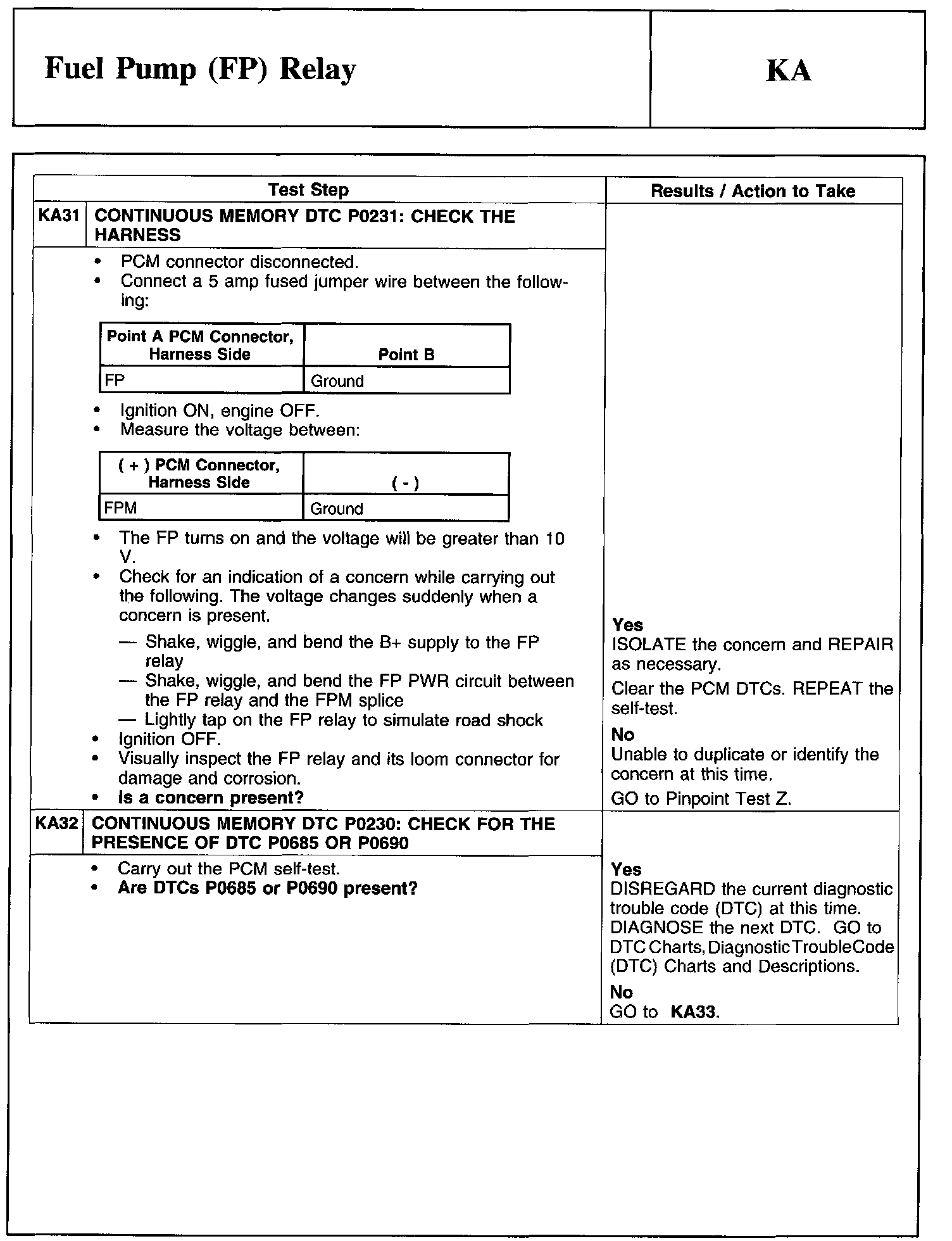

KA31-KA32:

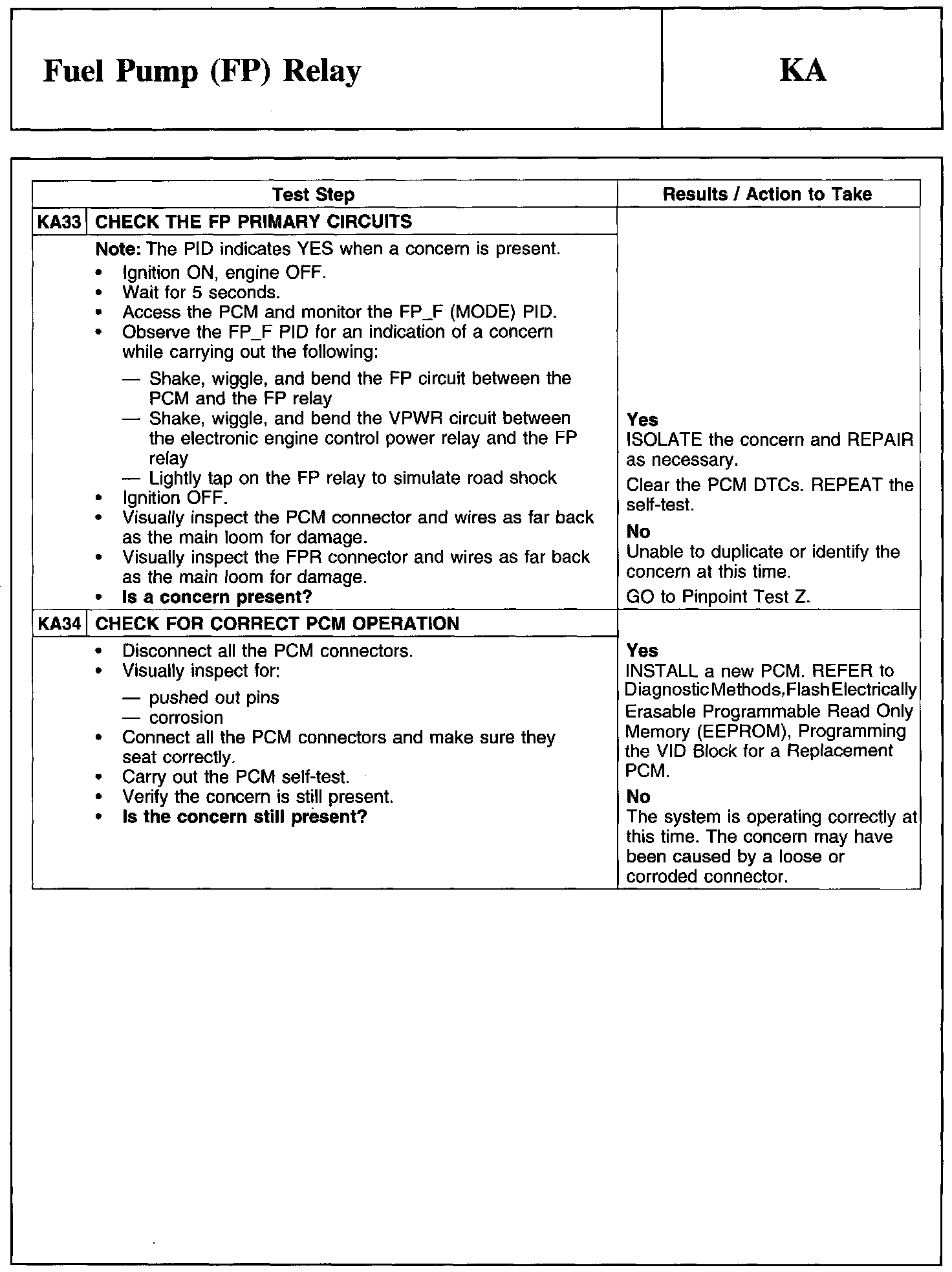

KA33-KA34:
