Occupant Classification System Module (OCSM) DTC Chart

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)

DTC Charts

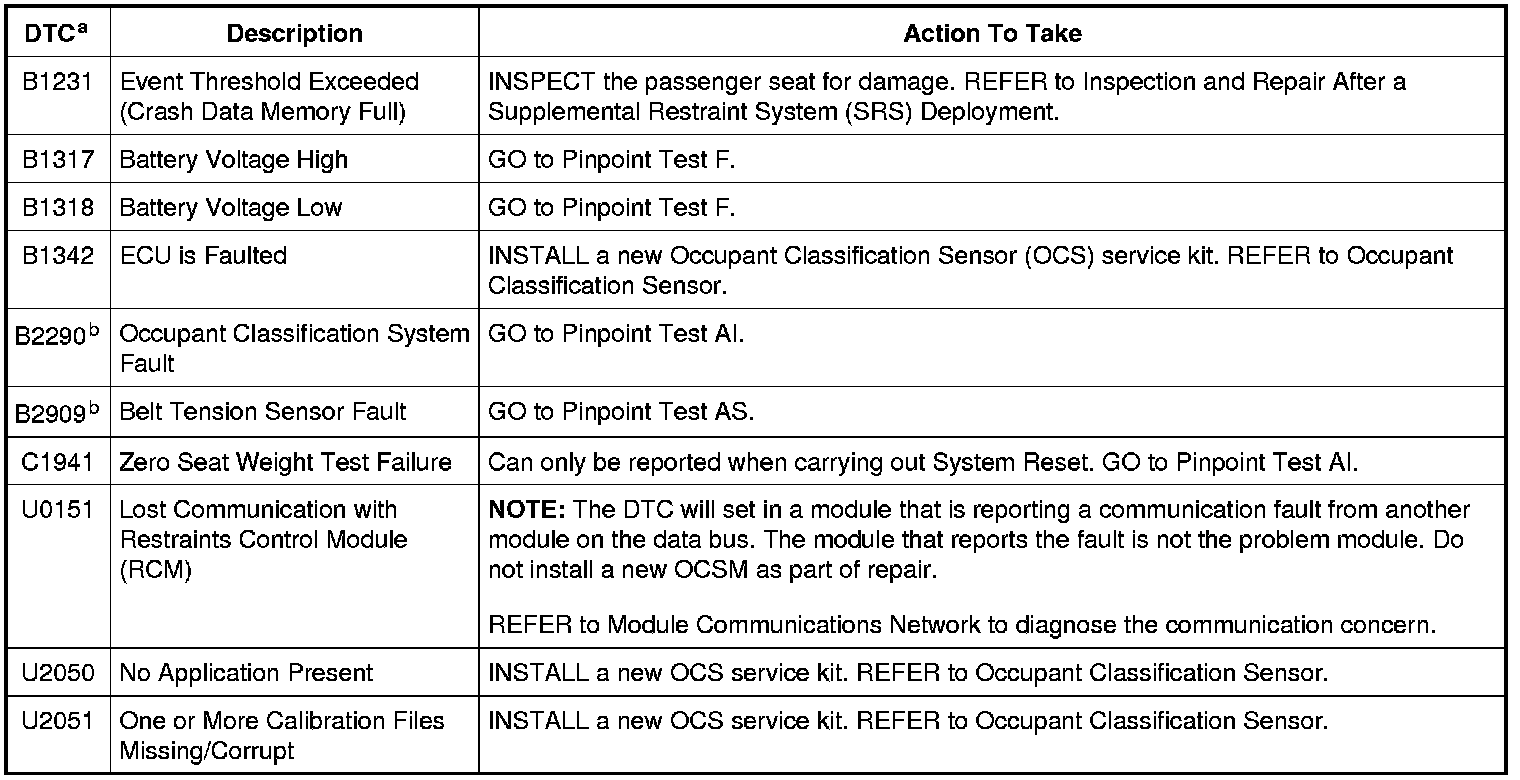

Occupant Classification System Module (OCSM) DTC Chart

NOTE: The Occupant Classification System Module (OCSM) retrieves and reports DTCs using on-demand DTCs, CMDTCs and fault PIDs.






a DTC: Retrieved using scan tool.
b DTC has associated bit-mapped PIDs.
