Restraints Control Module (RCM) DTC Chart

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)

DTC Charts

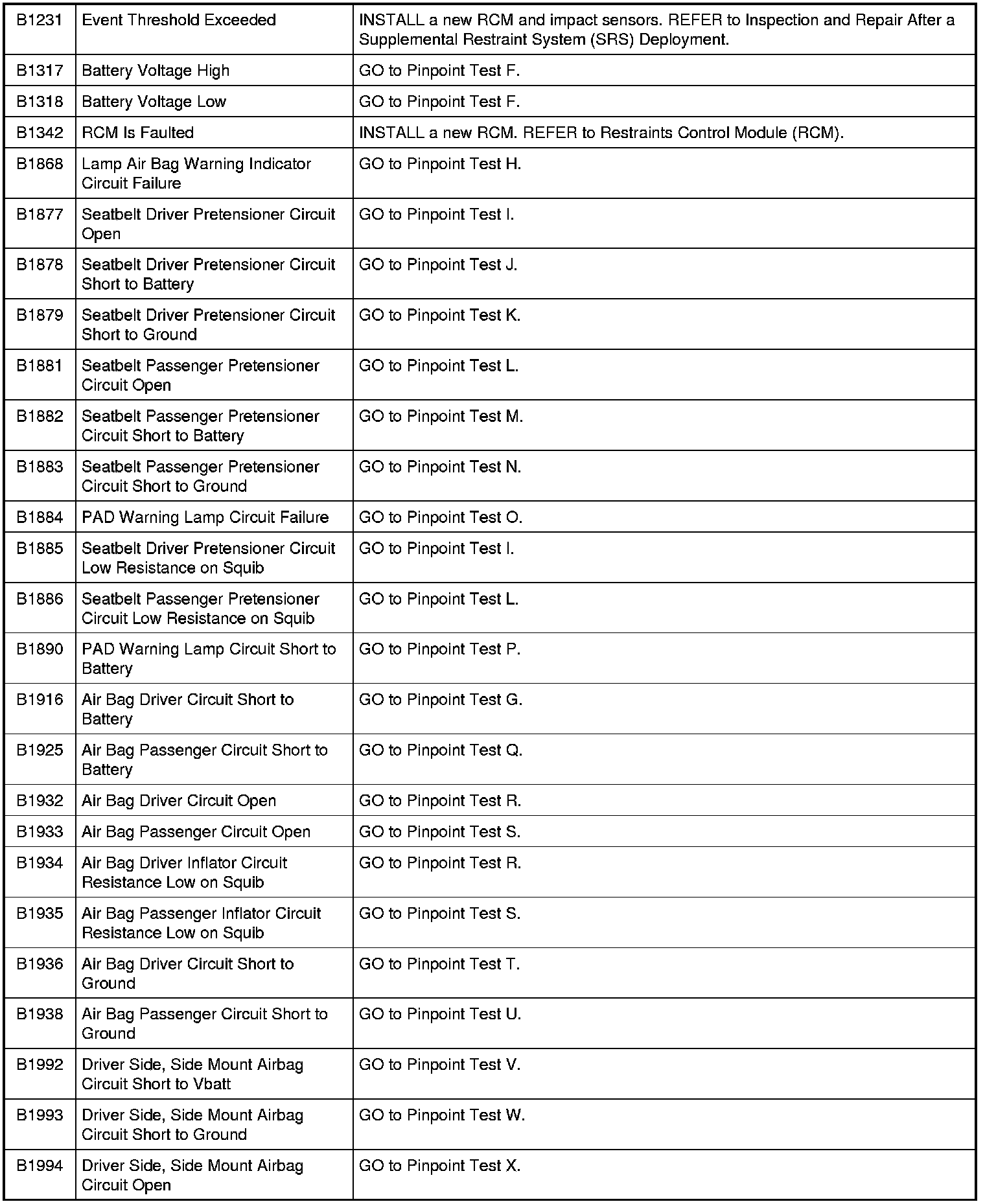

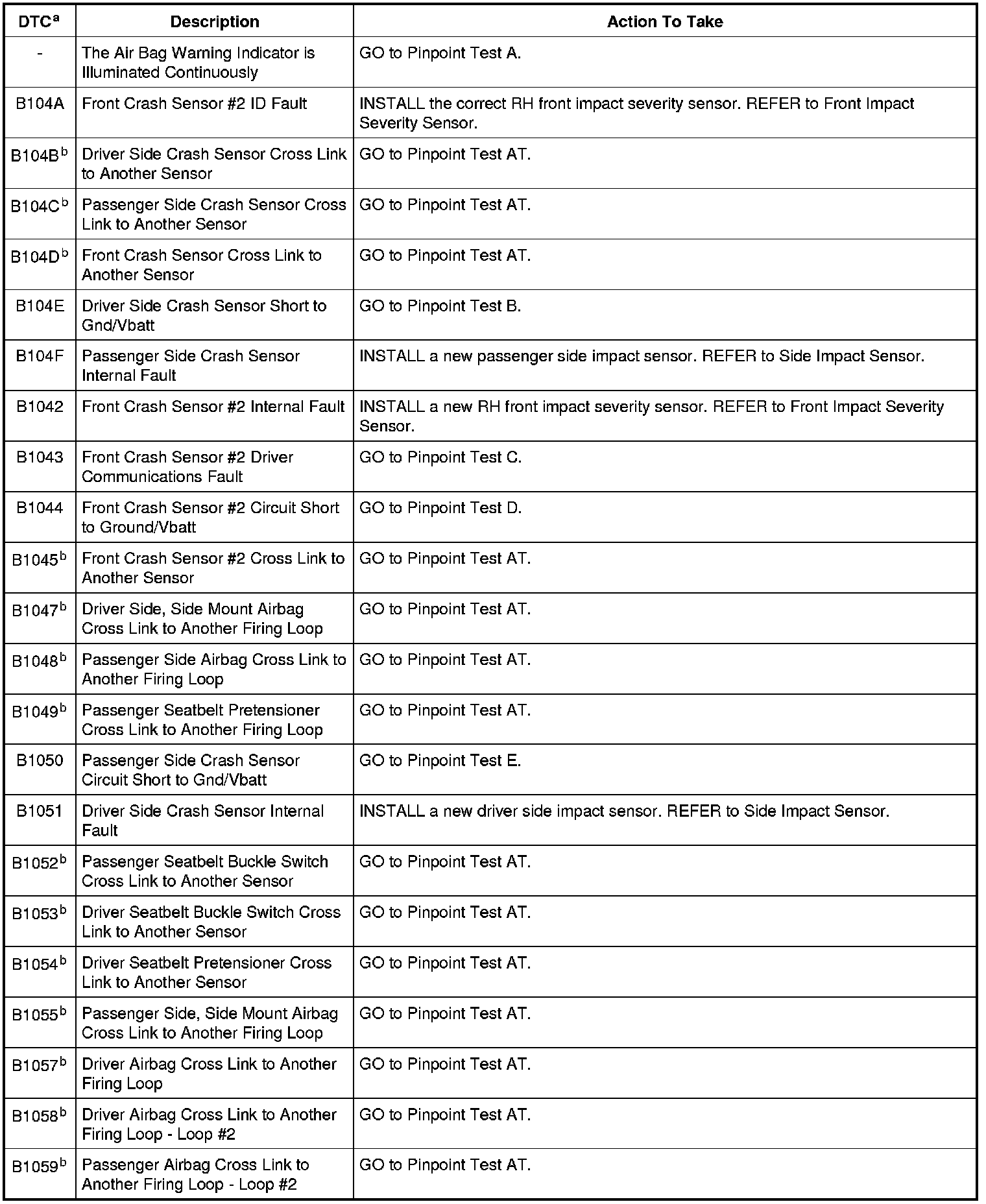

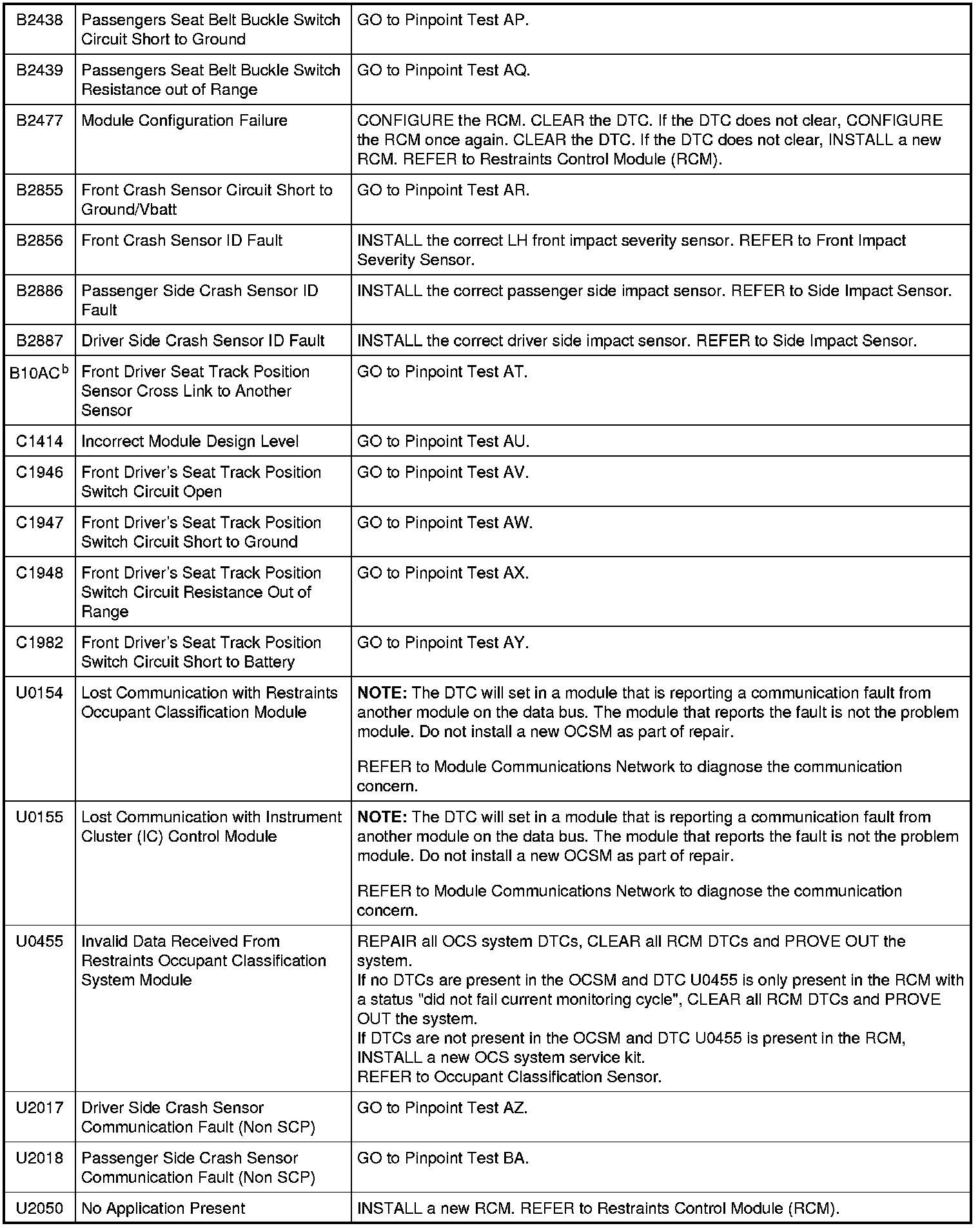

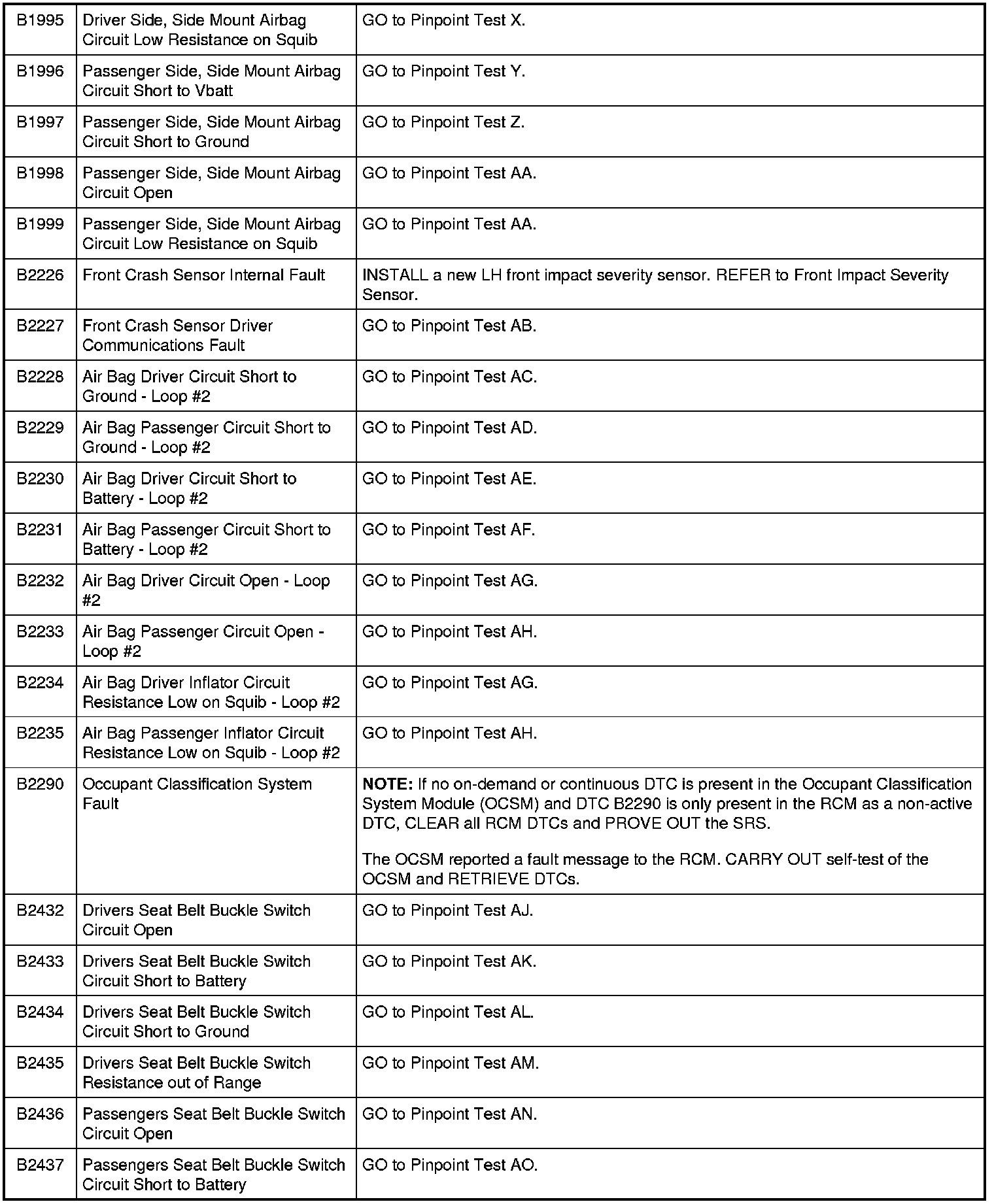

Restraints Control Module (RCM) DTC Chart

NOTE: The Restraints Control Module (RCM) does not support on-demand DTCs. All RCM diagnosis will be carried out using Continuous Memory Diagnostic Trouble Codes (CMDTCs) and associated status information displayed on the scan tool.






















a DTC: Retrieved using scan tool.
b Cross link DTCs will be retrieved in pairs to identify the 2 cross linked components.
