Stability Control Sensor Module Connector - C3073

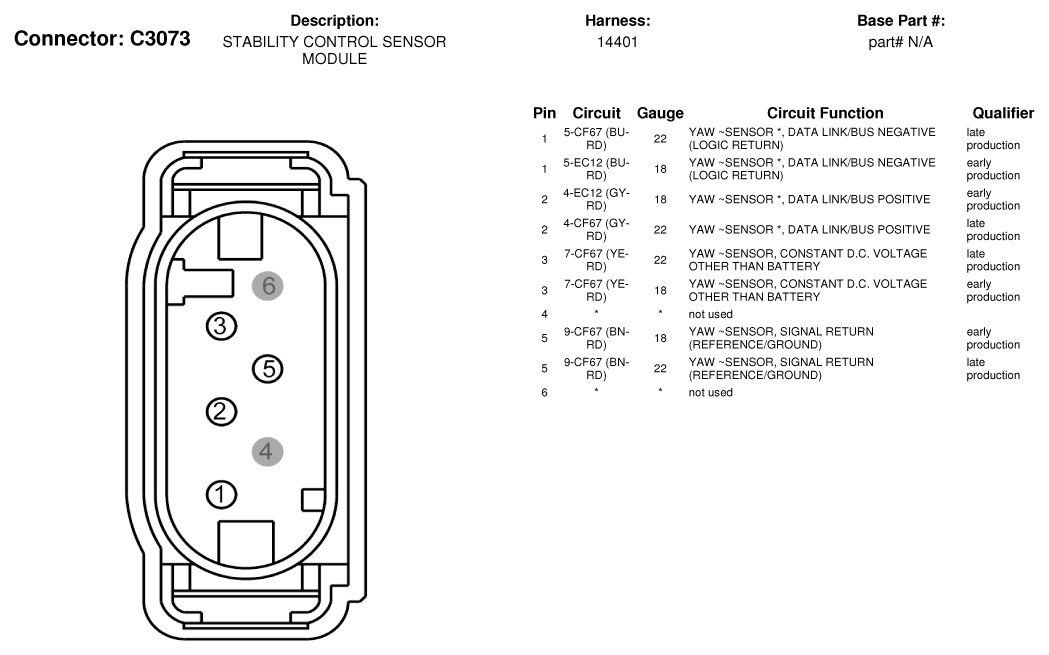

Fig 1: Stability Control Sensor Module Connector End View (C3073)
G07337427Courtesy of FORD MOTOR CO.
