Component Location Views

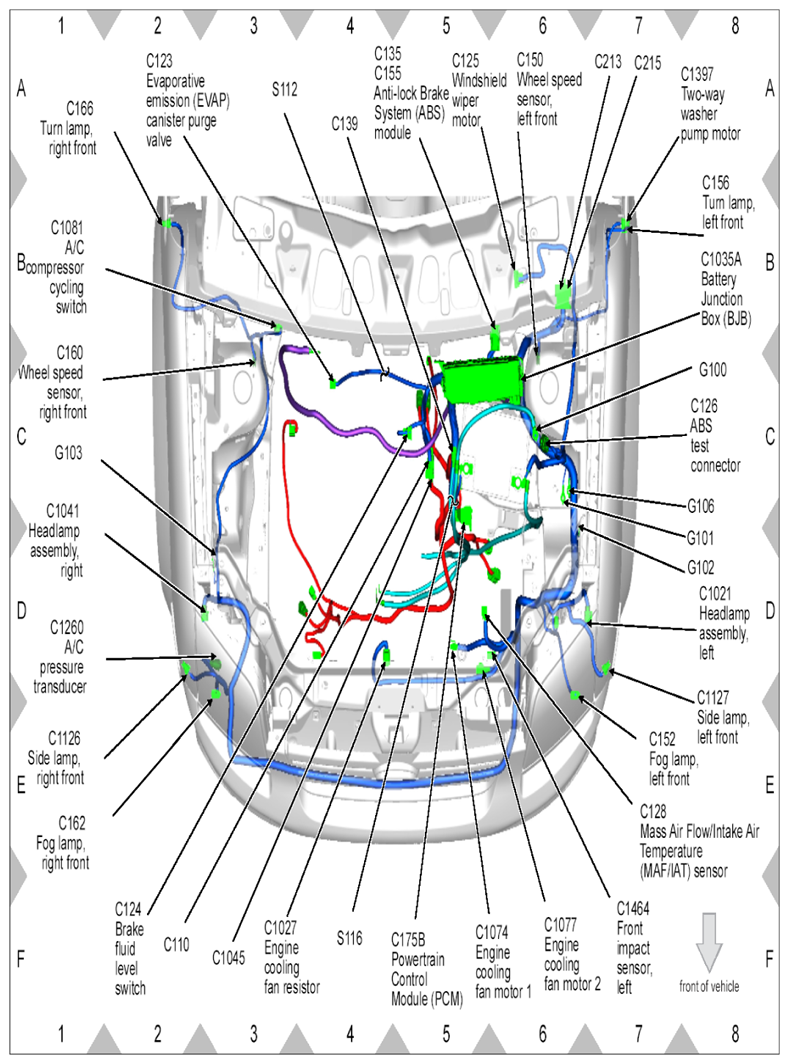

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 2)
G07883475Courtesy of FORD MOTOR CO.

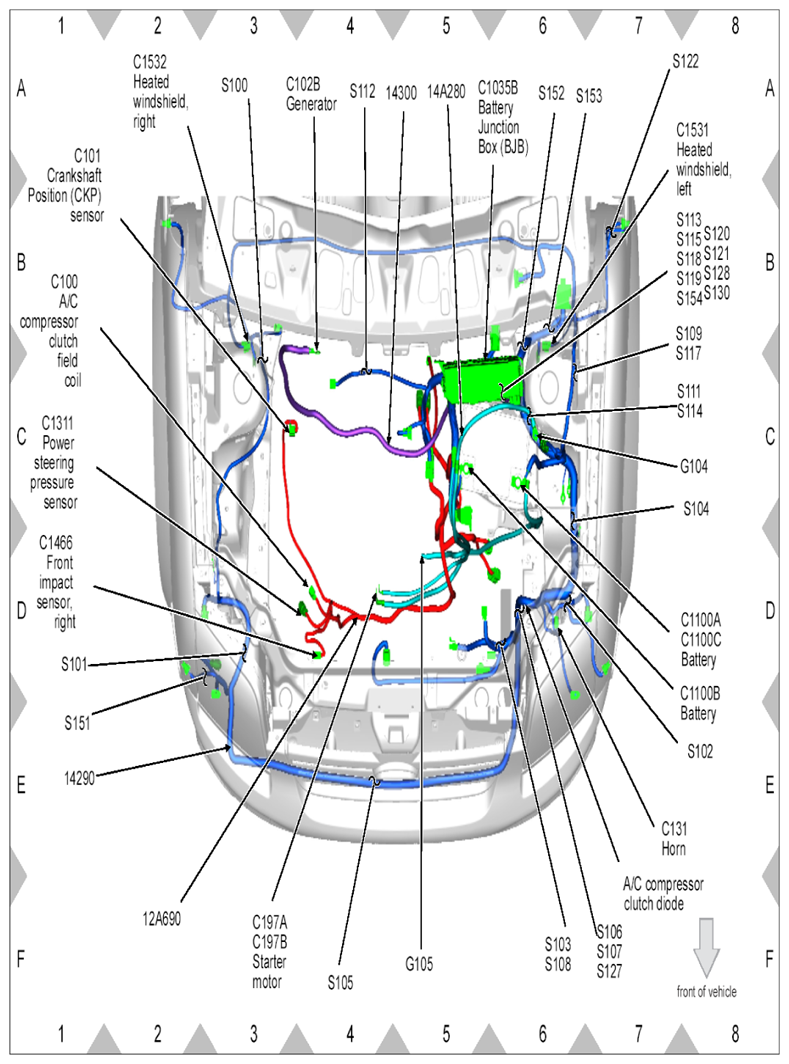

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 2)
G07883476Courtesy of FORD MOTOR CO.

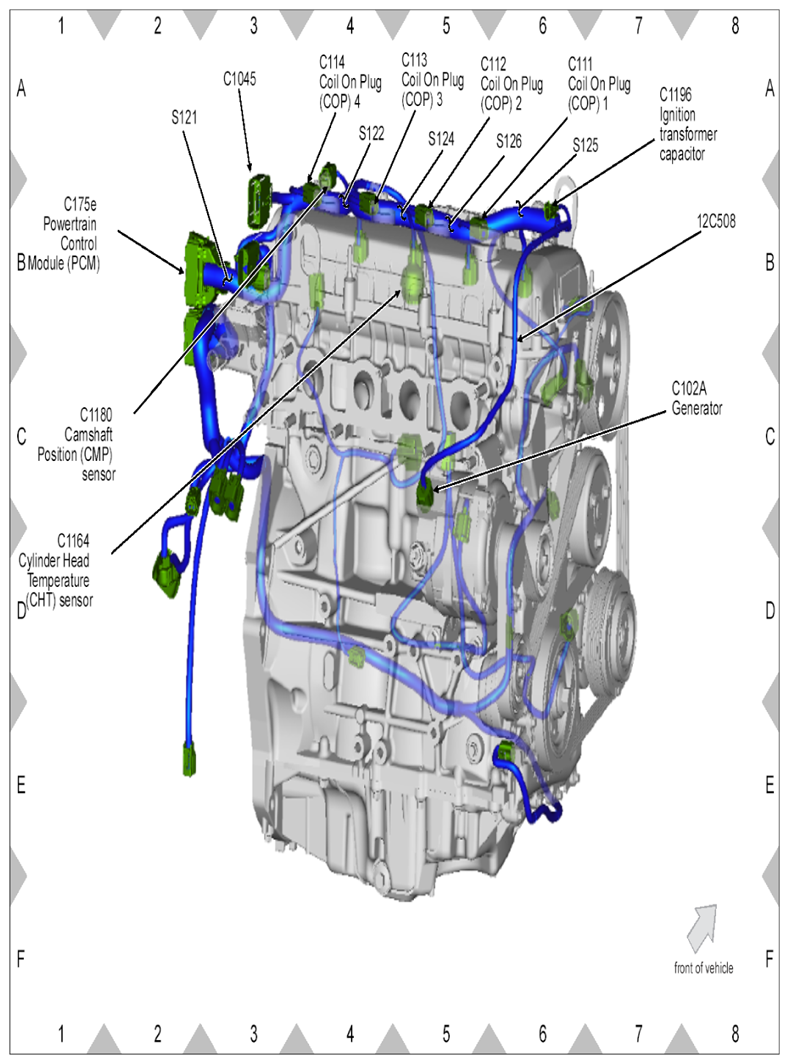

Fig 3: Vehicle Front Body Wiring Harness Connectors Location (1 Of 2)
G07883477Courtesy of FORD MOTOR CO.

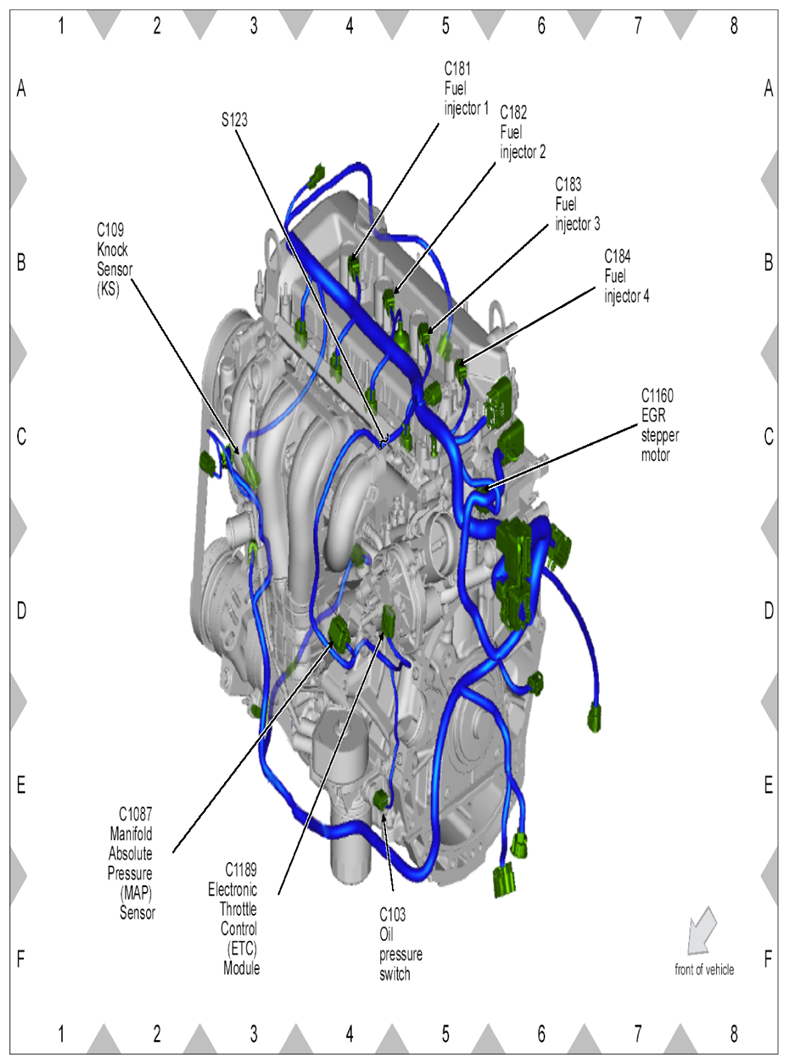

Fig 4: Vehicle Front Body Wiring Harness Connectors Location (2 Of 2)
G07883478Courtesy of FORD MOTOR CO.

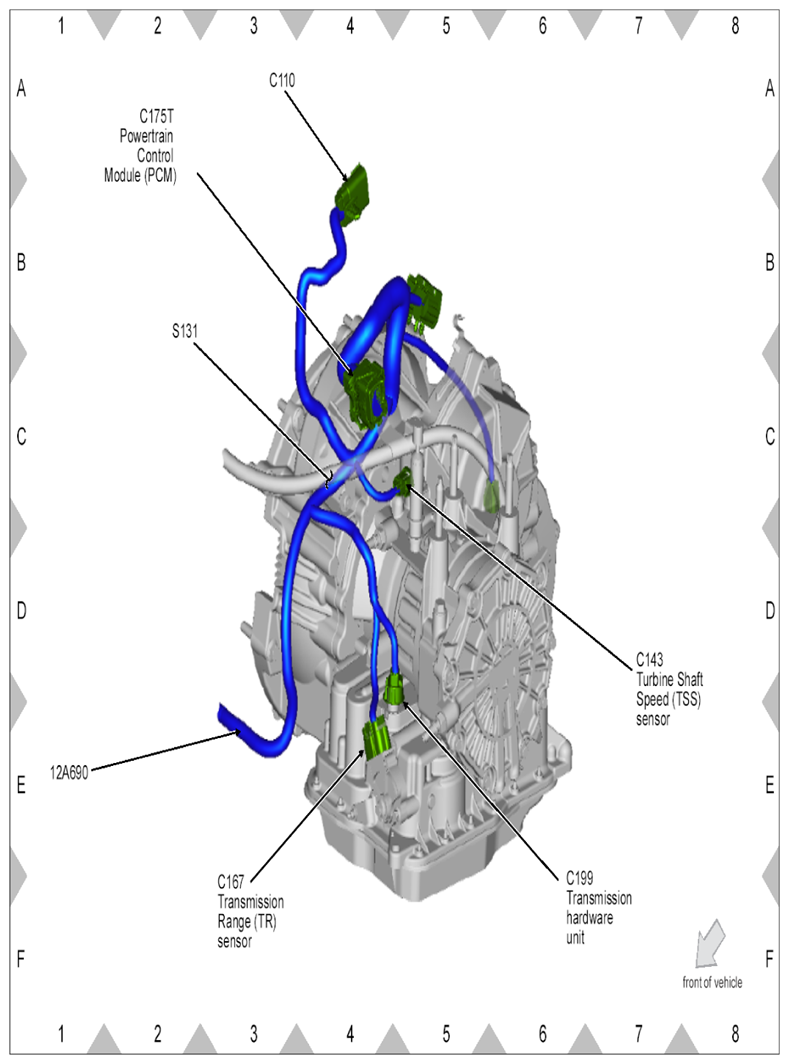

Fig 5: Engine Wiring Harness Connectors Location
G07883479Courtesy of FORD MOTOR CO.

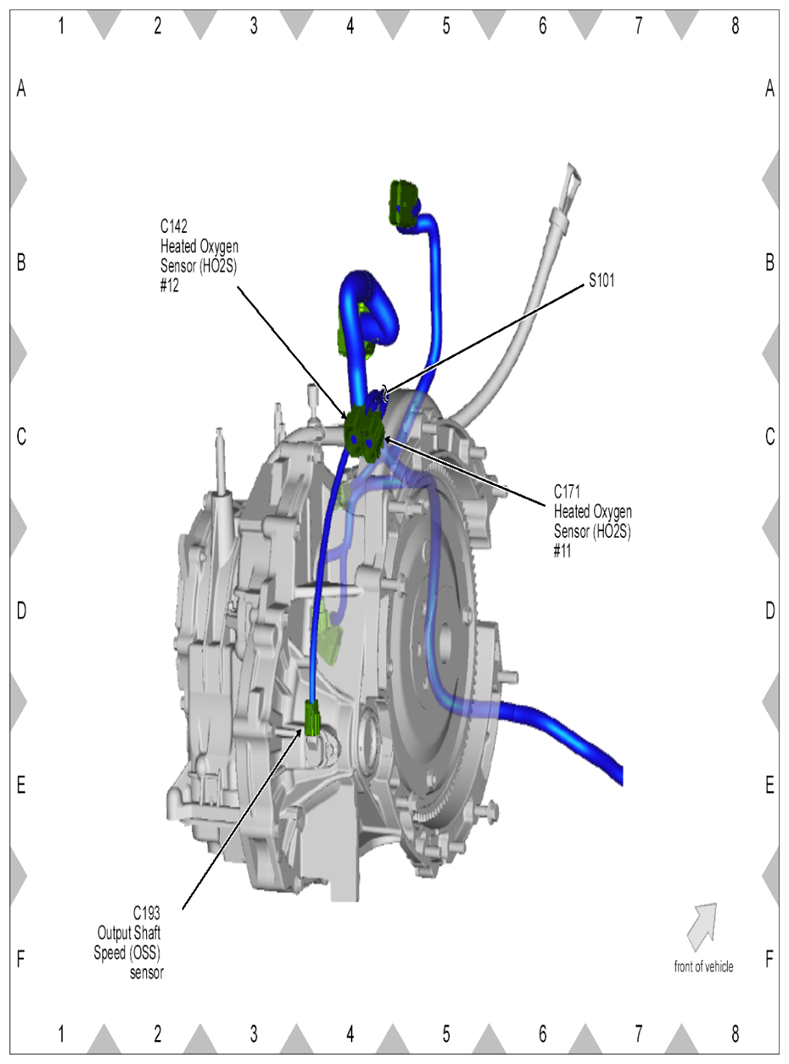

Fig 6: Flywheel Wiring Harness Connectors Location
G07883480Courtesy of FORD MOTOR CO.

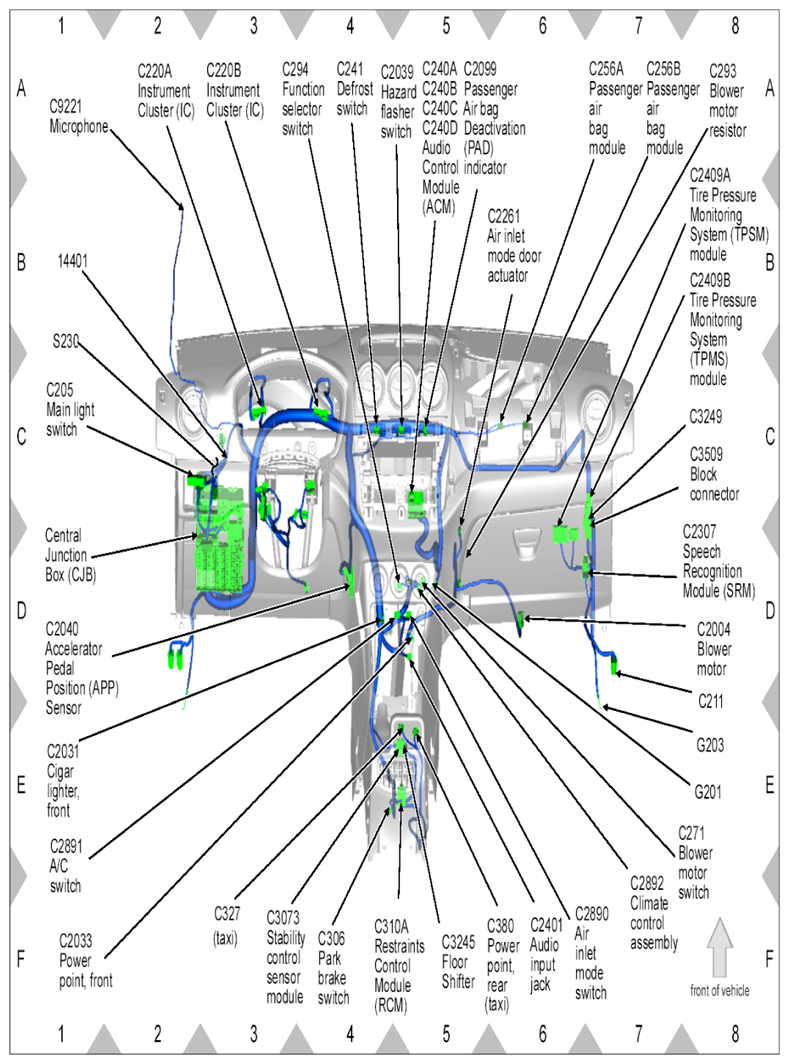

Fig 7: Dashboard Wiring Harness Connectors Location (1 Of 2)
G07883481Courtesy of FORD MOTOR CO.

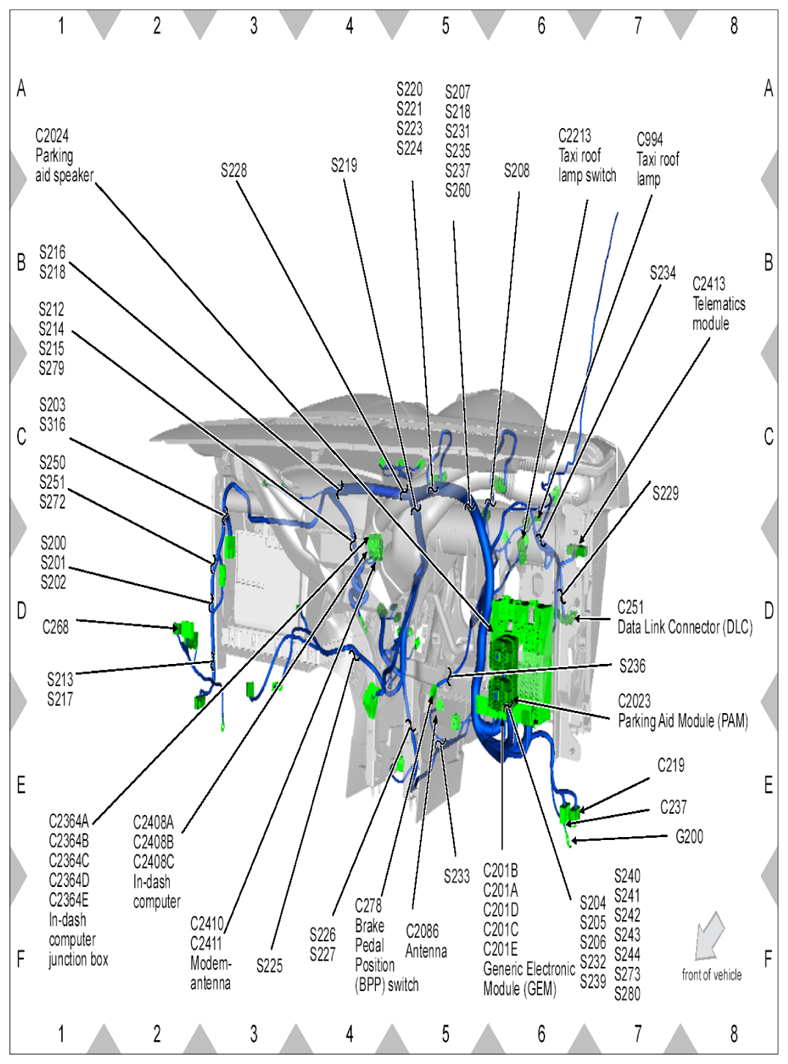

Fig 8: Dashboard Wiring Harness Connectors Location (2 Of 2)
G07883482Courtesy of FORD MOTOR CO.

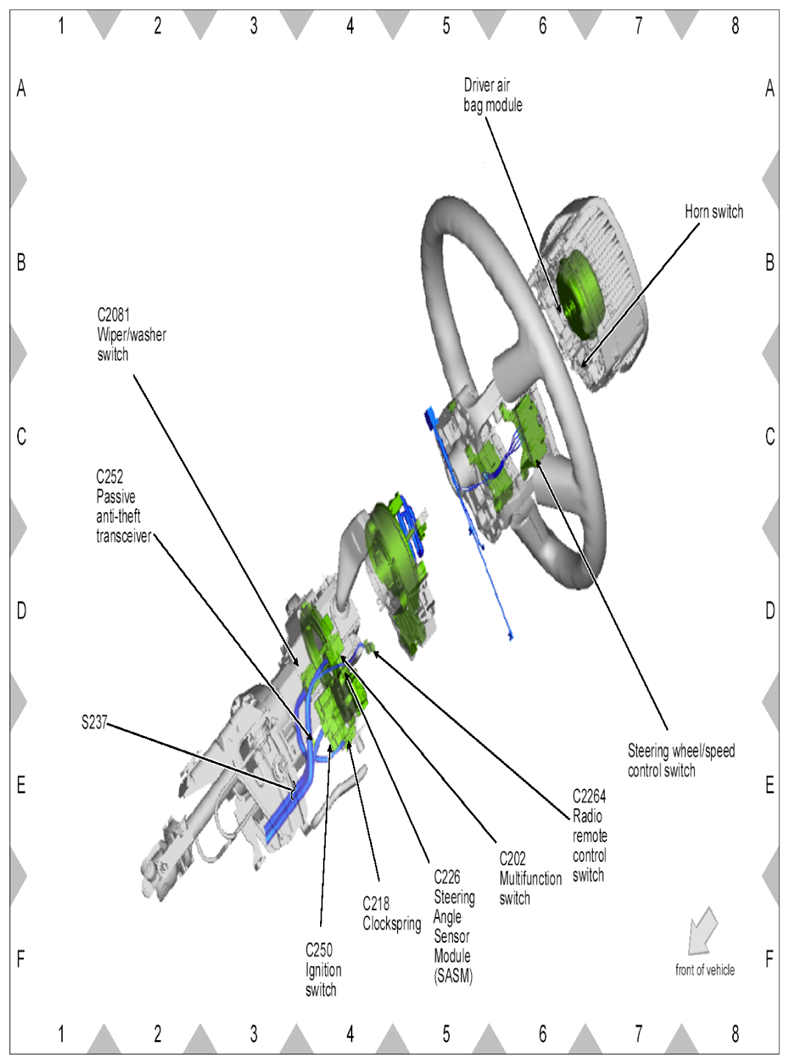

Fig 9: Steering Wheel Wiring Harness Connectors Location
G07883483Courtesy of FORD MOTOR CO.

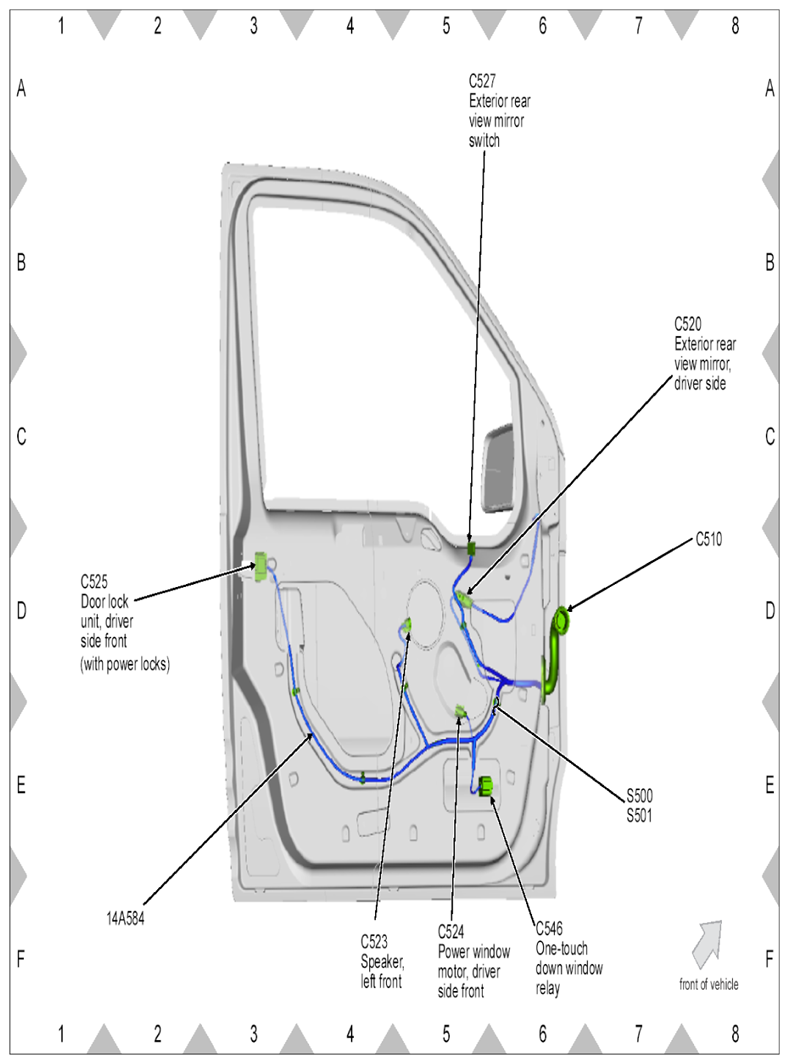

Fig 10: Right Door Wiring Harness Connectors Location
G07883484Courtesy of FORD MOTOR CO.

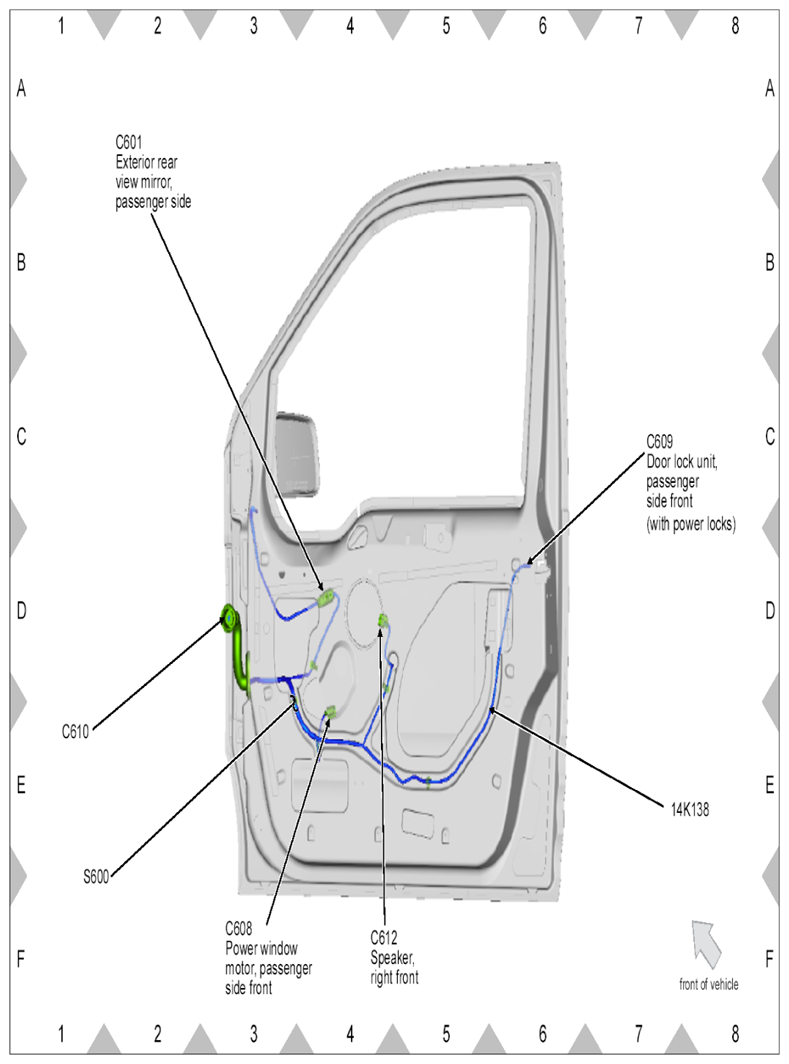

Fig 11: Left Door Wiring Harness Connectors Location
G07883485Courtesy of FORD MOTOR CO.

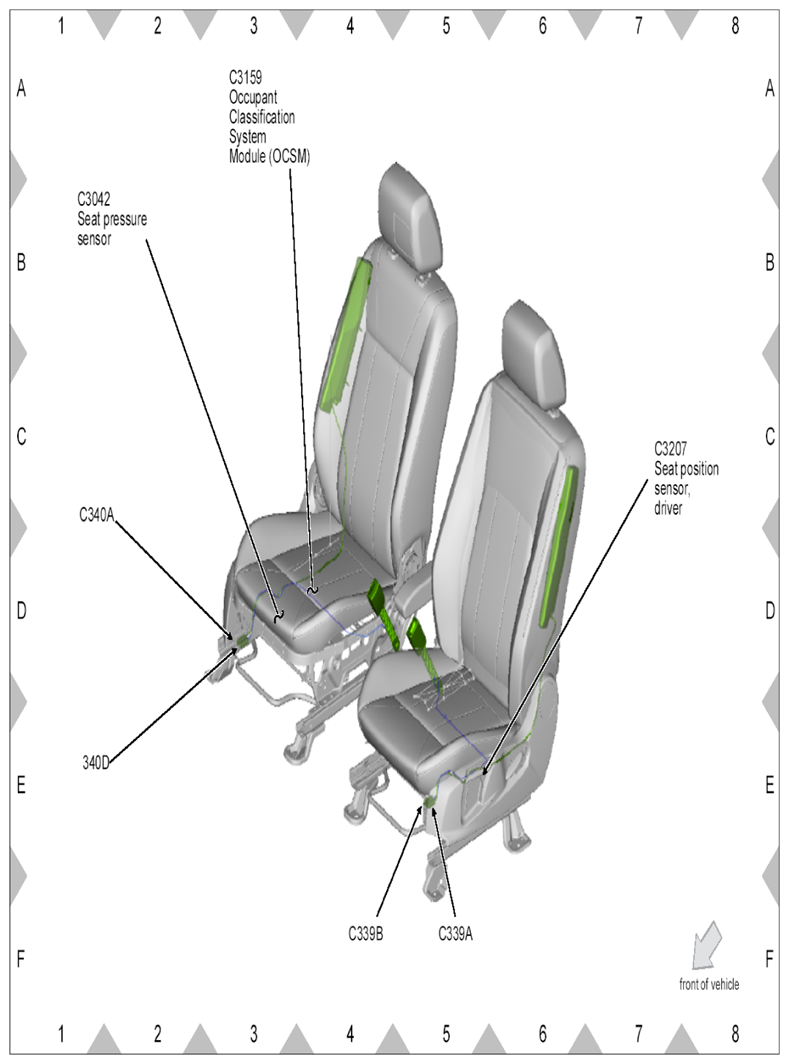

Fig 12: Seat Wiring Harness Connectors Location
G07883486Courtesy of FORD MOTOR CO.

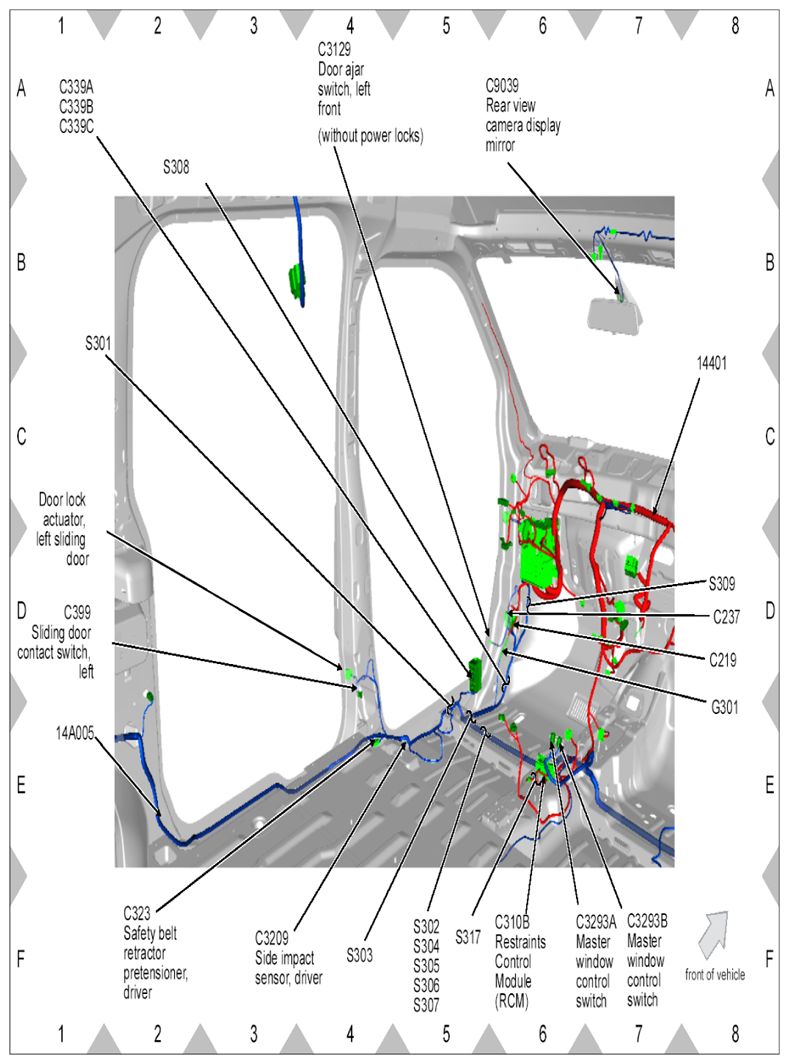

Fig 13: Vehicle Interior Wiring Harness Connectors Location (1 Of 4)
G07883487Courtesy of FORD MOTOR CO.

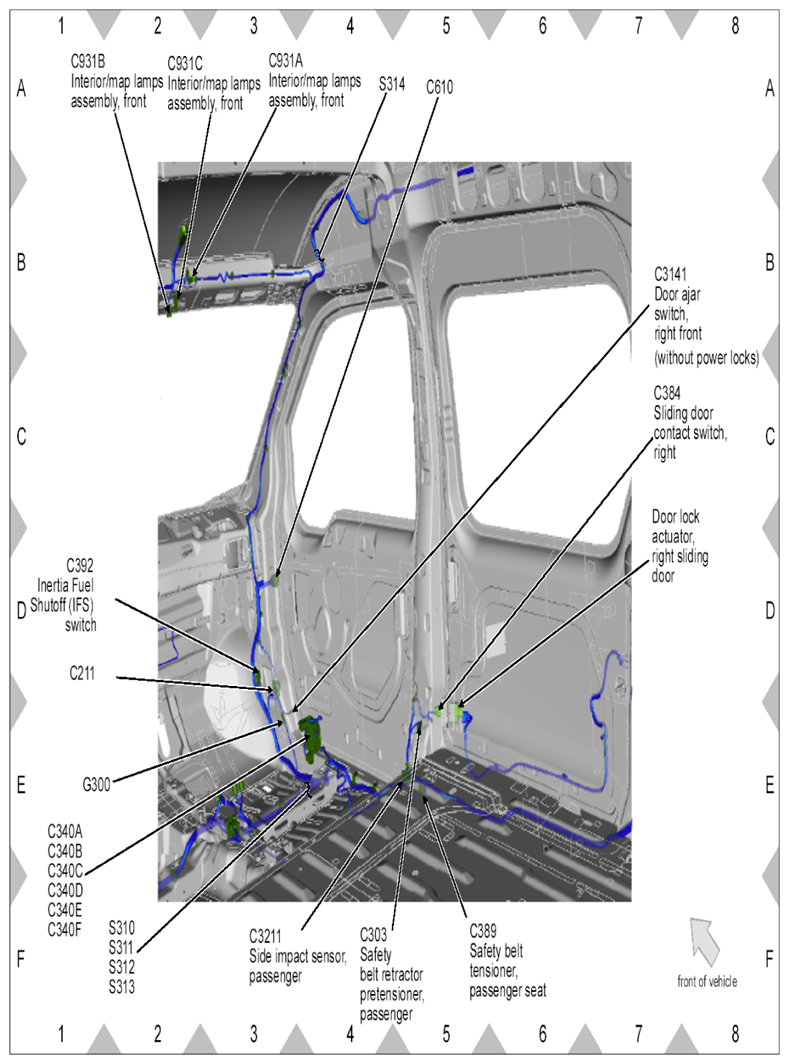

Fig 14: Vehicle Interior Wiring Harness Connectors Location (2 Of 4)
G07883488Courtesy of FORD MOTOR CO.

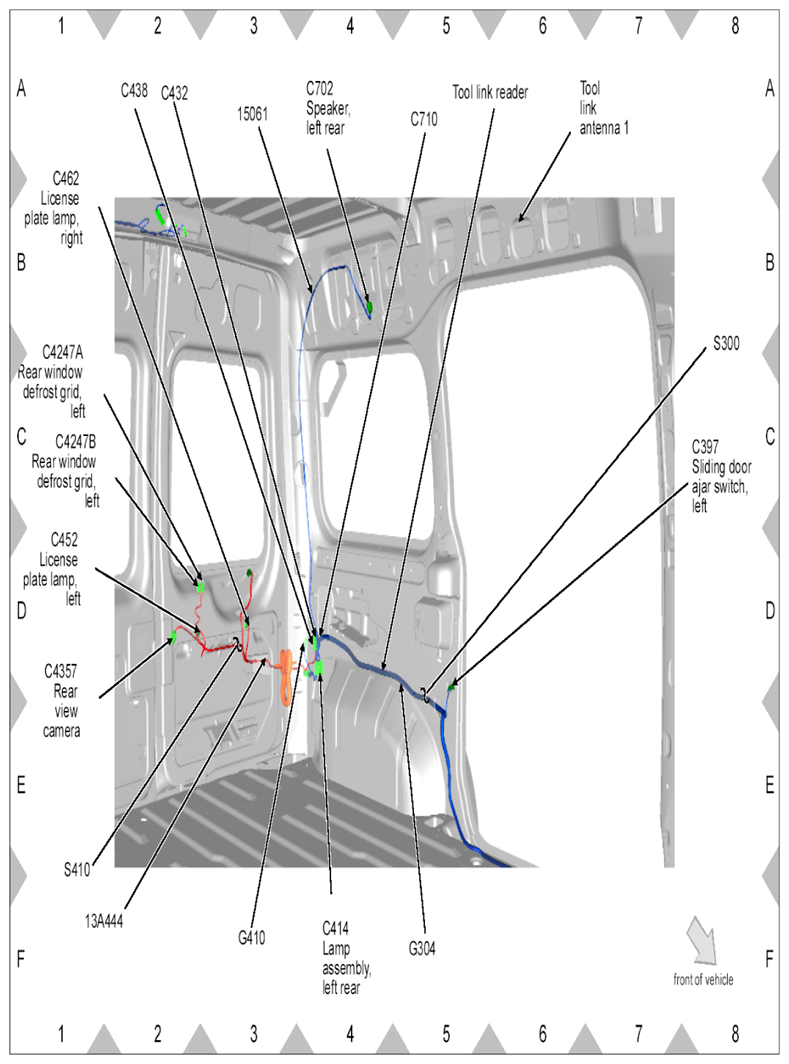

Fig 15: Vehicle Interior Wiring Harness Connectors Location (3 Of 4)
G07883489Courtesy of FORD MOTOR CO.

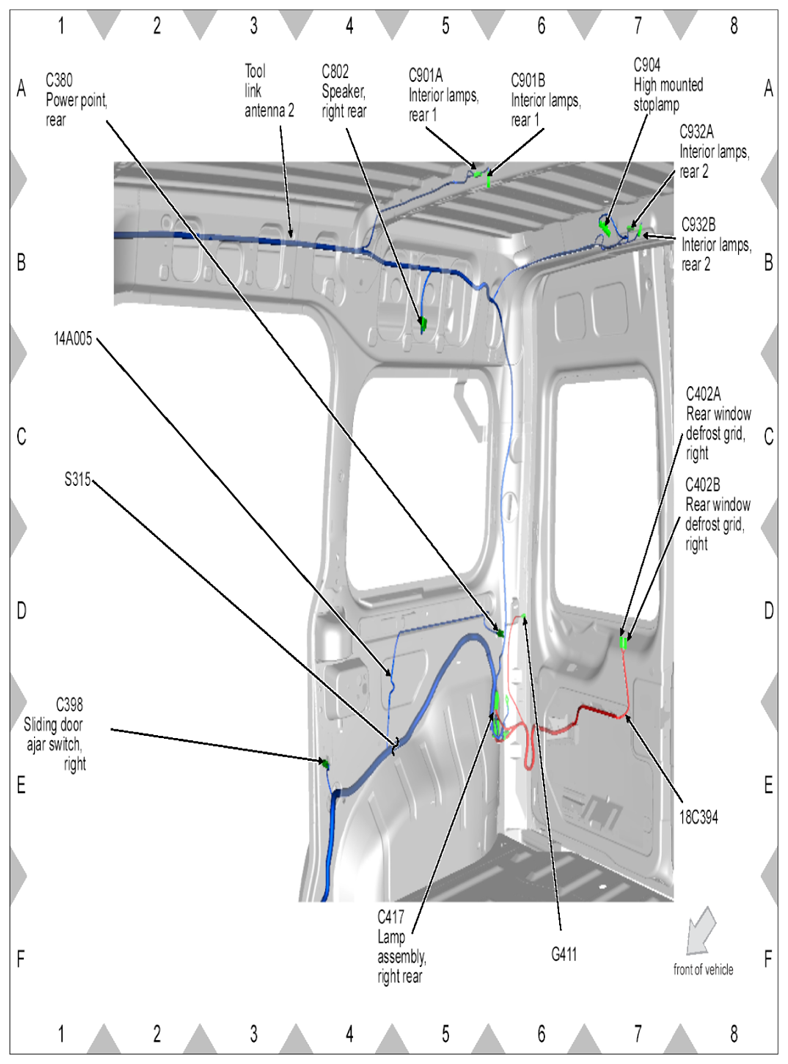

Fig 16: Vehicle Interior Wiring Harness Connectors Location (4 Of 4)
G07883490Courtesy of FORD MOTOR CO.

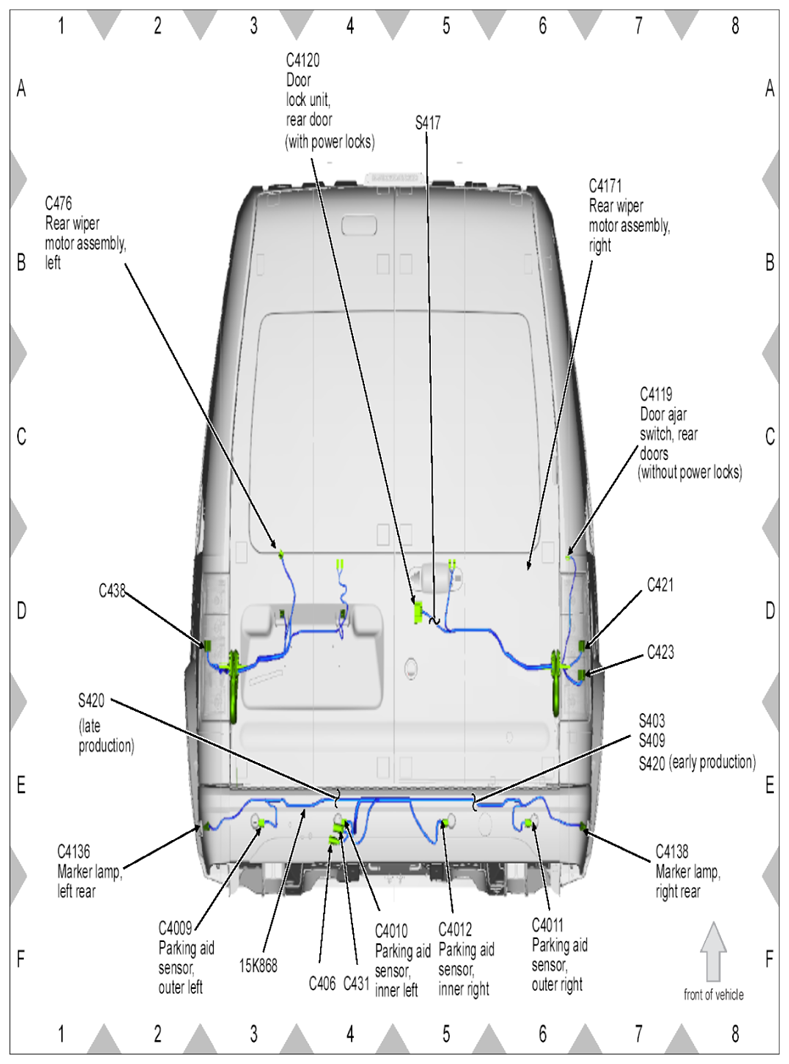

Fig 17: Wiper Motor Assembly Wiring Harness Connectors Location
G07883491Courtesy of FORD MOTOR CO.

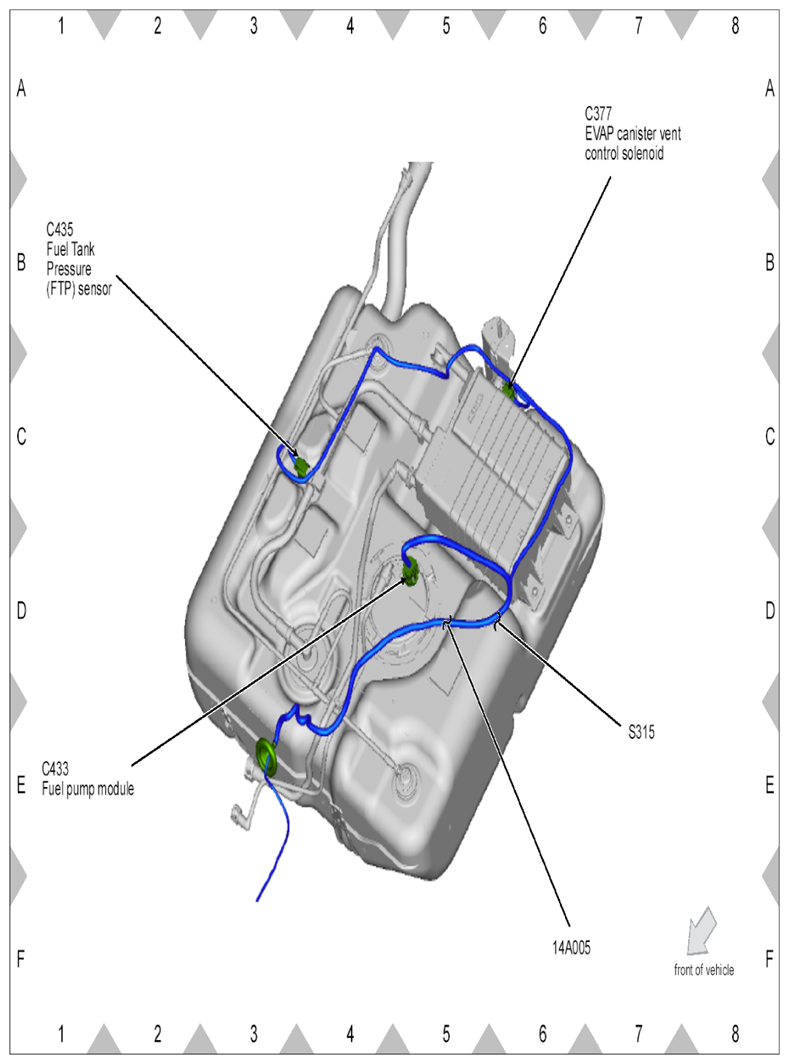

Fig 18: Fuel Tank Wiring Harness Connectors Location
G07883492Courtesy of FORD MOTOR CO.

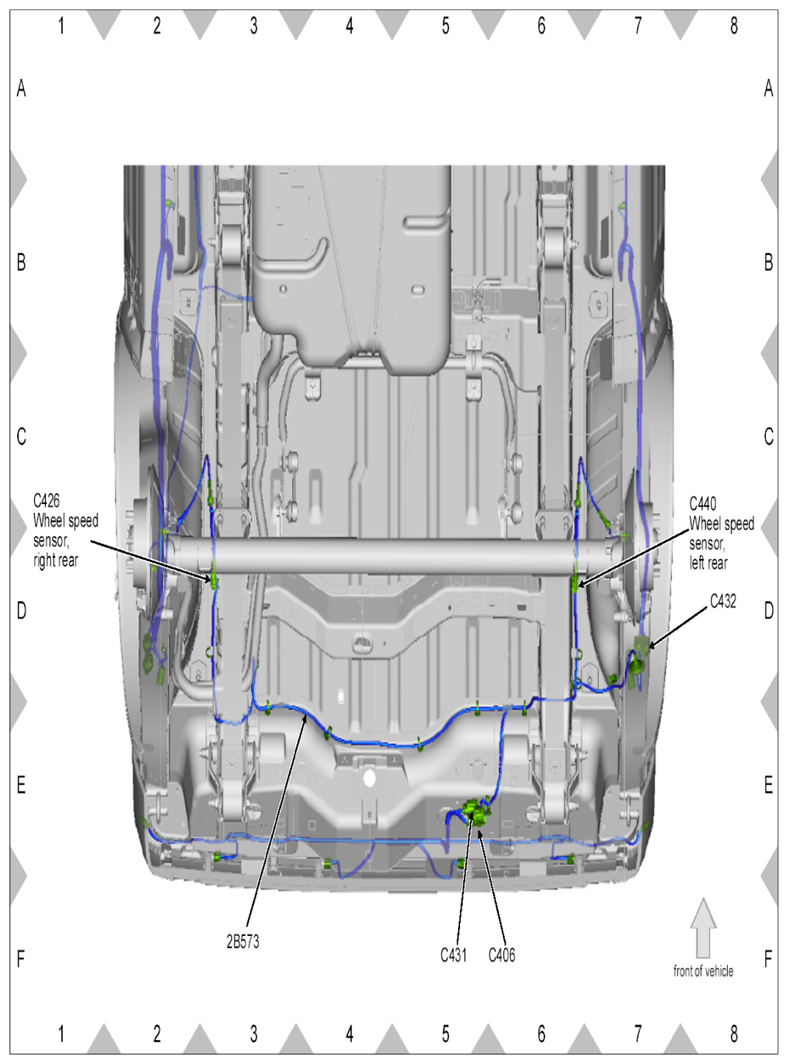

Fig 19: Wheel Speed Sensor Wiring Harness Connectors Location
G07883493Courtesy of FORD MOTOR CO.

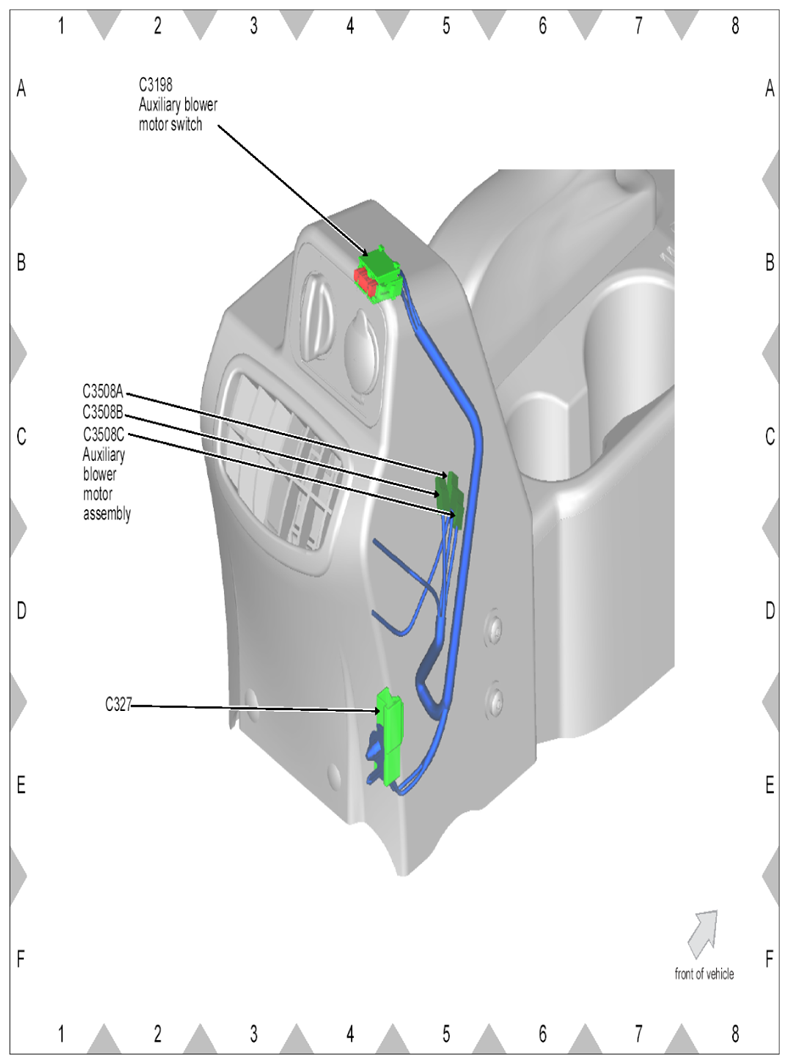

Fig 20: Auxiliary Blower Motor Assembly Wiring Harness Connectors Location
G07883494Courtesy of FORD MOTOR CO.
