Power Steering Pressure (PSP) Switch: Notes

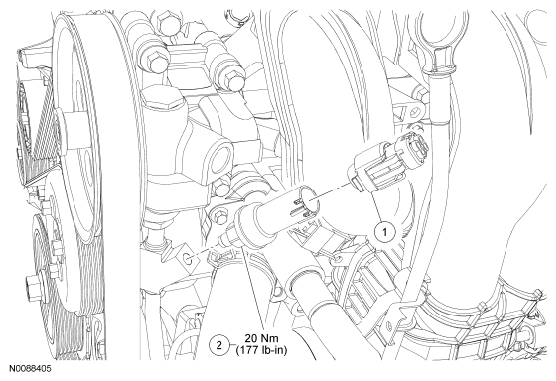

Fig 1: Power Steering Pressure Switch Replacement Components With Torque Specifications
G06292673Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 14A464 Power Steering Pressure (PSP) sensor electrical connector
2 3A719 PSP  sensor
