Selector Lever Bezel: Installation

    NOTE: Selector lever assembly removed for clarity.

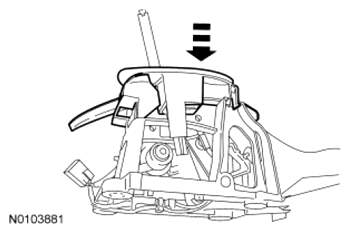

    Fig 1: Installing Selector Lever Bezel
    G07496717Courtesy of FORD MOTOR CO.
  1. Install the selector lever bezel.
    • Clip in the lamp.
    • Clip in the bezel.
  2. Install the selector lever knob. For additional information, refer to SELECTOR LEVER KNOB  in this service information.
