Selector Lever Knob: Installation

  1. Position the selector lever knob onto the selector lever and route the wiring harness through the selector lever bezel.
    Fig 1: Locating Selector Lever Bezel Wiring Harness
    G07496721Courtesy of FORD MOTOR CO.
  2. Slide the selector lever knob down the selector lever and install a new screw.

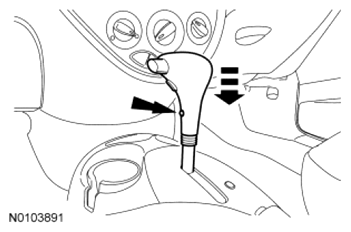

    Fig 2: Sliding Selector Lever Knob
    G07496722Courtesy of FORD MOTOR CO.
    3. NOTE: Selector lever assembly removed for clarity.

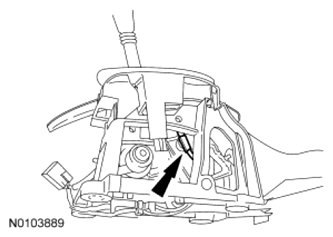

    Fig 3: Locating Overdrive (O/D) Switch Electrical Connector
    G07496723Courtesy of FORD MOTOR CO.
  3. Connect the O/D  switch electrical connector.
  4. Install the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.
