Selector Lever: Removal

  1. Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.
  2. Remove the selector lever cable from the selector lever.
    1. Move the selector lever to the PARK position.
    2. Remove the selector lever cable eyelet from the ball stud.
    3. Squeeze the tabs and remove the selector lever cable from the selector lever assembly.

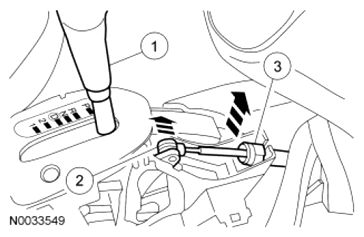

    Fig 1: Removing Selector Lever Cable From Selector Lever Assembly
    G07496709Courtesy of FORD MOTOR CO.
  3. Disconnect the selector lever assembly electrical connector.

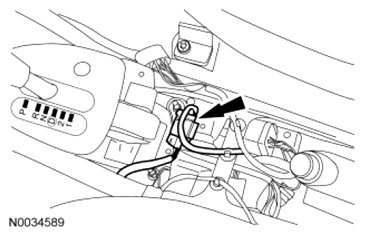

    Fig 2: Locating Selector Lever Assembly Electrical Connector
    G07496710Courtesy of FORD MOTOR CO.
  4. Remove the 4 nuts and the selector lever assembly.

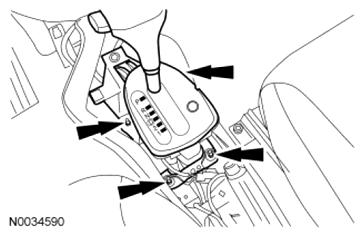

    Fig 3: Remove/Install Selector Lever Assembly Nuts
    G07496711Courtesy of FORD MOTOR CO.
