Selector Lever Knob: Removal

  1. Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.
    2. NOTE: Selector lever assembly removed for clarity.

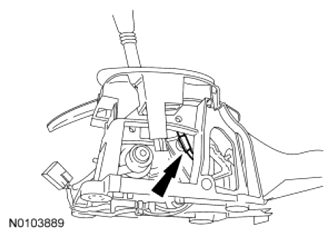

    Fig 1: Locating Overdrive (O/D) Switch Electrical Connector
    G07496719Courtesy of FORD MOTOR CO.
  2. Disconnect the Overdrive (O/D) switch electrical connector.
  3. Remove the selector lever knob.
    • Remove and discard the screw.
    • Pull off the knob.

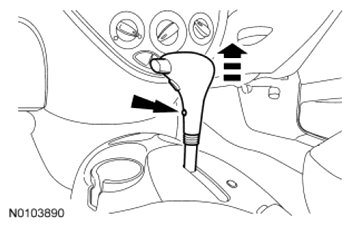

    Fig 2: Removing Selector Lever Knob
    G07496720Courtesy of FORD MOTOR CO.
