Accessory Protocol Interface Module (APIM)

Accessory Protocol Interface Module (APIM)

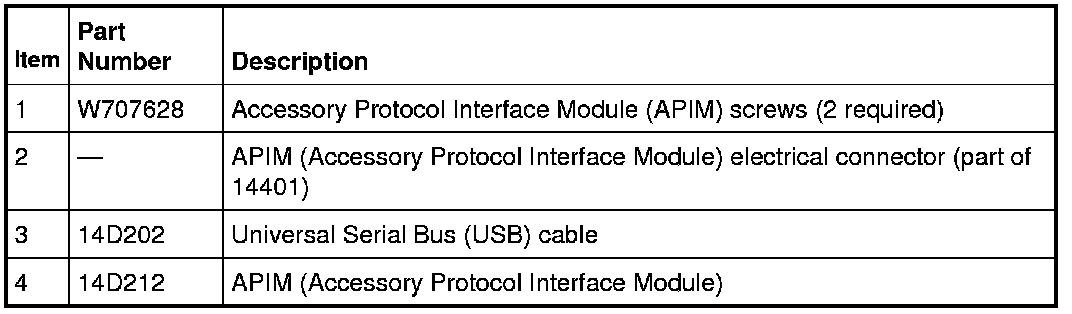

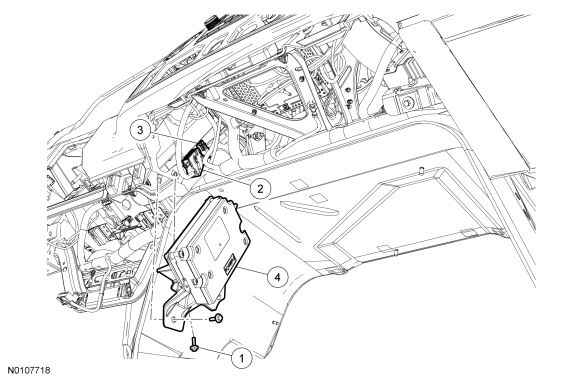

Removal and Installation

1. Remove the engine cover.

2. Disconnect the Universal Serial Bus (USB) cable and the electrical connector.

3. Remove the 2 screws and the APIM (Accessory Protocol Interface Module).

4. To install, reverse the removal procedure.
