Vehicles That Do Not Start

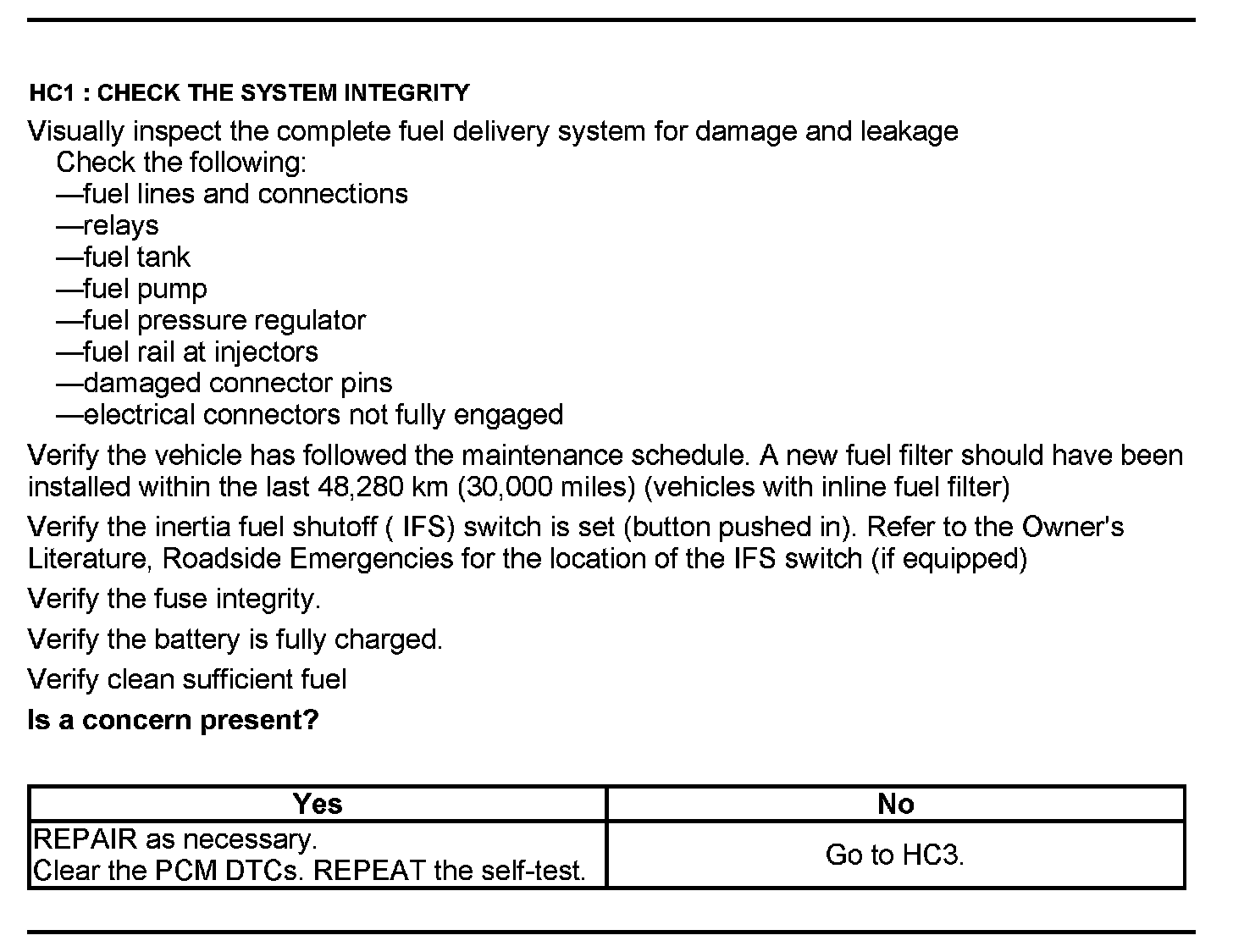

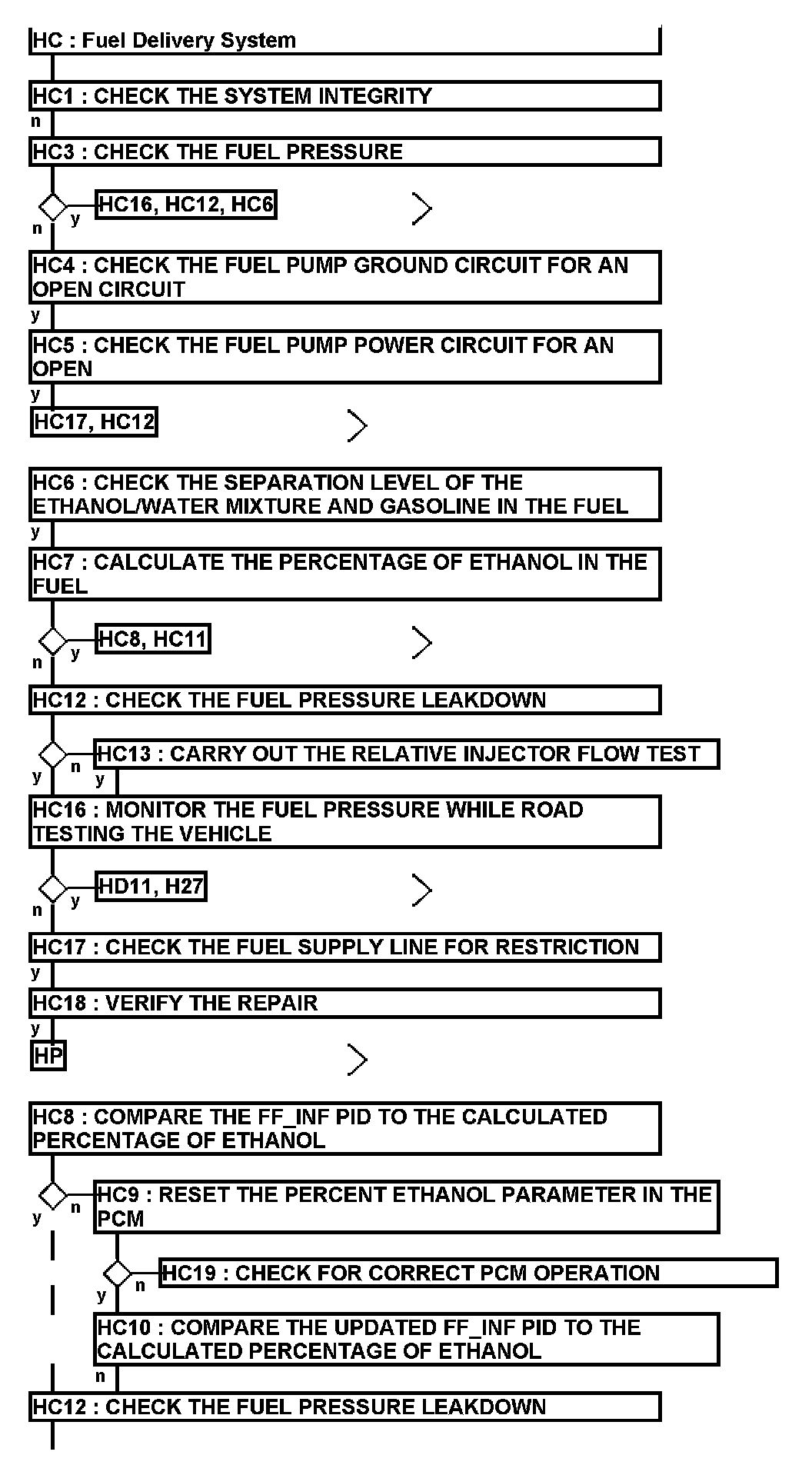

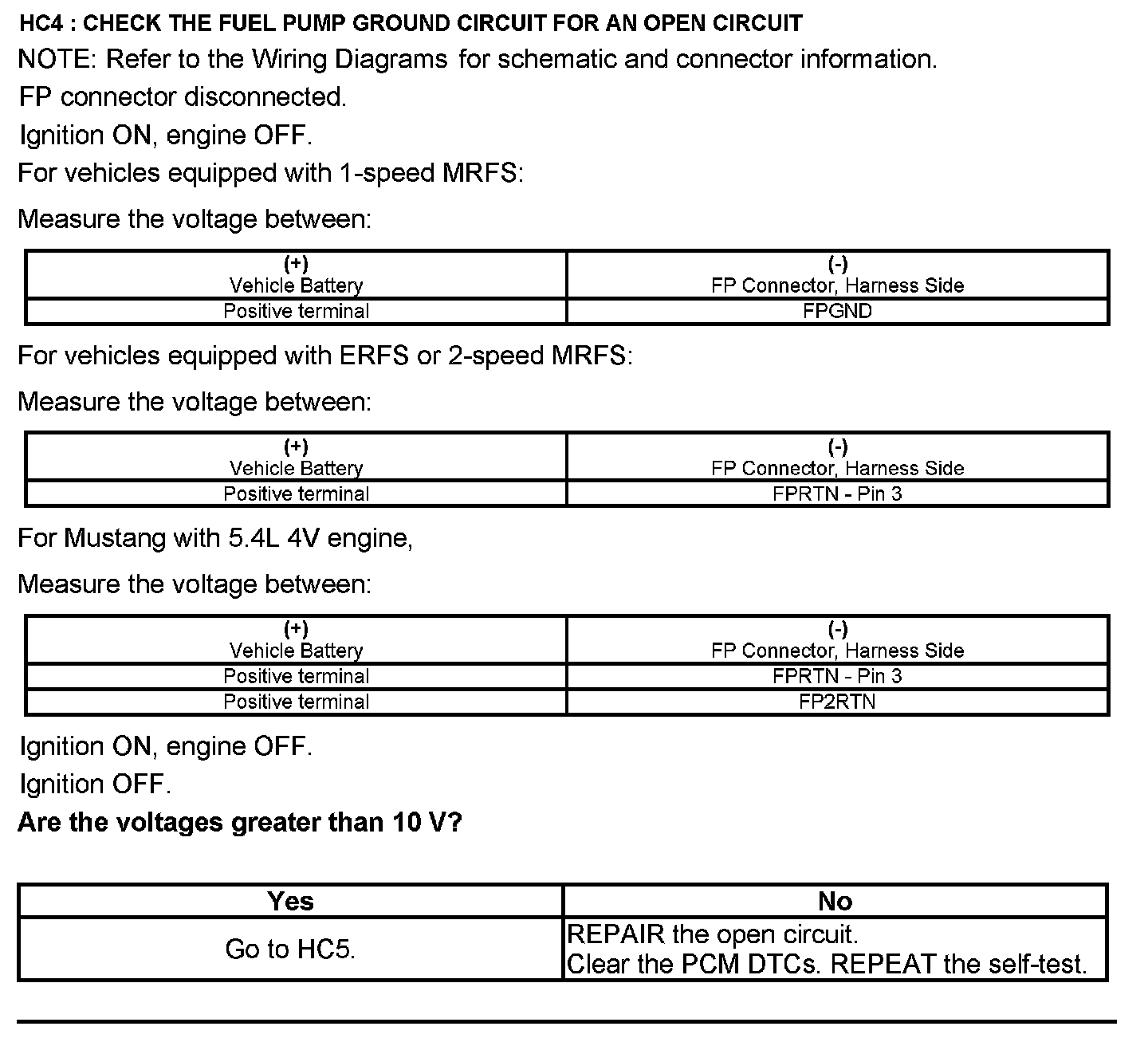

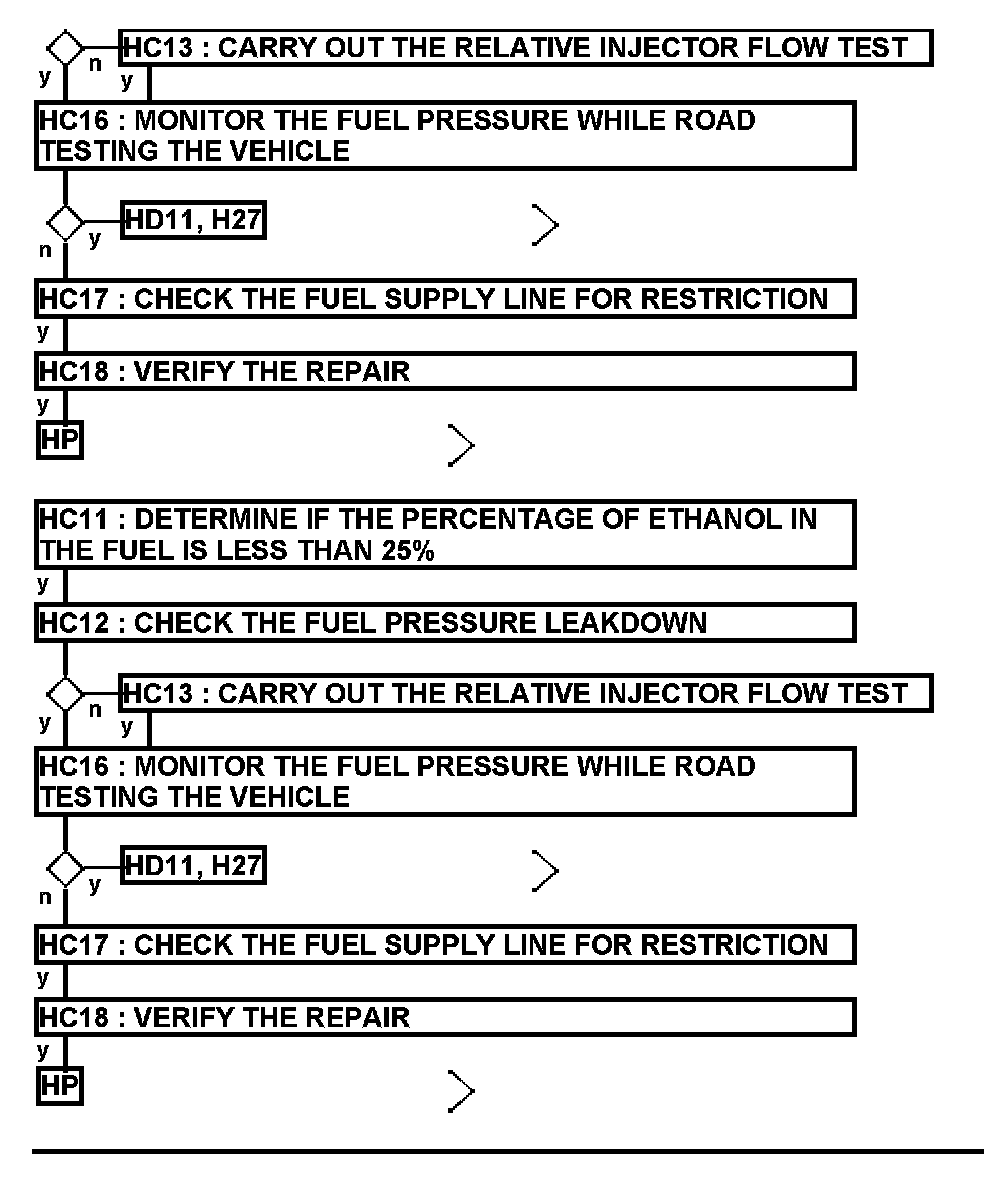

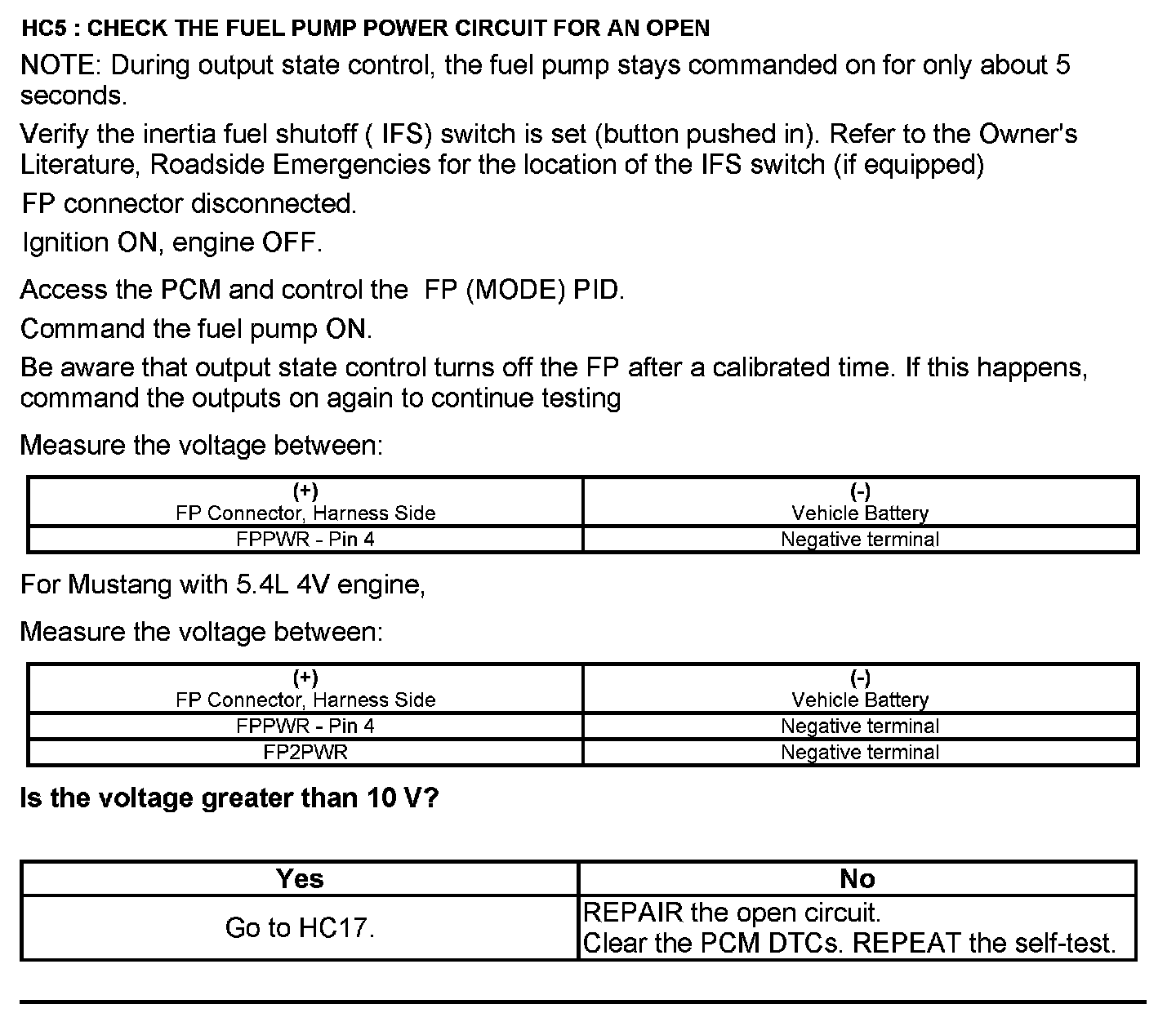

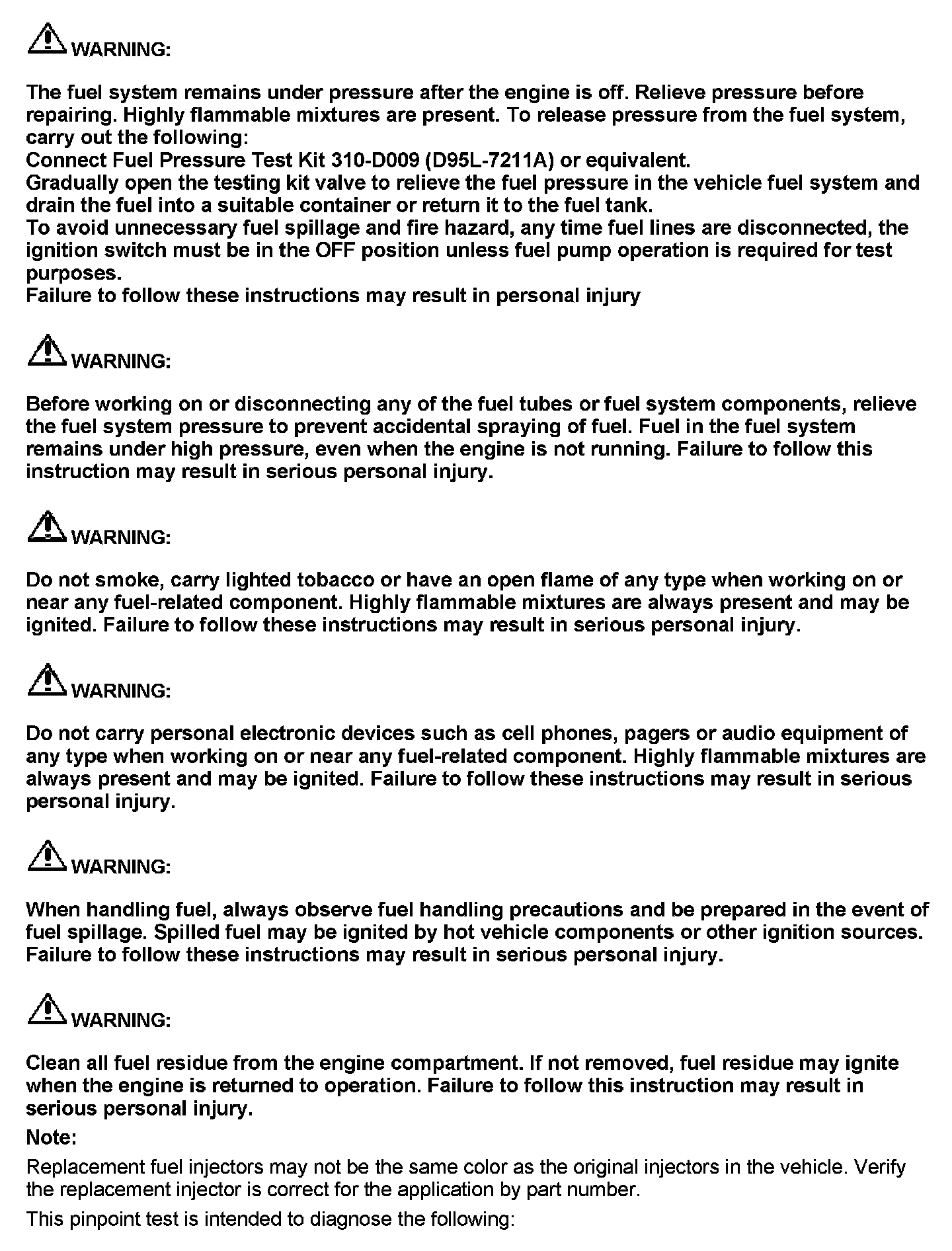

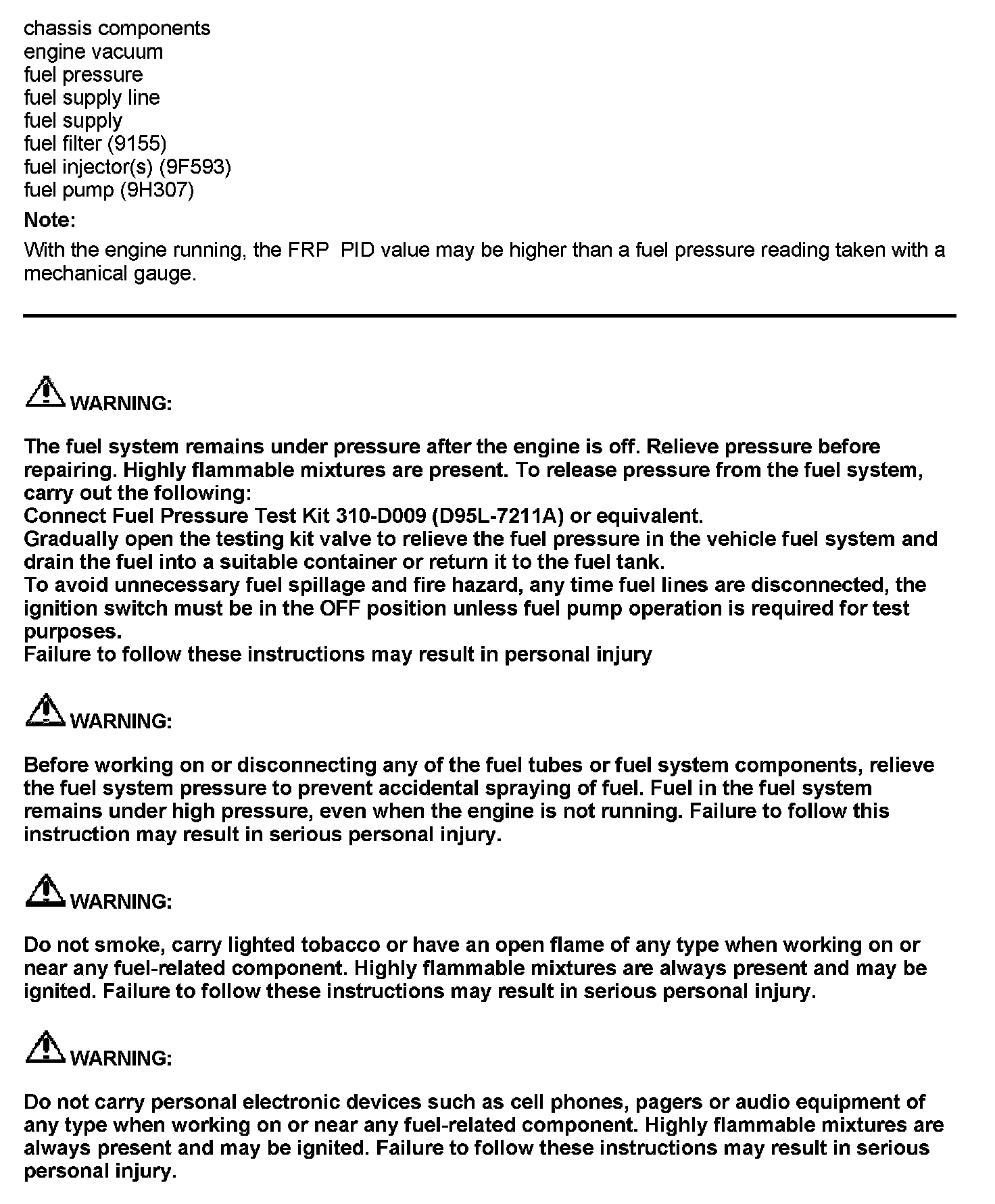

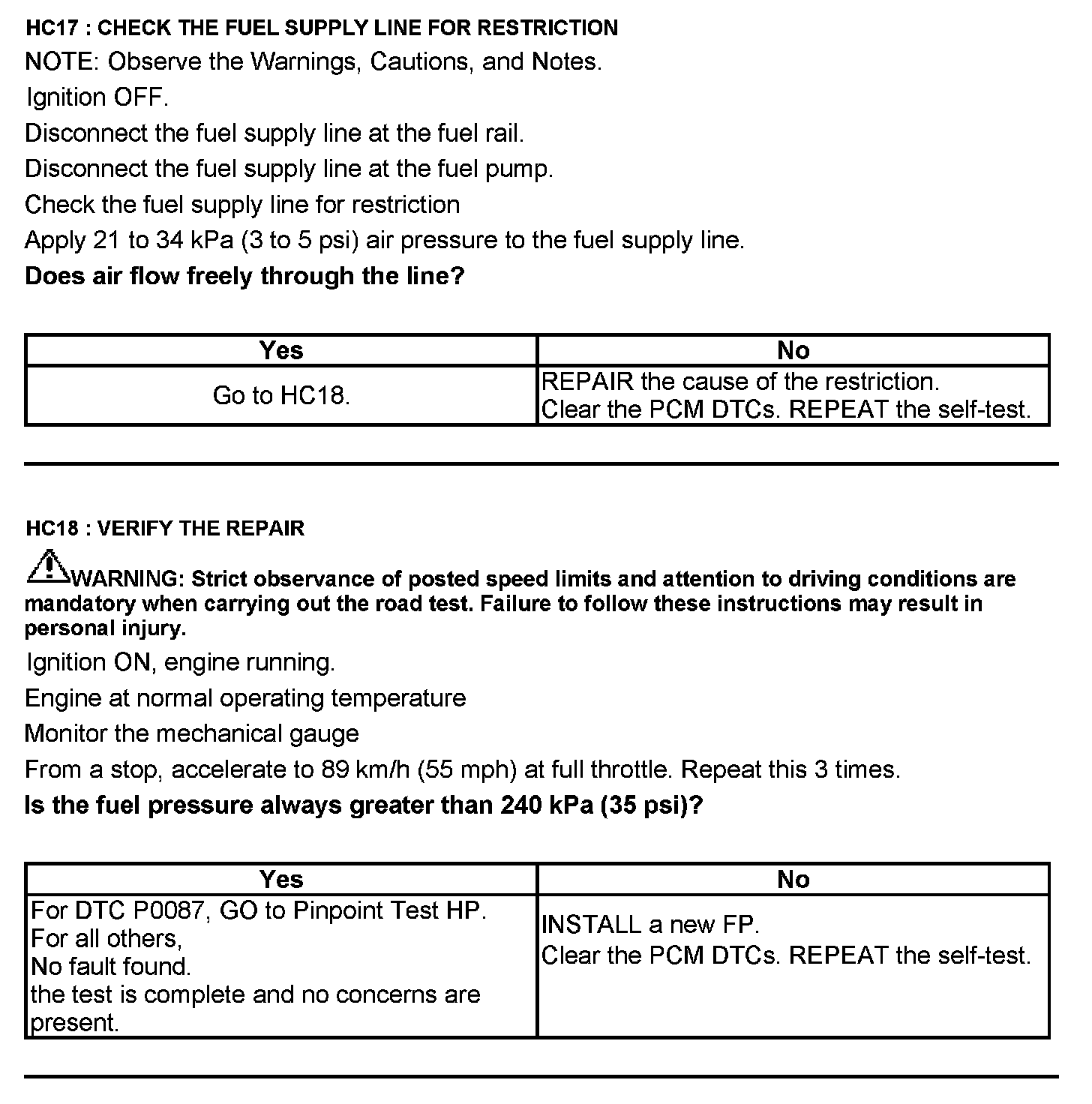

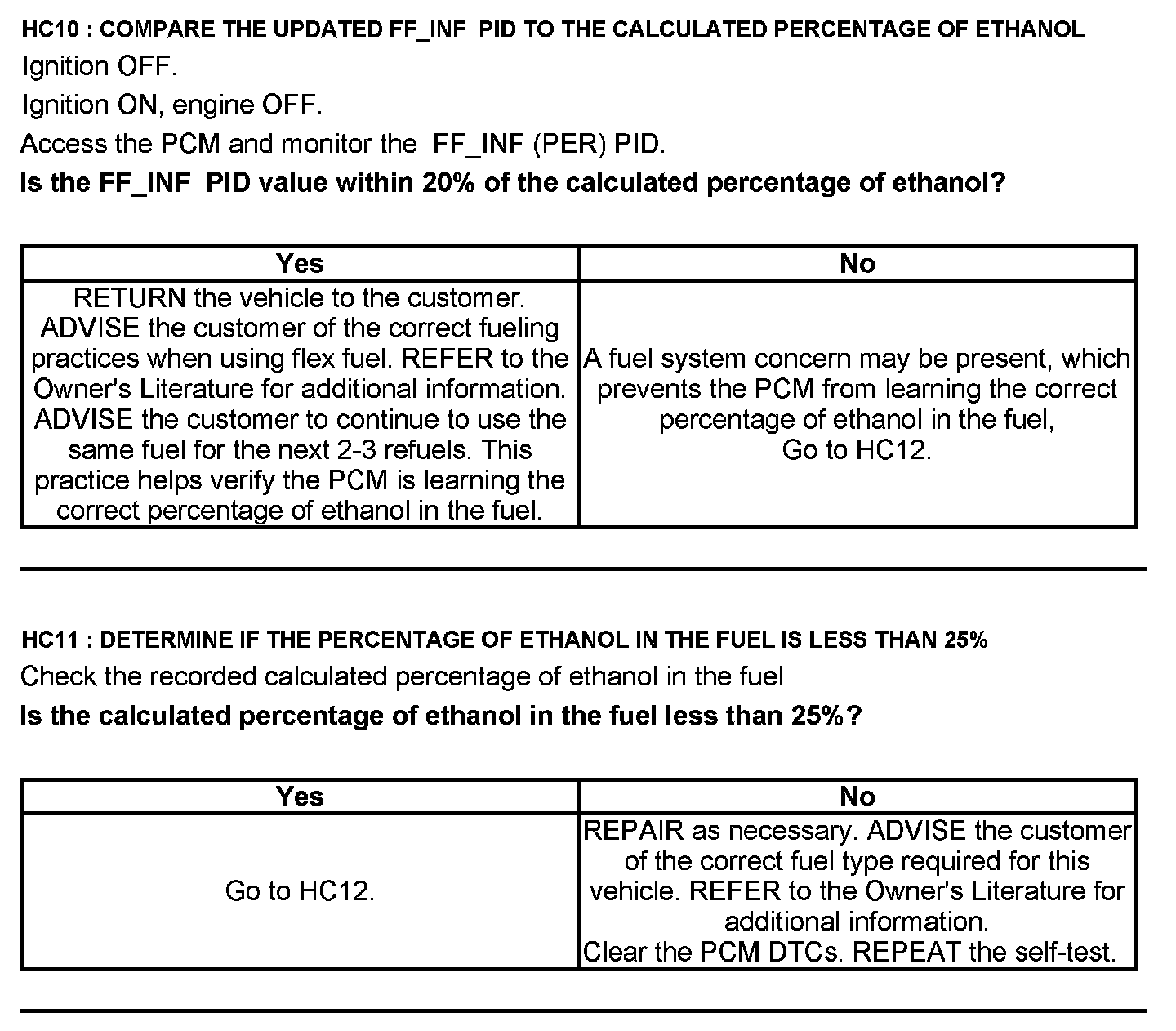

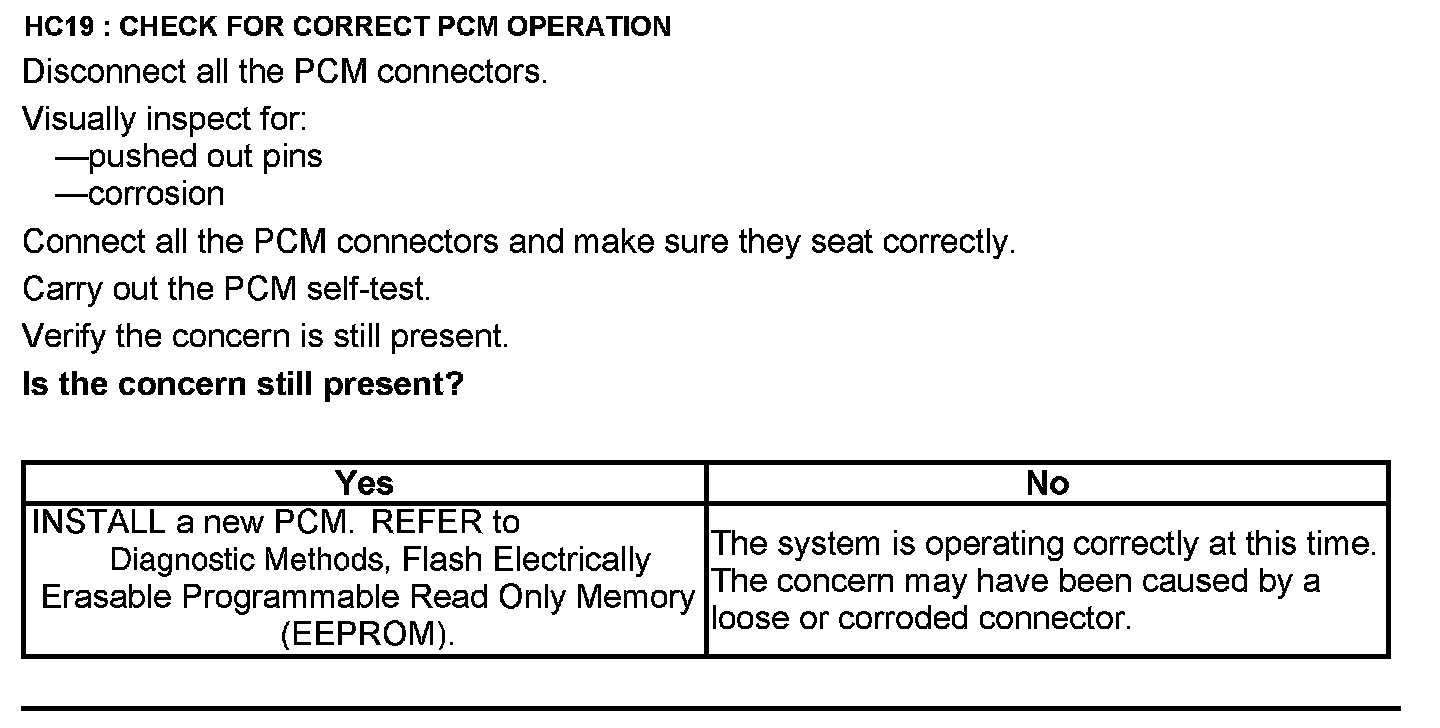

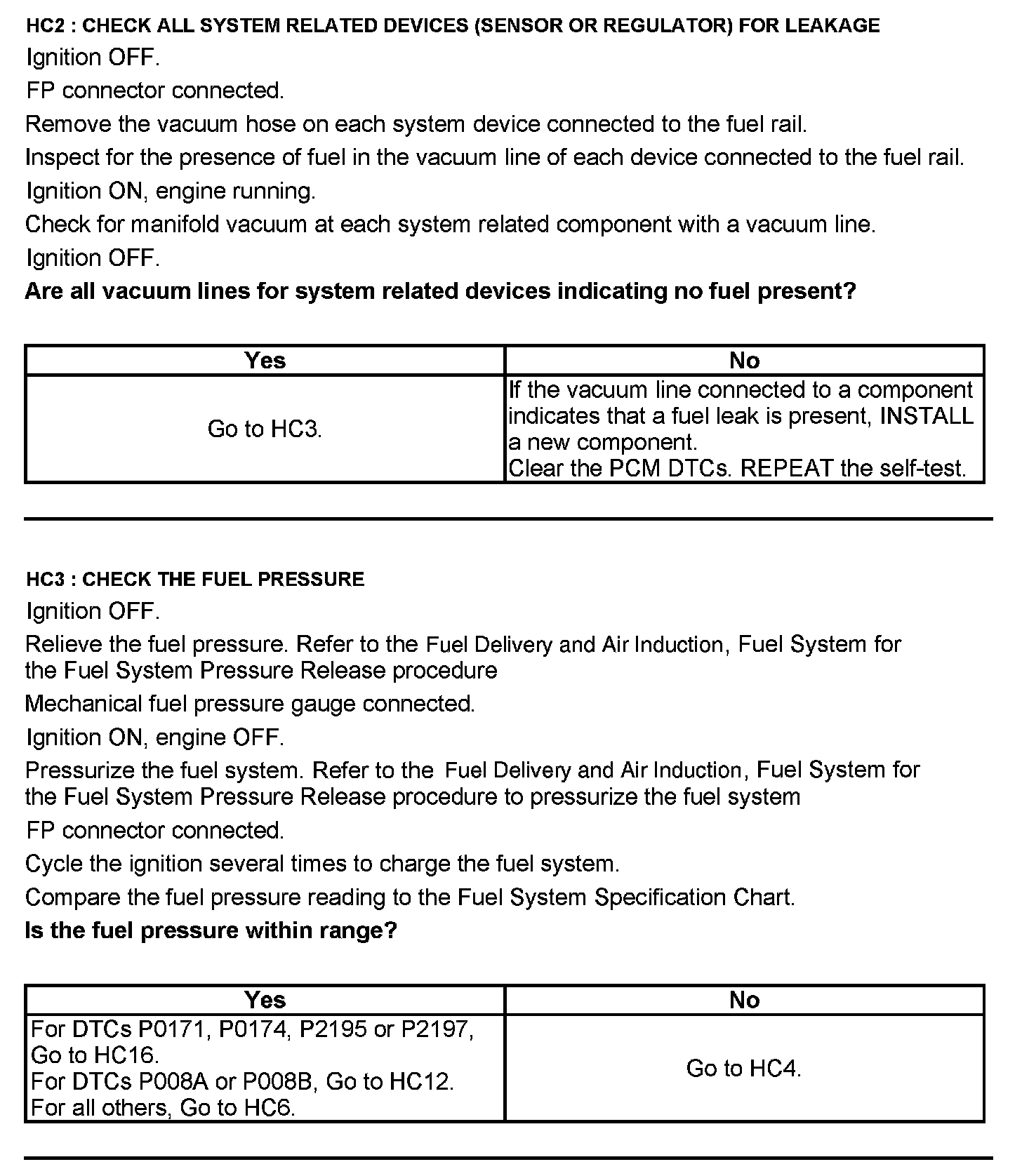

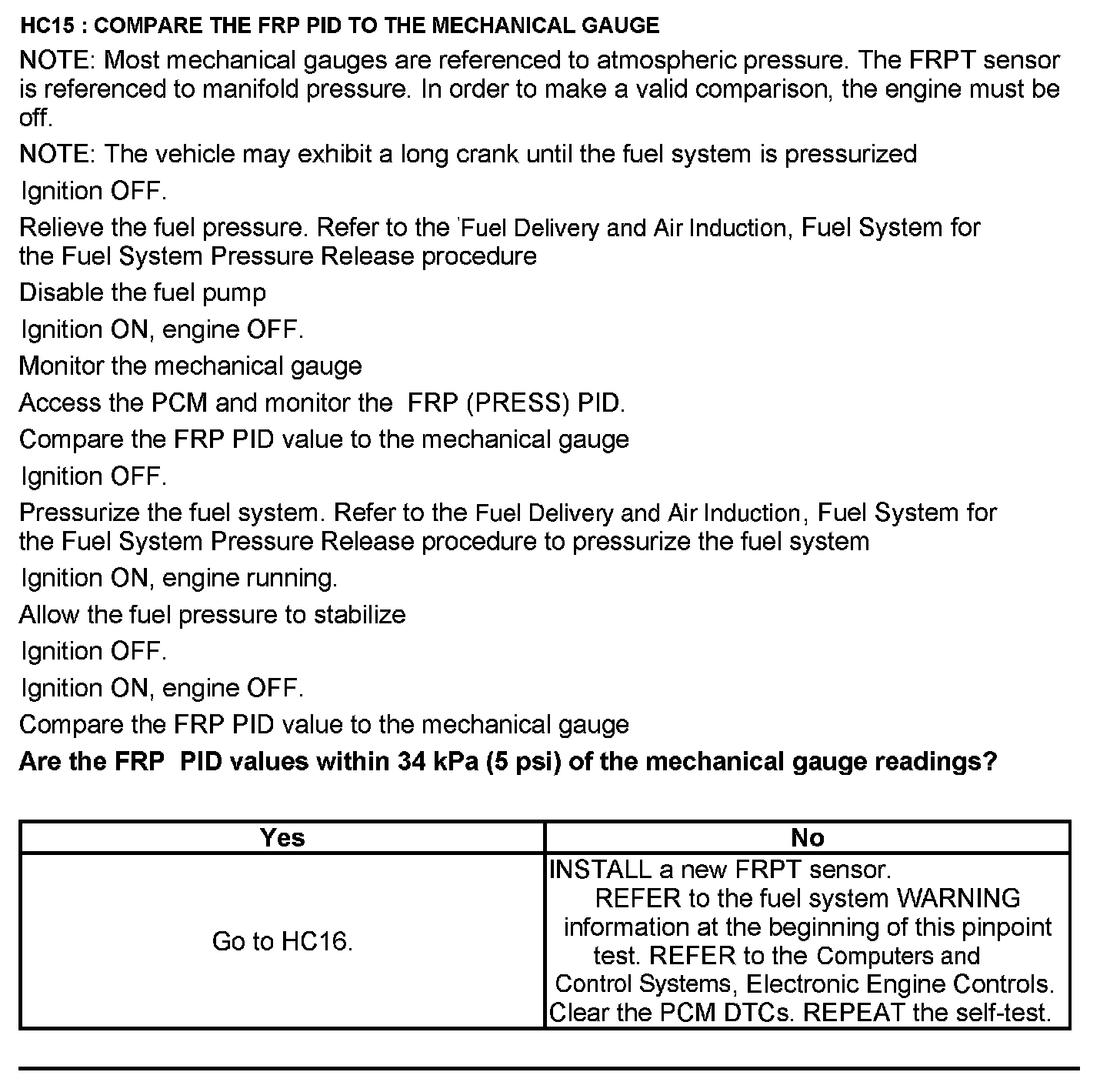

Fuel Delivery System - Vehicles that do not Start.

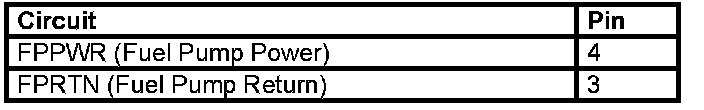

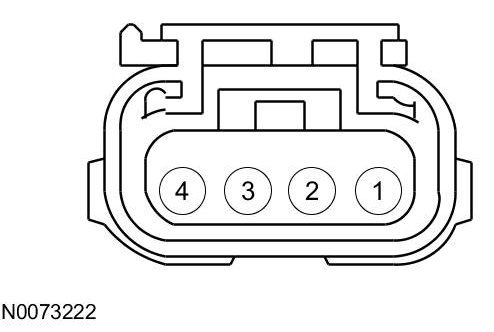

Fuel Pump (FP) Connector





Harness Side
