Drive Belt

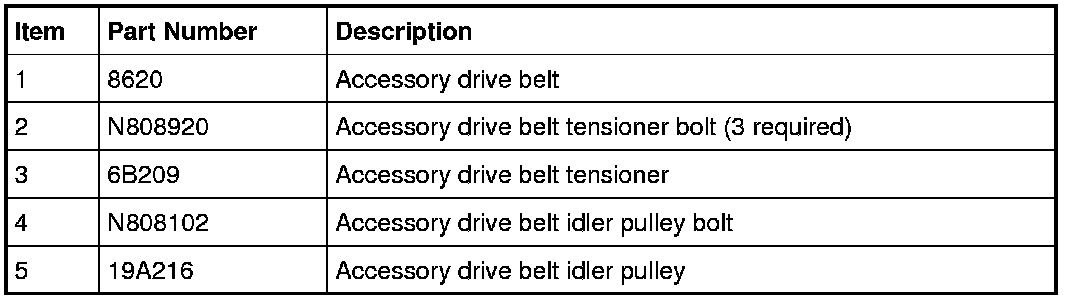

Front End Accessory Drive (FEAD) - Exploded View

NOTE: It is necessary to remove the Air Cleaner (ACL) assembly to gain access to the accessory drive belt and accessory drive belt tensioner. For additional information, refer to Fuel Delivery and Air Induction.

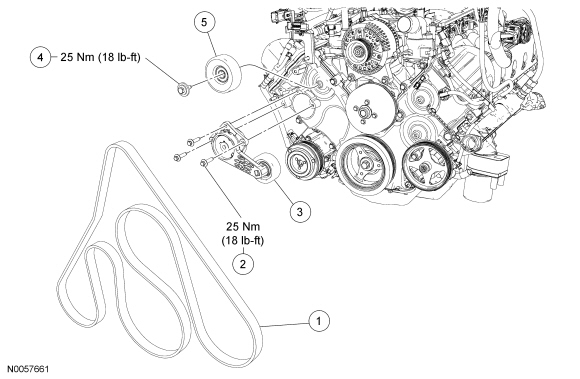

NOTE: 4.6L with A/C shown, 5.4L and 6.8L with A/C similar.










NOTE: It is necessary to remove the Air Cleaner (ACL) assembly to gain access to the accessory drive belt and accessory drive belt tensioner. For additional information, refer to Fuel Delivery and Air Induction.

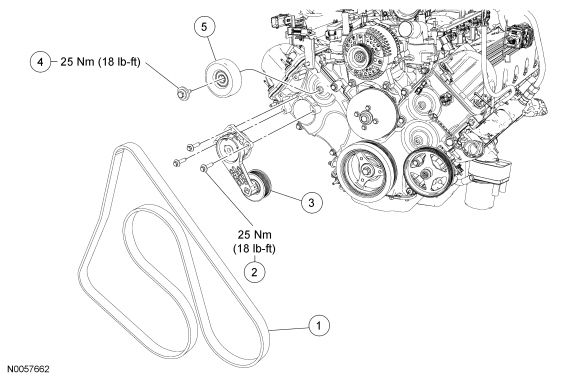

NOTE: 4.6L without A/C shown, 5.4L and 6.8L without A/C similar.










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
