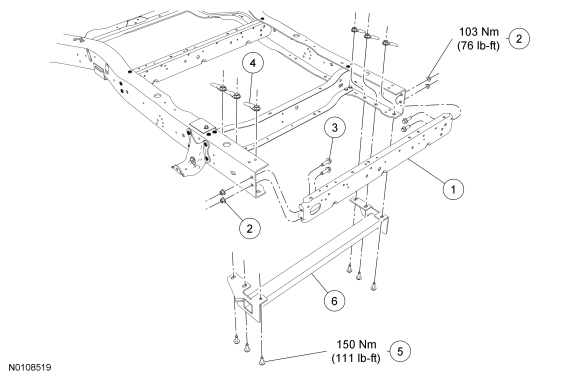

Crossmember - Exploded View

Crossmember - Exploded View

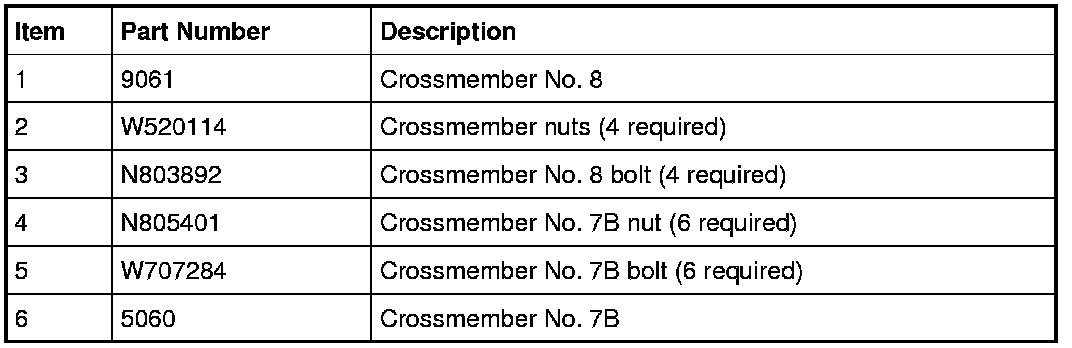

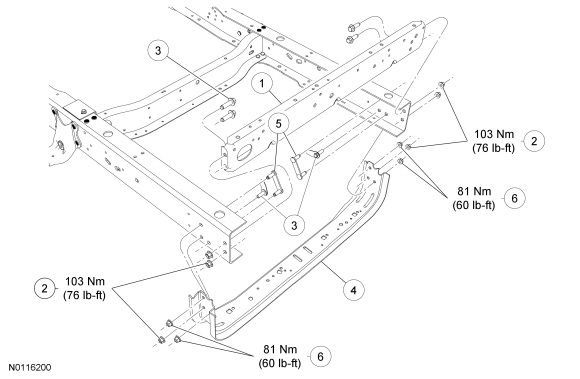

Rear Suspension Crossmember and Aft-of-Fuel Tank Crossmember - 3505.2 mm (138 in) and 158 in Wheelbase










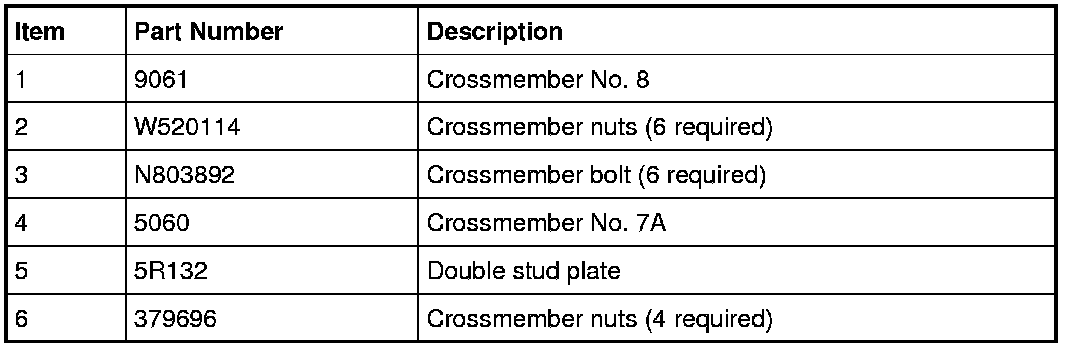

Rear Suspension Crossmember and Aft-of-Fuel Tank Crossmember - 176 in Wheelbase

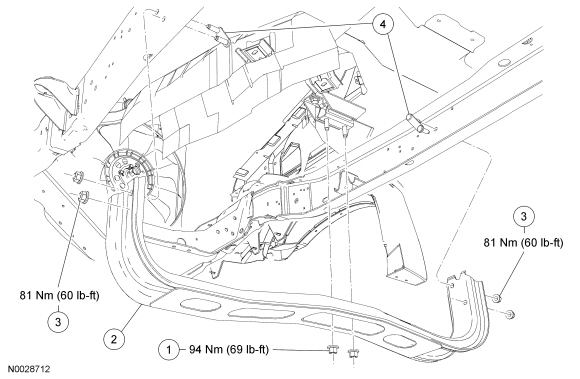

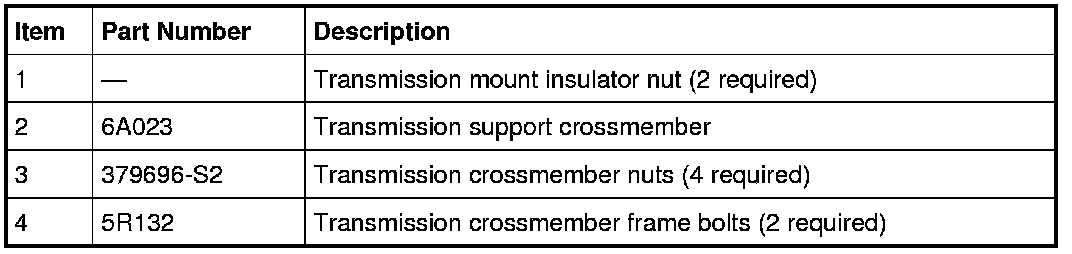

Transmission Support Crossmember

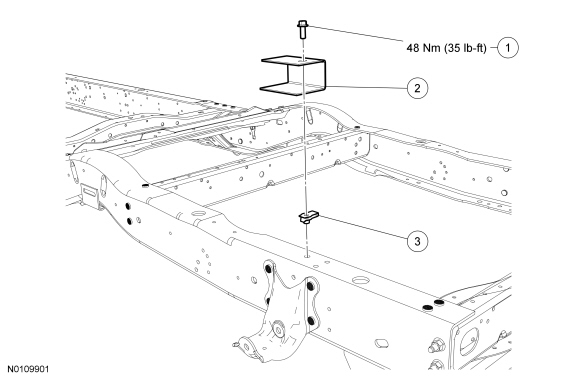

Fuel Tank Protection Bracket - Upper

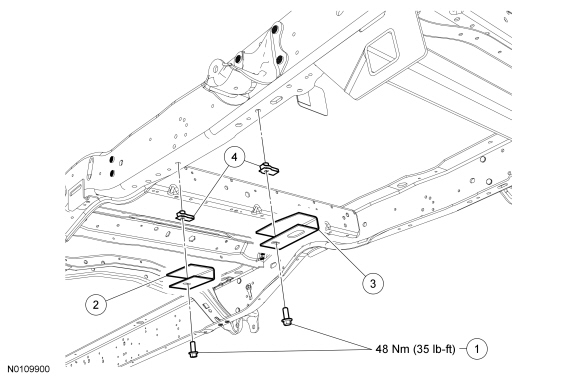

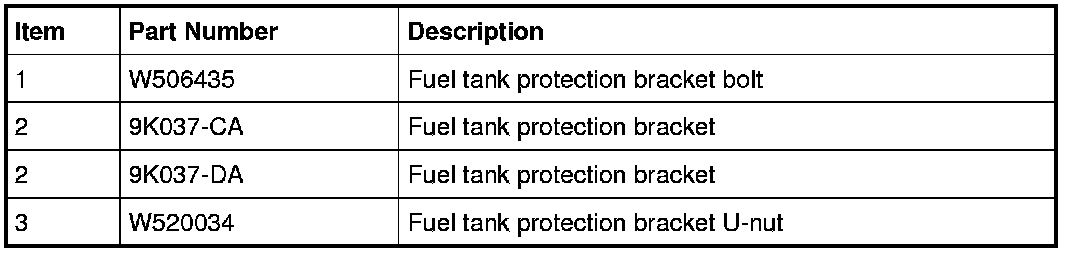

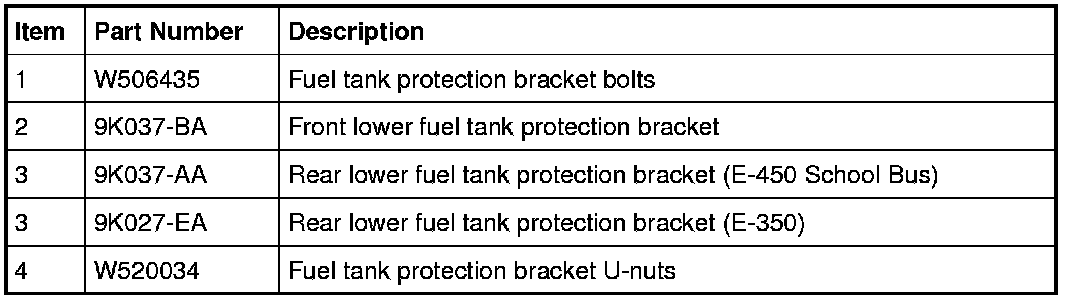

Fuel Tank Protection Brackets - Lower









Removal and Installation

1. For additional information on the transmission support crossmember, refer to Transmission Support Crossmember Service and Repair.

2. For information on rivet replacement, refer to Rivet Replacement Service and Repair.

3. For information on the fuel tank protection brackets, refer to Fuel Tank Protection Bracket Fuel Tank Protection Bracket.
