Oil Pressure Sensor: Service and Repair

Engine Oil Pressure (EOP) Switch









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

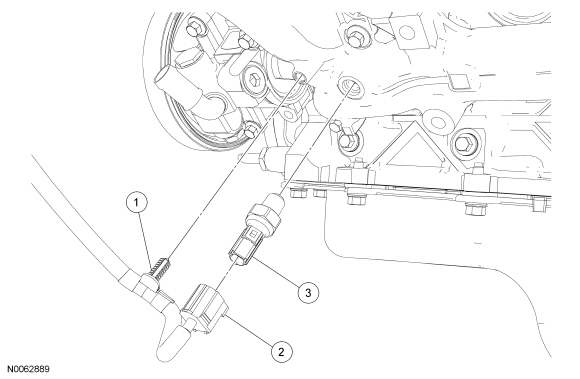

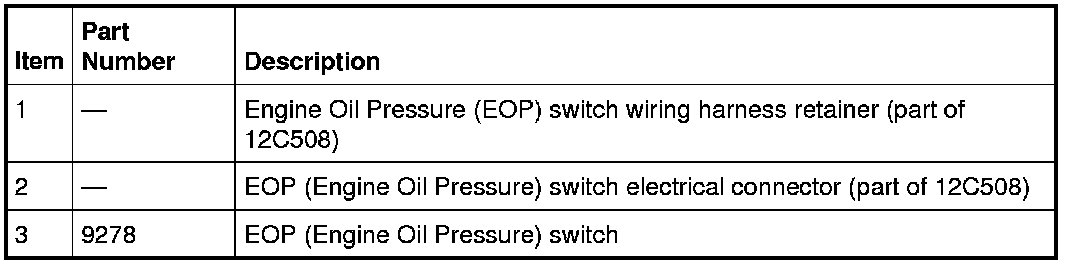

2. Disconnect the Engine Oil Pressure (EOP) switch wiring harness retainer and electrical connector.

3. Remove the EOP (Engine Oil Pressure) switch.
- To install, tighten in 2 stages.
- Stage 1: Tighten to 14 Nm (124 lb-in).

- Stage 2: Tighten an additional 180 degrees.



4. To install, reverse the removal procedure.
