Oil Pressure Sensor: Service and Repair

Engine Oil Pressure (EOP) Switch

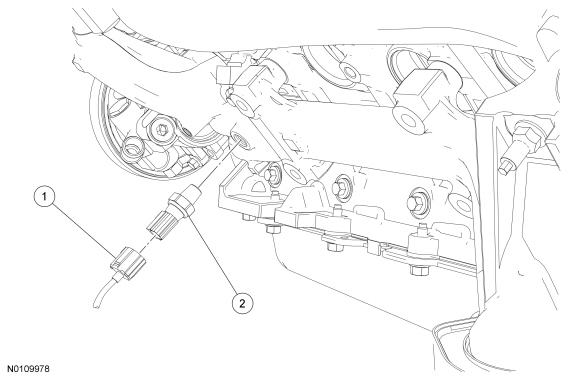

Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

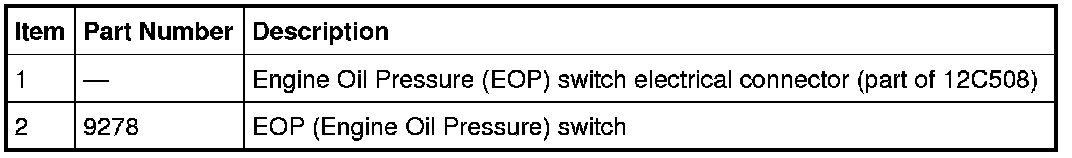

2. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.

3. Remove the EOP (Engine Oil Pressure) switch.

Installation

1. Install the EOP (Engine Oil Pressure) switch and tighten in 2 stages.
- Stage 1: Tighten to 14 Nm (125 lb-in).

- Stage 2: Tighten an additional 180 degrees.


2. Connect the EOP (Engine Oil Pressure) switch electrical connector.
