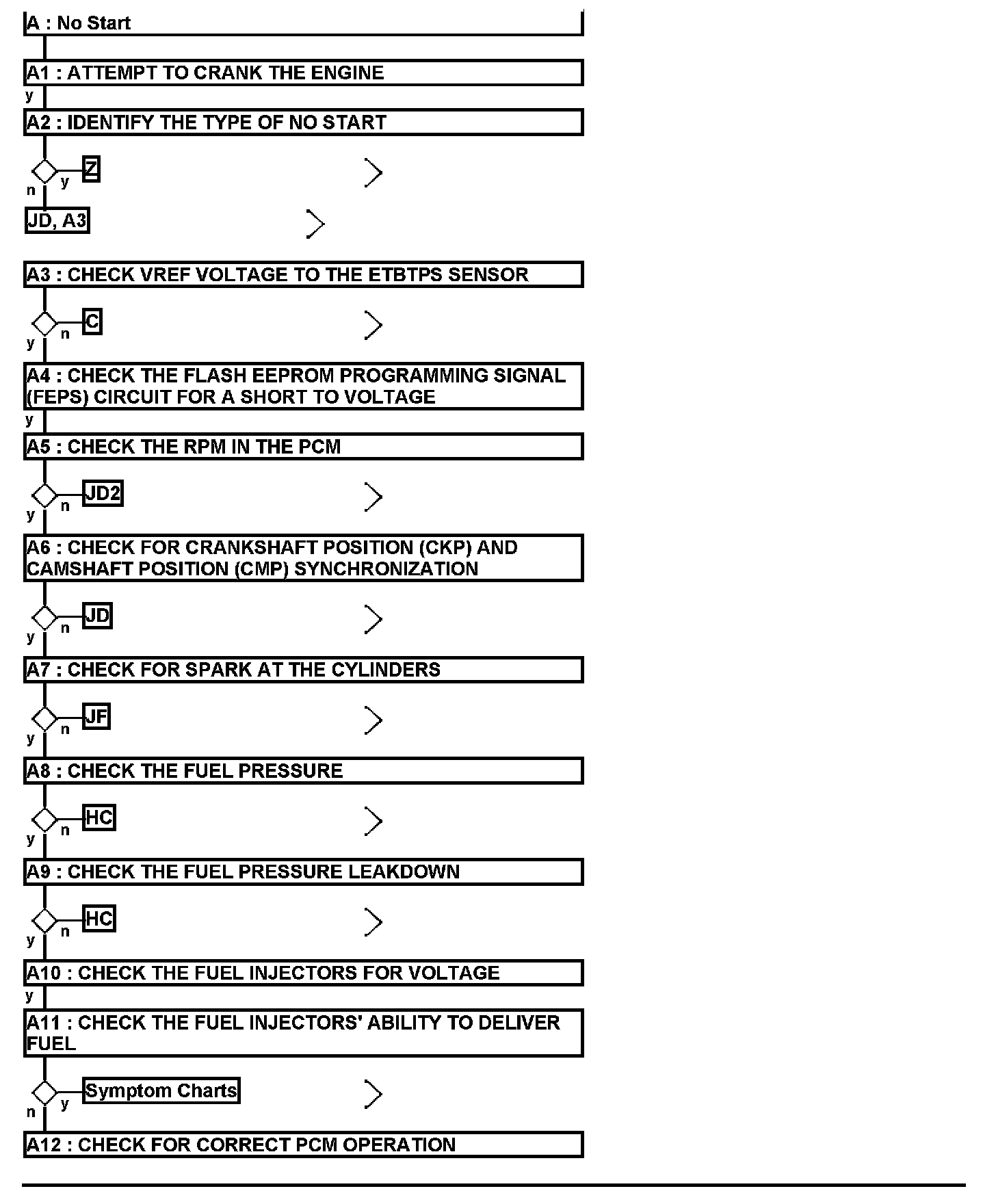

Test A: No Start

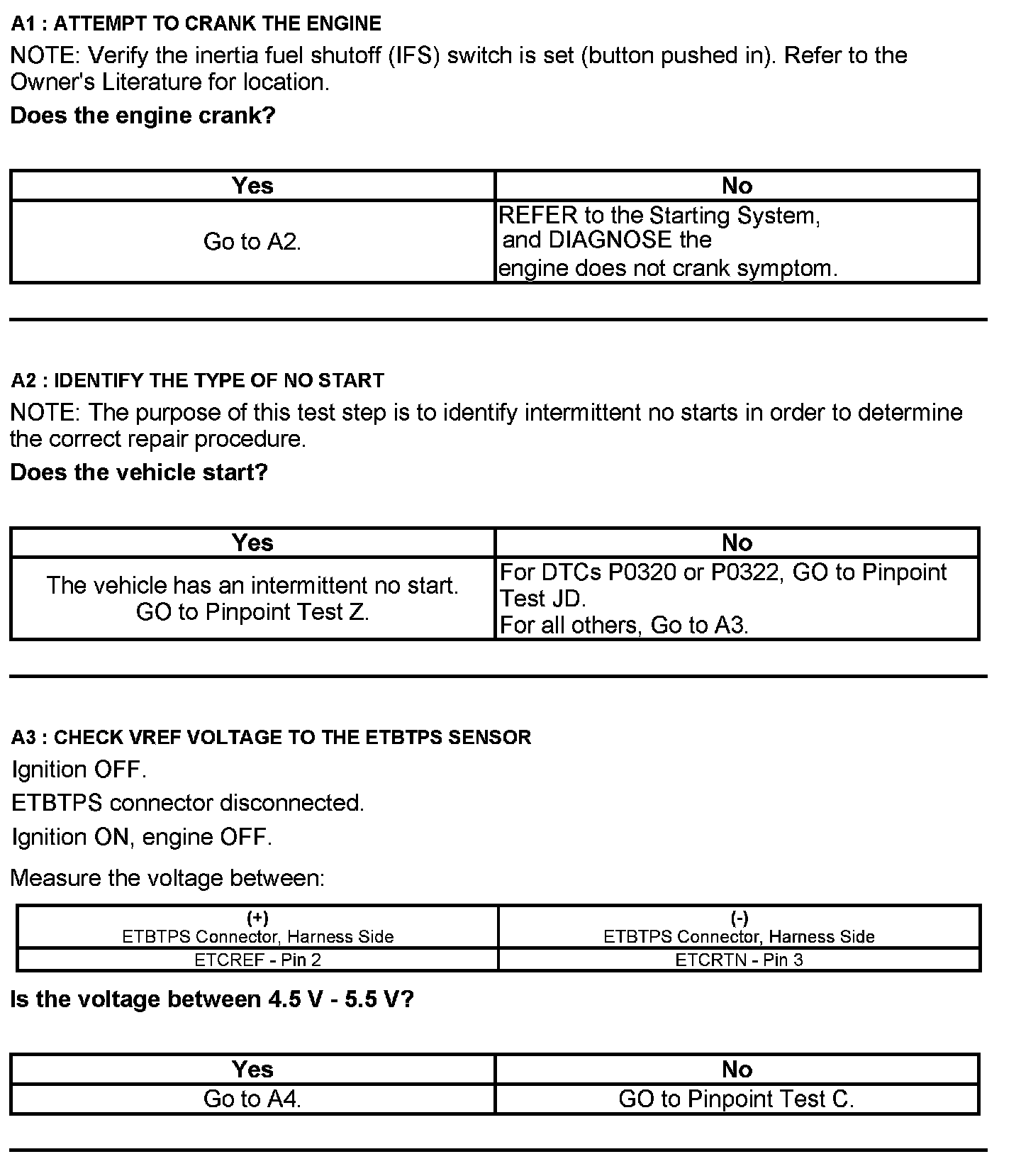

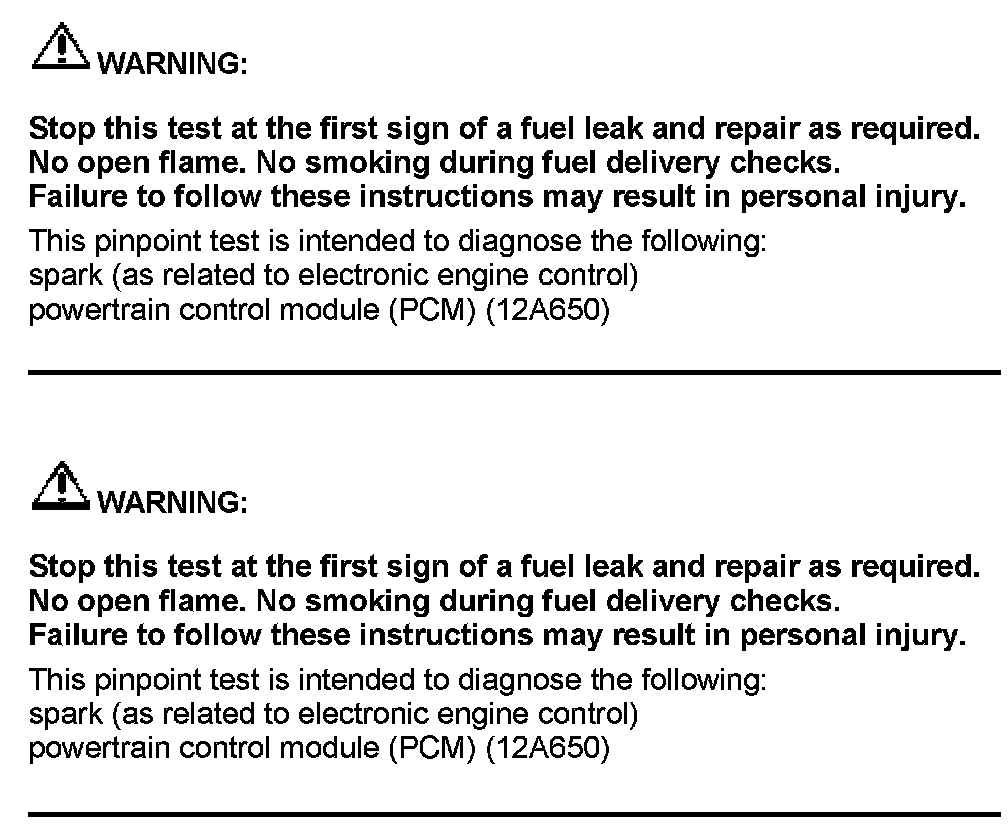

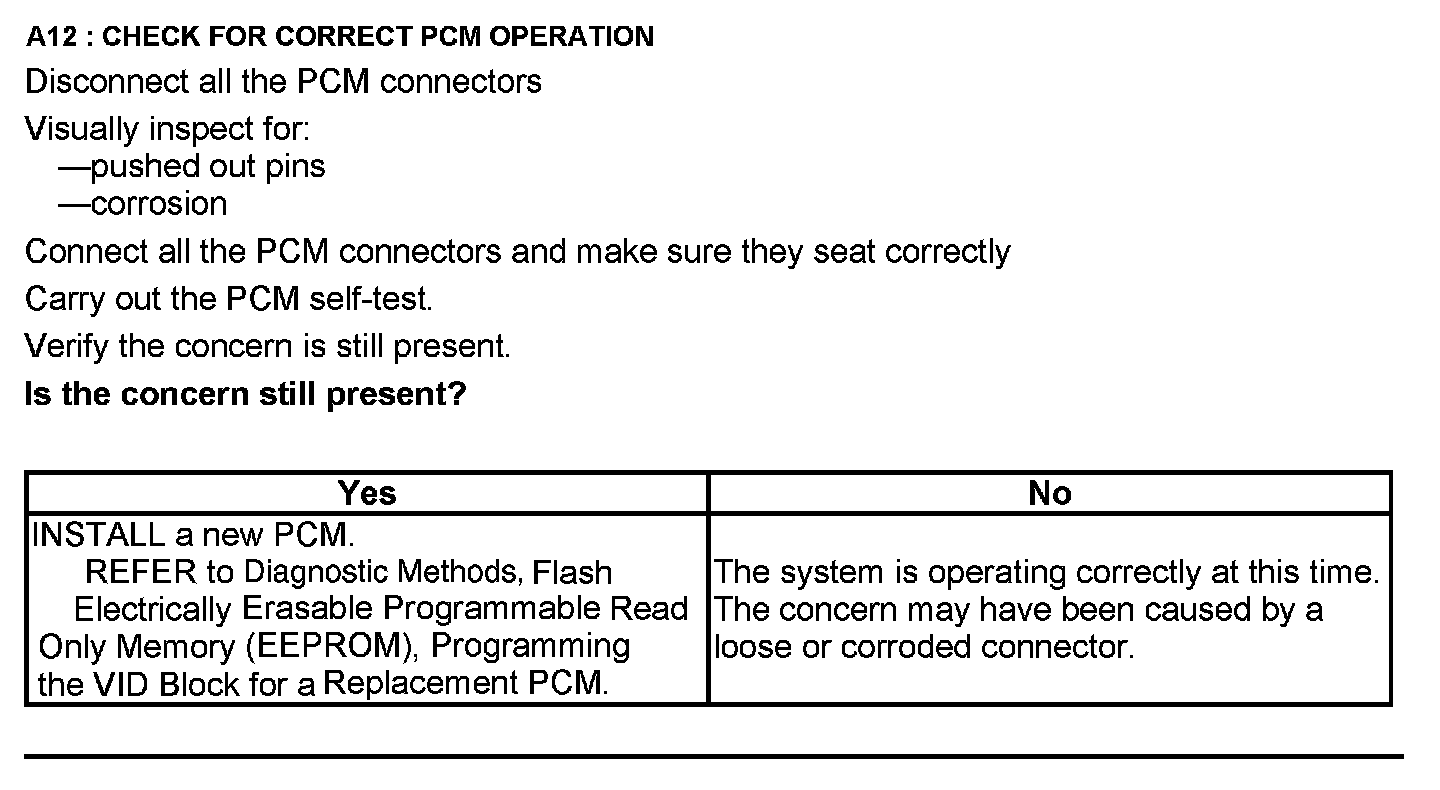

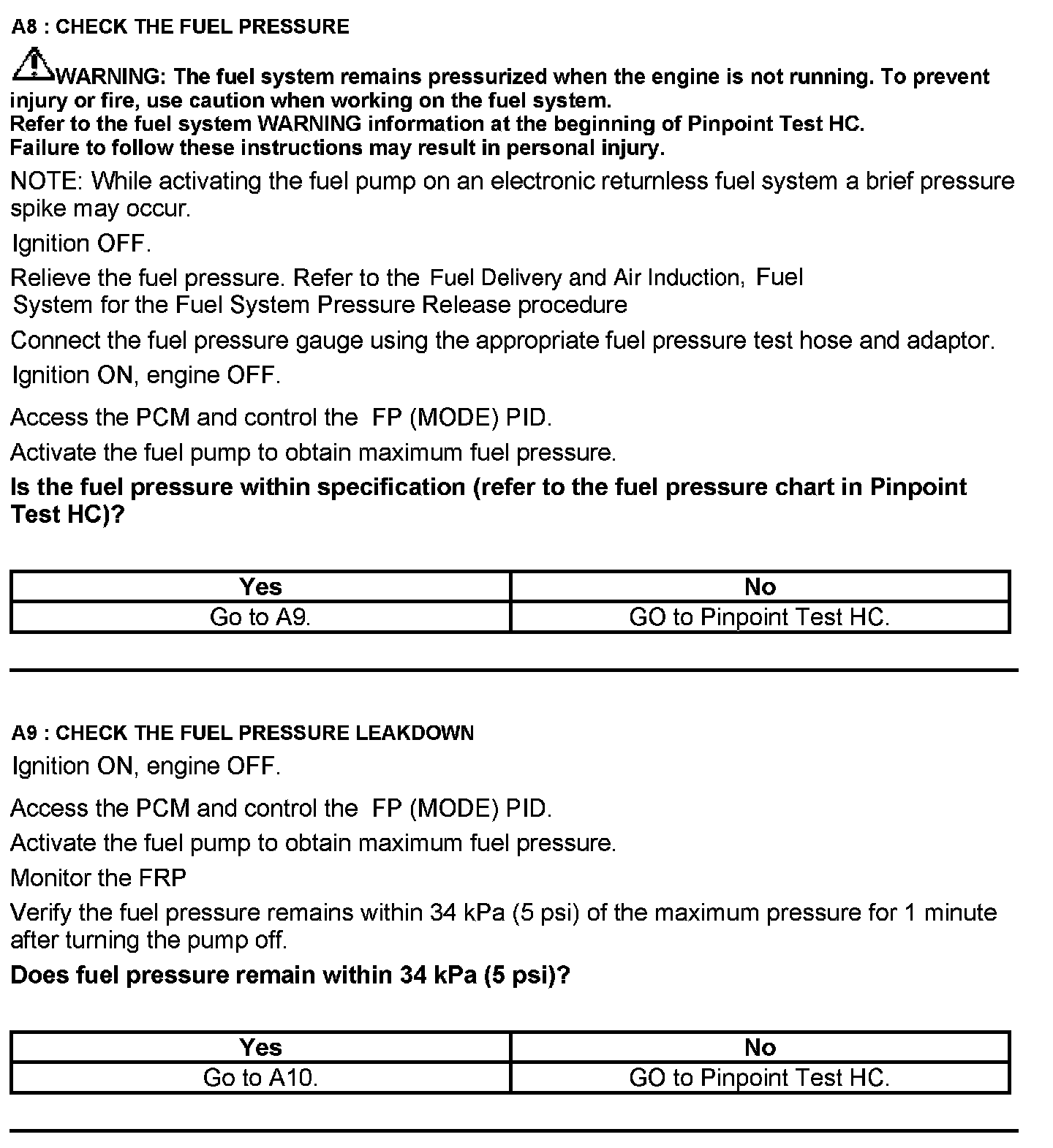

No Start

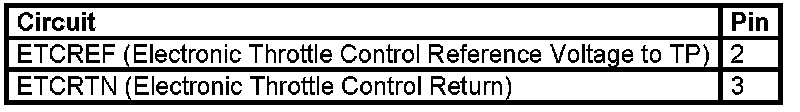

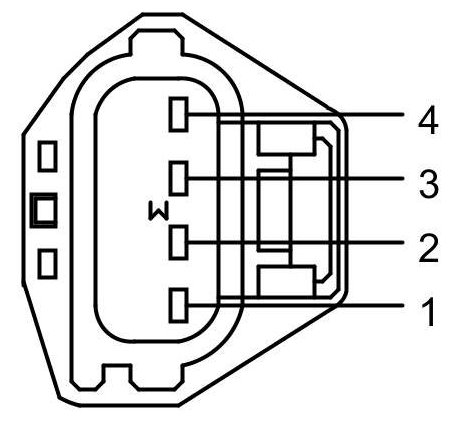

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector





Harness Side

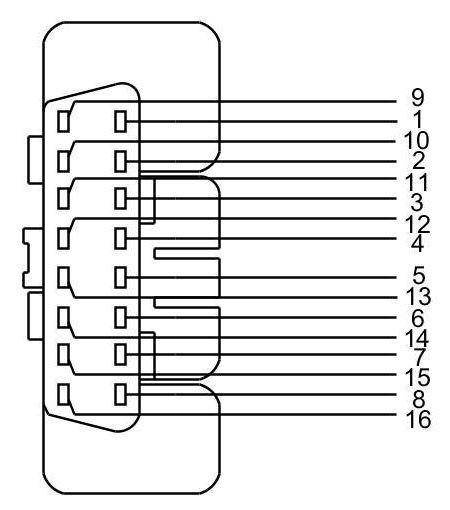

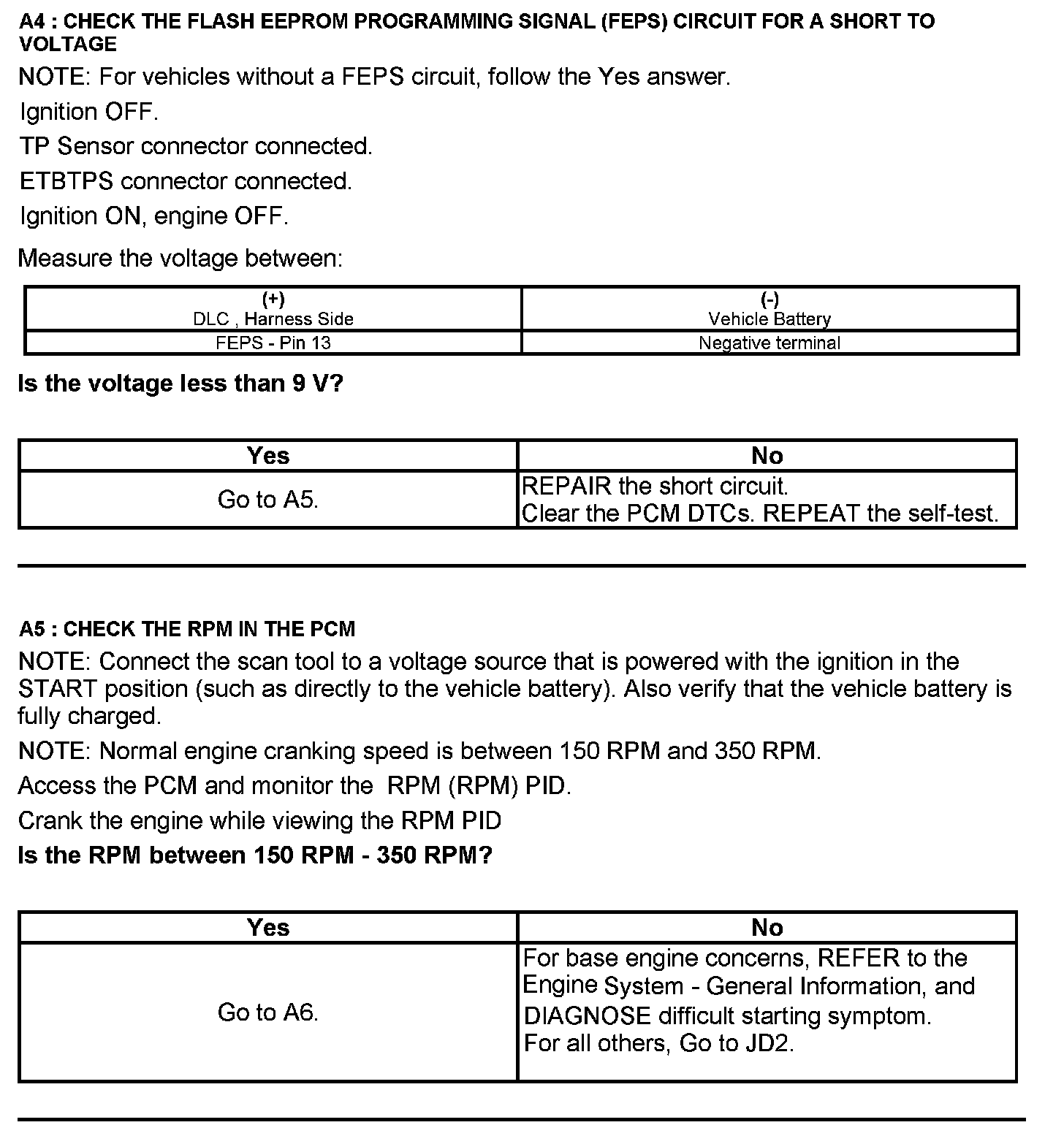

Data Link Connector (DLC)





Harness Side
