System Specifications

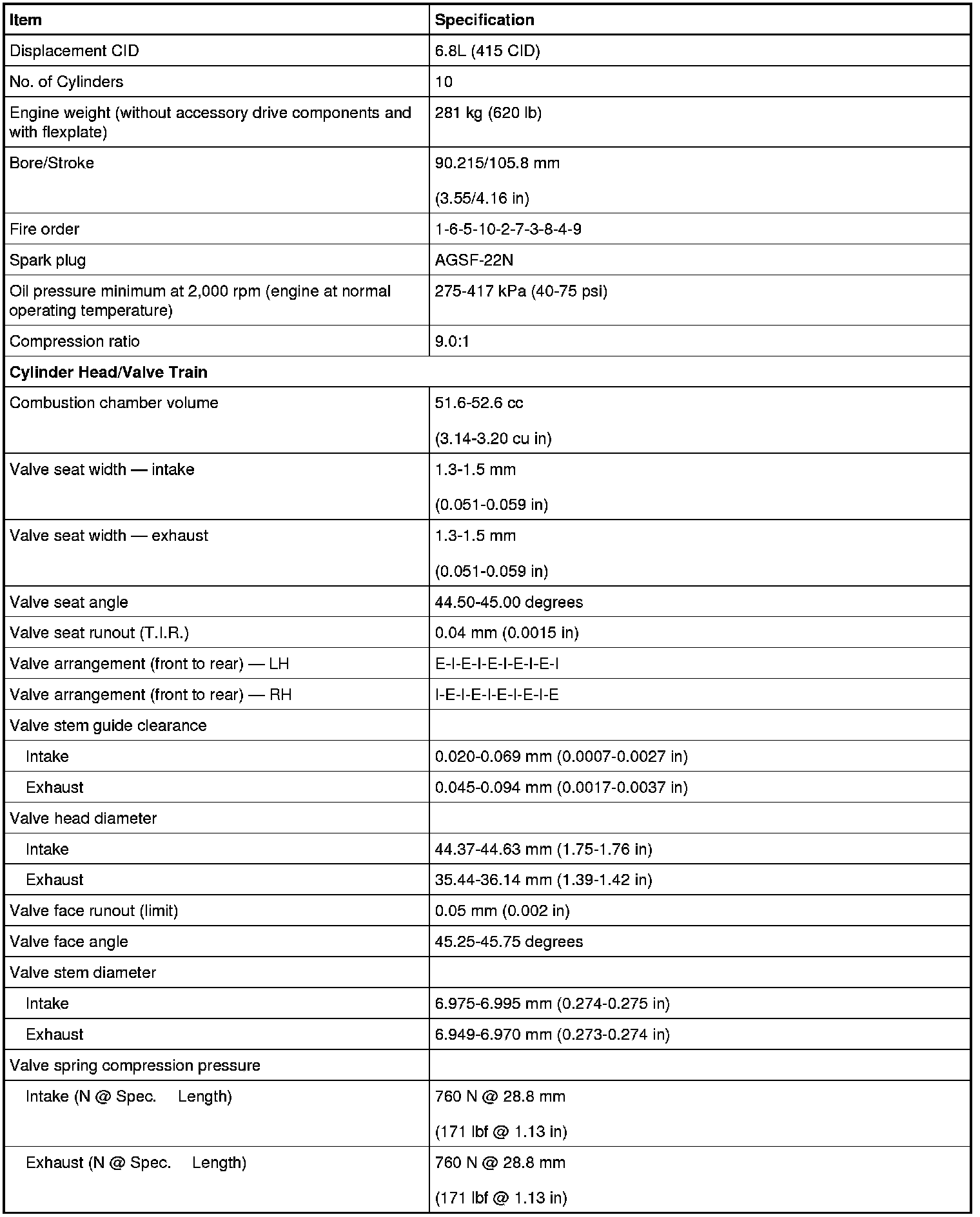

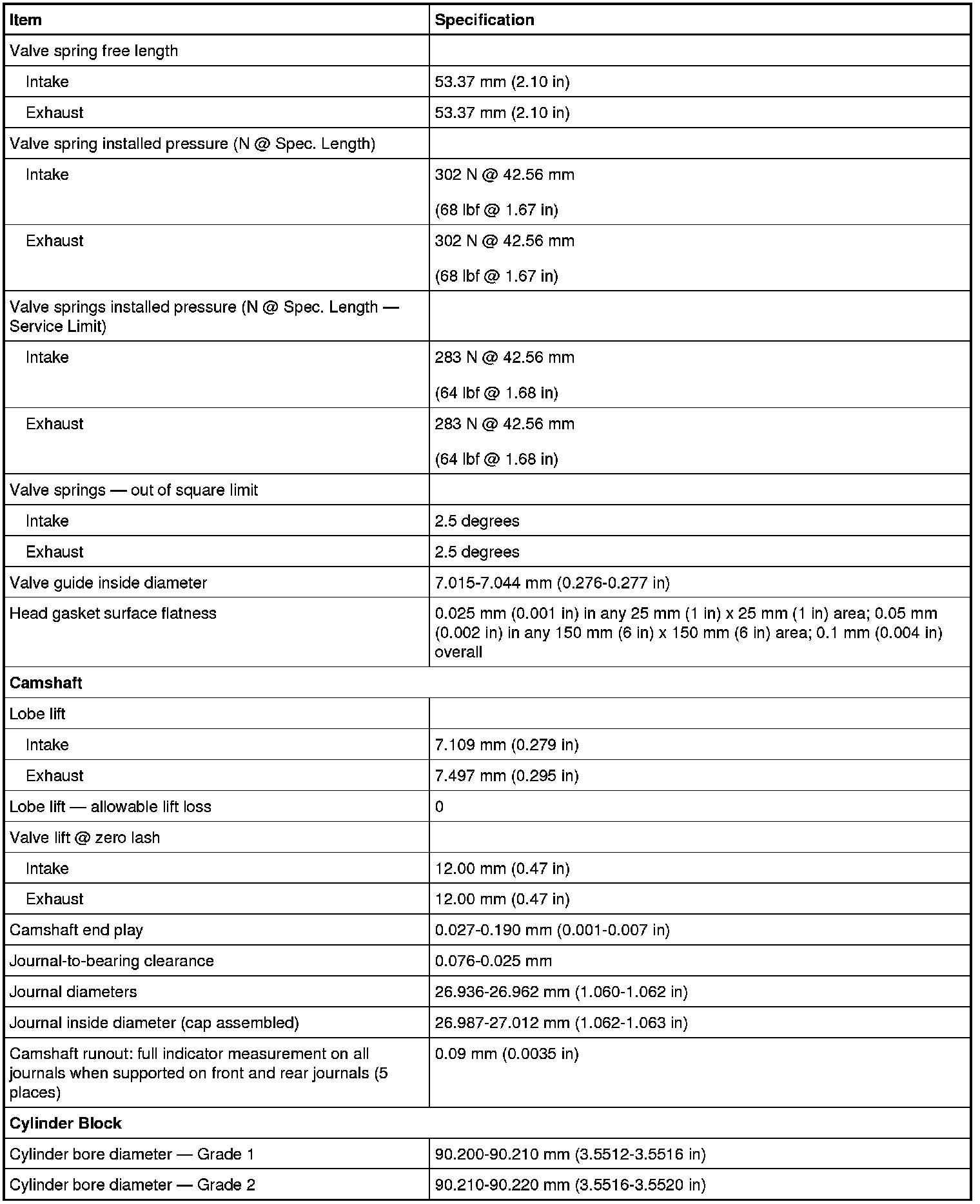

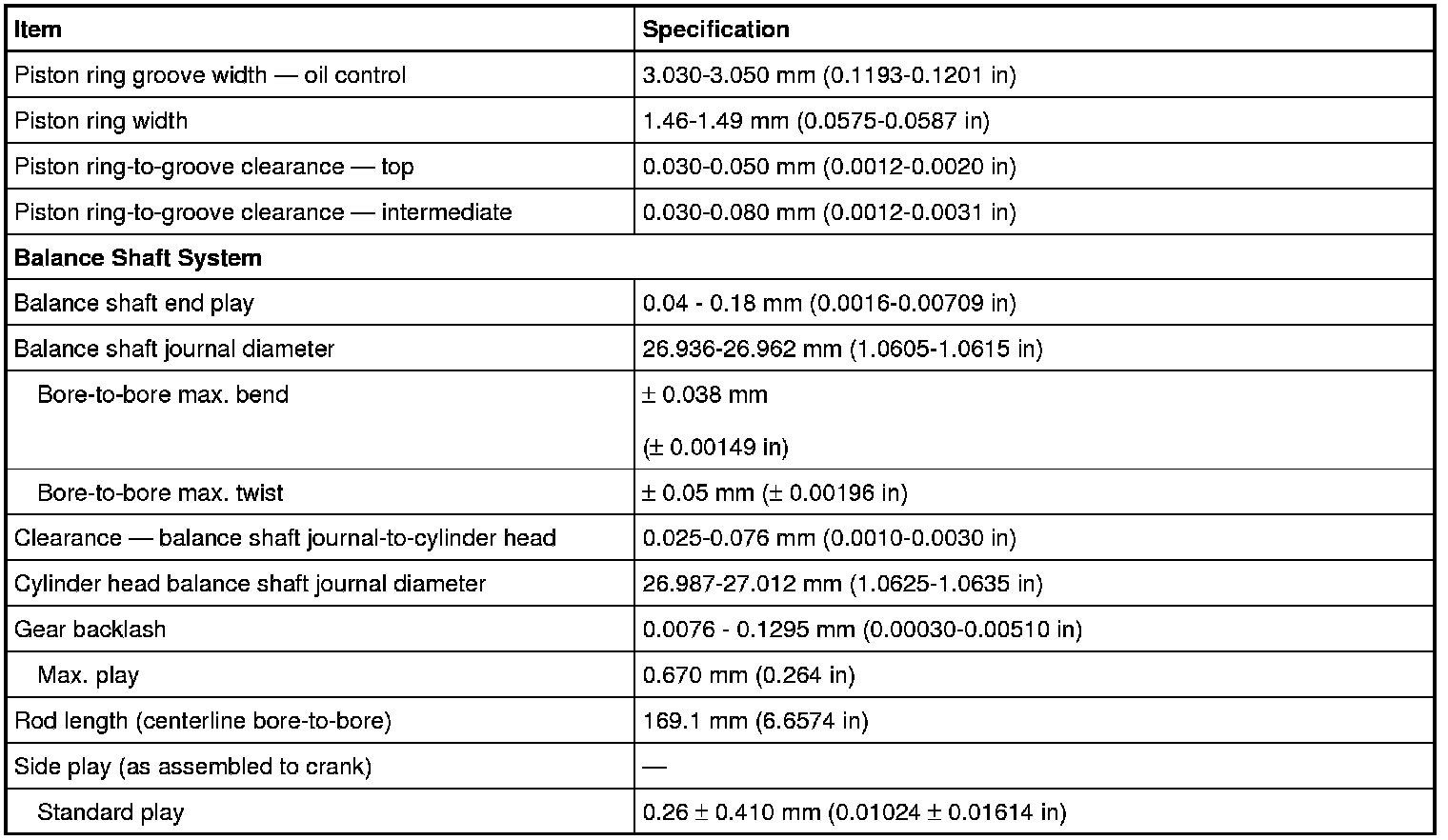

General Specifications

















a The pin bore and crank bearing bore must be parallel and in the same vertical plane within the specified total difference when measured at the ends of a 203 mm bar, 105.5 mm on each side of rod centerline.

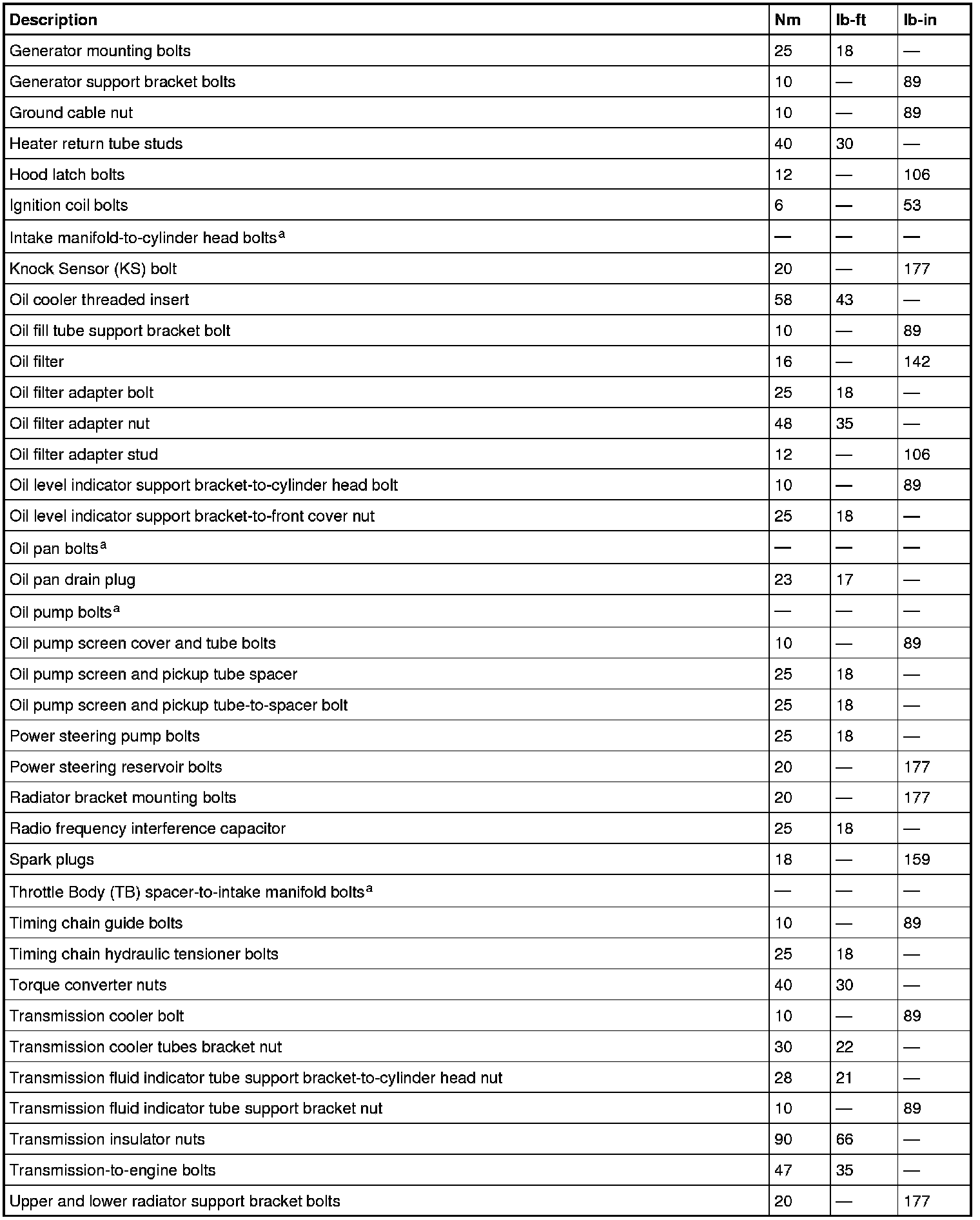

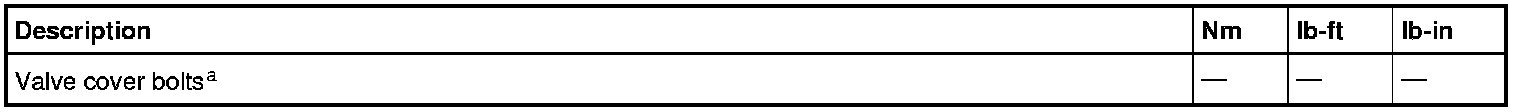

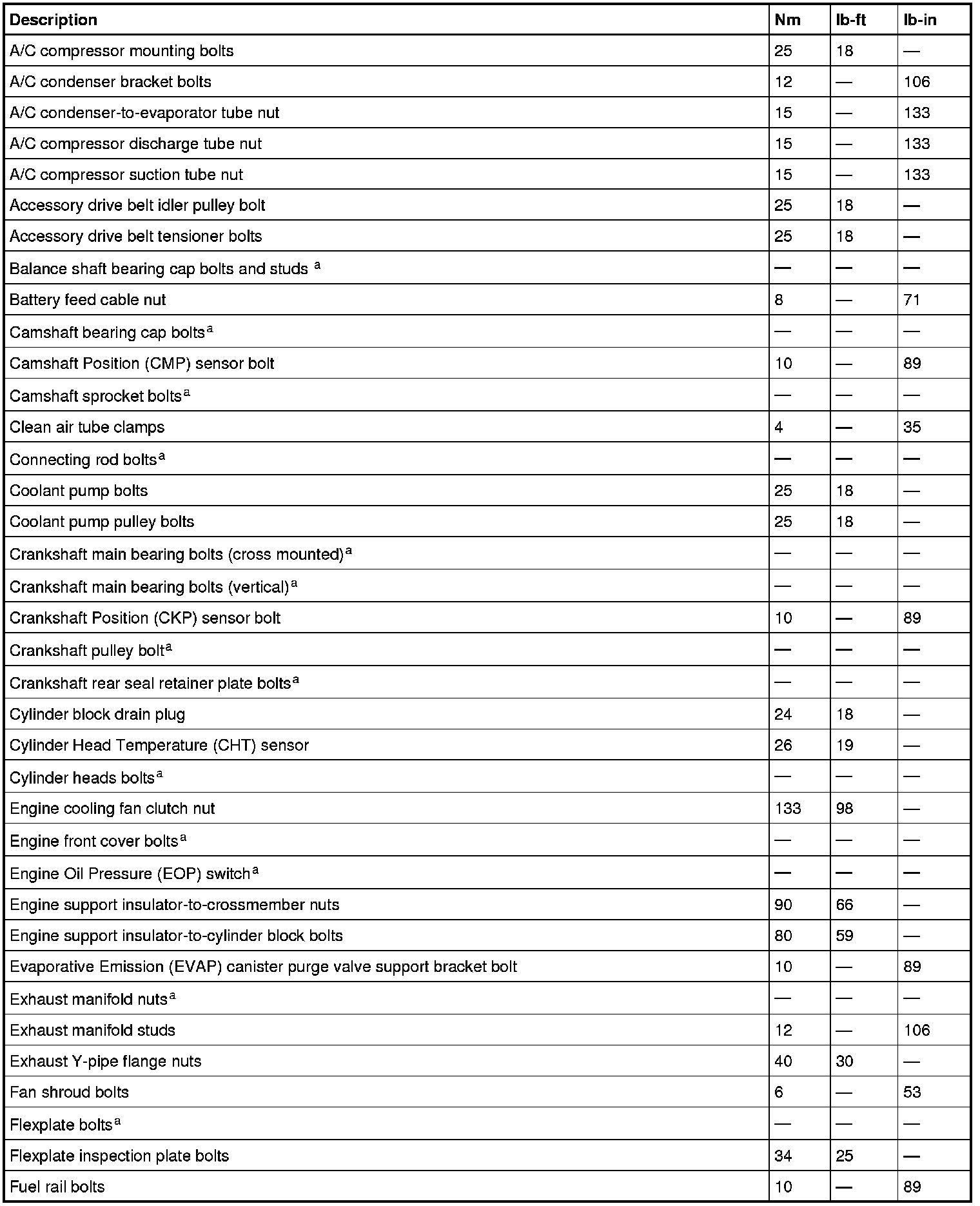

Torque Specifications













a Refer to the procedure in Engine.
