Engine Temperature Sensor: Service and Repair

Cylinder Head Temperature (CHT) Sensor

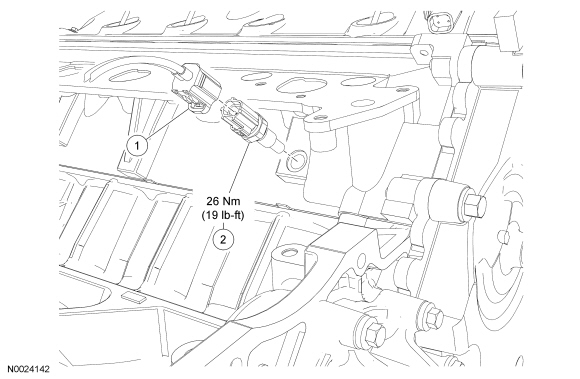

NOTE: 5.4L shown, 4.6L and 6.8L similar.









Removal and Installation

1. Remove the generator.

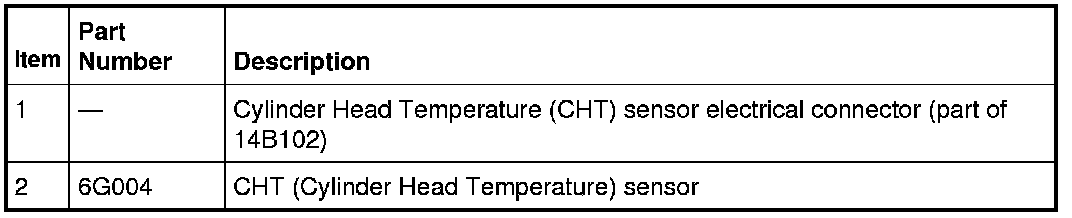

2. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.

3. Remove the CHT (Cylinder Head Temperature) sensor.

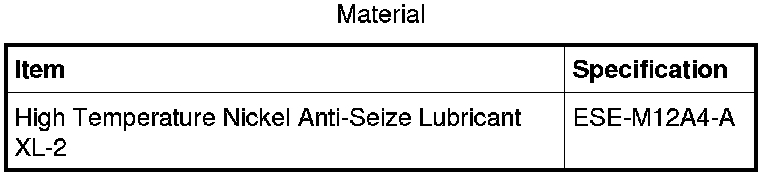

- Coat the CHT (Cylinder Head Temperature) sensor threads with high temperature nickel anti-seize lubricant prior to installation.

- To install, tighten to 26 Nm (19 lb-ft).


4. To install, reverse the removal procedure.
