Fuel Pump Control Module: Notes

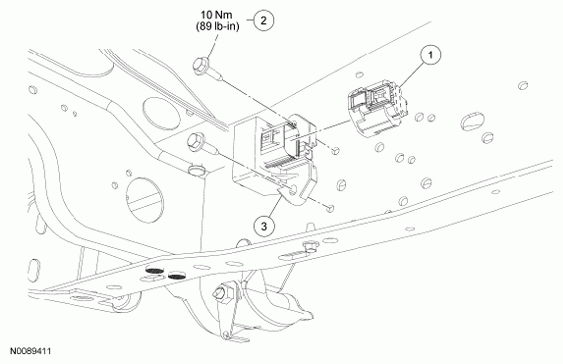

Fig 1: Fuel Pump Control Module Replacement Components With Torque Specifications
G06139506Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Fuel Pump (FP) control module electrical connector (part of 14404)
2 W705549 FP control module bolt (2 required)
3 9D412 FP control module
