Powertrain Control Module (PCM): Notes

SPECIAL TOOLS CHART

G06064936
 Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

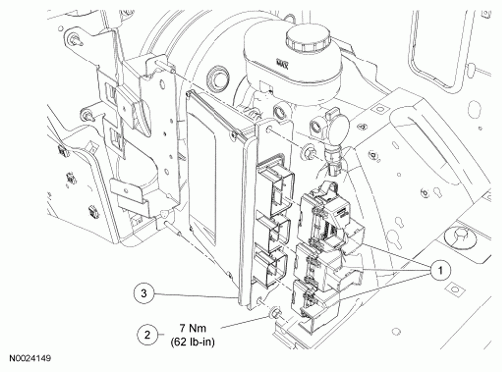

Fig 1: Powertrain Control Module (PCM) Replacement Components With Torque Specifications
G06139938Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - PCM electrical connectors (3 required) (part of 12B637 and 12A581)
2 N621906 PCM nut (2 required)
3 12A651 PCM
