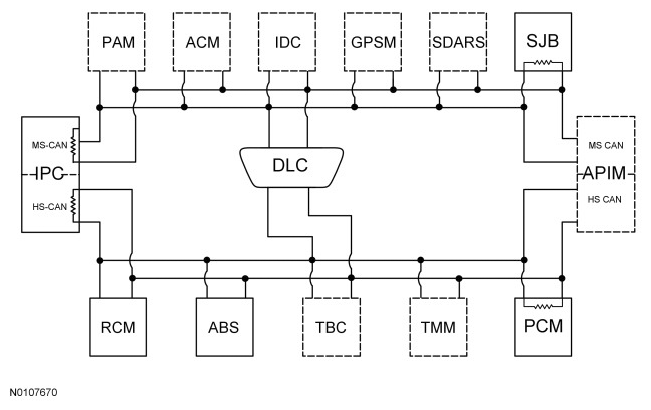

Network Topology
WARNING: This page is about a different variant/trim than selected.
| Module Name | Network Type | Termination Module |
|---|---|---|
| ABS module (except cutaway chassis) | HS-CAN | No |
| Audio Control Module (ACM) (if equipped) | MS-CAN | No |
| Accessory Protocol Interface Module (APIM) (if equipped) | HS-CANMS-CAN | No |
| Global Positioning System Module (GPSM) (if equipped) | MS-CAN | No |
| In-dash computer (IDC) (if equipped) | MS-CAN | No |
| Instrument Panel Cluster (IPC) (gateway module) | HS-CANMS-CAN | Yes |
| PCM | HS-CAN | Yes |
| Restraints Control Module (RCM) (if equipped) | HS-CAN | No |
| Satellite Digital Audio Receiver System (SDARS) module (if equipped) | MS-CAN | No |
| Telematics module (TMM) (if equipped) | HS-CAN | No |
| Trailer Brake Control (TBC) module (if equipped) | HS-CAN | No |
| Parking Aid Module (PAM) (if equipped) | MS-CAN | No |
| Smart Junction Box (SJB) | MS-CAN | Yes |
