Connectors

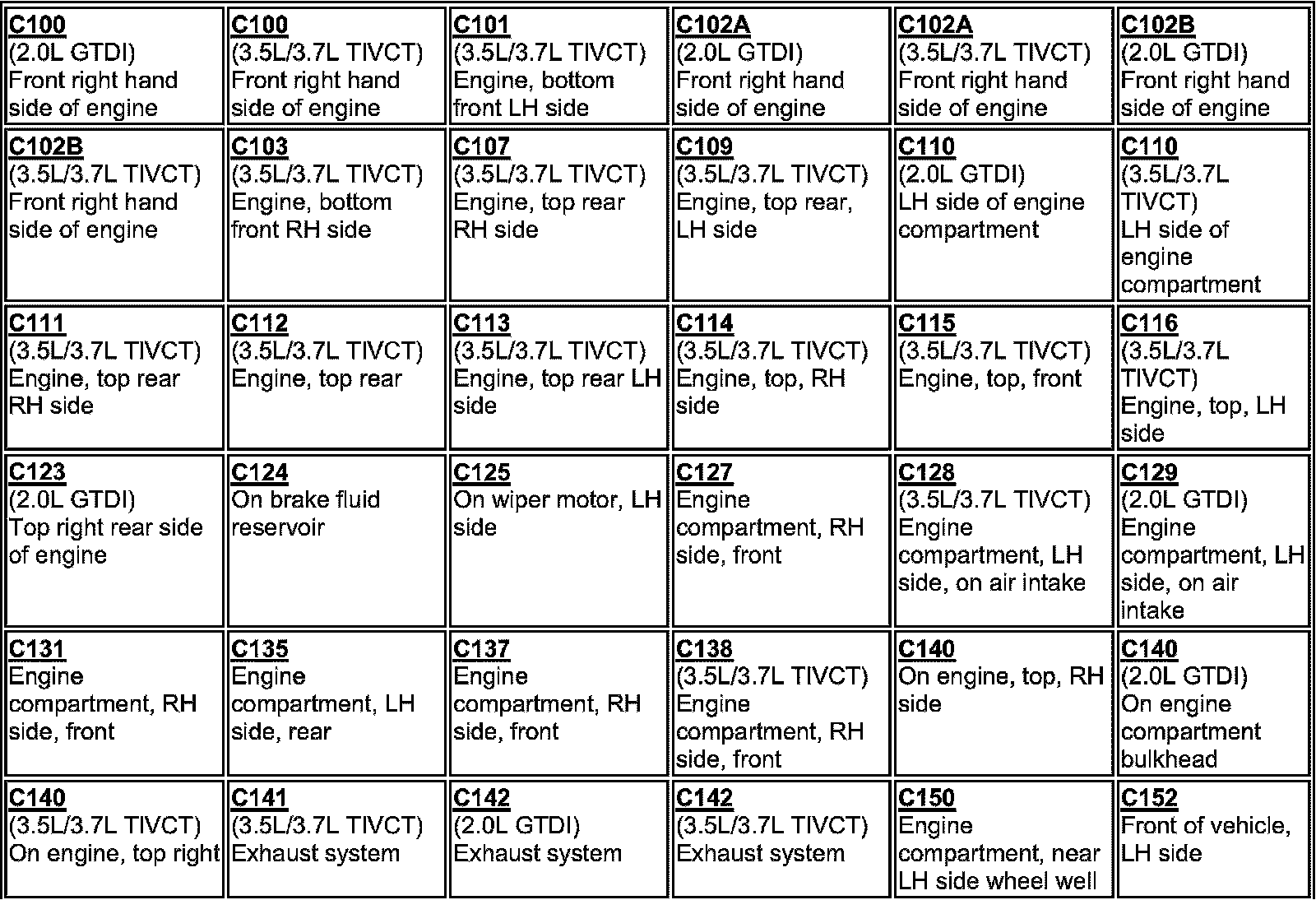

C100-C152:

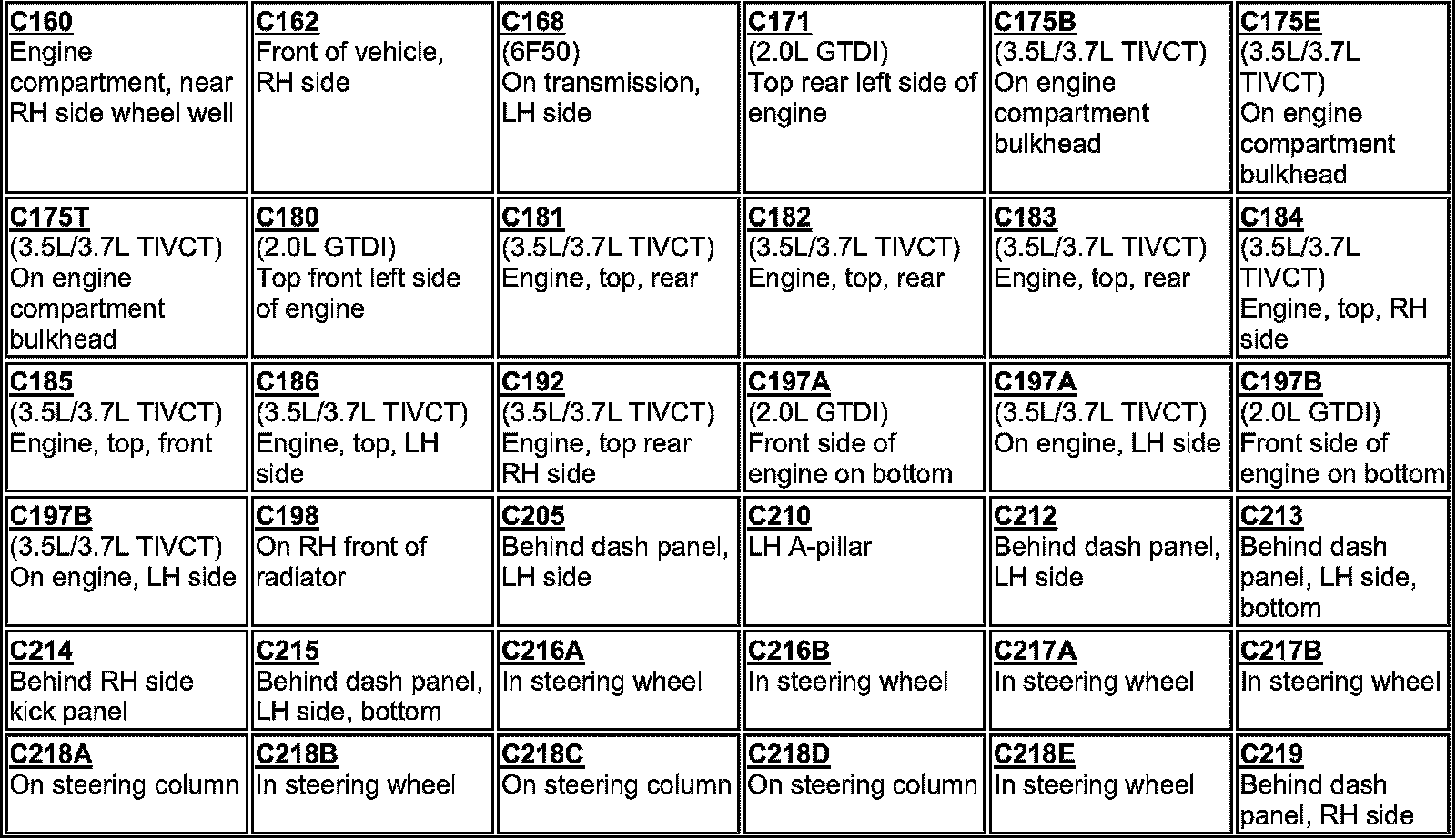

C160-C219:

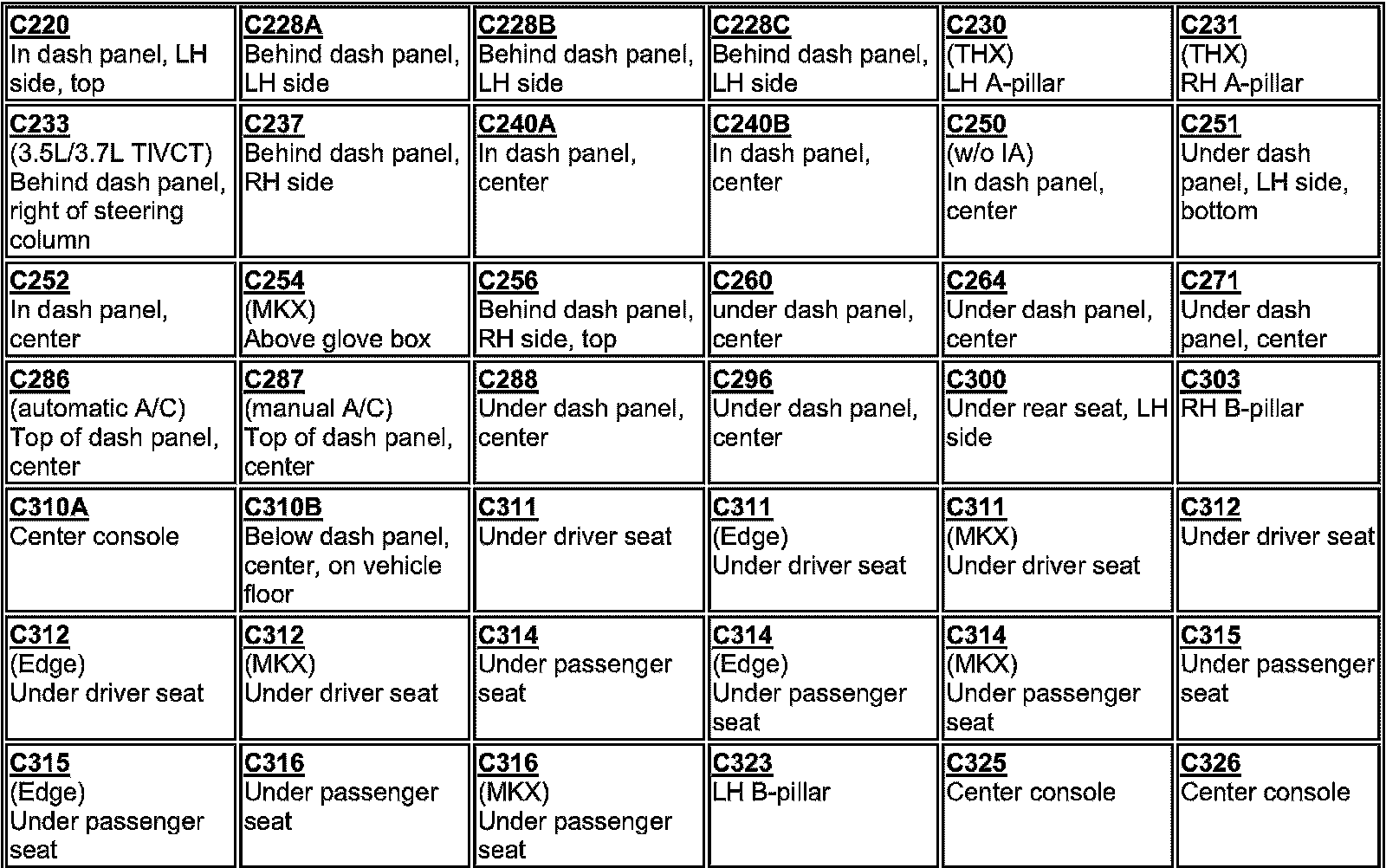

C220-C326:

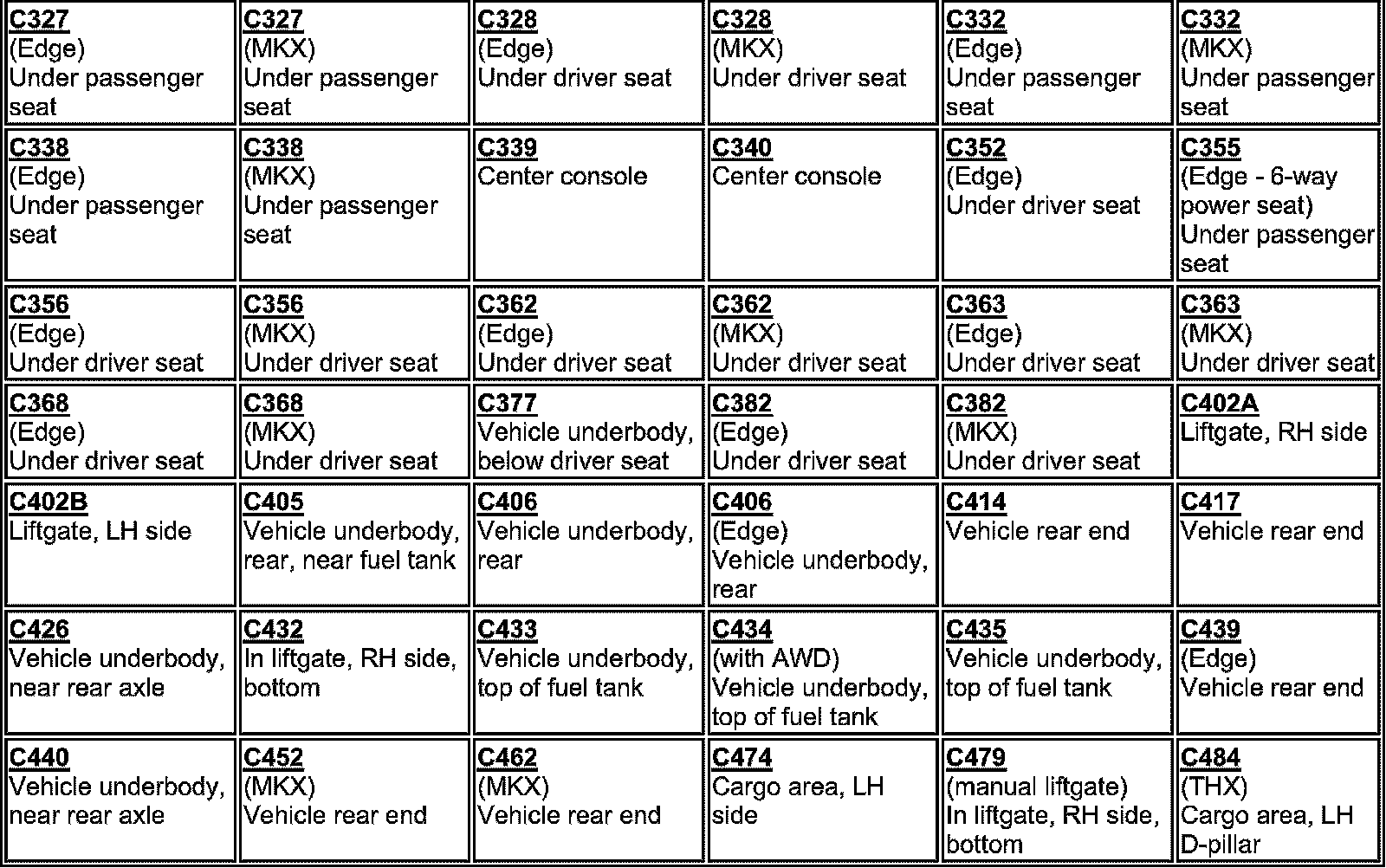

C327-C484:

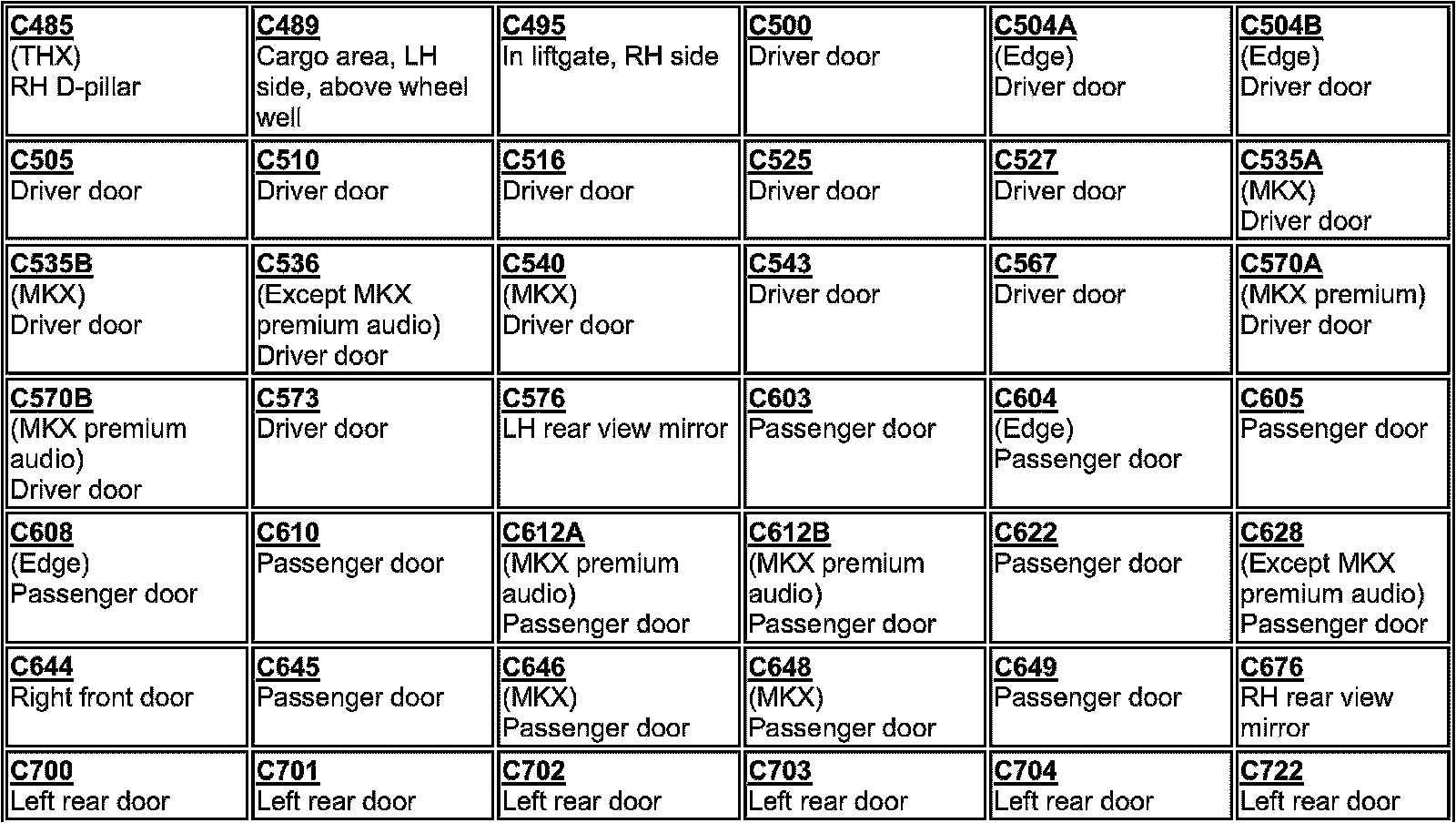

C485-C722:

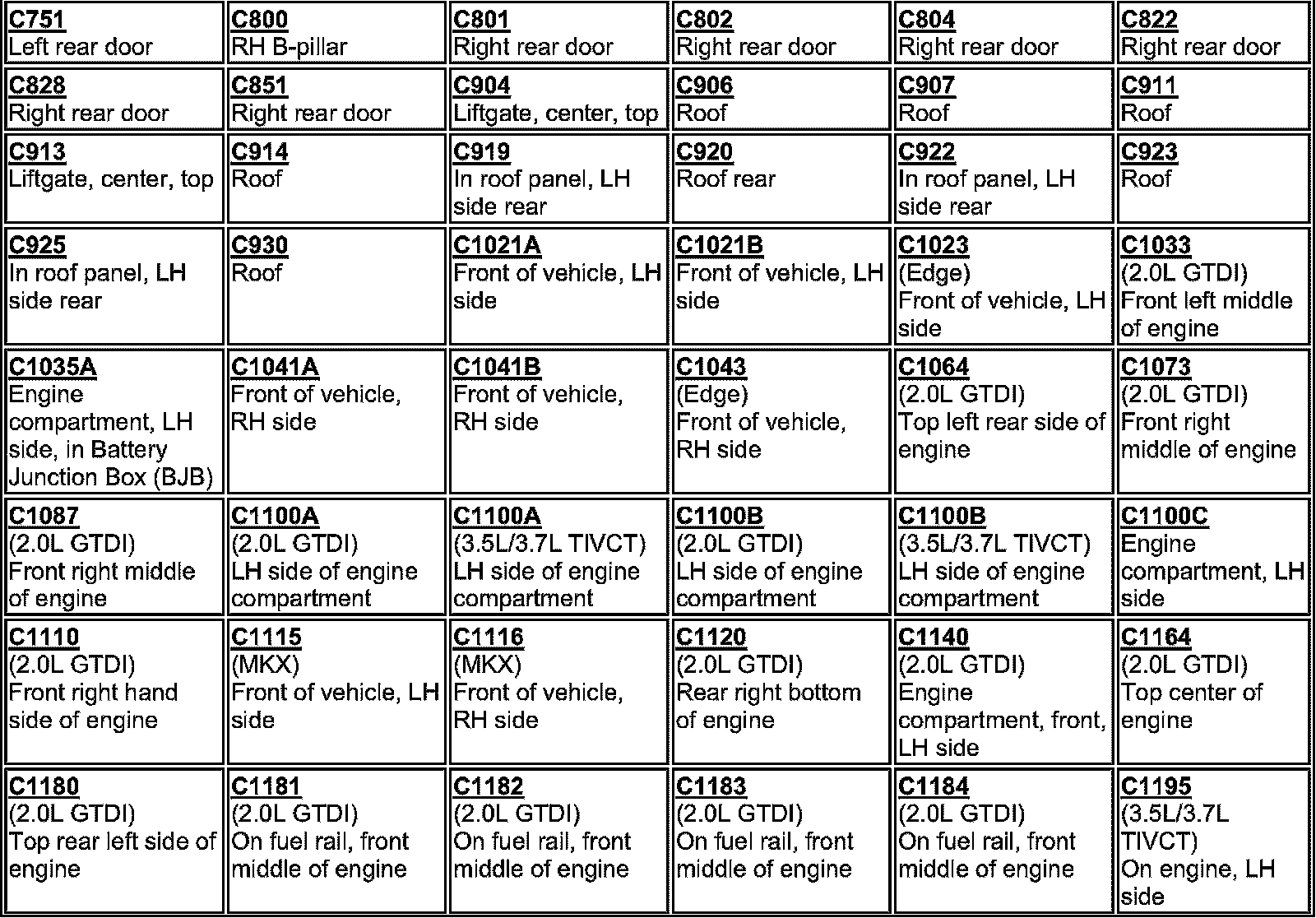

C751-C1195:

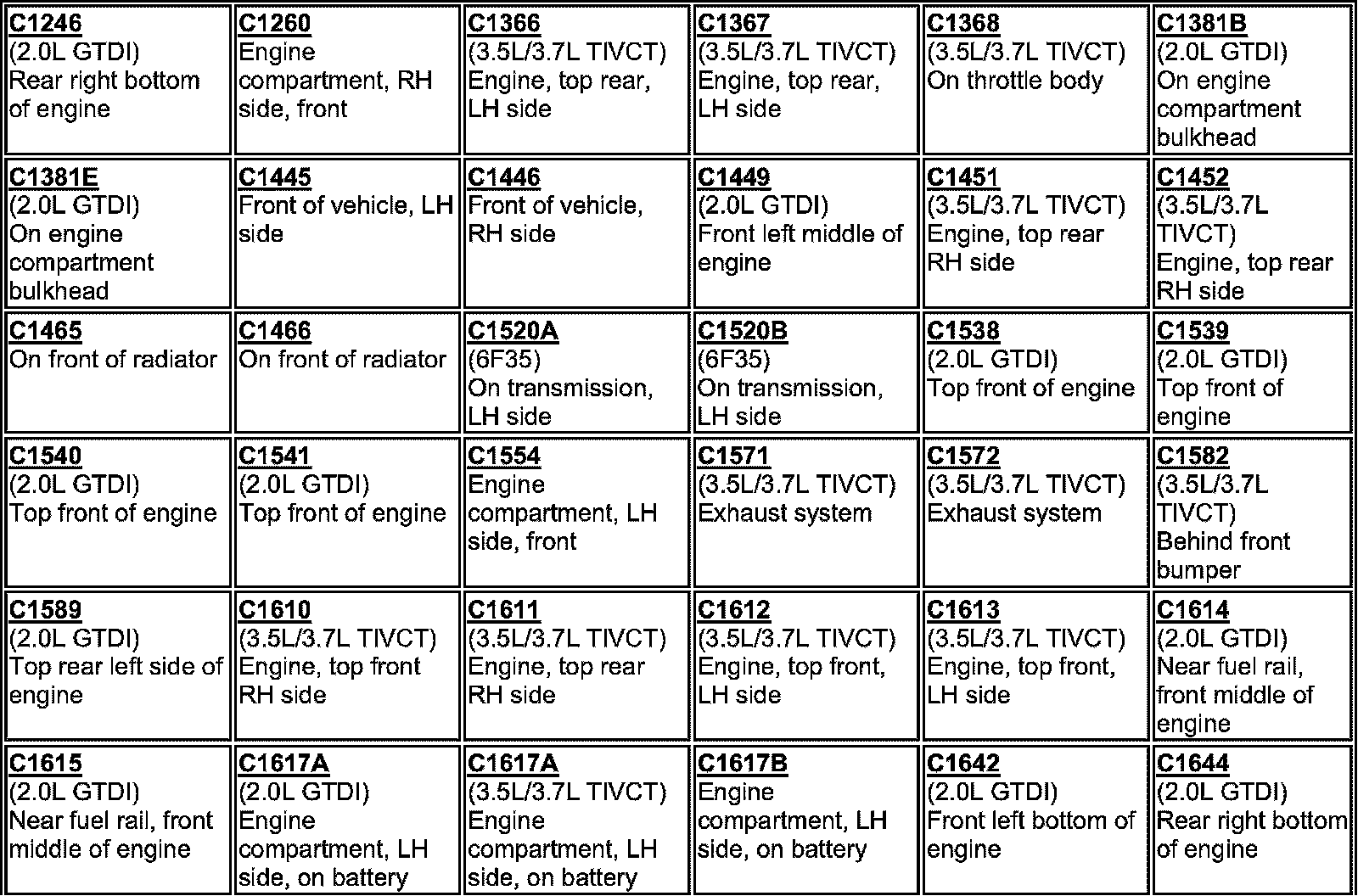

C1246-C1644:

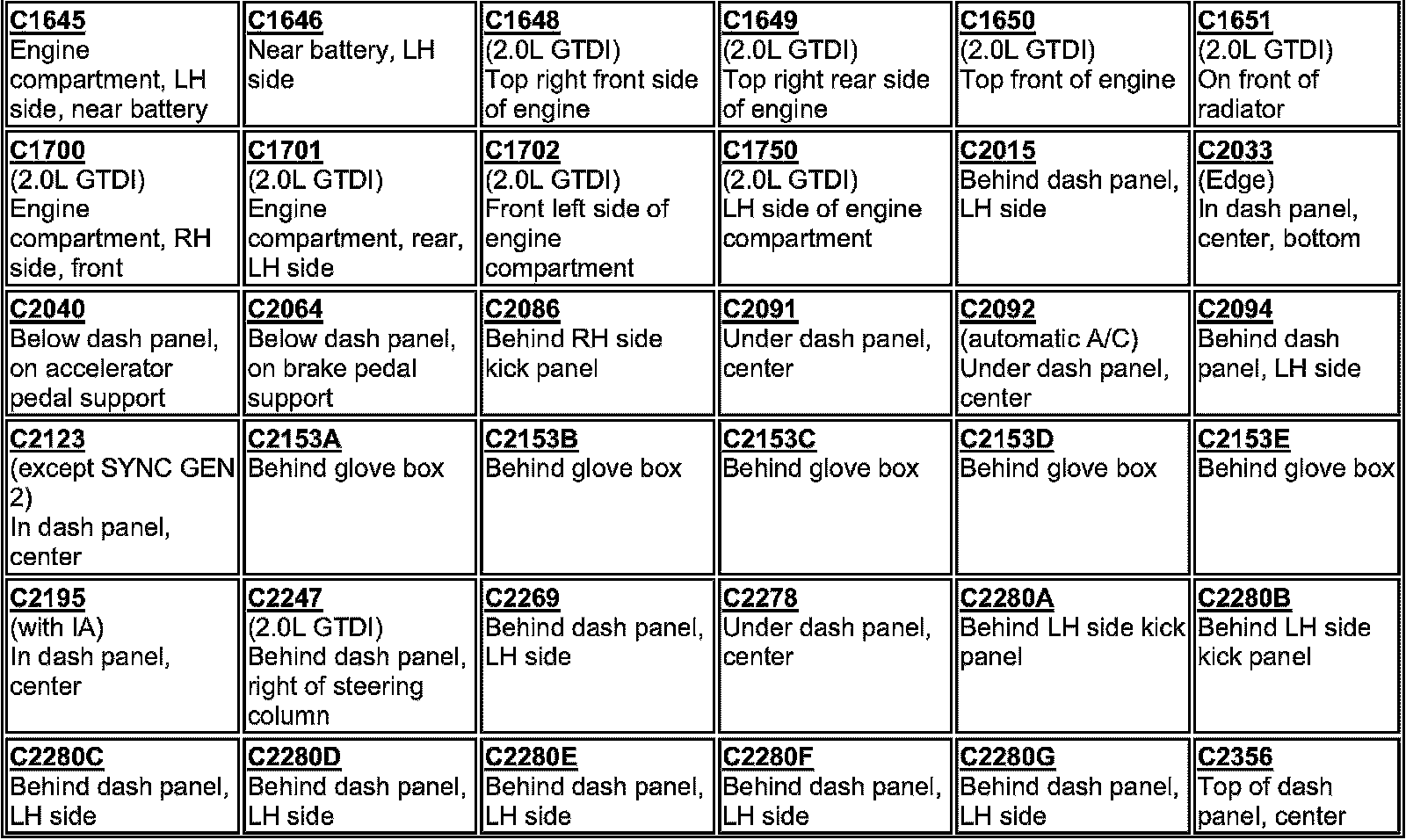

C1645-C2356:

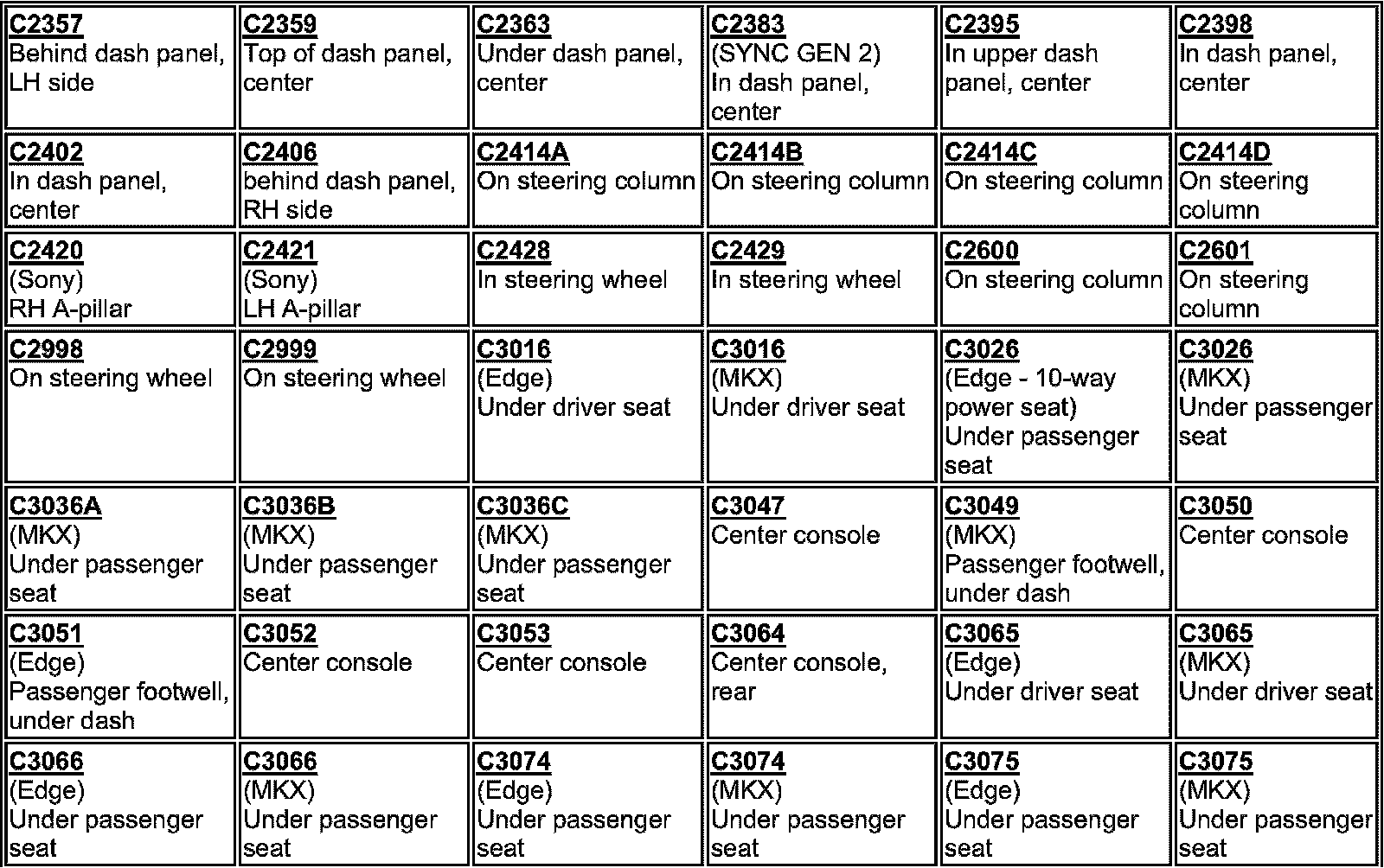

C2357-C3075:

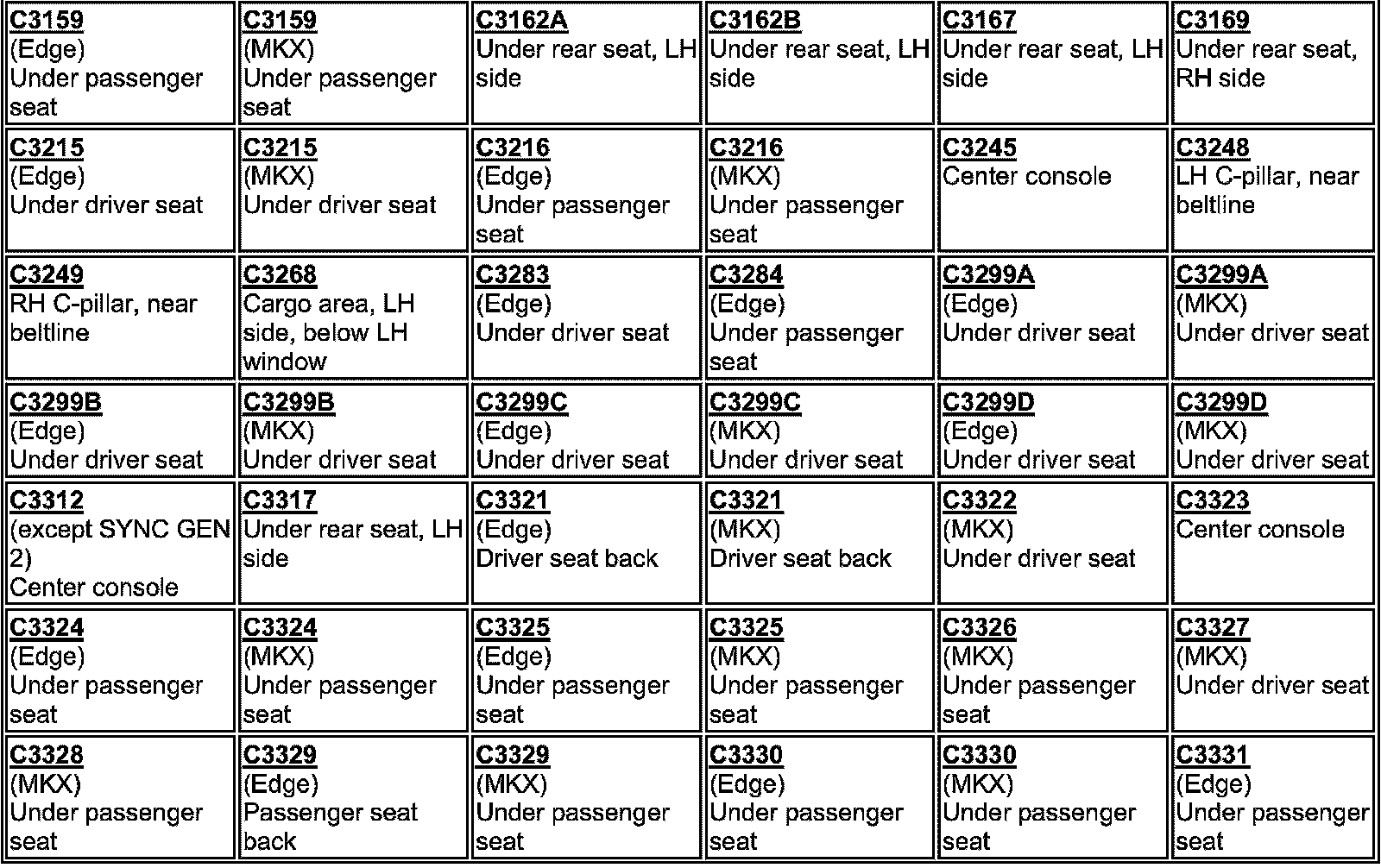

C3159-C3331:

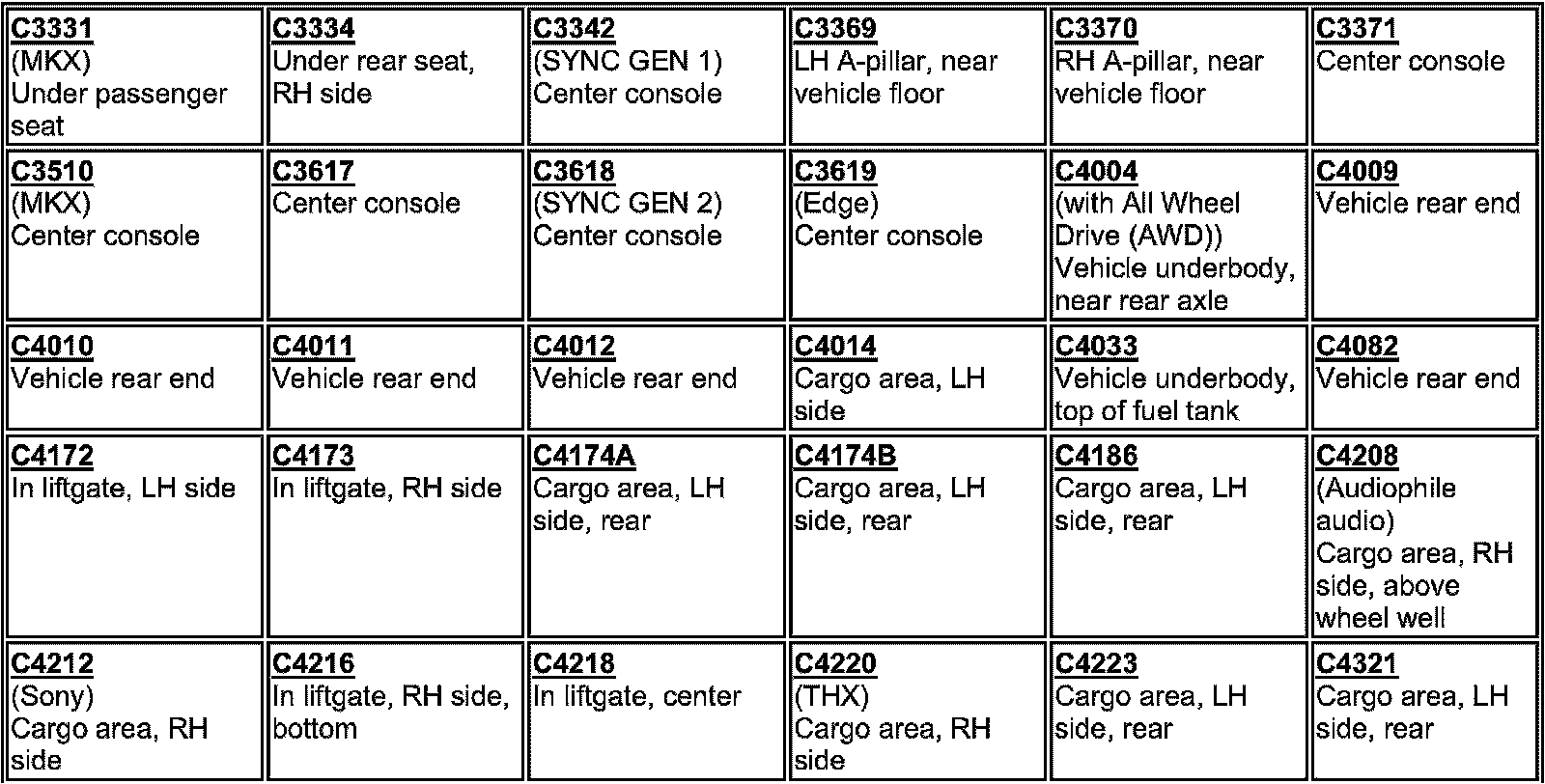

C3331-C4321:

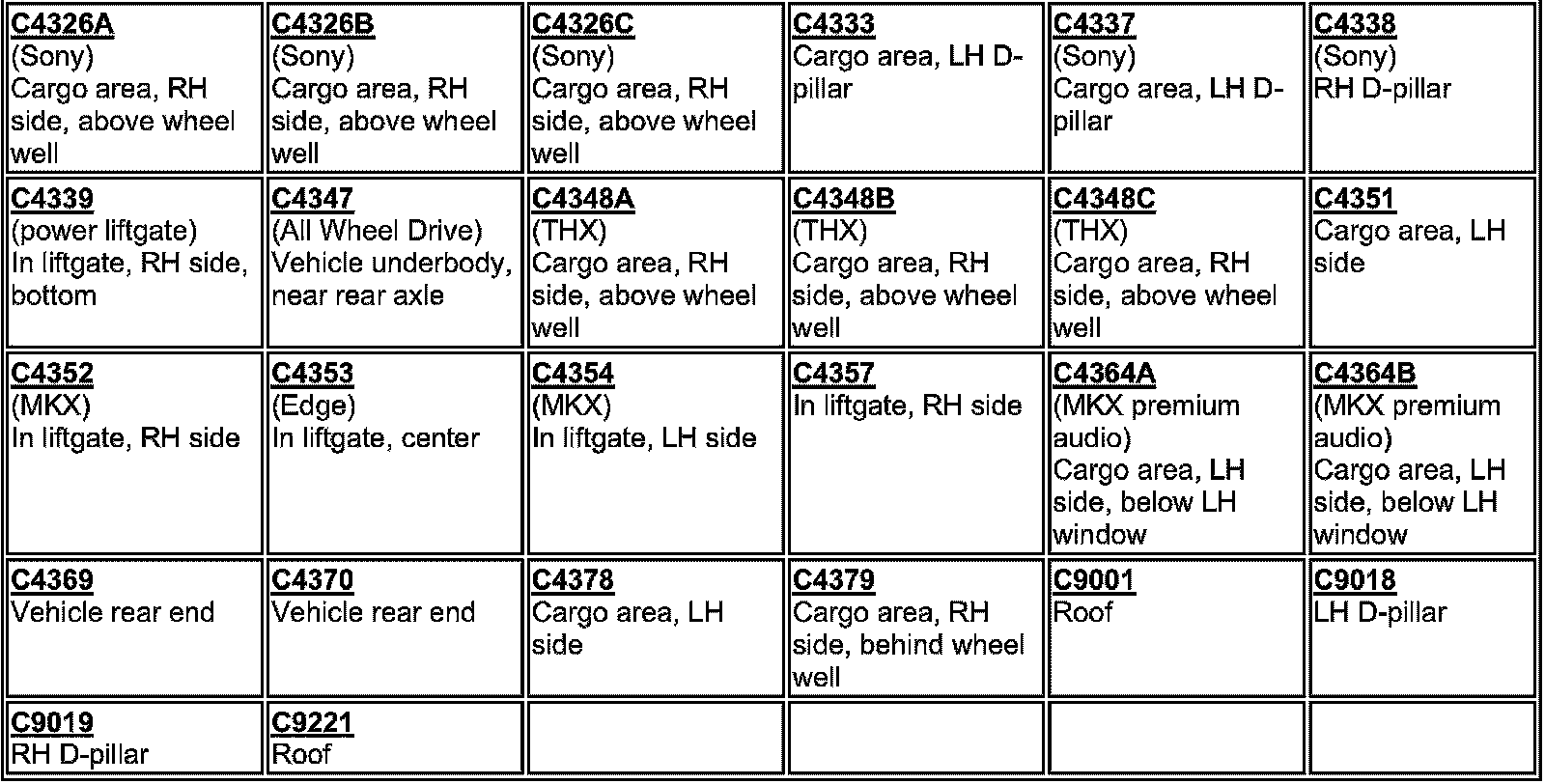

C4326A-C9221:
