Turn Signals: Service and Repair

Rear Lamp Assembly - Liftgate









Removal and Installation

1. Remove the liftgate trim panel.

2. Disconnect the liftgate lamp assembly electrical connector.

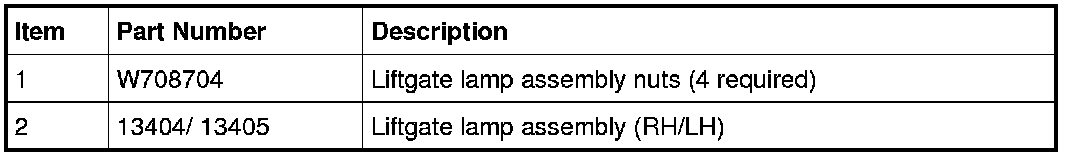

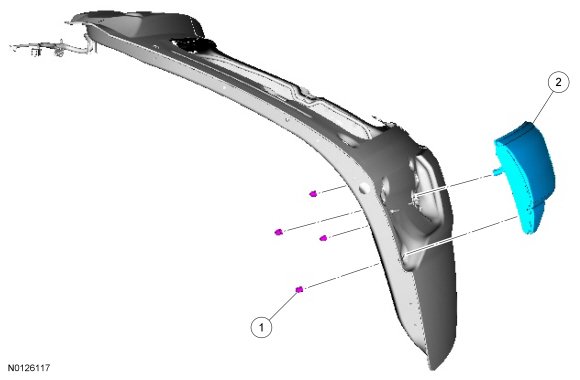

3. Remove the 4 liftgate lamp assembly nuts and the liftgate lamp assembly.





4. Release the liftgate lamp assembly clip and remove the lamp assembly.





5. To install, reverse the removal procedure.
