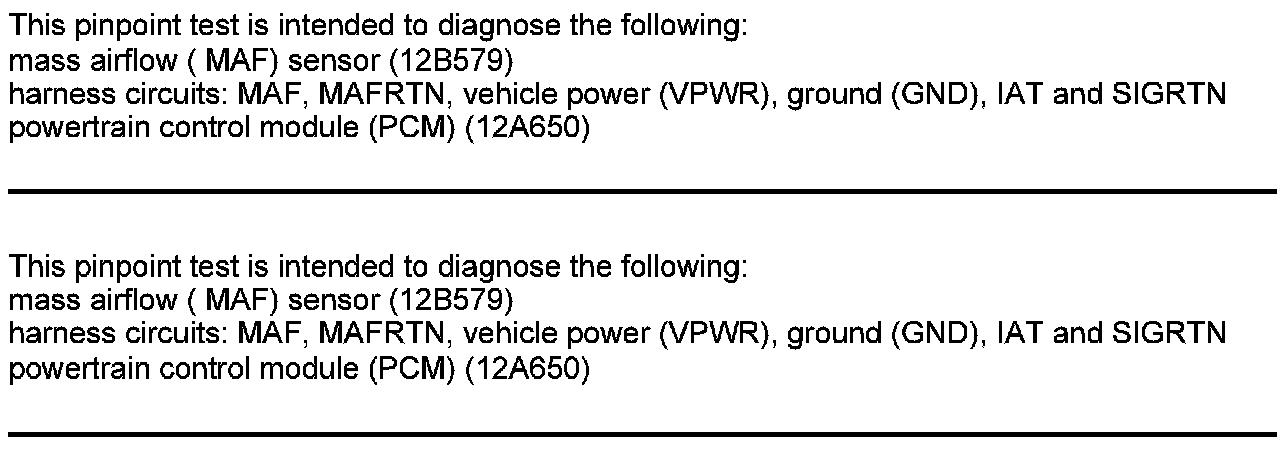

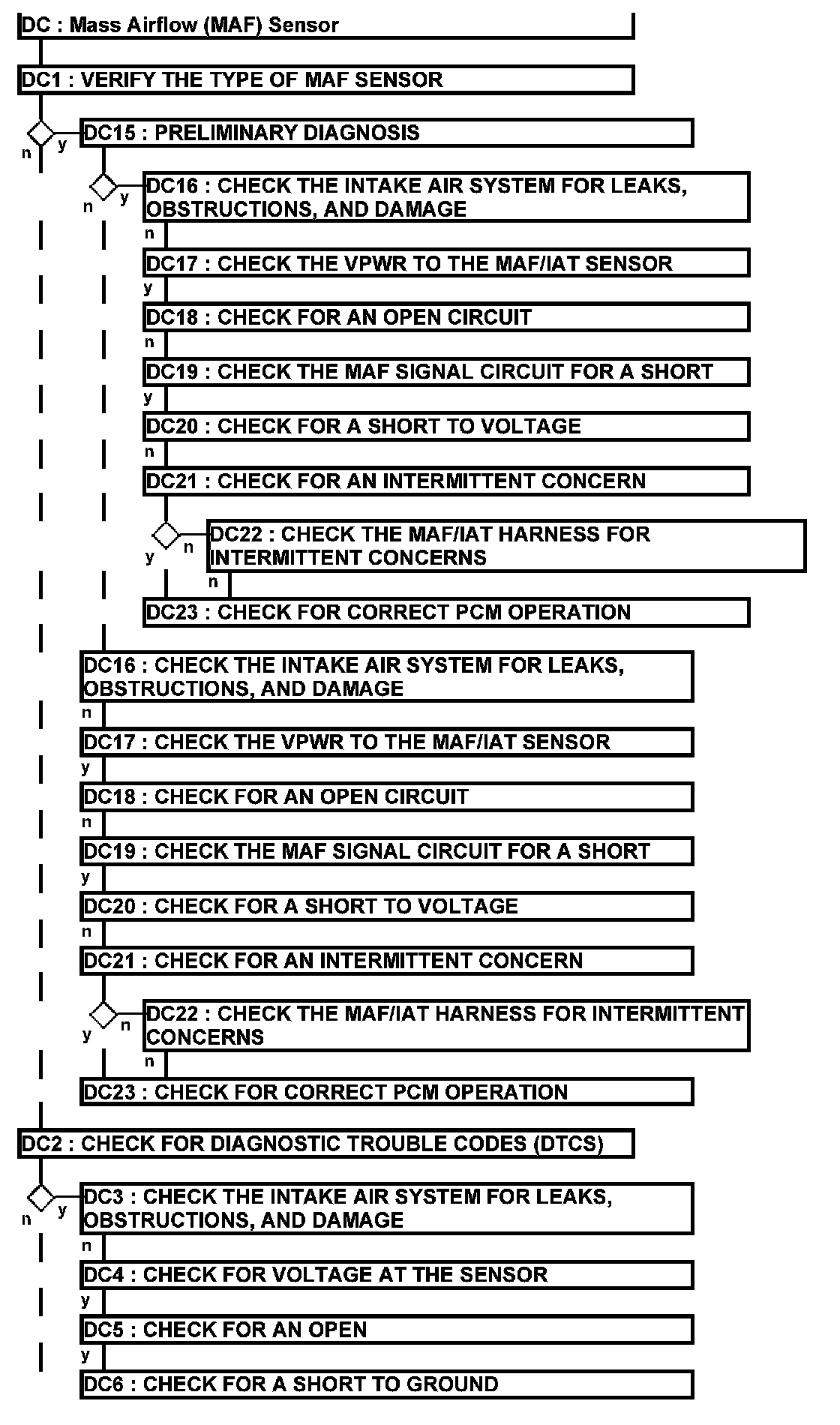

Test DC: Mass Airflow (MAF) Sensor
Mass Airflow (MAF) Sensor

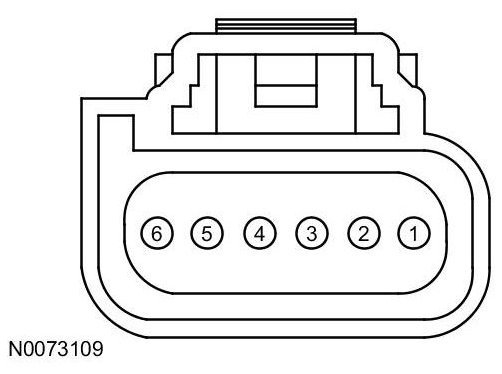

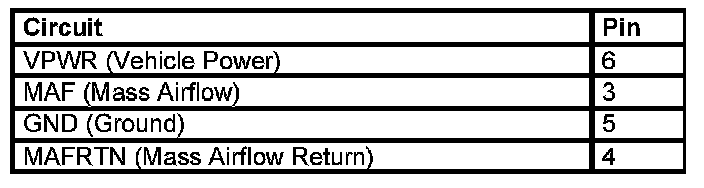

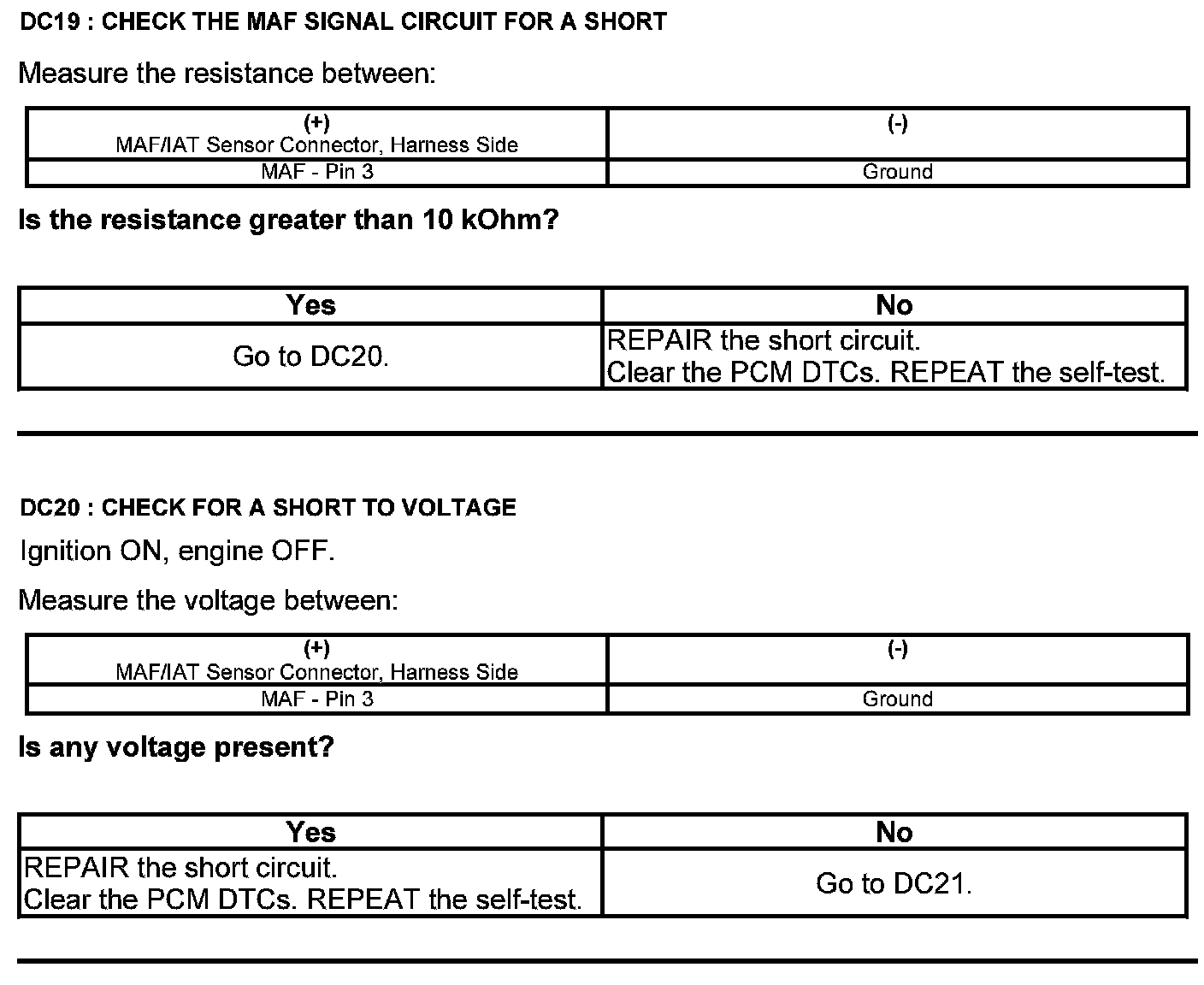

Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor Connector
Harness Side

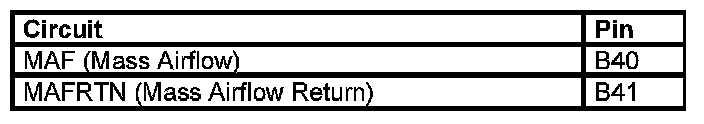

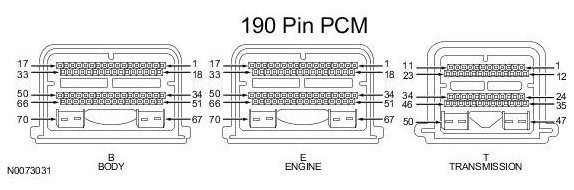

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
