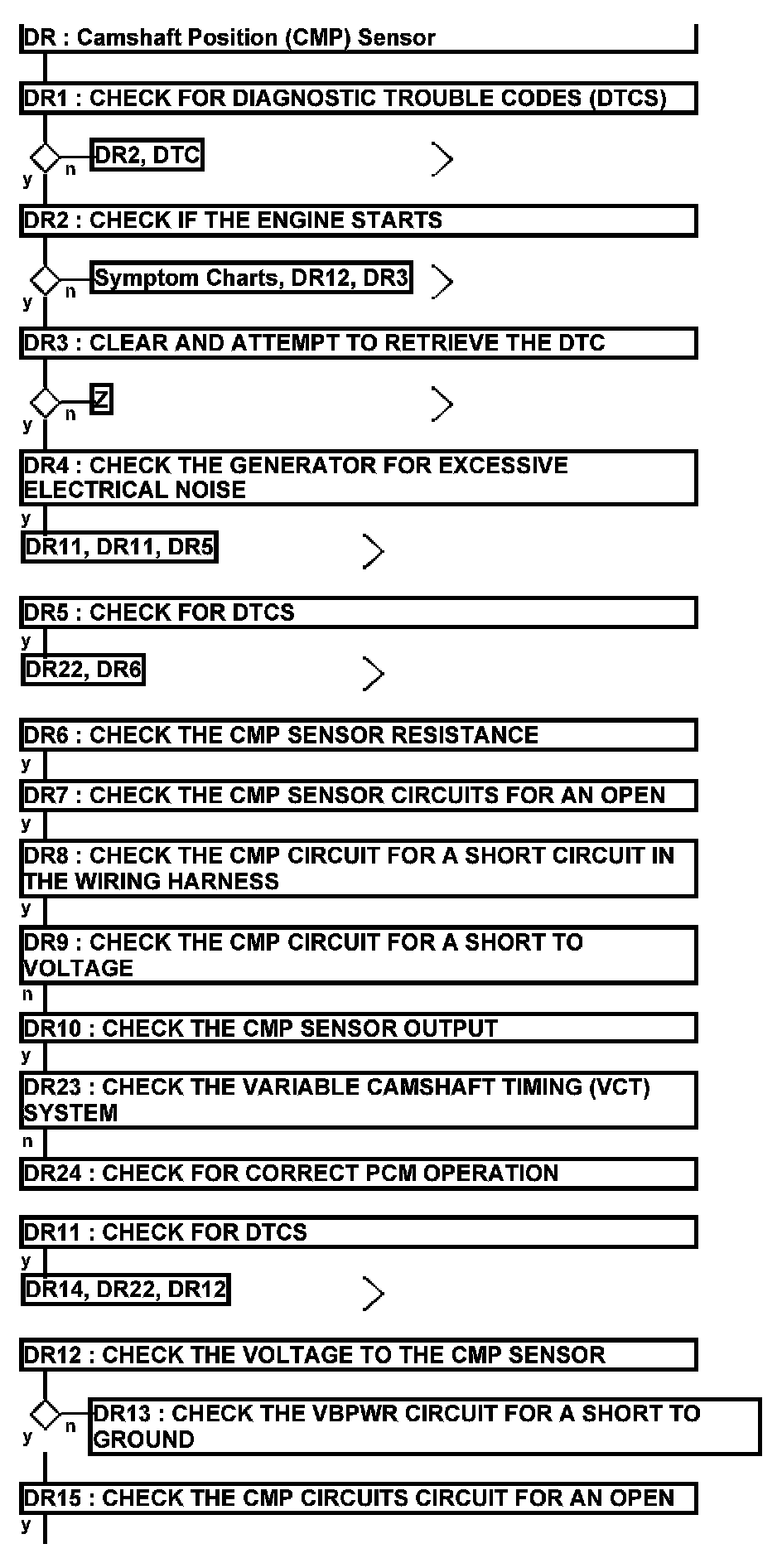

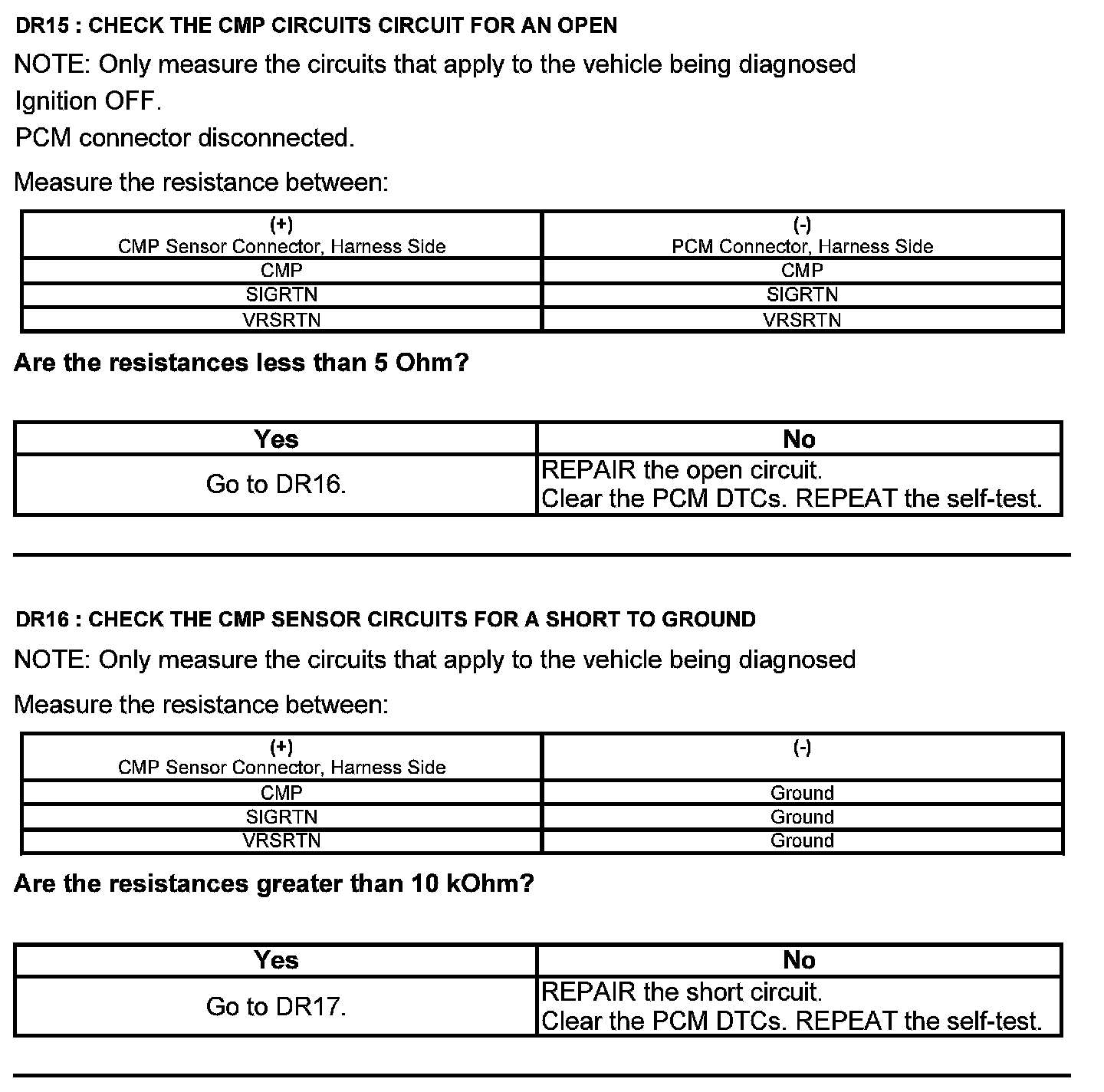

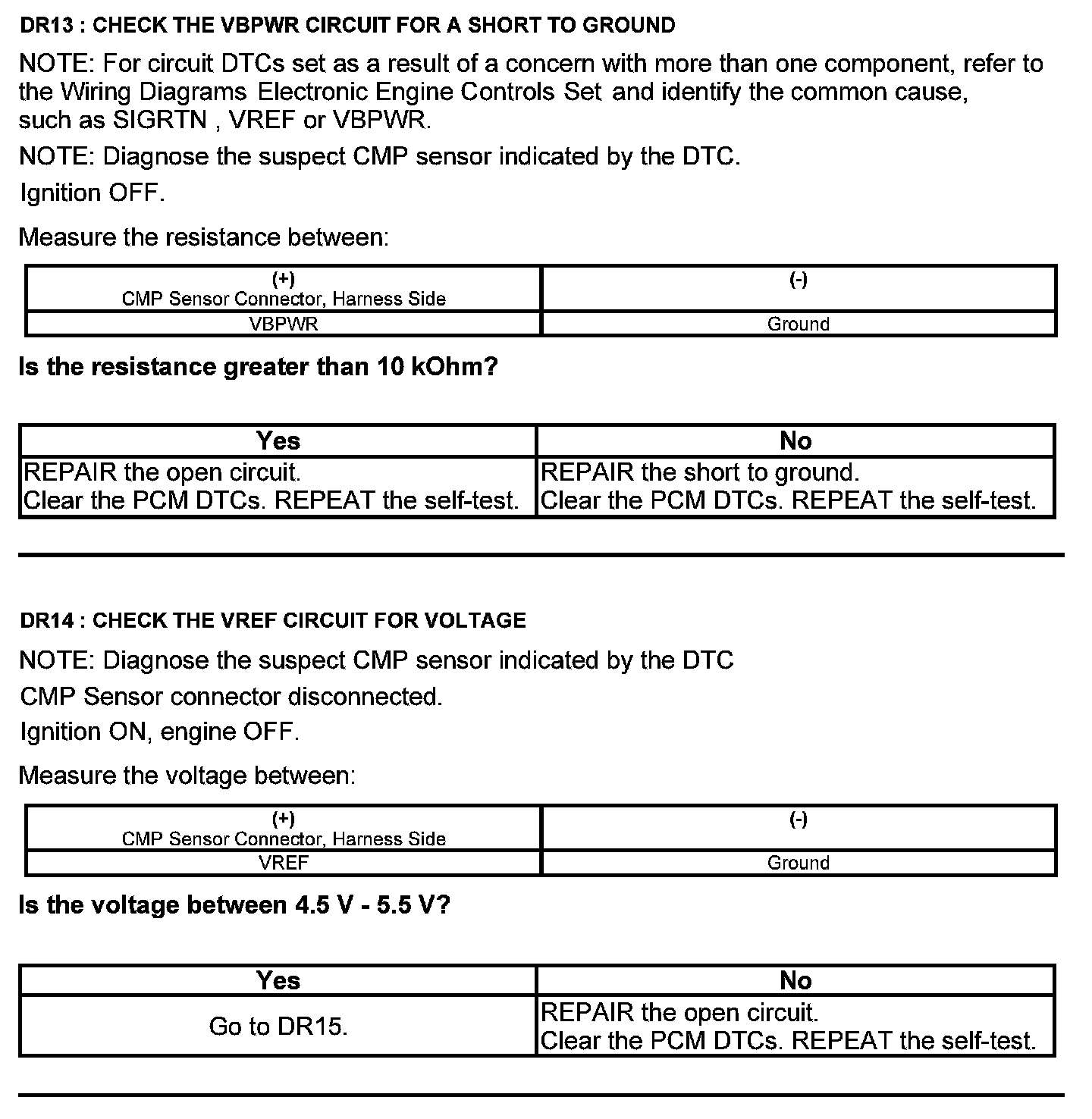

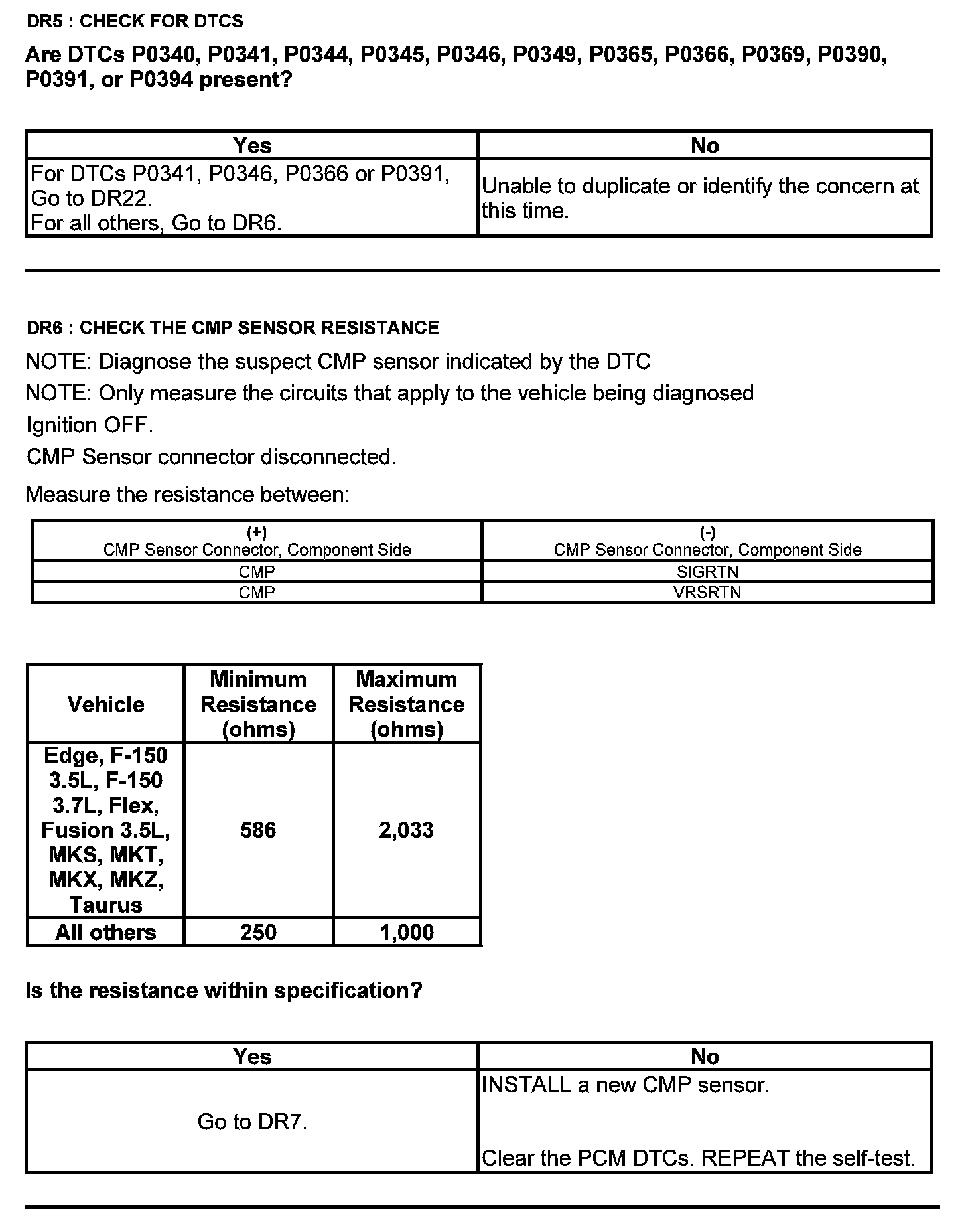

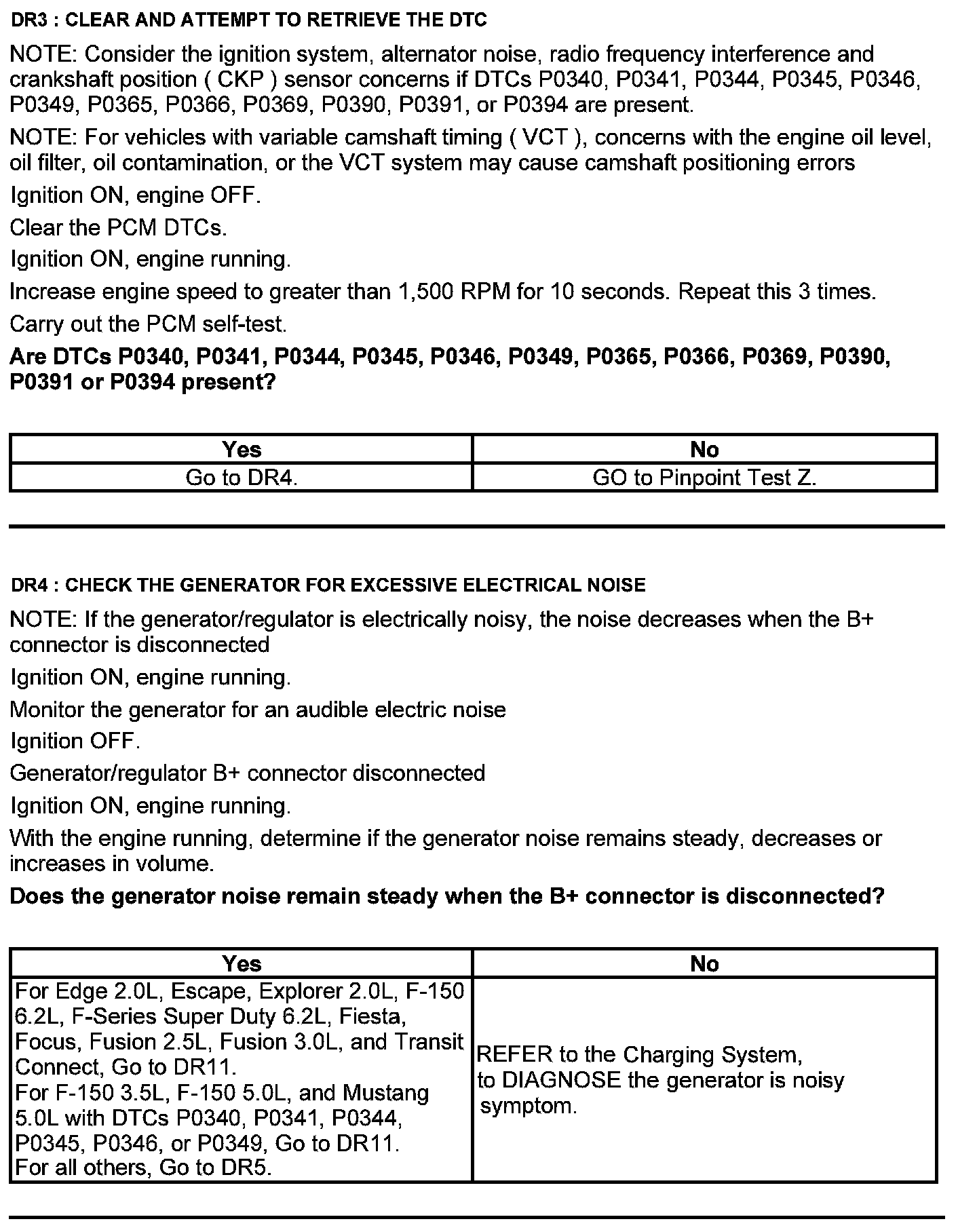

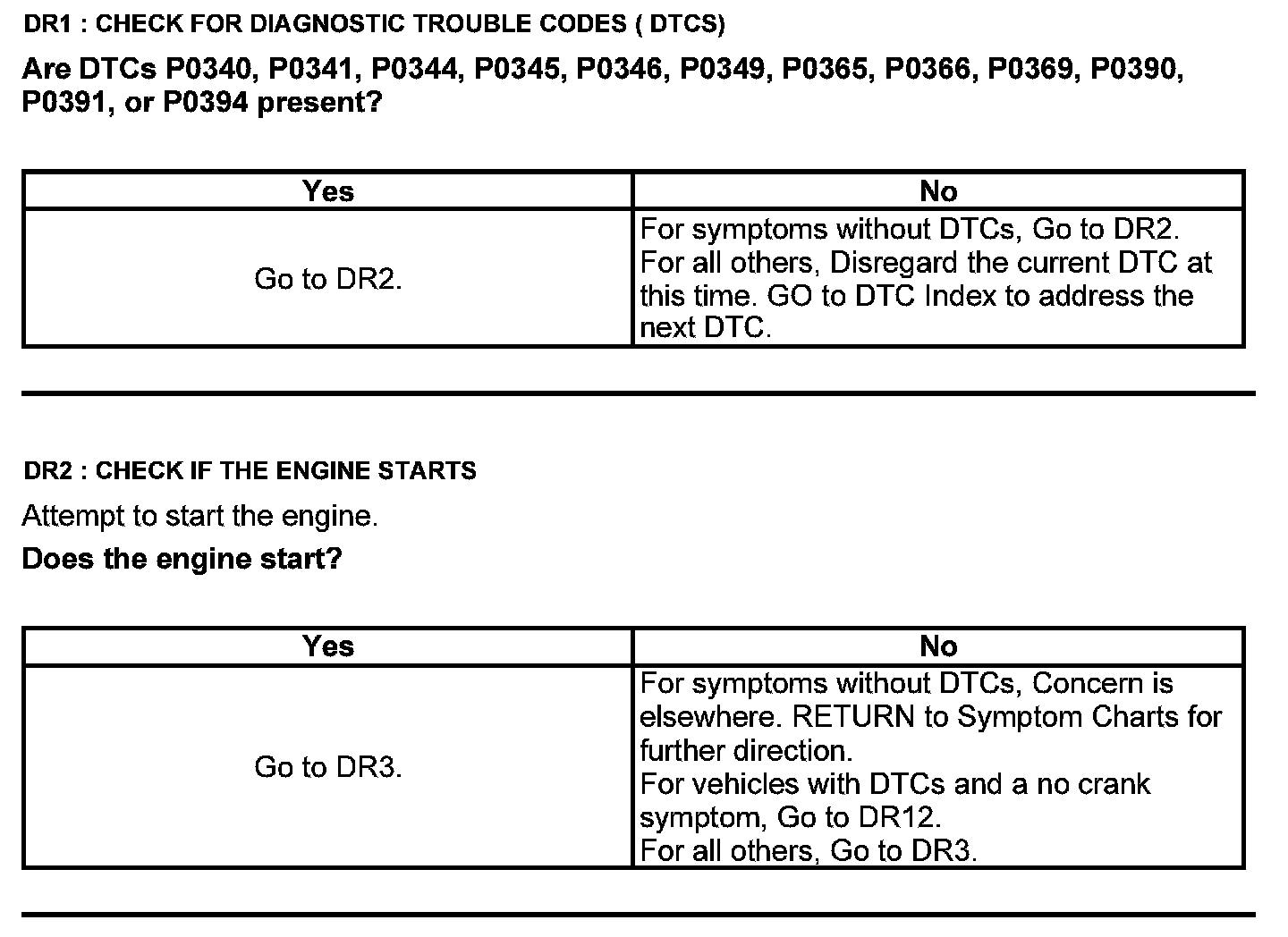

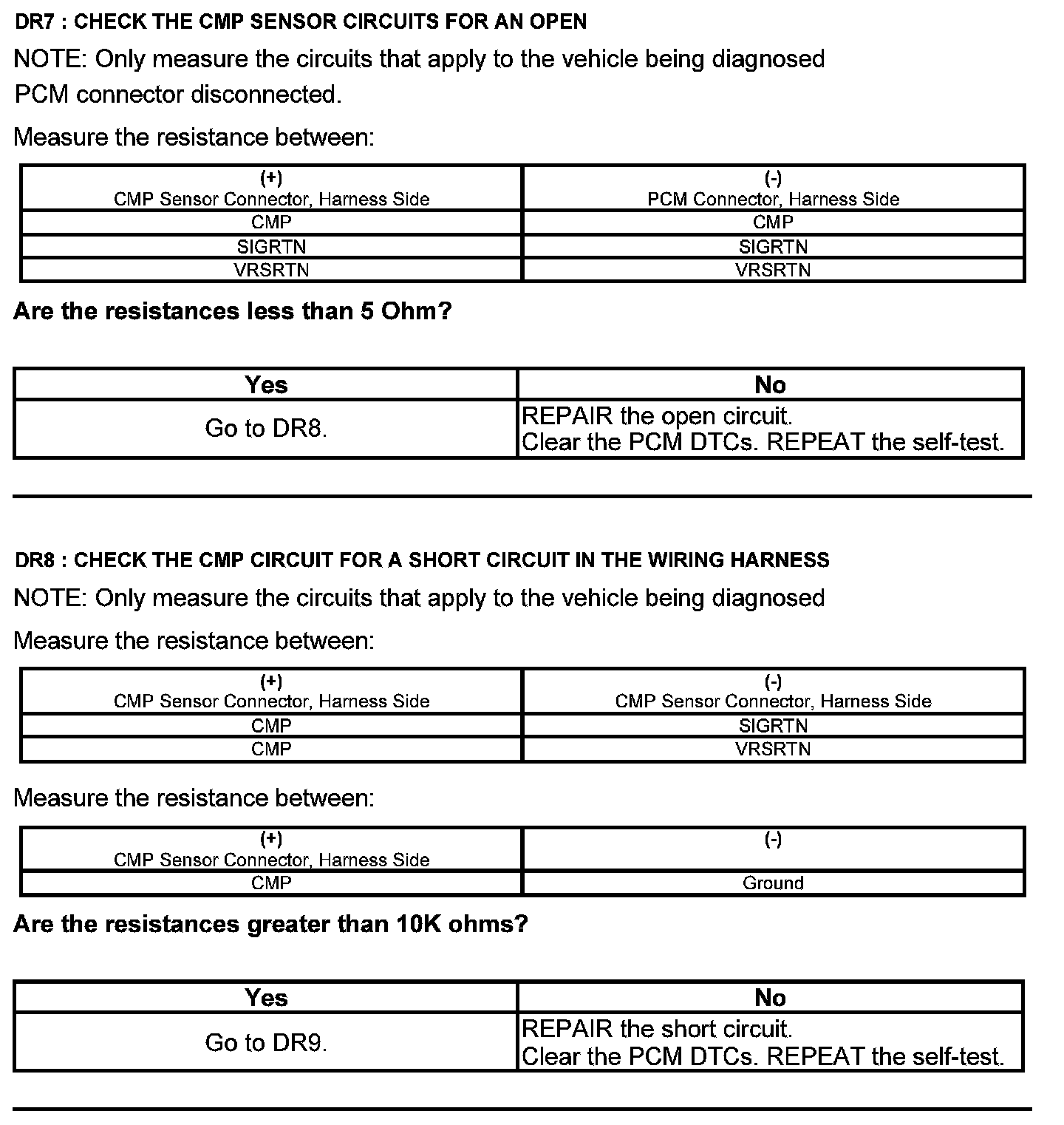

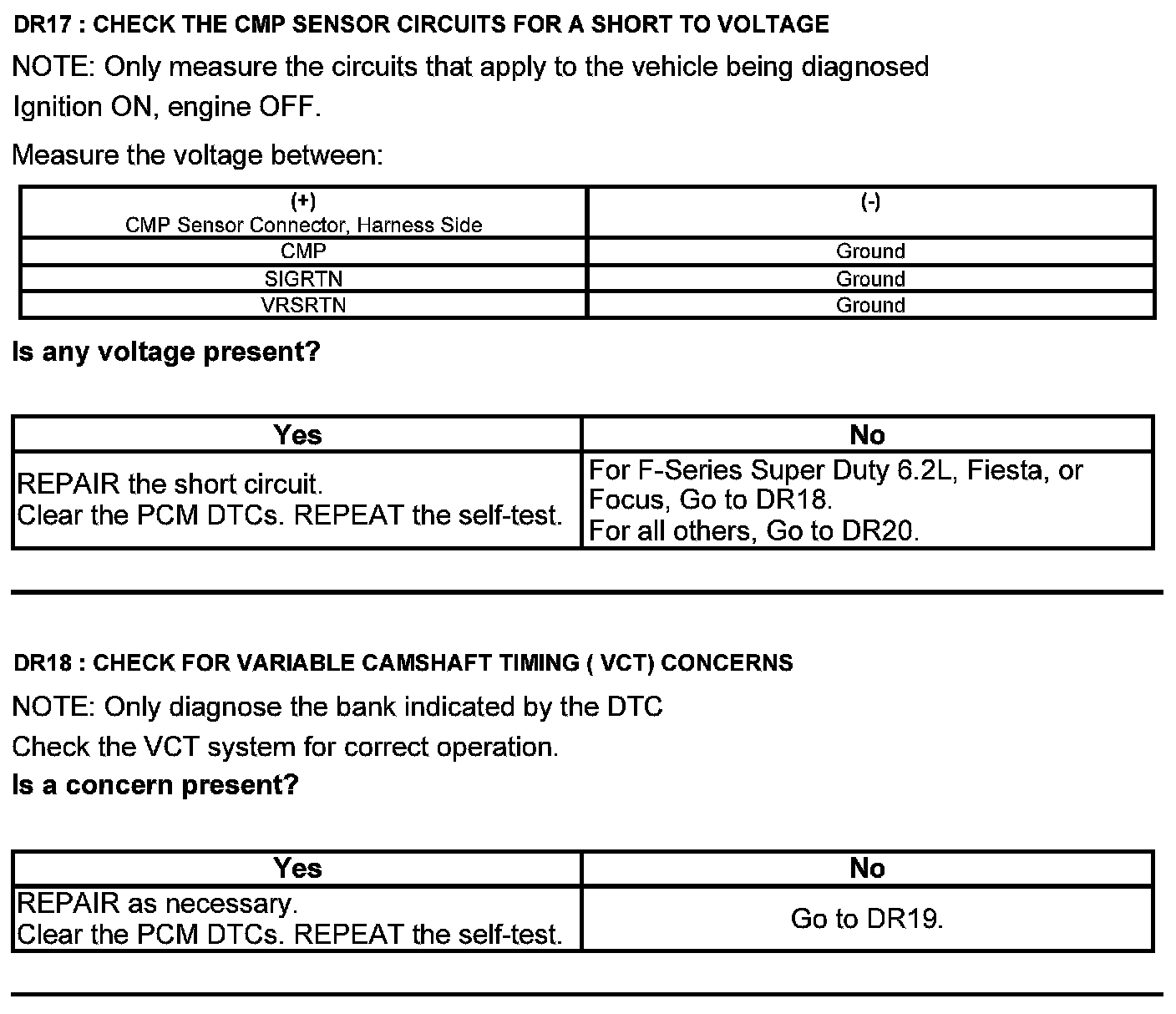

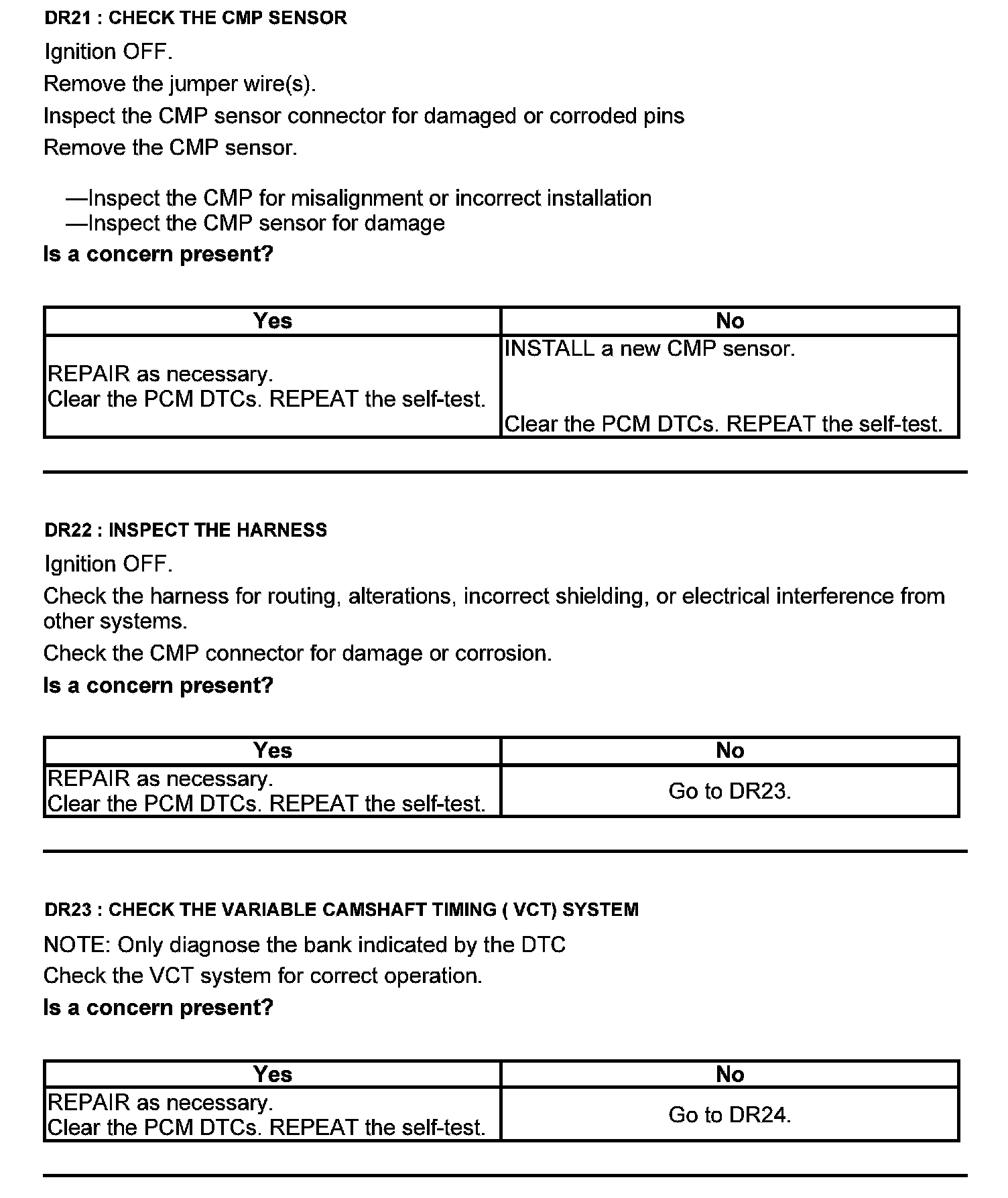

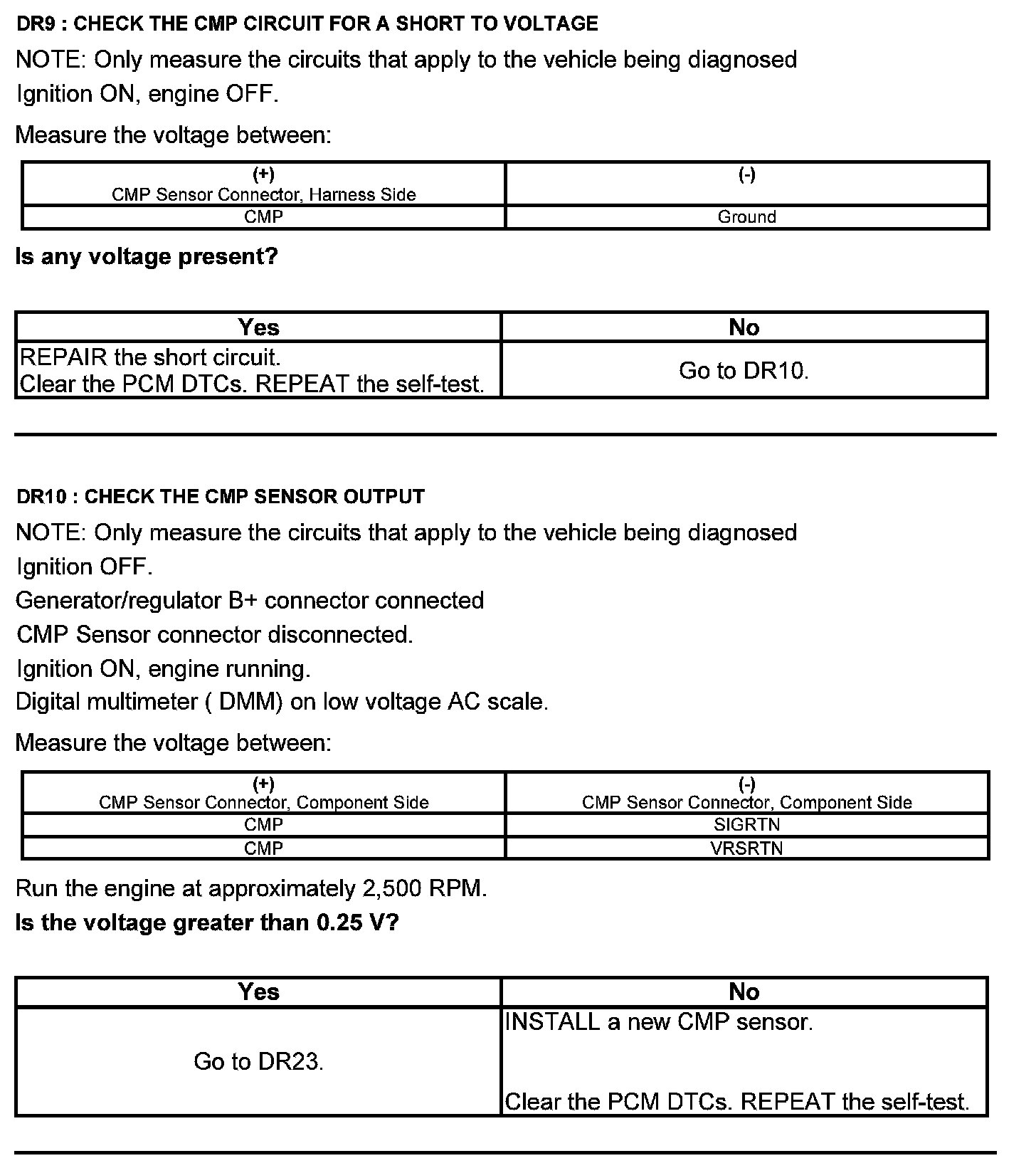

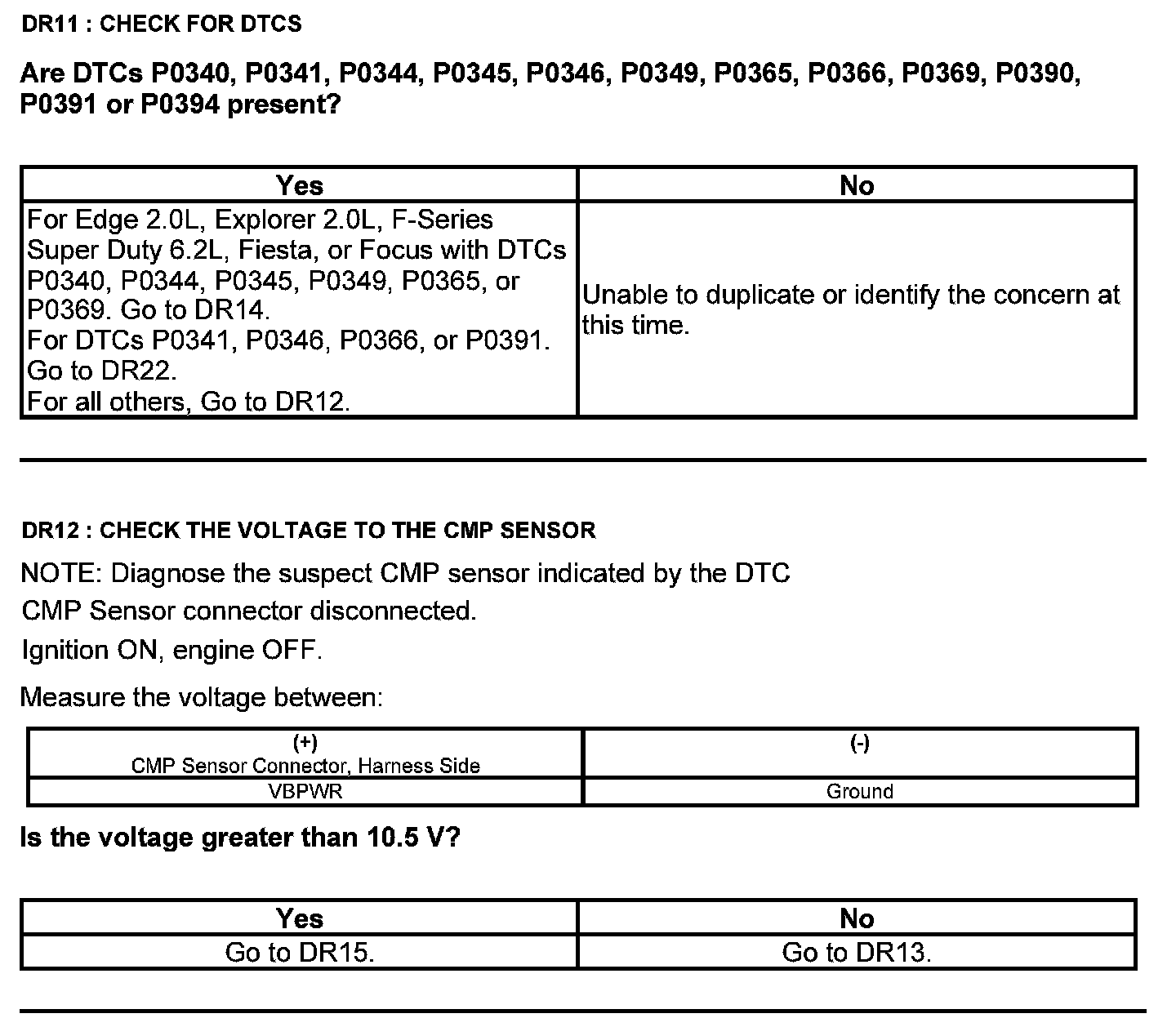

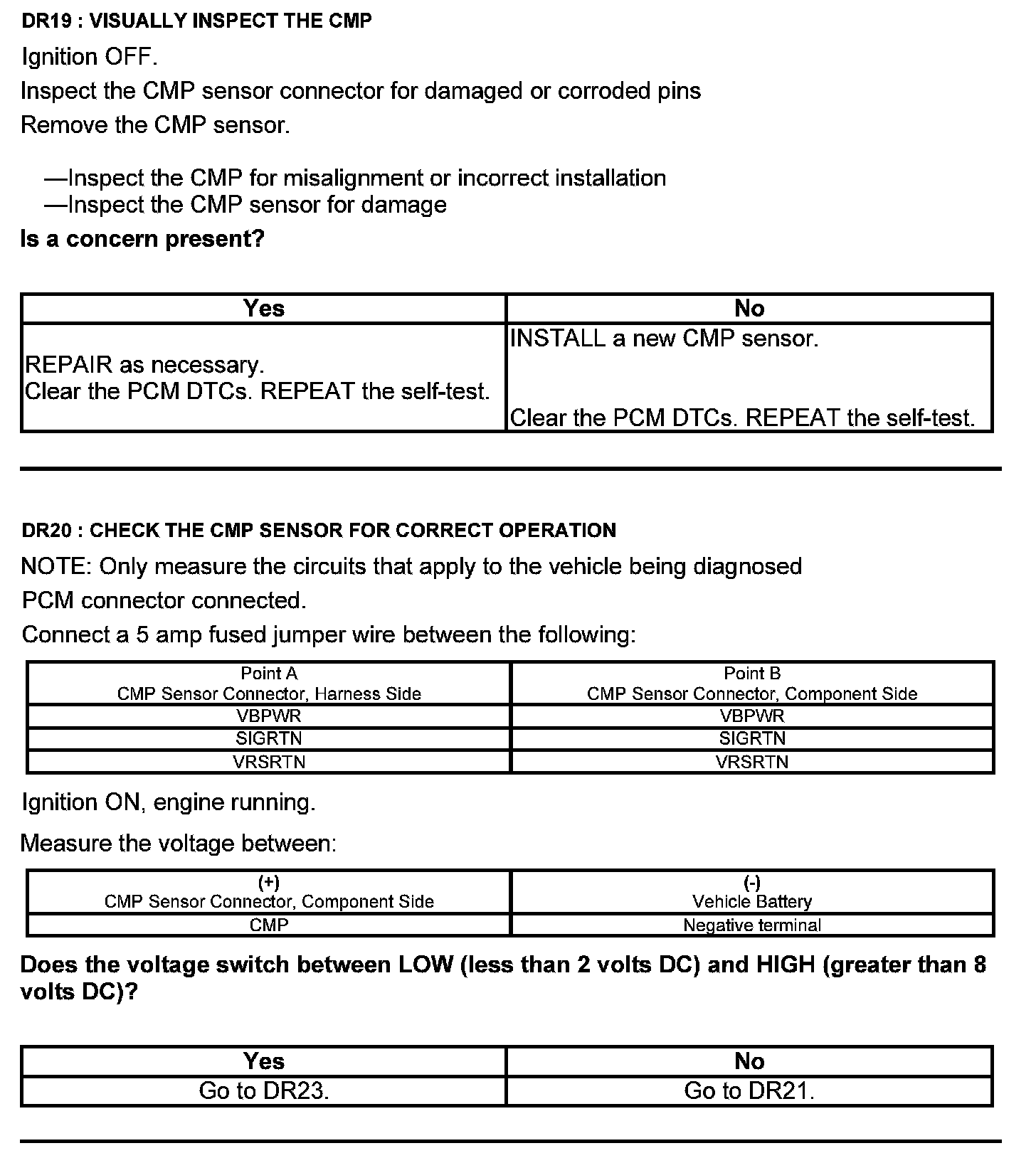

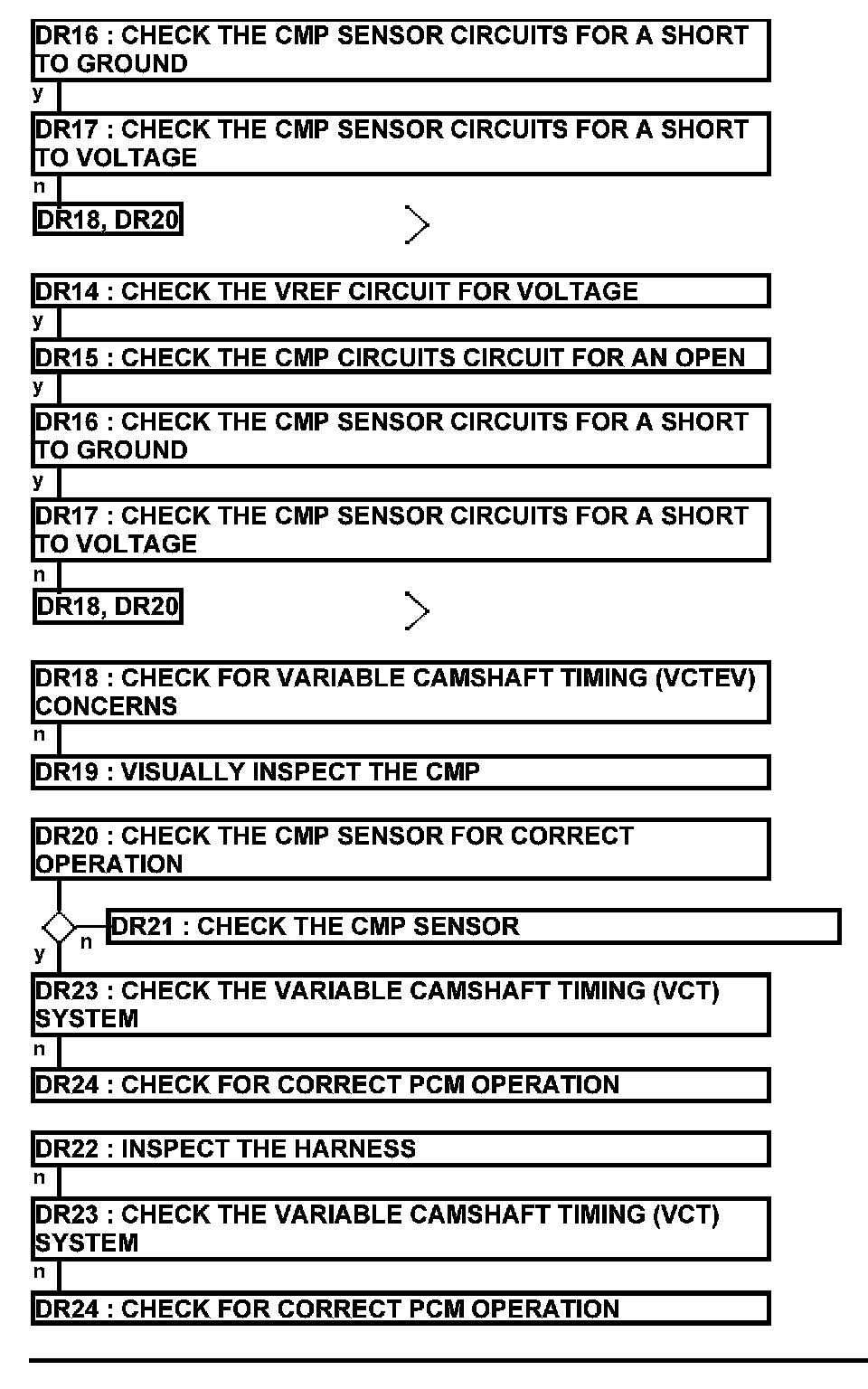

Test DR: Camshaft Position (CMP) Sensor

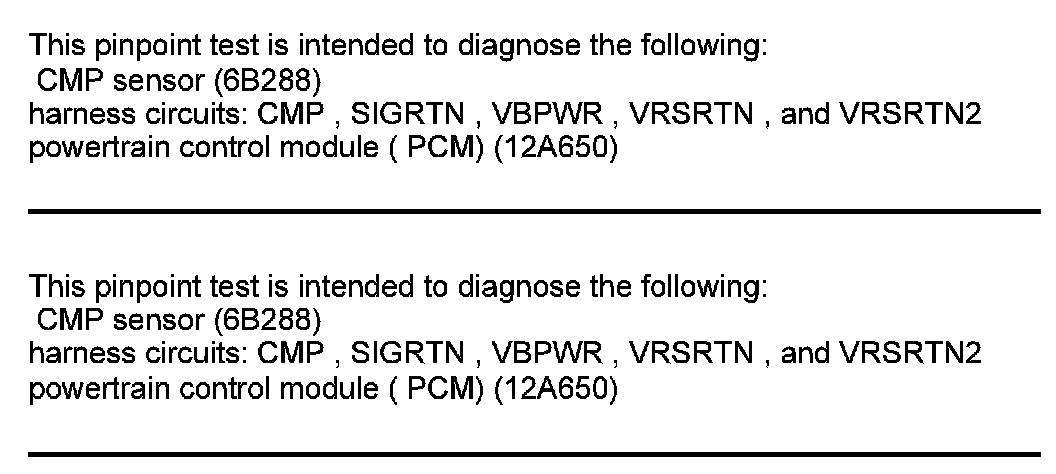

Camshaft Position (CMP) Sensor

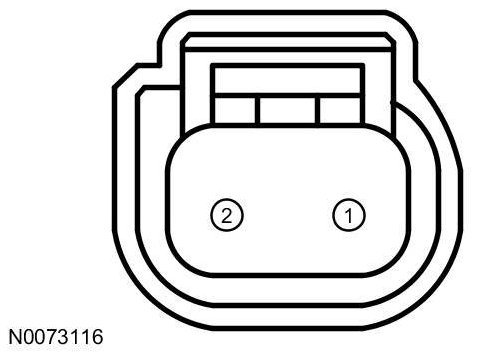

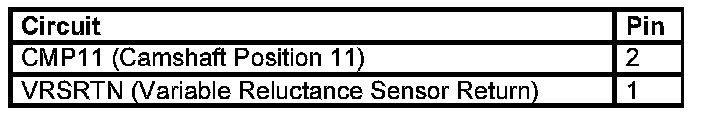

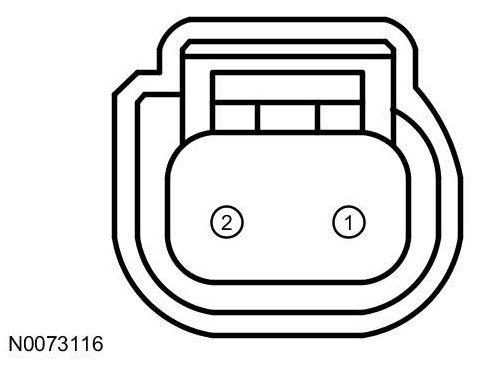

Camshaft Position 11 (CMP11) Sensor Connector






Harness Side

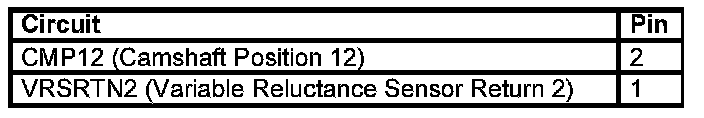

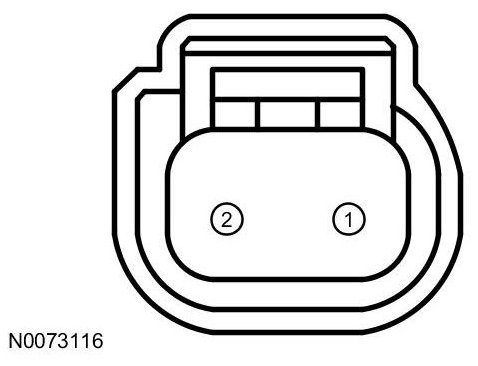

Camshaft Position 12 (CMP12) Sensor Connector






Harness Side

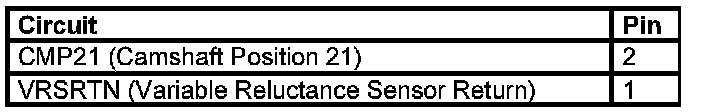

Camshaft Position 21 (CMP21) Sensor Connector






Harness Side

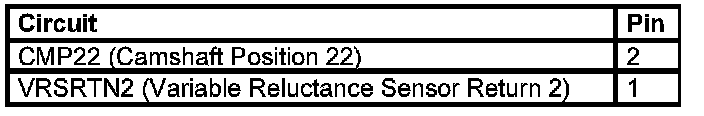

Camshaft Position 22 (CMP22) Sensor Connector






Harness Side

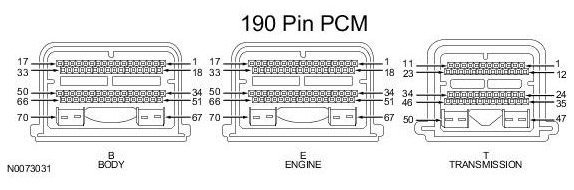

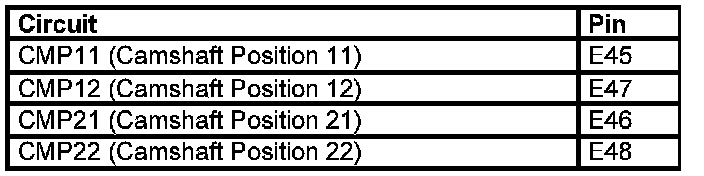

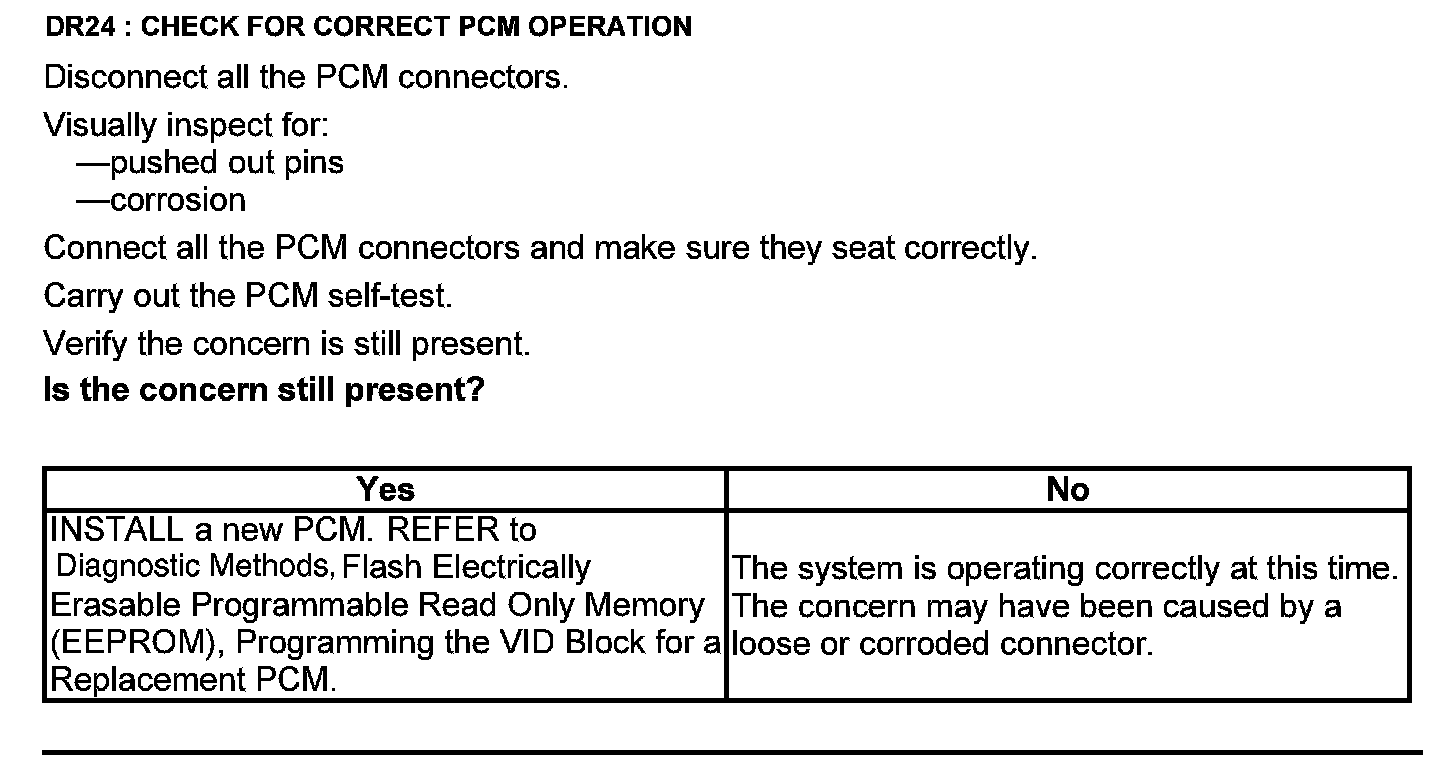

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference values.






Harness Side
