Ignition Coil-On-Plug

Ignition Coil-On-Plug





Removal and Installation

RH side

1. NOTE: The upper intake manifold must be removed to access the RH ignition coil-on-plugs.

Remove the upper intake manifold.

Both sides

2. Disconnect the 6 ignition coil-on-plug electrical connectors.

3. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
Remove the 6 bolts and the 6 ignition coil-on-plugs.

- To install, tighten to 7 Nm (62 lb-in).


4. Inspect the coil seals for rips, nicks or tears. Remove and discard any damaged coil seals.
- To install, slide the new coil seal onto the coil until it is fully seated at the top of the coil.






5. To install, reverse the removal procedure.

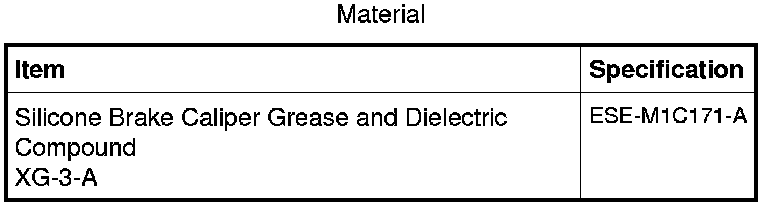

- Apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots before attaching to the spark plugs.
